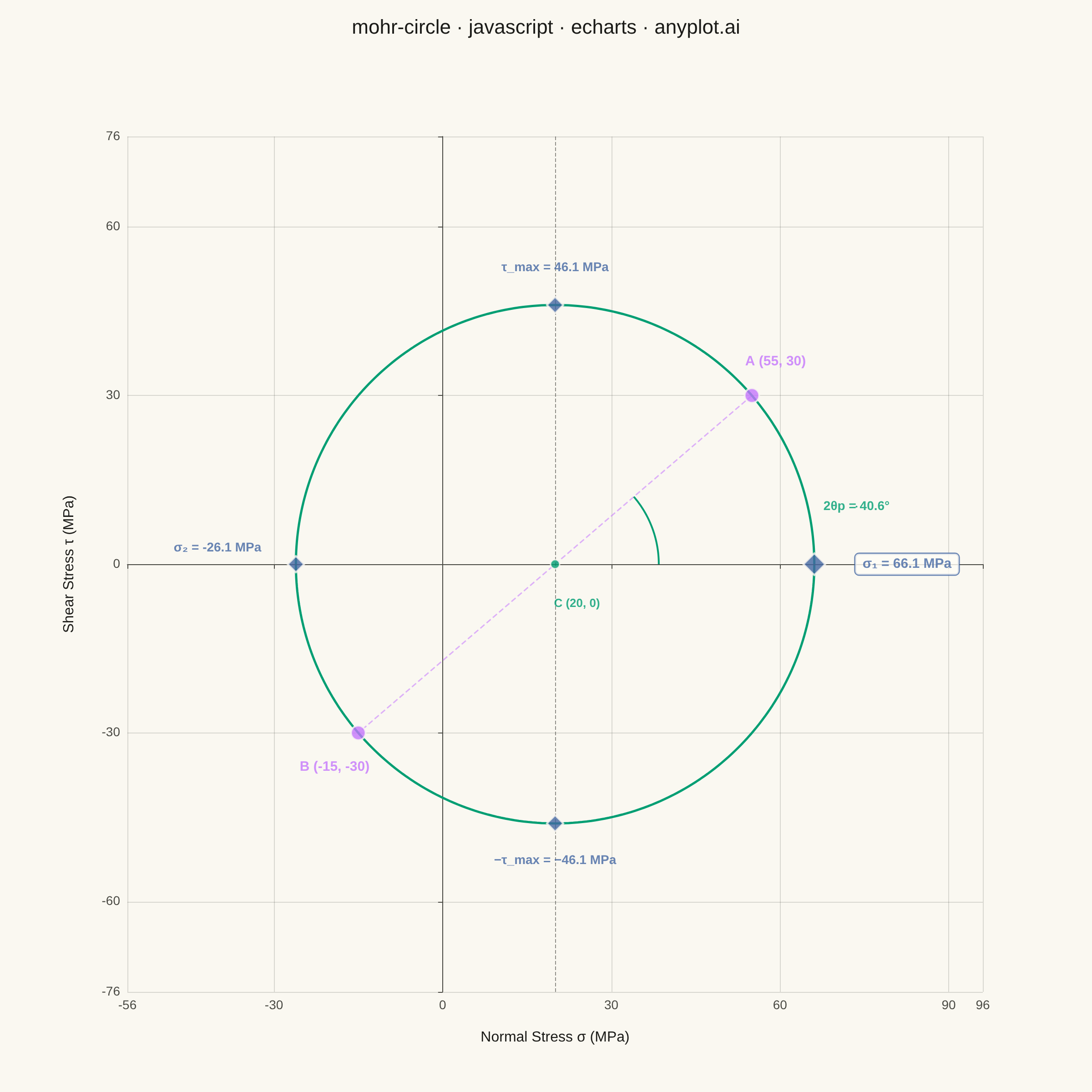

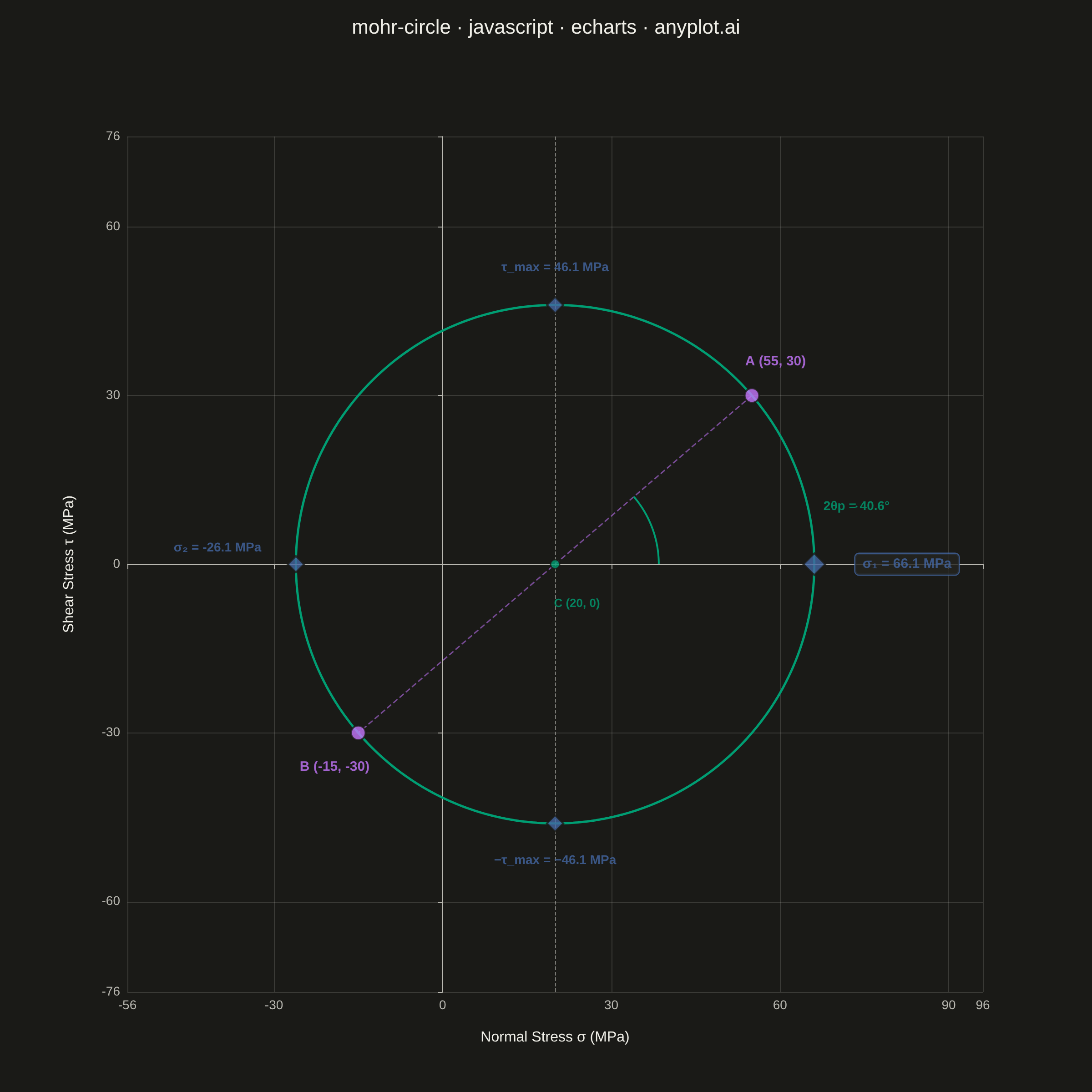

Mohr's Circle is a graphical method used to determine principal stresses, maximum shear stress, and stress transformations from a given 2D stress state. A circle is drawn on a normal stress (σ) vs. shear stress (τ) plane, with the center at ((σx + σy) / 2, 0) and a radius derived from the stress components. It is an essential tool in mechanical and civil engineering for visualizing how stress components change under coordinate rotation.
// anyplot.ai
// mohr-circle: Mohr's Circle for Stress Analysis
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-08-26
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
const { width: W, height: H } = window.ANYPLOT_SIZE;
// --- Data: bridge girder under combined bending + shear (MPa) ---------------
const sigmaX = 55;
const sigmaY = -15;
const tauXY = 30;
const center = (sigmaX + sigmaY) / 2;
const radius = Math.sqrt(((sigmaX - sigmaY) / 2) ** 2 + tauXY ** 2);
const sigma1 = center + radius;
const sigma2 = center - radius;
const tauMax = radius;
const theta2p = (Math.atan2(tauXY, sigmaX - center) * 180) / Math.PI;
// Mohr's circle outline (parametric)
const circlePoints = [];
for (let deg = 0; deg <= 360; deg++) {
const rad = (deg * Math.PI) / 180;
circlePoints.push([center + radius * Math.cos(rad), radius * Math.sin(rad)]);
}
// Principal-angle arc, from the reference points to the σ1 axis
const arcRadius = radius * 0.4;
const arcSteps = 40;
const arcPoints = [];
for (let i = 0; i <= arcSteps; i++) {
const deg = (theta2p * i) / arcSteps;
const rad = (deg * Math.PI) / 180;
arcPoints.push([center + arcRadius * Math.cos(rad), arcRadius * Math.sin(rad)]);
}
const arcMidRad = ((theta2p / 2) * Math.PI) / 180;
const arcLabelPos = [center + arcRadius * 3.1 * Math.cos(arcMidRad), arcRadius * 1.6 * Math.sin(arcMidRad)];
// Equal padding on both axes keeps the circle a true circle: the σ-span
// (2×radius) and τ-span (2×radius) are identical by construction, and the
// grid box below is forced square, so equal source-unit spans map 1:1.
const pad = radius * 0.65;
// Imprint palette — canonical ordinal assignment for Mohr's circle
const CLR_GEOM = t.palette[0]; // brand green — circle geometry, center, angle arc
const CLR_INPUT = t.palette[1]; // lavender — applied stress points A, B
const CLR_DERIVED = t.palette[2]; // blue — derived principal stresses / tau_max
// Square grid box centered in the mount so xAxis/yAxis spans render 1:1
const gridSide = Math.min(W, H) - 260;
const gridLeft = (W - gridSide) / 2 + 10;
const gridTop = (H - gridSide) / 2 + 20;
const chart = echarts.init(document.getElementById("container"));
chart.setOption({
animation: false,
backgroundColor: "transparent",
color: t.palette,
title: {
text: "mohr-circle · javascript · echarts · anyplot.ai",
left: "center",
textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
},
grid: { left: gridLeft, top: gridTop, width: gridSide, height: gridSide },
xAxis: {
type: "value",
name: "Normal Stress σ (MPa)",
nameLocation: "middle",
nameGap: 42,
nameTextStyle: { color: t.ink, fontSize: 16 },
min: sigma2 - pad,
max: sigma1 + pad,
axisLabel: { color: t.inkSoft, fontSize: 14, formatter: (v) => Math.round(v) },
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { show: true, lineStyle: { color: t.grid } },
},
yAxis: {
type: "value",
name: "Shear Stress τ (MPa)",
nameLocation: "middle",
nameGap: 56,
nameTextStyle: { color: t.ink, fontSize: 16 },
min: -tauMax - pad,
max: tauMax + pad,
axisLabel: { color: t.inkSoft, fontSize: 14, formatter: (v) => Math.round(v) },
axisLine: { lineStyle: { color: t.inkSoft } },
splitLine: { show: true, lineStyle: { color: t.grid } },
},
series: [
{
// Mohr's circle outline, plus the two reference lines through the center
type: "line",
data: circlePoints,
symbol: "none",
lineStyle: { color: CLR_GEOM, width: 2.5 },
z: 3,
markLine: {
symbol: "none",
silent: true,
label: { show: false },
data: [
{ yAxis: 0, lineStyle: { color: t.inkSoft, width: 1, type: "solid" } },
{ xAxis: center, lineStyle: { color: t.inkSoft, width: 1, type: "dashed", opacity: 0.6 } },
],
},
},
{
// Diameter line connecting stress points A and B
type: "line",
data: [
[sigmaX, tauXY],
[sigmaY, -tauXY],
],
symbol: "none",
lineStyle: { color: CLR_INPUT, width: 1.5, type: "dashed", opacity: 0.55 },
z: 2,
},
{
// Principal-plane angle arc 2θp
type: "line",
data: arcPoints,
symbol: "none",
lineStyle: { color: CLR_GEOM, width: 2 },
z: 4,
},
{
// Angle label, offset past the arc tip — symbol kept tiny rather than
// "none" because a "none" symbol also suppresses its data-item label
type: "scatter",
symbol: "circle",
symbolSize: 2,
itemStyle: { color: CLR_GEOM },
data: [
{
value: arcLabelPos,
label: {
show: true,
formatter: `2θp = ${theta2p.toFixed(1)}°`,
color: CLR_GEOM,
fontSize: 14,
fontWeight: "bold",
},
},
],
z: 4,
},
{
// Stress points A(σx, τxy) and B(σy, −τxy)
type: "scatter",
symbolSize: 16,
itemStyle: { color: CLR_INPUT, borderColor: t.pageBg, borderWidth: 2 },
data: [
{
value: [sigmaX, tauXY],
label: {
show: true,
formatter: `A (${sigmaX}, ${tauXY})`,
position: "top",
offset: [26, -16],
color: CLR_INPUT,
fontSize: 15,
fontWeight: "bold",
},
},
{
value: [sigmaY, -tauXY],
label: {
show: true,
formatter: `B (${sigmaY}, ${-tauXY})`,
position: "bottom",
offset: [-26, 16],
color: CLR_INPUT,
fontSize: 15,
fontWeight: "bold",
},
},
],
z: 5,
},
{
// Principal stresses σ1, σ2 — diamond markers for derived quantities
type: "scatter",
symbol: "diamond",
itemStyle: { color: CLR_DERIVED, borderColor: t.pageBg, borderWidth: 2 },
data: [
{
value: [sigma2, 0],
symbolSize: 18,
label: {
show: true,
formatter: `σ₂ = ${sigma2.toFixed(1)} MPa`,
position: "left",
distance: 28,
offset: [0, -18],
color: CLR_DERIVED,
fontSize: 14,
fontWeight: "bold",
},
},
{
// σ1 is the critical engineering result — emphasized with a larger marker + callout
value: [sigma1, 0],
symbolSize: 24,
label: {
show: true,
formatter: `σ₁ = ${sigma1.toFixed(1)} MPa`,
position: "right",
distance: 32,
color: CLR_DERIVED,
fontSize: 15,
fontWeight: "bold",
backgroundColor: t.elevatedBg,
borderColor: CLR_DERIVED,
borderWidth: 1.2,
borderRadius: 4,
padding: [4, 8],
},
},
],
z: 6,
},
{
// Maximum shear stress τ_max at top and bottom of the circle
type: "scatter",
symbol: "diamond",
symbolSize: 18,
itemStyle: { color: CLR_DERIVED, borderColor: t.pageBg, borderWidth: 2 },
data: [
{
value: [center, tauMax],
label: {
show: true,
formatter: `τ_max = ${tauMax.toFixed(1)} MPa`,
position: "top",
distance: 24,
color: CLR_DERIVED,
fontSize: 14,
fontWeight: "bold",
},
},
{
value: [center, -tauMax],
label: {
show: true,
formatter: `−τ_max = −${tauMax.toFixed(1)} MPa`,
position: "bottom",
distance: 24,
color: CLR_DERIVED,
fontSize: 14,
fontWeight: "bold",
},
},
],
z: 6,
},
{
// Circle center C
type: "scatter",
symbol: "circle",
symbolSize: 10,
itemStyle: { color: CLR_GEOM, borderColor: t.pageBg, borderWidth: 1.5 },
data: [
{
value: [center, 0],
label: {
show: true,
formatter: `C (${center.toFixed(0)}, 0)`,
position: "bottom",
offset: [24, 26],
color: CLR_GEOM,
fontSize: 13,
fontWeight: "bold",
},
},
],
z: 6,
},
],
});
Part of Mohr's Circle for Stress Analysis on anyplot.ai.
