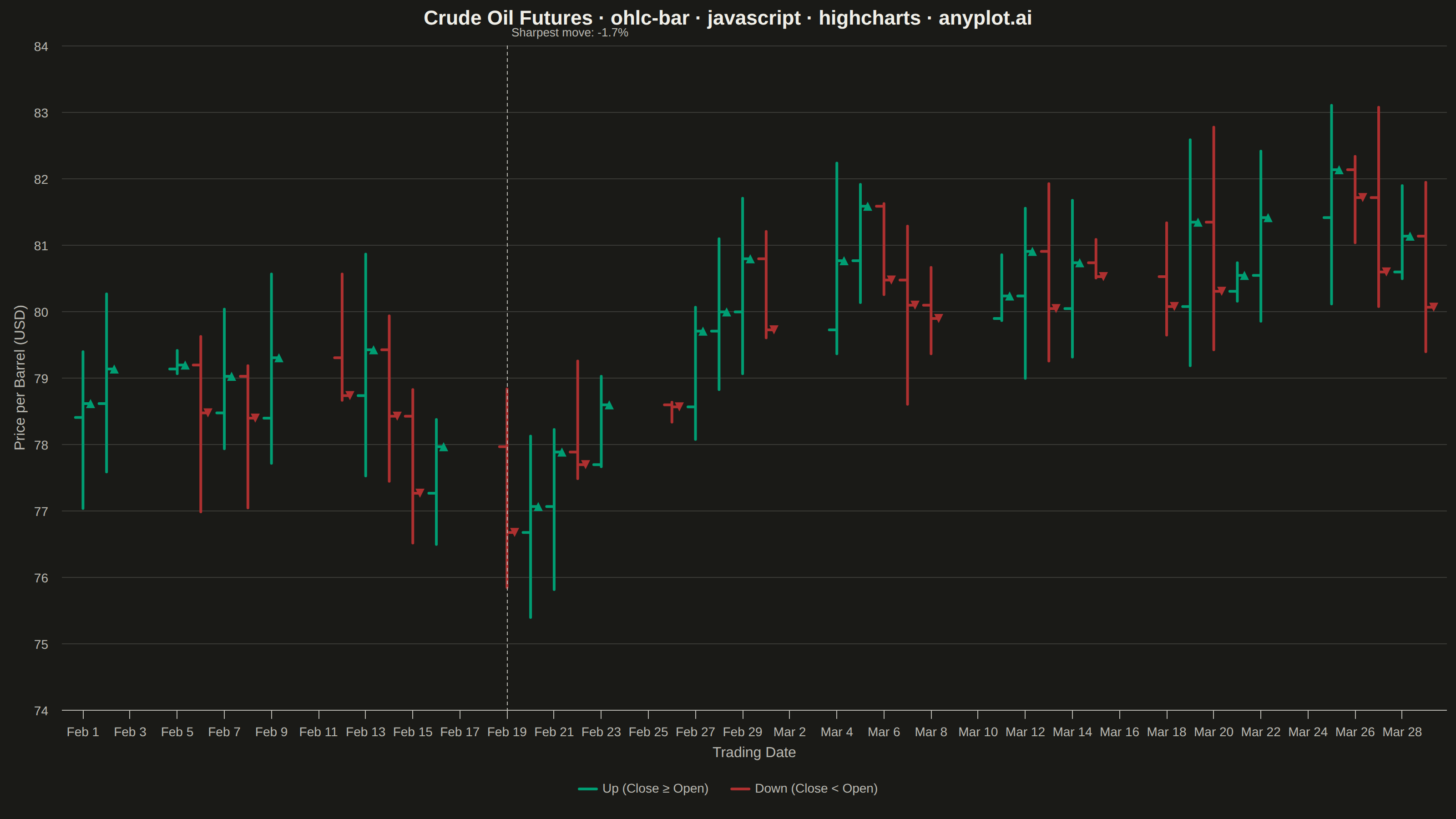

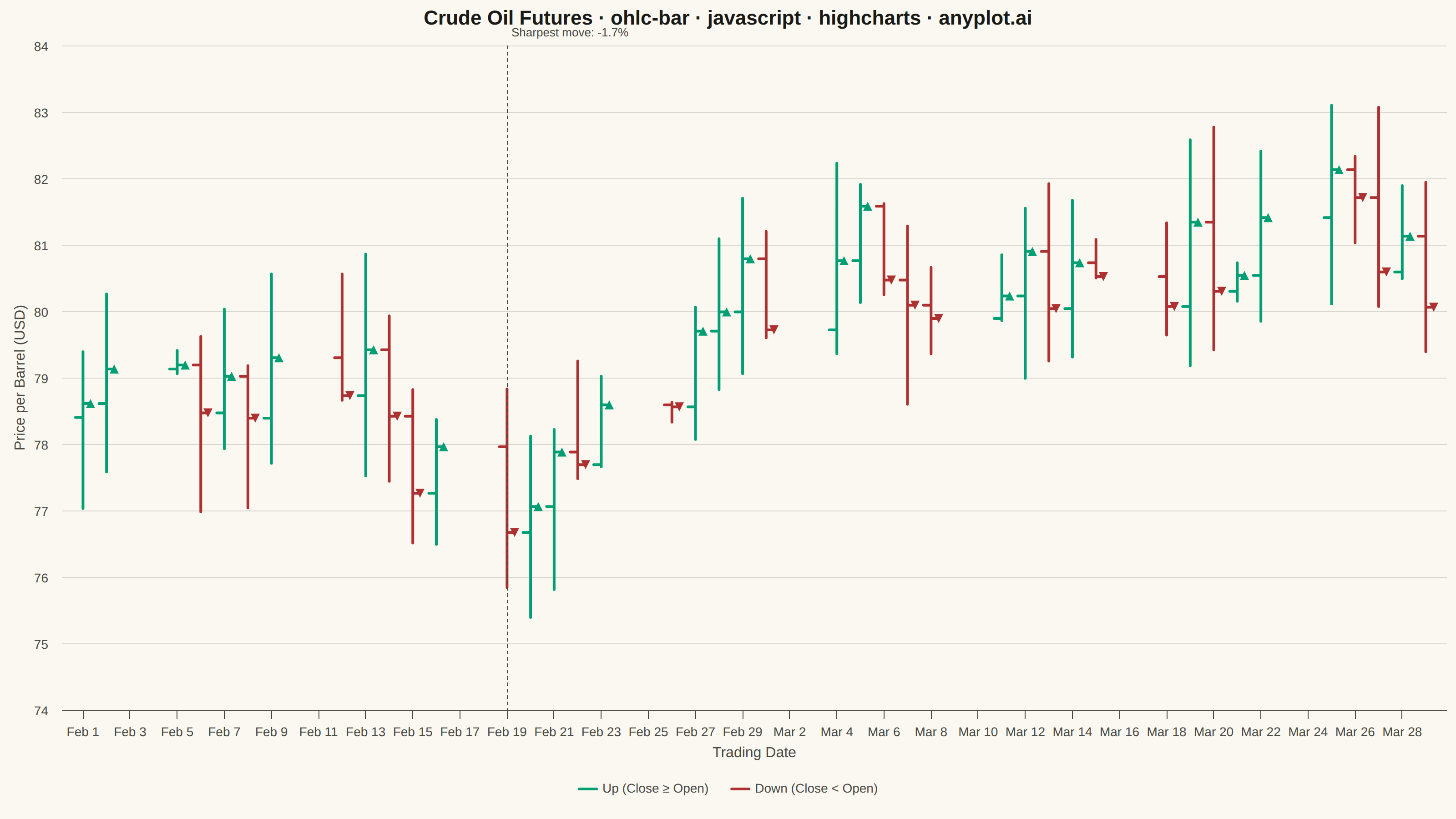

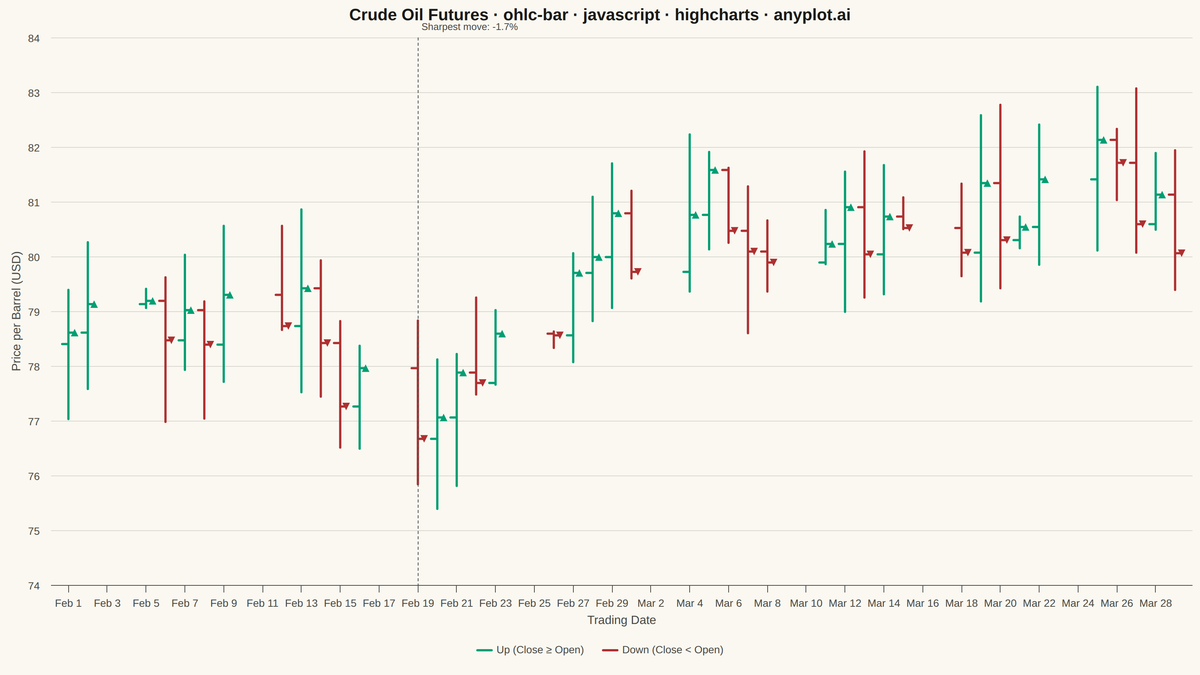

An OHLC (Open-High-Low-Close) bar chart displays financial price data using vertical bars with horizontal tick marks. Each bar shows the price range from high to low as a thin vertical line, with a left tick indicating the opening price and a right tick indicating the closing price. Unlike candlestick charts that use colored bodies, OHLC bars provide a cleaner, less cluttered view favored by technical analysts who prefer to focus on price levels rather than visual patterns.
// anyplot.ai
// ohlc-bar: OHLC Bar Chart
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 93/100 | Created: 2026-09-02
// The core bundle (no highcharts-more / modules/stock) has no "ohlc" series —
// that type ships in modules/ohlc.js / modules/stock.js, neither of which is
// loaded. Each bar is built from a "line" series with null-separated strokes
// (high-low range, left open tick, right close tick) drawn per point on a
// datetime x-axis — pure core series types, no add-on module, no
// cross-library workaround.
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic LCG) ------------------------------------
let seed = 42;
function lcg() {
seed = (seed * 1103515245 + 12345) & 0x7fffffff;
return seed / 0x7fffffff;
}
const upColor = t.palette[0]; // #009E73 brand green — bullish (profit/up)
const downColor = t.palette[4]; // #AE3030 matte red — bearish (loss/down), finance semantic anchor
const dayMs = 24 * 3600 * 1000;
const numDays = 42;
const dates = [];
let cursor = Date.UTC(2024, 1, 1); // Thu 1 Feb 2024
while (dates.length < numDays) {
const weekday = new Date(cursor).getUTCDay();
if (weekday !== 0 && weekday !== 6) dates.push(cursor);
cursor += dayMs;
}
let price = 78.4; // WTI crude oil, USD per barrel
const bars = dates.map((time) => {
const open = price;
const drift = (lcg() - 0.5) * 2.6;
const close = Math.max(20, open + drift);
const high = Math.max(open, close) + lcg() * 1.5;
const low = Math.max(10, Math.min(open, close) - lcg() * 1.5);
price = close;
return {
time,
open: +open.toFixed(2),
high: +high.toFixed(2),
low: +low.toFixed(2),
close: +close.toFixed(2),
bullish: close >= open,
};
});
const allLows = bars.map((b) => b.low);
const allHighs = bars.map((b) => b.high);
const pad = (Math.max(...allHighs) - Math.min(...allLows)) * 0.08;
const yMin = Math.floor(Math.min(...allLows) - pad);
const yMax = Math.ceil(Math.max(...allHighs) + pad);
// The sharpest single-day move becomes the data-storytelling focal point
// (a dashed xAxis.plotLine + label — core-bundle, no annotations module).
let sharpest = bars[0];
for (const b of bars) {
if (Math.abs(b.close - b.open) > Math.abs(sharpest.close - sharpest.open)) sharpest = b;
}
const sharpestPct = ((sharpest.close - sharpest.open) / sharpest.open) * 100;
// Each bar draws 3 strokes: the high-low range, a left tick at open, a right
// tick at close — separated by null points so Highcharts breaks the line.
// The close tick also carries a triangle marker (▲ up / ▼ down) so direction
// reads from shape, not solely from the red/green hue.
const tickOffset = dayMs * 0.32;
function barStrokes(bar) {
const left = bar.time - tickOffset;
const mid = bar.time;
const right = bar.time + tickOffset;
const color = bar.bullish ? upColor : downColor;
return [
{ x: mid, y: bar.low, custom: bar },
{ x: mid, y: bar.high, custom: bar },
{ x: mid, y: null },
{ x: left, y: bar.open, custom: bar },
{ x: mid, y: bar.open, custom: bar },
{ x: mid, y: null },
{ x: mid, y: bar.close, custom: bar },
{
x: right,
y: bar.close,
custom: bar,
marker: {
enabled: true,
symbol: bar.bullish ? "triangle" : "triangle-down",
radius: 5,
fillColor: color,
lineWidth: 0,
},
},
{ x: mid, y: null },
];
}
const upData = bars.filter((b) => b.bullish).flatMap(barStrokes);
const downData = bars.filter((b) => !b.bullish).flatMap(barStrokes);
// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "line",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
colors: t.palette,
title: {
text: "Crude Oil Futures · ohlc-bar · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
xAxis: {
type: "datetime",
lineColor: t.inkSoft,
tickColor: t.inkSoft,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
title: { text: "Trading Date", style: { color: t.inkSoft, fontSize: "16px" } },
crosshair: { width: 1, color: t.inkSoft, dashStyle: "ShortDot" },
plotLines: [
{
value: sharpest.time,
color: t.inkSoft,
dashStyle: "Dash",
width: 1,
zIndex: 5,
label: {
text: `Sharpest move: ${sharpestPct >= 0 ? "+" : ""}${sharpestPct.toFixed(1)}%`,
style: { color: t.inkSoft, fontSize: "13px" },
rotation: 0,
y: -10,
},
},
],
},
yAxis: {
min: yMin,
max: yMax,
title: { text: "Price per Barrel (USD)", style: { color: t.inkSoft, fontSize: "16px" } },
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
},
legend: {
enabled: true,
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
symbolWidth: 22,
itemDistance: 24,
padding: 12,
},
tooltip: {
outside: false,
formatter: function () {
const c = this.point.custom;
if (!c) return false;
return (
`<b>${Highcharts.dateFormat("%b %e, %Y", c.time)}</b><br/>` +
`Open: $${c.open.toFixed(2)}<br/>High: $${c.high.toFixed(2)}<br/>` +
`Low: $${c.low.toFixed(2)}<br/>Close: $${c.close.toFixed(2)}`
);
},
},
plotOptions: {
series: { animation: false, marker: { enabled: false }, lineWidth: 3 },
},
series: [
{
name: "Up (Close ≥ Open)",
data: upData,
color: upColor,
showInLegend: true,
},
{
name: "Down (Close < Open)",
data: downData,
color: downColor,
showInLegend: true,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/ohlc-bar/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
