OHLC Bar Chart — Plotly

An OHLC (Open-High-Low-Close) bar chart displays financial price data using vertical bars with horizontal tick marks. Each bar shows the price range from high to low as a thin vertical line, with a left tick indicating the opening price and a right tick indicating the closing price. Unlike candlestick charts that use colored bodies, OHLC bars provide a cleaner, less cluttered view favored by technical analysts who prefer to focus on price levels rather than visual patterns.

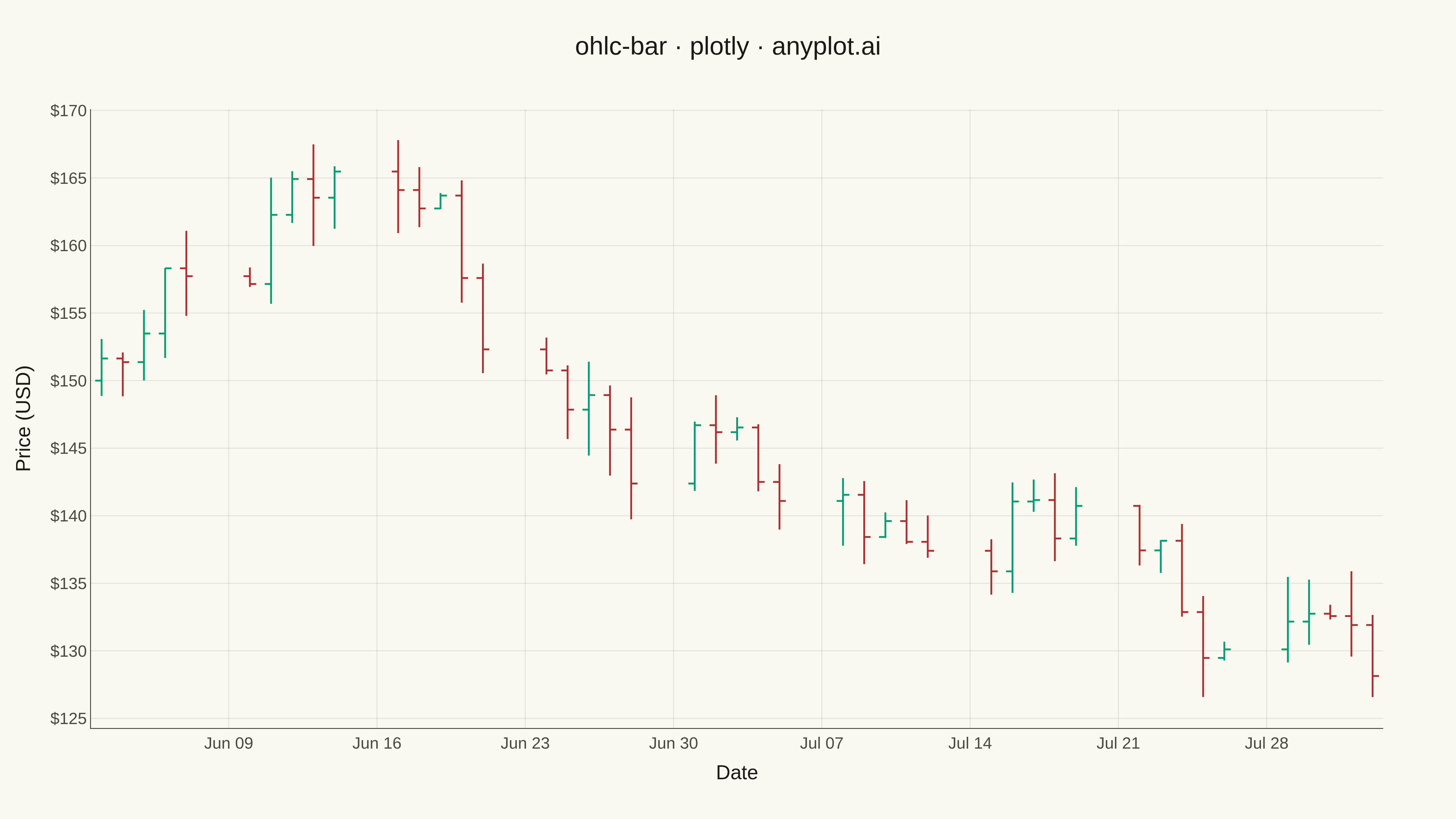

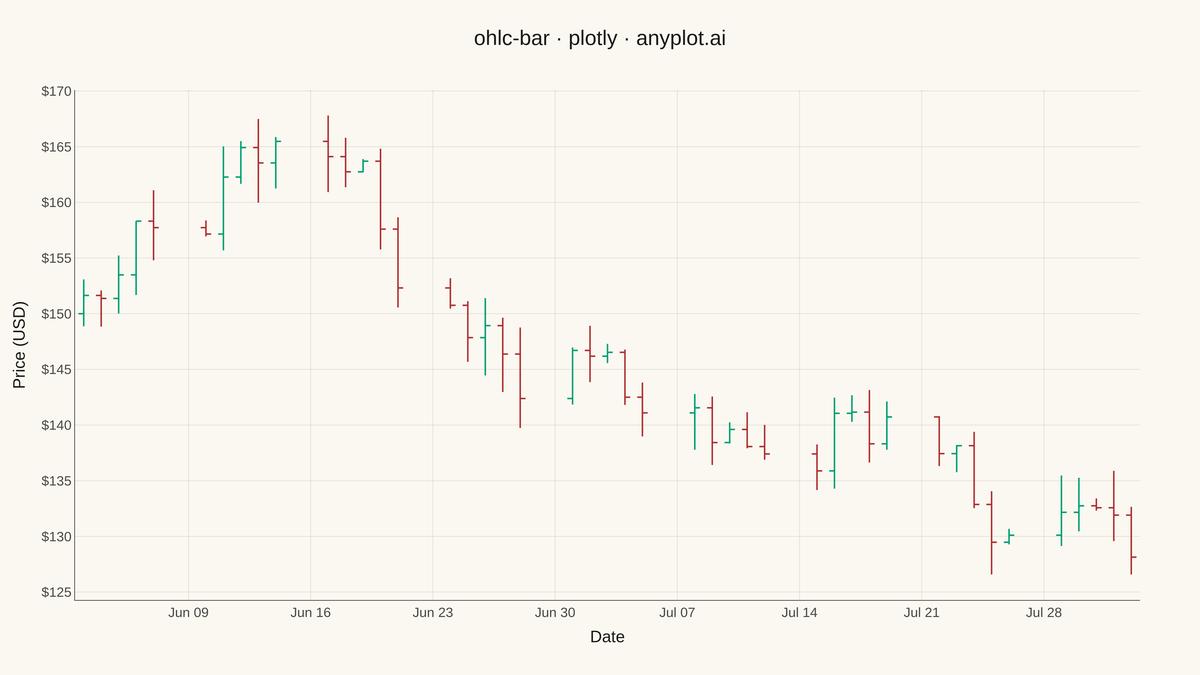

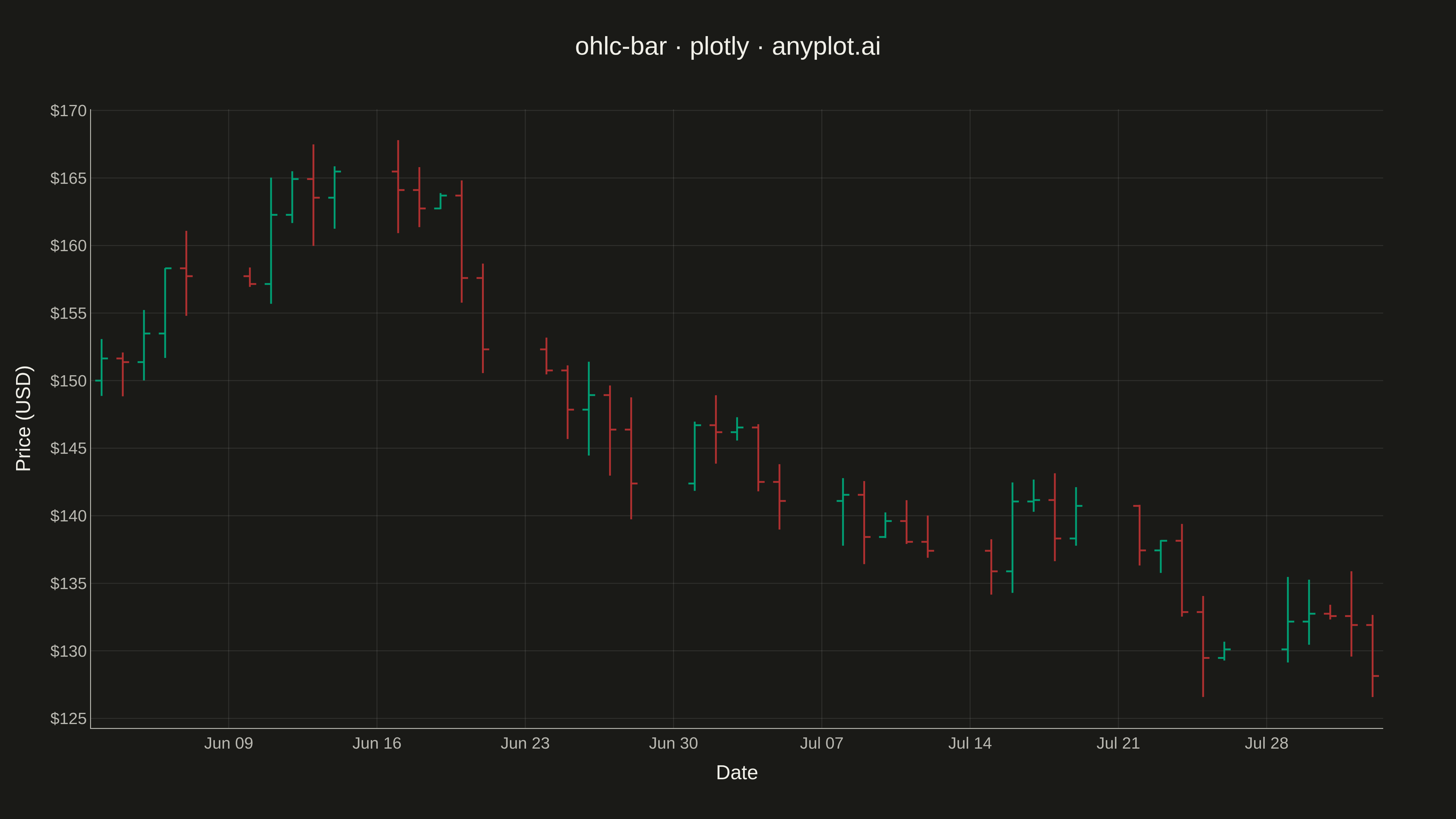

OHLC Bar Chart rendered with Plotly

Renders

Python source (Plotly)

""" anyplot.ai
ohlc-bar: OHLC Bar Chart
Library: plotly 6.7.0 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-17
"""

import os
import sys


# Remove current directory from path to avoid naming conflicts
sys.path = [p for p in sys.path if p not in ("", ".", os.path.dirname(__file__))]

import numpy as np
import pandas as pd
import plotly.graph_objects as go


# Theme tokens (see prompts/default-style-guide.md)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"

# Okabe-Ito palette for up/down coloring
BRAND = "#009E73"  # Position 1 - bluish green, first series
UP_COLOR = BRAND  # Use brand green for up days
DOWN_COLOR = "#AE3030"  # imprint red — down days

# Data - Generate realistic stock price data for 45 trading days
np.random.seed(42)

dates = pd.date_range(start="2024-06-01", periods=45, freq="B")  # Business days

# Generate realistic price movement with trends
base_price = 150.0
returns = np.random.normal(0.001, 0.02, 45)  # Daily returns
cumulative = np.cumprod(1 + returns)
close_prices = base_price * cumulative

# Generate OHLC data with realistic relationships
data = []
for i, date in enumerate(dates):
    close = close_prices[i]
    # Open is close of previous day (or base for first day)
    open_price = close_prices[i - 1] if i > 0 else base_price

    # High and low based on intraday volatility
    intraday_range = close * np.random.uniform(0.01, 0.03)
    high = max(open_price, close) + np.random.uniform(0, intraday_range)
    low = min(open_price, close) - np.random.uniform(0, intraday_range)

    data.append({"date": date, "open": open_price, "high": high, "low": low, "close": close})

df = pd.DataFrame(data)

# Create OHLC chart using Plotly's native OHLC trace
fig = go.Figure(
    data=go.Ohlc(
        x=df["date"],
        open=df["open"],
        high=df["high"],
        low=df["low"],
        close=df["close"],
        increasing={"line": {"color": UP_COLOR, "width": 2}},
        decreasing={"line": {"color": DOWN_COLOR, "width": 2}},
        name="Price",
    )
)

# Update layout for 4800x2700 canvas with theme-adaptive chrome
fig.update_layout(
    title={"text": "ohlc-bar · plotly · anyplot.ai", "font": {"size": 28, "color": INK}, "x": 0.5, "xanchor": "center"},
    xaxis={
        "title": {"text": "Date", "font": {"size": 22, "color": INK}},
        "tickfont": {"size": 18, "color": INK_SOFT},
        "gridcolor": GRID,
        "gridwidth": 1,
        "linecolor": INK_SOFT,
        "rangeslider": {"visible": False},
        "tickformat": "%b %d",
    },
    yaxis={
        "title": {"text": "Price (USD)", "font": {"size": 22, "color": INK}},
        "tickfont": {"size": 18, "color": INK_SOFT},
        "tickprefix": "$",
        "gridcolor": GRID,
        "gridwidth": 1,
        "linecolor": INK_SOFT,
        "zerolinecolor": INK_SOFT,
    },
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    font={"color": INK},
    showlegend=False,
    margin={"l": 100, "r": 80, "t": 120, "b": 100},
)

# Save outputs
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/ohlc-bar/plotly/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "ohlc-bar",
  "language": "python",
  "library": "plotly",
  "page": "https://anyplot.ai/ohlc-bar/python/plotly",
  "hub": "https://anyplot.ai/ohlc-bar",
  "code_json": "https://api.anyplot.ai/specs/ohlc-bar/plotly/code",
  "spec_json": "https://api.anyplot.ai/specs/ohlc-bar",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/ohlc-bar/python/plotly/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/ohlc-bar/python/plotly/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/ohlc-bar/python/plotly/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/ohlc-bar/python/plotly/plot-dark.html",
  "quality_score": 88.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of OHLC Bar Chart on anyplot.ai.
