A Point and Figure (P&F) chart is a price-action focused visualization that uses columns of X's (rising prices) and O's (falling prices) to display significant price movements while filtering out time and minor fluctuations. Unlike traditional time-based charts, P&F charts only plot a new symbol when price moves by a defined box size, and only start a new column when price reverses by a specified number of boxes (typically 3). This makes it ideal for identifying clear trends, support/resistance levels, and generating trading signals.
""" anyplot.ai
point-and-figure-basic: Point and Figure Chart
Library: plotly 6.7.0 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-20
"""
import os
import numpy as np
import plotly.graph_objects as go
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"
COLOR_X = "#009E73" # Okabe-Ito pos 1 — X (Rising), colorblind-safe
COLOR_O = "#AE3030" # imprint red — O (Falling)
# Data — synthetic stock price with distinct trend phases
np.random.seed(42)
n_days = 300
initial_price = 100.0
returns = np.random.normal(0.001, 0.02, n_days)
returns[50:100] += 0.003
returns[120:150] -= 0.004
returns[180:230] += 0.002
returns[250:280] -= 0.003
close = initial_price * np.cumprod(1 + returns)
# P&F parameters
box_size = 2.0
reversal = 3
# Build P&F columns
columns = []
current_direction = None
current_column = []
column_index = 0
current_price = np.floor(close[0] / box_size) * box_size
for i in range(1, len(close)):
price = close[i]
if current_direction is None:
price_boxes = np.floor(price / box_size) * box_size
if price_boxes > current_price + box_size:
current_direction = "X"
for p in np.arange(current_price, price_boxes + box_size, box_size):
current_column.append(p)
current_price = price_boxes
elif price_boxes < current_price - box_size:
current_direction = "O"
for p in np.arange(current_price, price_boxes - box_size, -box_size):
current_column.append(p)
current_price = price_boxes
else:
price_boxes = np.floor(price / box_size) * box_size
if current_direction == "X":
if price_boxes > current_price:
for p in np.arange(current_price + box_size, price_boxes + box_size, box_size):
current_column.append(p)
current_price = price_boxes
elif price_boxes <= current_price - reversal * box_size:
if current_column:
columns.append((current_column.copy(), "X", column_index))
column_index += 1
current_direction = "O"
current_column = []
for p in np.arange(current_price - box_size, price_boxes - box_size, -box_size):
current_column.append(p)
current_price = price_boxes
else:
if price_boxes < current_price:
for p in np.arange(current_price - box_size, price_boxes - box_size, -box_size):
current_column.append(p)
current_price = price_boxes
elif price_boxes >= current_price + reversal * box_size:
if current_column:
columns.append((current_column.copy(), "O", column_index))
column_index += 1
current_direction = "X"
current_column = []
for p in np.arange(current_price + box_size, price_boxes + box_size, box_size):
current_column.append(p)
current_price = price_boxes
if current_column:
columns.append((current_column.copy(), current_direction, column_index))
# Plot
fig = go.Figure()
# X and O symbols for each column
for prices, direction, col_idx in columns:
if not prices:
continue
color = COLOR_X if direction == "X" else COLOR_O
symbol = "X" if direction == "X" else "O"
label = "Rising" if direction == "X" else "Falling"
fig.add_trace(
go.Scatter(
x=[col_idx] * len(prices),
y=prices,
mode="text",
text=[symbol] * len(prices),
textfont={"size": 11, "color": color, "family": "Arial Black"},
showlegend=False,
hovertemplate=f"Column: {col_idx}<br>Price: $%{{y:.0f}}<br>{label}<extra></extra>",
)
)
# Compute chart bounds
all_prices = [p for prices, _, _ in columns for p in prices]
min_price = min(all_prices) - box_size * 2 if all_prices else 80
max_price = max(all_prices) + box_size * 2 if all_prices else 140
max_col_idx = columns[-1][2] if columns else 0
# Support trend line: from O column with lowest minimum, ascending 45° (1 box per column)
o_bottoms = [(col_idx, min(prices)) for prices, direction, col_idx in columns if direction == "O" and prices]
if o_bottoms and max_col_idx > 0:
support_col, support_price = min(o_bottoms, key=lambda t: t[1])
if support_col < max_col_idx:
fig.add_trace(
go.Scatter(
x=[support_col, max_col_idx],
y=[support_price, support_price + (max_col_idx - support_col) * box_size],
mode="lines",
line={"color": INK_SOFT, "width": 1.5, "dash": "dash"},
name="Support (45°)",
showlegend=True,
)
)
# Resistance trend line: from X column with highest maximum, descending 45°
x_tops = [(col_idx, max(prices)) for prices, direction, col_idx in columns if direction == "X" and prices]
if x_tops and max_col_idx > 0:
resist_col, resist_price = max(x_tops, key=lambda t: t[1])
if resist_col < max_col_idx:
fig.add_trace(
go.Scatter(
x=[resist_col, max_col_idx],
y=[resist_price, resist_price - (max_col_idx - resist_col) * box_size],
mode="lines",
line={"color": INK_SOFT, "width": 1.5, "dash": "dot"},
name="Resistance (45°)",
showlegend=True,
)
)
# Legend entries — square markers avoid the text-mode legend rendering bug
fig.add_trace(
go.Scatter(
x=[None],
y=[None],
mode="markers",
marker={"symbol": "square", "size": 12, "color": COLOR_X},
name="X (Rising)",
showlegend=True,
)
)
fig.add_trace(
go.Scatter(
x=[None],
y=[None],
mode="markers",
marker={"symbol": "square", "size": 12, "color": COLOR_O},
name="O (Falling)",
showlegend=True,
)
)
# Style
fig.update_layout(
title={
"text": "point-and-figure-basic · python · plotly · anyplot.ai",
"font": {"size": 16, "color": INK},
"x": 0.5,
"xanchor": "center",
},
xaxis={
"title": {"text": "Column (Reversal)", "font": {"size": 12, "color": INK}},
"tickfont": {"size": 10, "color": INK_SOFT},
"showgrid": True,
"gridwidth": 1,
"gridcolor": GRID,
"linecolor": INK_SOFT,
"zeroline": False,
"dtick": 5,
},
yaxis={
"title": {"text": "Price ($)", "font": {"size": 12, "color": INK}},
"tickfont": {"size": 10, "color": INK_SOFT},
"showgrid": True,
"gridwidth": 1,
"gridcolor": GRID,
"linecolor": INK_SOFT,
"dtick": 10,
"range": [min_price, max_price],
},
paper_bgcolor=PAGE_BG,
plot_bgcolor=PAGE_BG,
font={"color": INK},
legend={
"bgcolor": ELEVATED_BG,
"bordercolor": INK_SOFT,
"borderwidth": 1,
"font": {"size": 10, "color": INK_SOFT},
"x": 1.02,
"y": 0.98,
"xanchor": "left",
"yanchor": "top",
},
margin={"l": 70, "r": 160, "t": 70, "b": 100},
)
fig.add_annotation(
text=f"Box Size: ${box_size:.0f} | Reversal: {reversal} boxes",
xref="paper",
yref="paper",
x=0.5,
y=-0.13,
showarrow=False,
font={"size": 10, "color": INK_SOFT},
xanchor="center",
)
# Save

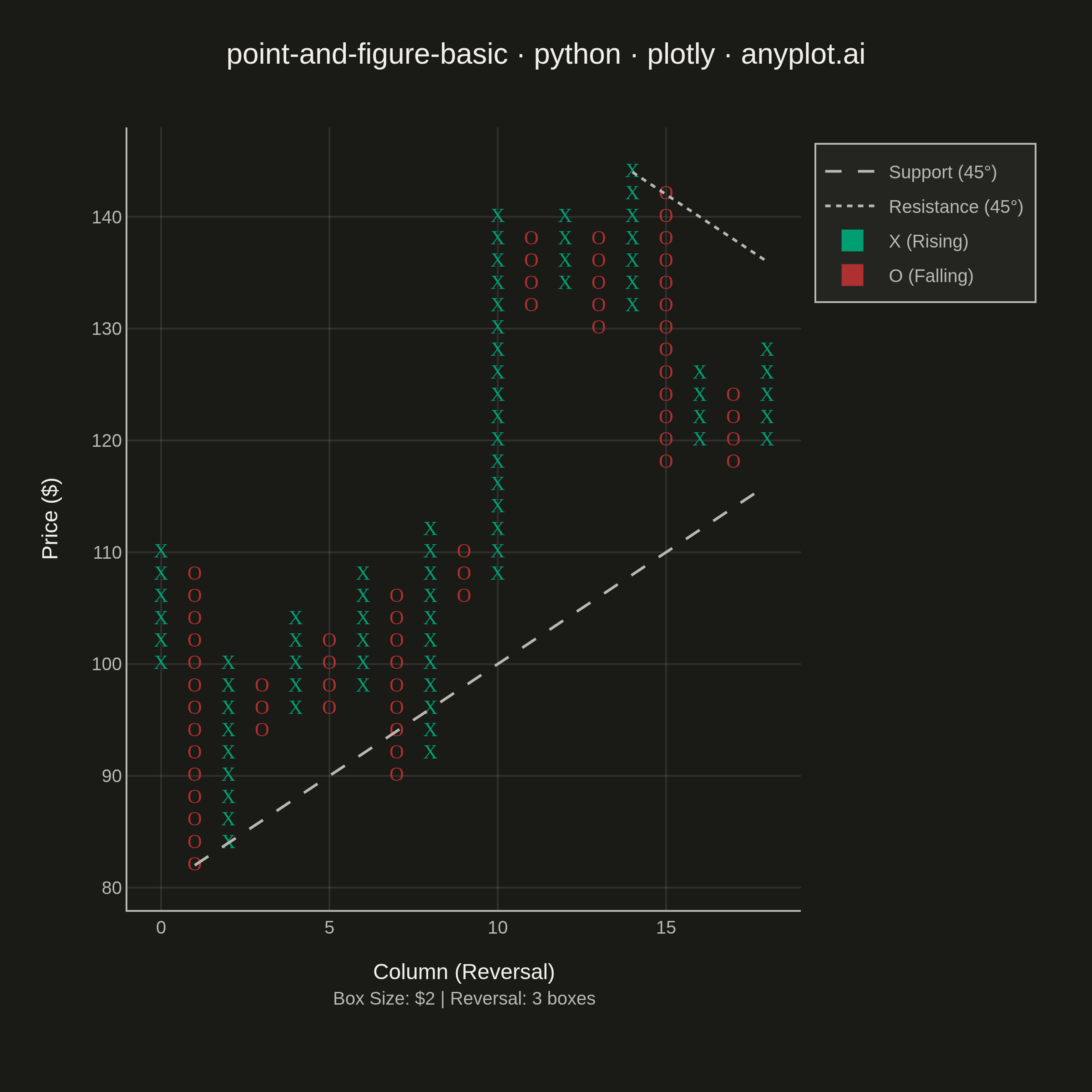

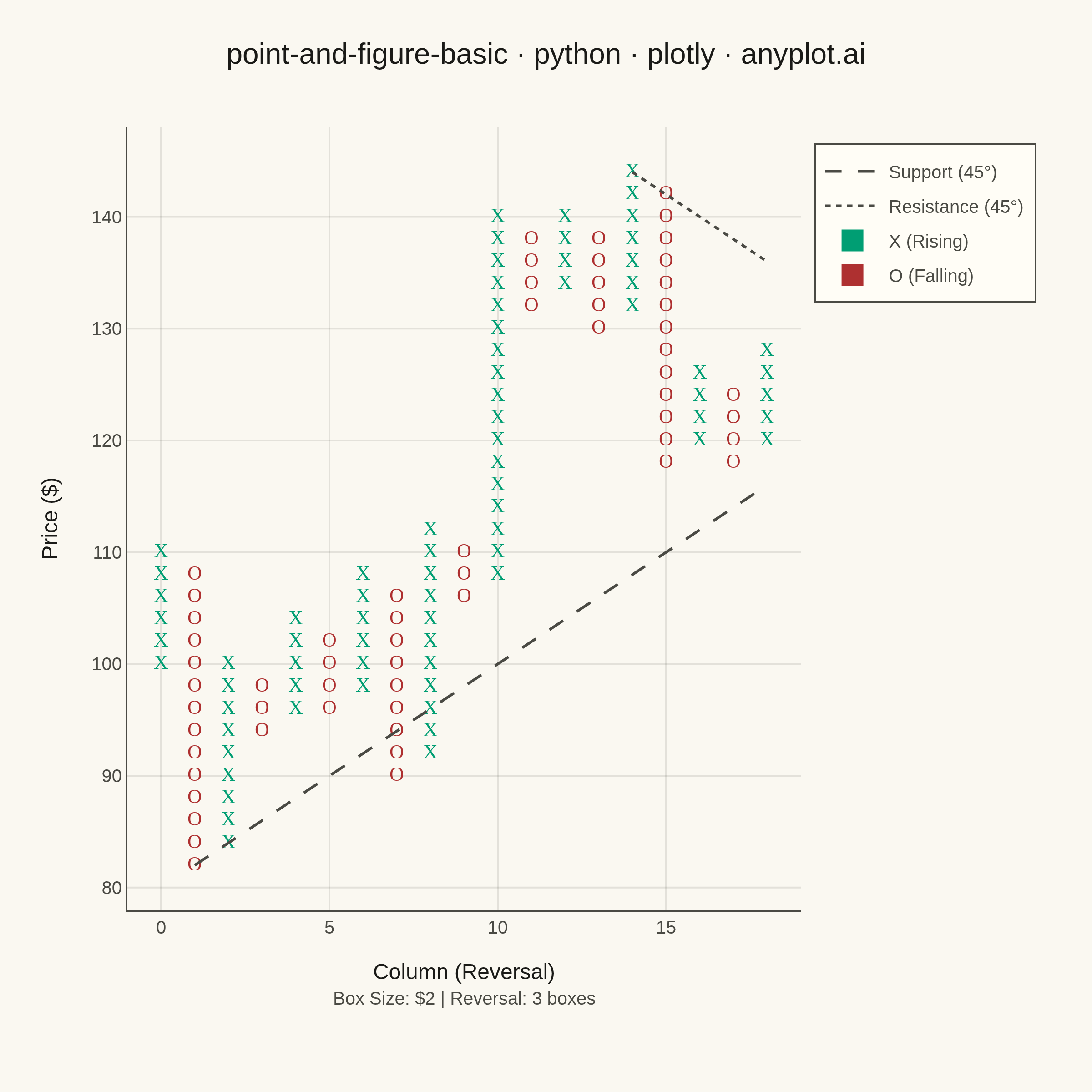

fig.write_image(f"plot-{THEME}.png", width=600, height=600, scale=4)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")
Part of Point and Figure Chart on anyplot.ai.
