Basic Pyramid Chart — Highcharts

A pyramid chart displays two opposing horizontal bar charts that share a central axis, creating a pyramid or butterfly shape. This visualization is ideal for comparing two related metrics across the same categories, revealing asymmetries and patterns in bidirectional data. Most commonly used for population pyramids showing age-gender distributions.

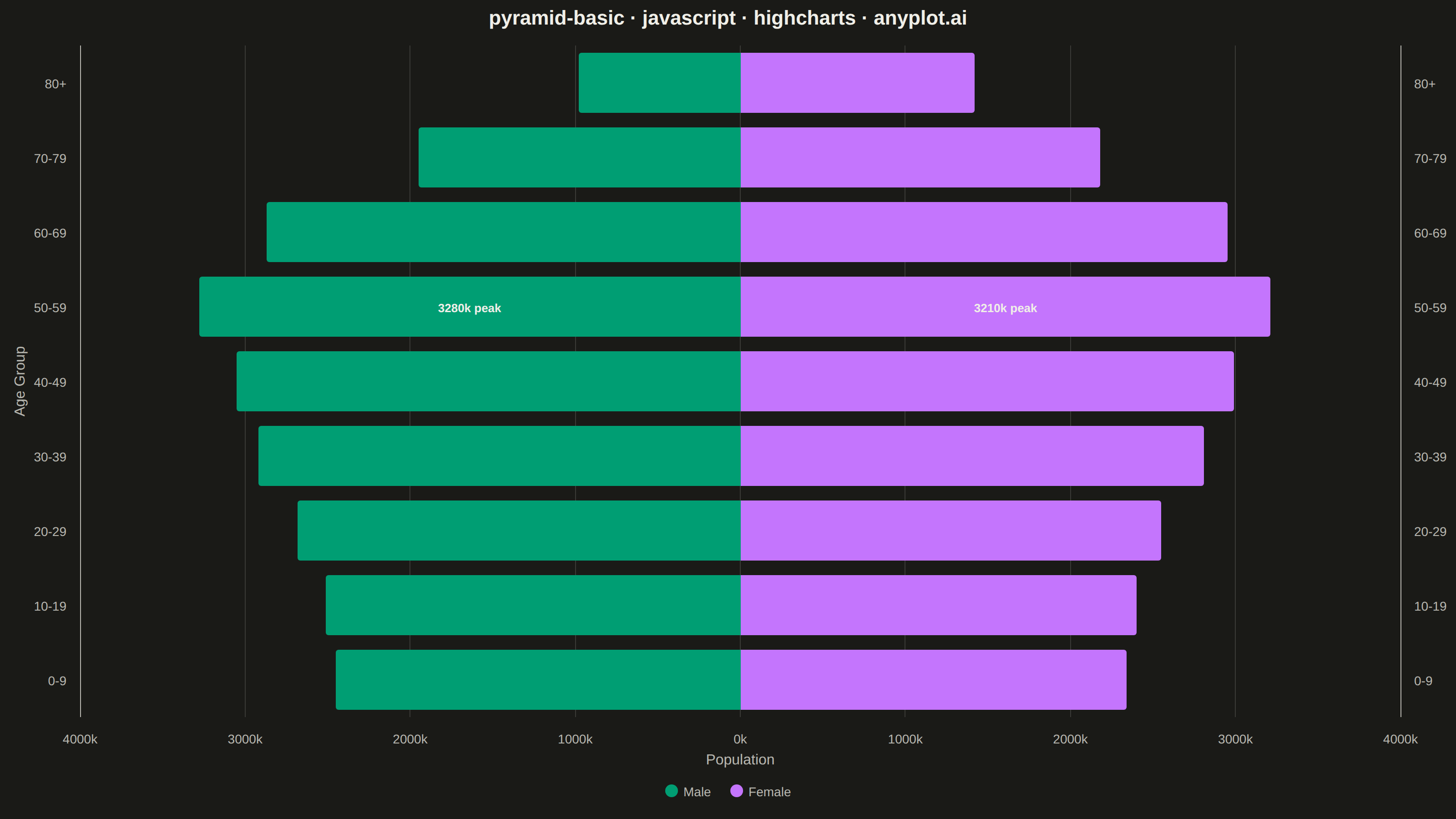

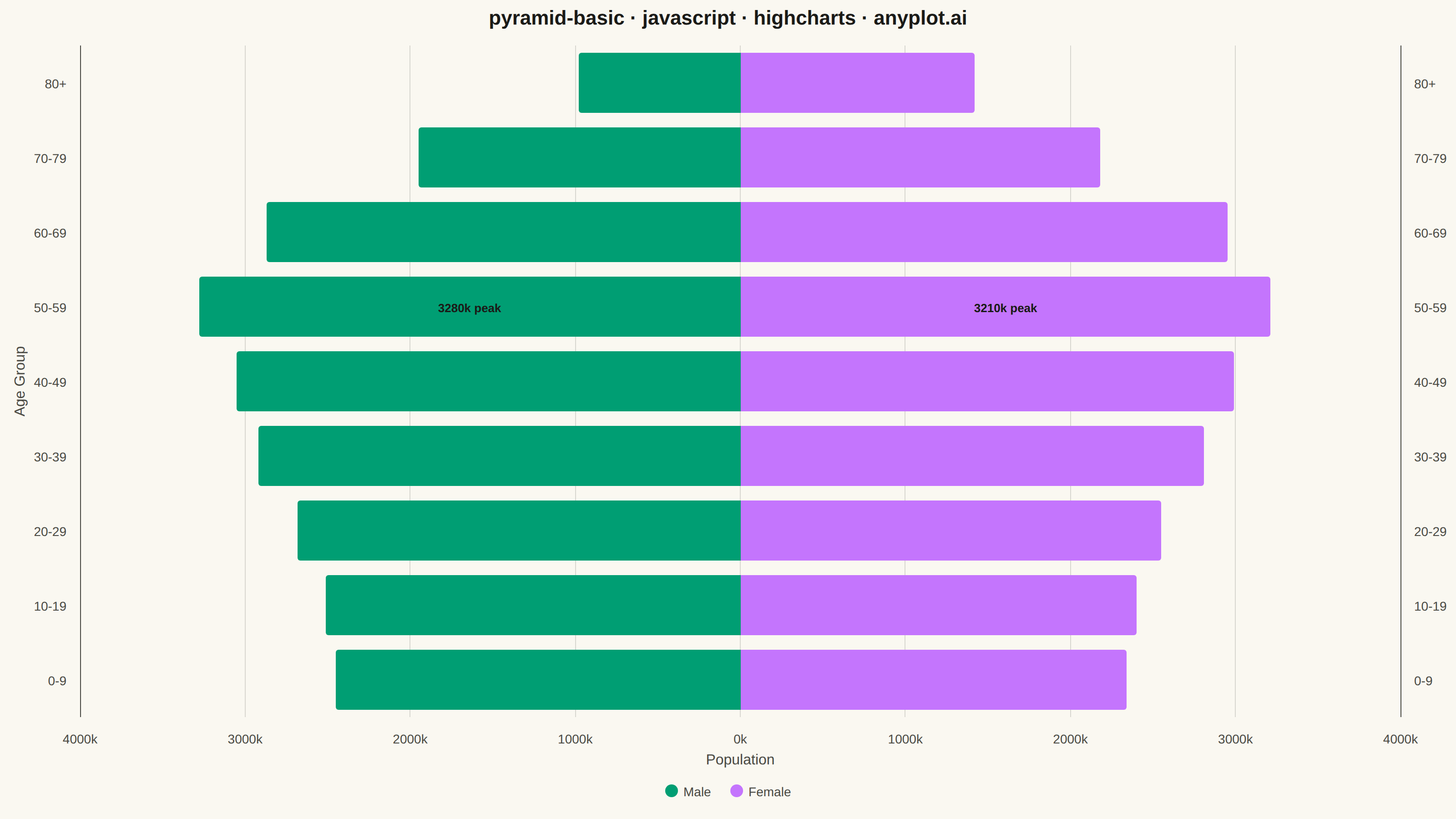

Basic Pyramid Chart rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// pyramid-basic: Basic Pyramid Chart
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 89/100 | Created: 2026-09-05

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Population by age group, in thousands. Male shown as negative (left side).
const ageGroups = [
  "0-9",
  "10-19",
  "20-29",
  "30-39",
  "40-49",
  "50-59",
  "60-69",
  "70-79",
  "80+",
];
const malePopulation = [2450, 2510, 2680, 2920, 3050, 3280, 2870, 1950, 980];
const femalePopulation = [2340, 2400, 2550, 2810, 2990, 3210, 2950, 2180, 1420];
const peakAgeGroup = "50-59"; // widest bulge on both sides, called out below

// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
  chart: {
    type: "bar",
    backgroundColor: "transparent",
    animation: false,
    style: { fontFamily: "inherit" },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: "pyramid-basic · javascript · highcharts · anyplot.ai",
    style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
  },
  xAxis: [
    {
      categories: ageGroups,
      reversed: false,
      lineColor: t.inkSoft,
      tickColor: t.inkSoft,
      labels: { style: { color: t.inkSoft, fontSize: "14px" } },
      title: {
        text: "Age Group",
        style: { color: t.inkSoft, fontSize: "16px" },
      },
    },
    {
      categories: ageGroups,
      opposite: true,
      reversed: false,
      linkedTo: 0,
      lineColor: t.inkSoft,
      tickColor: t.inkSoft,
      labels: { style: { color: t.inkSoft, fontSize: "14px" } },
      title: { text: null },
    },
  ],
  yAxis: {
    min: -3500,
    max: 3500,
    tickInterval: 1000,
    gridLineColor: t.grid,
    title: {
      text: "Population",
      style: { color: t.inkSoft, fontSize: "16px" },
    },
    labels: {
      style: { color: t.inkSoft, fontSize: "14px" },
      formatter() {
        return Math.abs(this.value) + "k";
      },
    },
  },
  legend: {
    itemStyle: { color: t.inkSoft, fontSize: "14px" },
    itemHoverStyle: { color: t.ink },
  },
  tooltip: {
    formatter() {
      return `${this.series.name}, ${this.point.category}: ${Math.abs(this.point.y)}k`;
    },
  },
  plotOptions: {
    series: {
      animation: false,
      stacking: "normal",
      borderWidth: 0,
      pointPadding: 0.1,
      groupPadding: 0,
      dataLabels: {
        enabled: true,
        style: {
          color: t.ink,
          fontSize: "13px",
          fontWeight: "700",
          textOutline: "none",
        },
        formatter() {
          if (this.point.category !== peakAgeGroup) return null;
          return `${Math.abs(this.y)}k peak`;
        },
      },
    },
  },
  series: [
    { name: "Male", data: malePopulation.map((v) => -v) },
    { name: "Female", data: femalePopulation },
  ],
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/pyramid-basic/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "pyramid-basic",
  "language": "javascript",
  "library": "highcharts",
  "page": "https://anyplot.ai/pyramid-basic/javascript/highcharts",
  "hub": "https://anyplot.ai/pyramid-basic",
  "code_json": "https://api.anyplot.ai/specs/pyramid-basic/highcharts/code",
  "spec_json": "https://api.anyplot.ai/specs/pyramid-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/pyramid-basic/javascript/highcharts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/pyramid-basic/javascript/highcharts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/pyramid-basic/javascript/highcharts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/pyramid-basic/javascript/highcharts/plot-dark.html",
  "quality_score": 89.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Basic Pyramid Chart on anyplot.ai.
