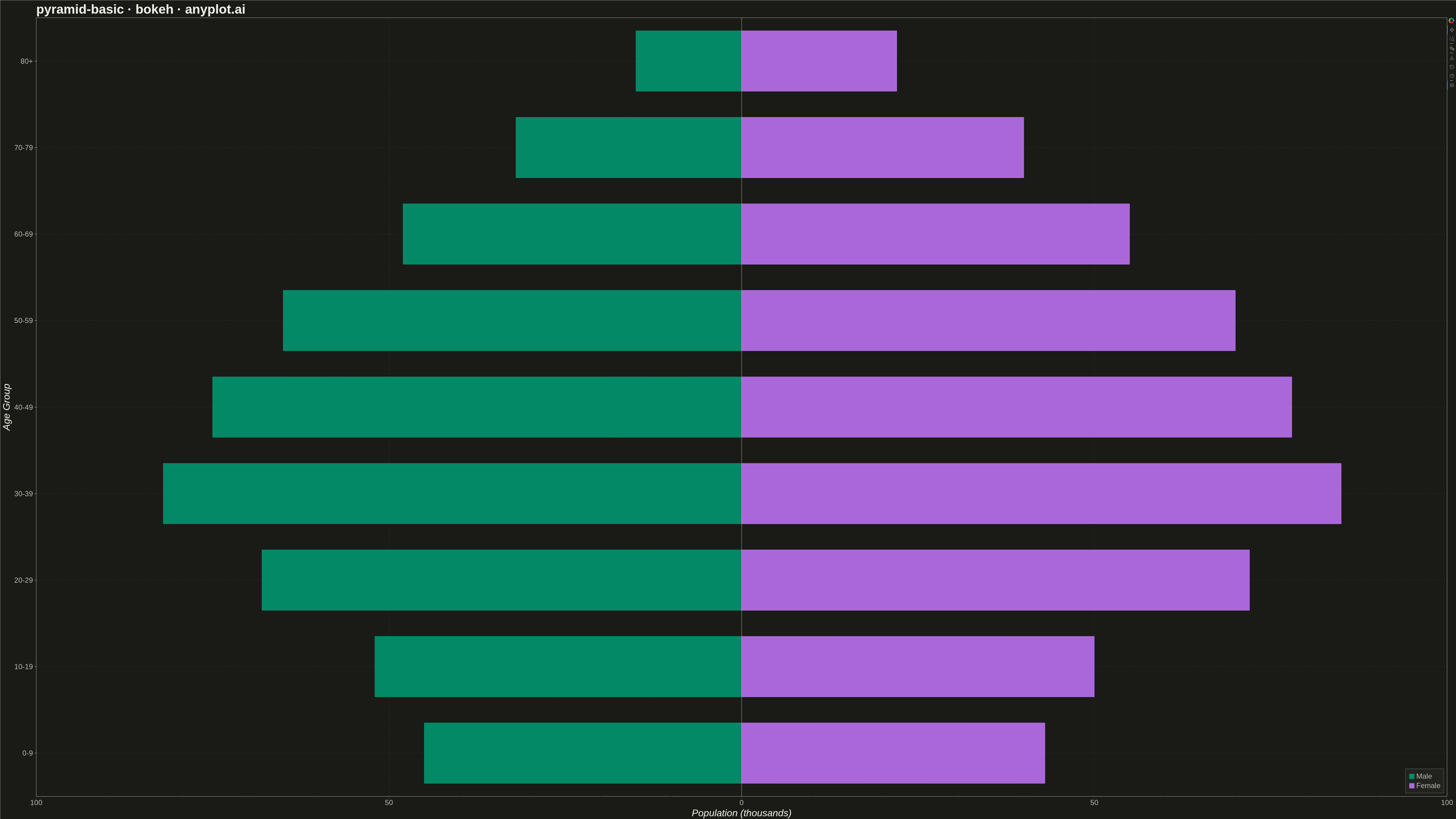

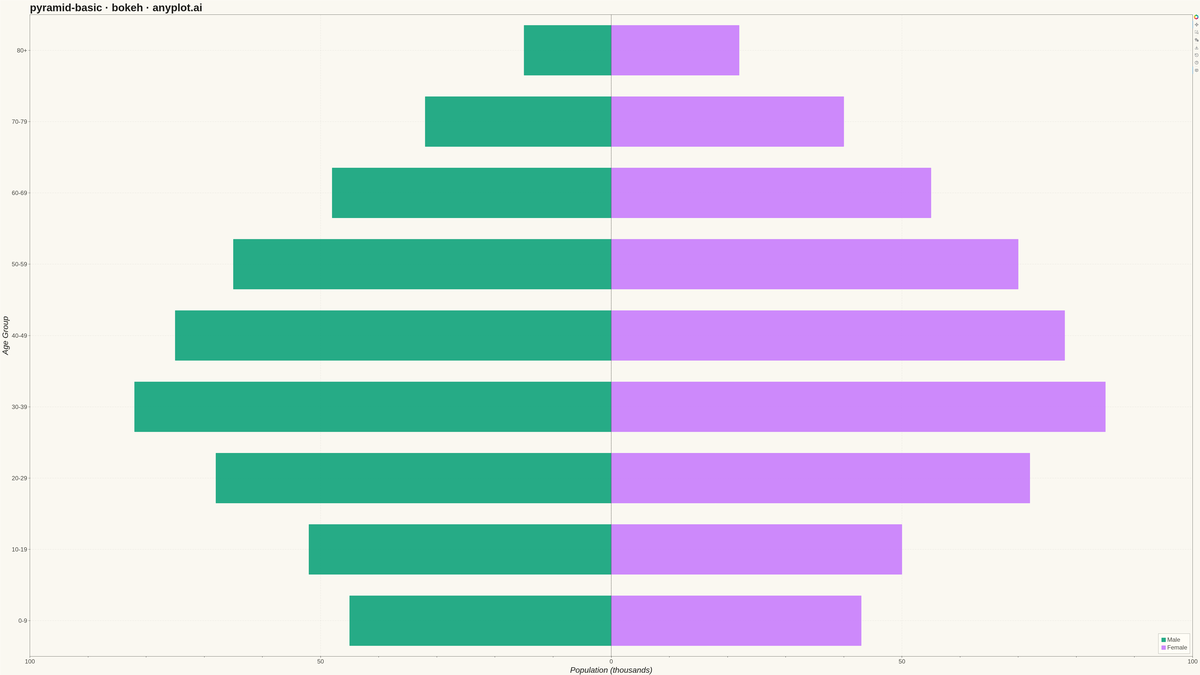

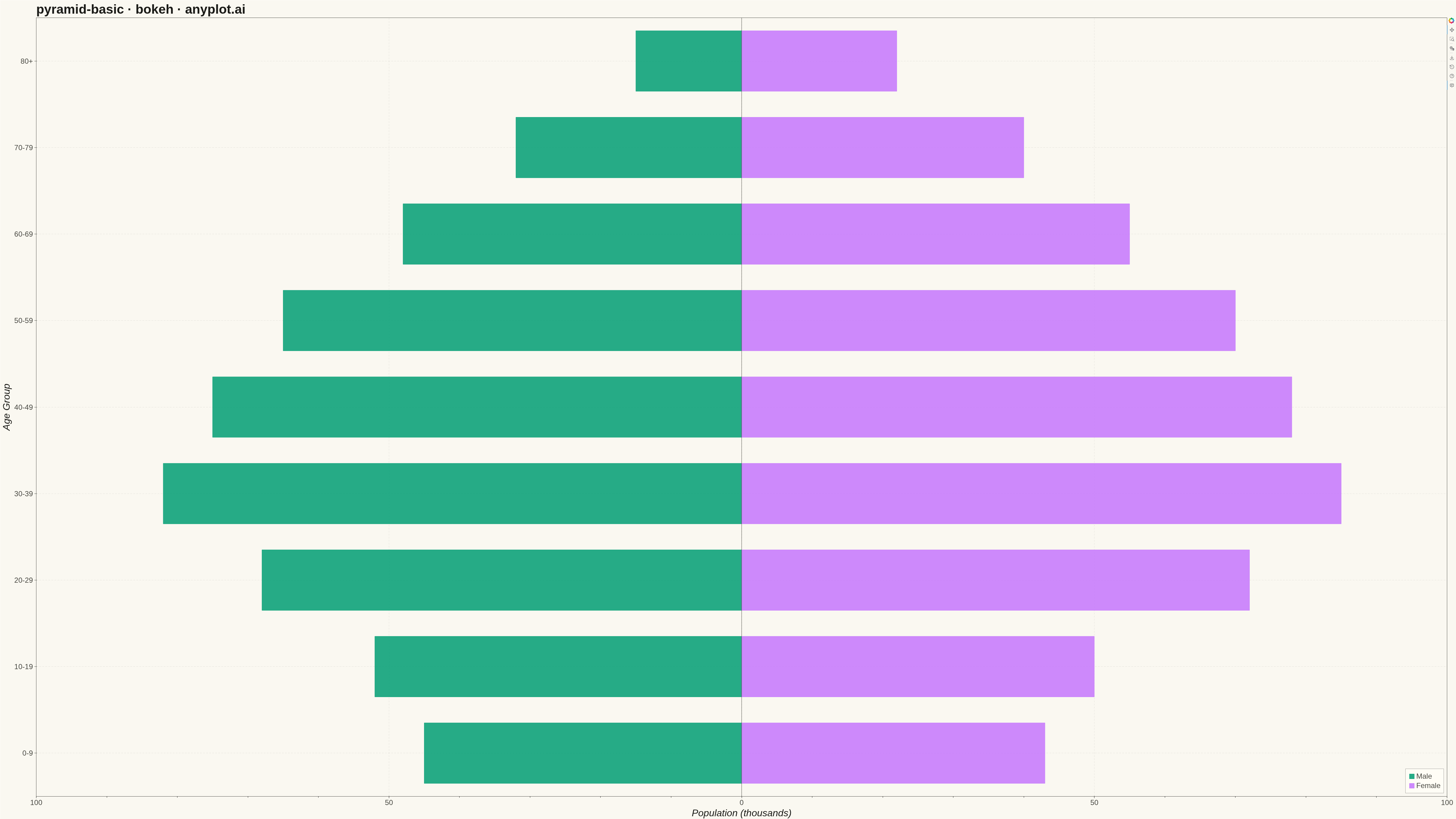

A pyramid chart displays two opposing horizontal bar charts that share a central axis, creating a pyramid or butterfly shape. This visualization is ideal for comparing two related metrics across the same categories, revealing asymmetries and patterns in bidirectional data. Most commonly used for population pyramids showing age-gender distributions.
""" anyplot.ai
pyramid-basic: Basic Pyramid Chart
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-04-29
"""
import os
from bokeh.io import export_png, output_file, save
from bokeh.models import ColumnDataSource, CustomJSTickFormatter, HoverTool, Range1d, Span
from bokeh.plotting import figure
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
MALE_COLOR = "#009E73" # Okabe-Ito position 1
FEMALE_COLOR = "#C475FD" # Okabe-Ito position 2
# Data - Population by age group (in thousands)
age_groups = ["0-9", "10-19", "20-29", "30-39", "40-49", "50-59", "60-69", "70-79", "80+"]
male_population = [45, 52, 68, 82, 75, 65, 48, 32, 15]
female_population = [43, 50, 72, 85, 78, 70, 55, 40, 22]
male_negative = [-v for v in male_population]
source_male = ColumnDataSource(data={"age": age_groups, "population": male_negative, "value": male_population})
source_female = ColumnDataSource(data={"age": age_groups, "population": female_population, "value": female_population})
# Plot
p = figure(
width=4800,
height=2700,
y_range=age_groups,
x_range=Range1d(-100, 100),
title="pyramid-basic · bokeh · anyplot.ai",
x_axis_label="Population (thousands)",
y_axis_label="Age Group",
)
bar_height = 0.7
male_bars = p.hbar(
y="age",
right="population",
height=bar_height,
source=source_male,
color=MALE_COLOR,
alpha=0.85,
legend_label="Male",
)
female_bars = p.hbar(
y="age",
right="population",
height=bar_height,
source=source_female,
color=FEMALE_COLOR,
alpha=0.85,
legend_label="Female",
)
# HoverTools for interactivity
p.add_tools(HoverTool(renderers=[male_bars], tooltips=[("Age Group", "@age"), ("Male", "@value{0,0} thousand")]))
p.add_tools(HoverTool(renderers=[female_bars], tooltips=[("Age Group", "@age"), ("Female", "@value{0,0} thousand")]))
# Center line at x=0 via Span — adapts to full plot height automatically
center_line = Span(location=0, dimension="height", line_color=INK_SOFT, line_width=2, line_alpha=0.5)
p.add_layout(center_line)
# Show absolute values on x-axis (both sides positive)
p.xaxis.formatter = CustomJSTickFormatter(code="return Math.abs(tick).toString()")
# Style
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT
p.title.text_color = INK
p.title.text_font_size = "32pt"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.axis_label_text_font_size = "24pt"
p.yaxis.axis_label_text_font_size = "24pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
p.xaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_font_size = "18pt"
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_alpha = 0.10
p.xgrid.grid_line_dash = [6, 4]
p.ygrid.grid_line_dash = [6, 4]
p.legend.location = "bottom_right"
p.legend.background_fill_color = ELEVATED_BG
p.legend.border_line_color = INK_SOFT
p.legend.label_text_color = INK_SOFT
p.legend.label_text_font_size = "18pt"
p.legend.background_fill_alpha = 0.9
# Save
export_png(p, filename=f"plot-{THEME}.png")
output_file(f"plot-{THEME}.html")
save(p)
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/pyramid-basic/bokeh/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "pyramid-basic",
"language": "python",
"library": "bokeh",
"page": "https://anyplot.ai/pyramid-basic/python/bokeh",
"hub": "https://anyplot.ai/pyramid-basic",
"code_json": "https://api.anyplot.ai/specs/pyramid-basic/bokeh/code",
"spec_json": "https://api.anyplot.ai/specs/pyramid-basic",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/pyramid-basic/python/bokeh/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/pyramid-basic/python/bokeh/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/pyramid-basic/python/bokeh/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/pyramid-basic/python/bokeh/plot-dark.html",
"quality_score": 90.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Basic Pyramid Chart on anyplot.ai.
