Basic Pyramid Chart — Makie.jl

A pyramid chart displays two opposing horizontal bar charts that share a central axis, creating a pyramid or butterfly shape. This visualization is ideal for comparing two related metrics across the same categories, revealing asymmetries and patterns in bidirectional data. Most commonly used for population pyramids showing age-gender distributions.

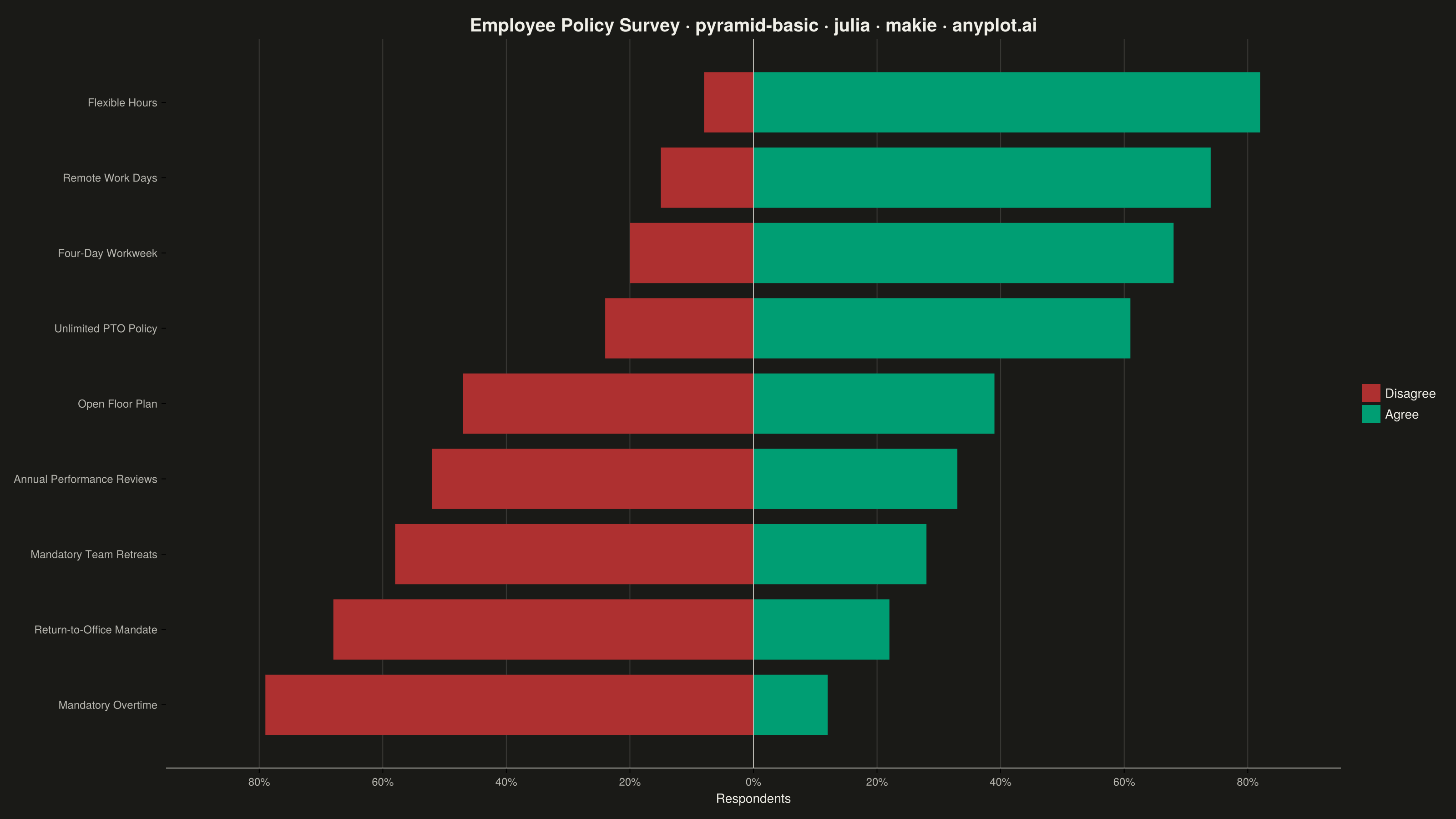

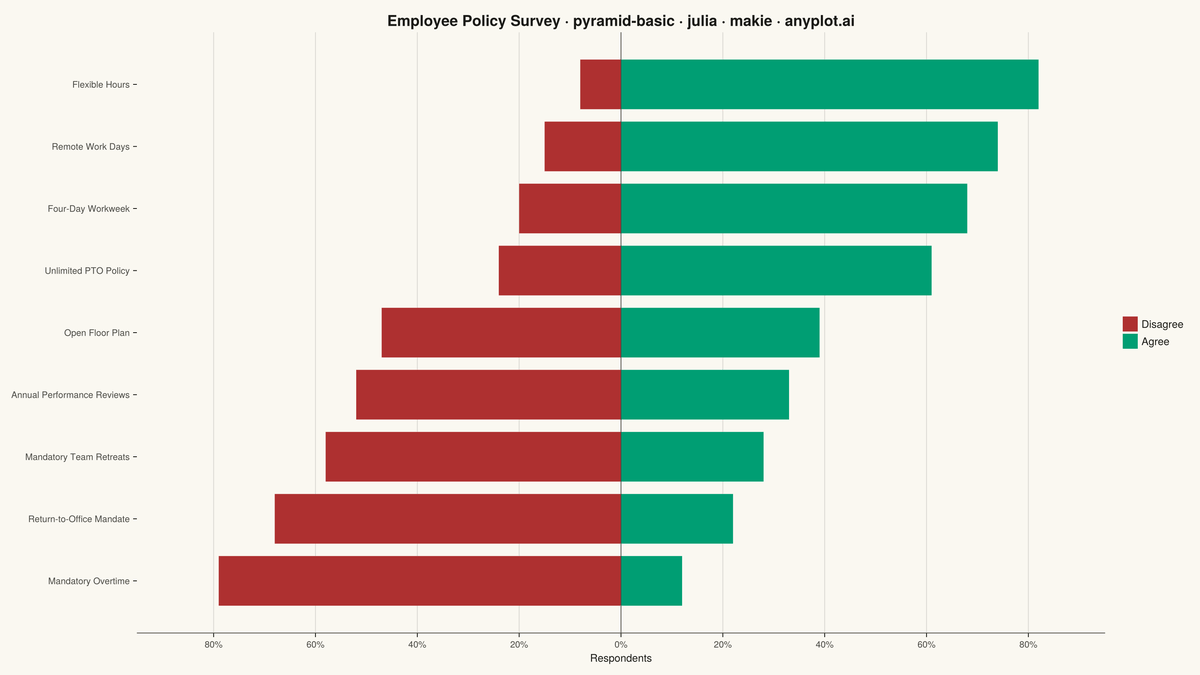

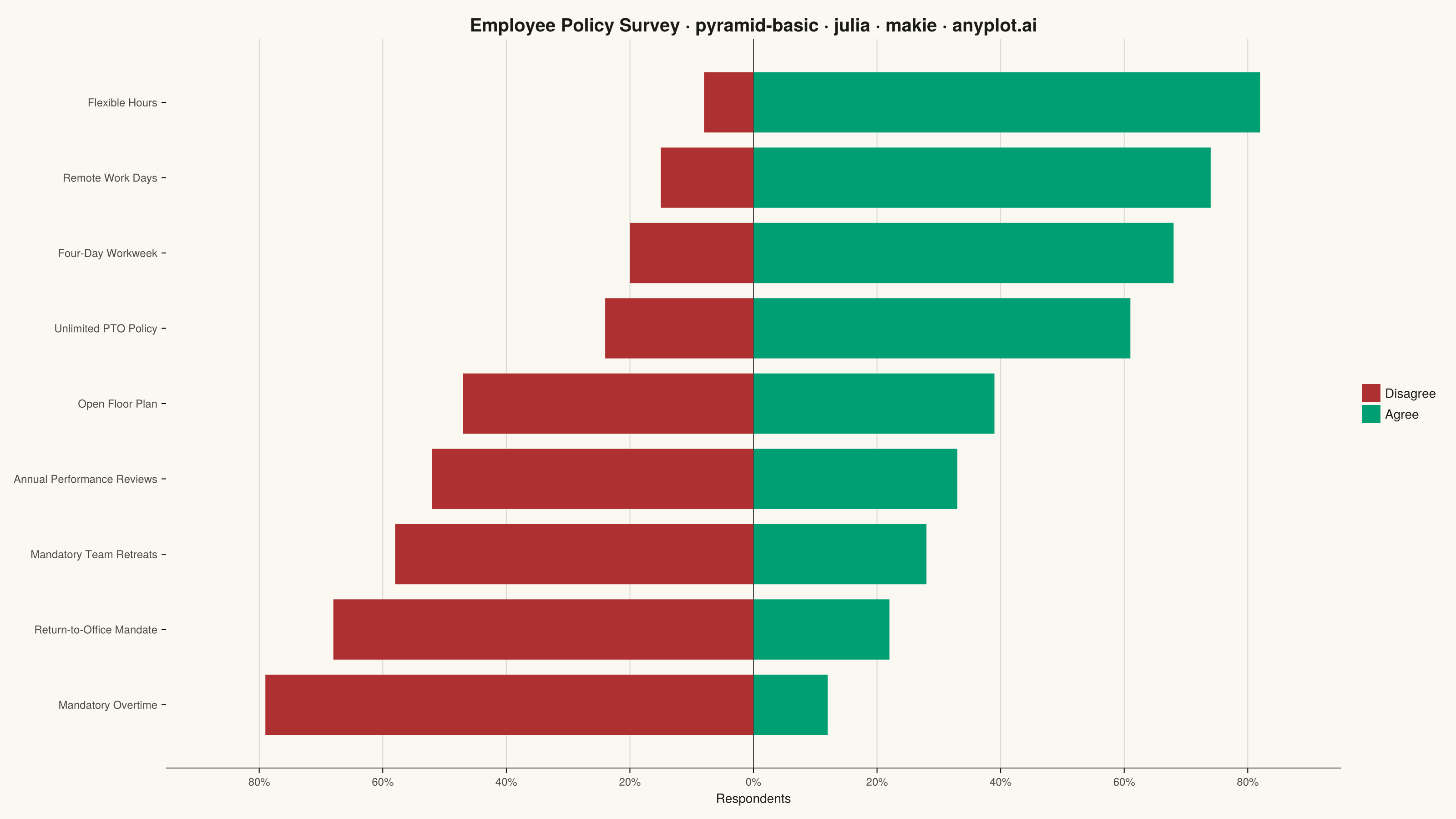

Basic Pyramid Chart rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# pyramid-basic: Basic Pyramid Chart
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 90/100 | Created: 2026-09-05

using CairoMakie
using Colors

# Theme tokens (see prompts/default-style-guide.md "Theme-adaptive Chrome")
const THEME    = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG  = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK      = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const GRID     = RGBAf(INK.r, INK.g, INK.b, 0.15)

# Imprint palette — Agree is positive sentiment (brand green, position 1),
# Disagree is negative sentiment (matte red, semantic anchor)
const AGREE_COLOR    = colorant"#009E73"
const DISAGREE_COLOR = colorant"#AE3030"

# Data — employee survey on workplace policies, sorted most- to least-agreed
policies = [
    "Flexible Hours",
    "Remote Work Days",
    "Four-Day Workweek",
    "Unlimited PTO Policy",
    "Open Floor Plan",
    "Annual Performance Reviews",
    "Mandatory Team Retreats",
    "Return-to-Office Mandate",
    "Mandatory Overtime",
]
agree_pct    = [82, 74, 68, 61, 39, 33, 28, 22, 12]
disagree_pct = [8, 15, 20, 24, 47, 52, 58, 68, 79]
positions = 1:length(policies)

# Plot
title_str = "Employee Policy Survey · pyramid-basic · julia · makie · anyplot.ai"
title_fontsize = round(Int, 20 * min(1.0, 67 / length(title_str)))

fig = Figure(
    size            = (1600, 900),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

ax = Axis(
    fig[1, 1];
    title             = title_str,
    titlesize         = title_fontsize,
    titlecolor        = INK,
    xlabel            = "Respondents",
    xlabelcolor       = INK,
    xlabelsize        = 14,
    xticklabelcolor   = INK_SOFT,
    xticklabelsize    = 12,
    xticks            = (-80:20:80, [string(abs(v)) * "%" for v in -80:20:80]),
    yticks            = (positions, policies),
    yticklabelcolor   = INK_SOFT,
    yticklabelsize    = 12,
    yreversed         = true,
    backgroundcolor   = PAGE_BG,
    topspinevisible    = false,
    rightspinevisible  = false,
    leftspinevisible   = false,
    bottomspinecolor   = INK_SOFT,
    xgridcolor         = GRID,
    ygridvisible       = false,
)
xlims!(ax, -95, 95)

barplot!(ax, positions, -disagree_pct; direction = :x, color = DISAGREE_COLOR, label = "Disagree")
barplot!(ax, positions, agree_pct; direction = :x, color = AGREE_COLOR, label = "Agree")
vlines!(ax, 0; color = INK_SOFT, linewidth = 1)

Legend(fig[1, 2], ax; framevisible = false, labelcolor = INK)
colsize!(fig.layout, 2, Auto(0.18))

# Save
save("plot-$(THEME).png", fig; px_per_unit = 2)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/pyramid-basic/makie/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "pyramid-basic",
  "language": "julia",
  "library": "makie",
  "page": "https://anyplot.ai/pyramid-basic/julia/makie",
  "hub": "https://anyplot.ai/pyramid-basic",
  "code_json": "https://api.anyplot.ai/specs/pyramid-basic/makie/code",
  "spec_json": "https://api.anyplot.ai/specs/pyramid-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/pyramid-basic/julia/makie/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/pyramid-basic/julia/makie/plot-dark.png",
  "quality_score": 90.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Basic Pyramid Chart on anyplot.ai.
