Basic Pyramid Chart — plotnine

A pyramid chart displays two opposing horizontal bar charts that share a central axis, creating a pyramid or butterfly shape. This visualization is ideal for comparing two related metrics across the same categories, revealing asymmetries and patterns in bidirectional data. Most commonly used for population pyramids showing age-gender distributions.

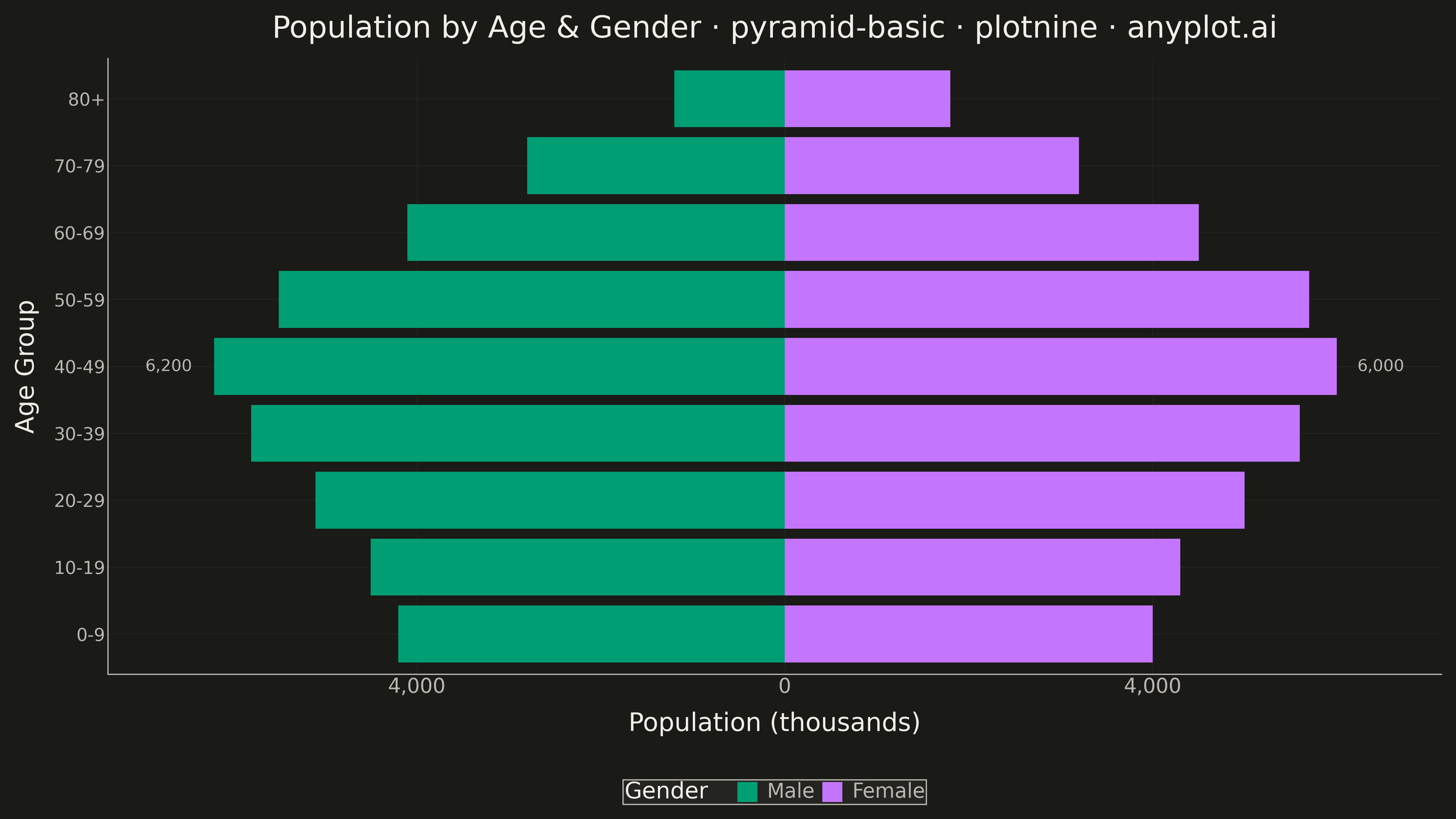

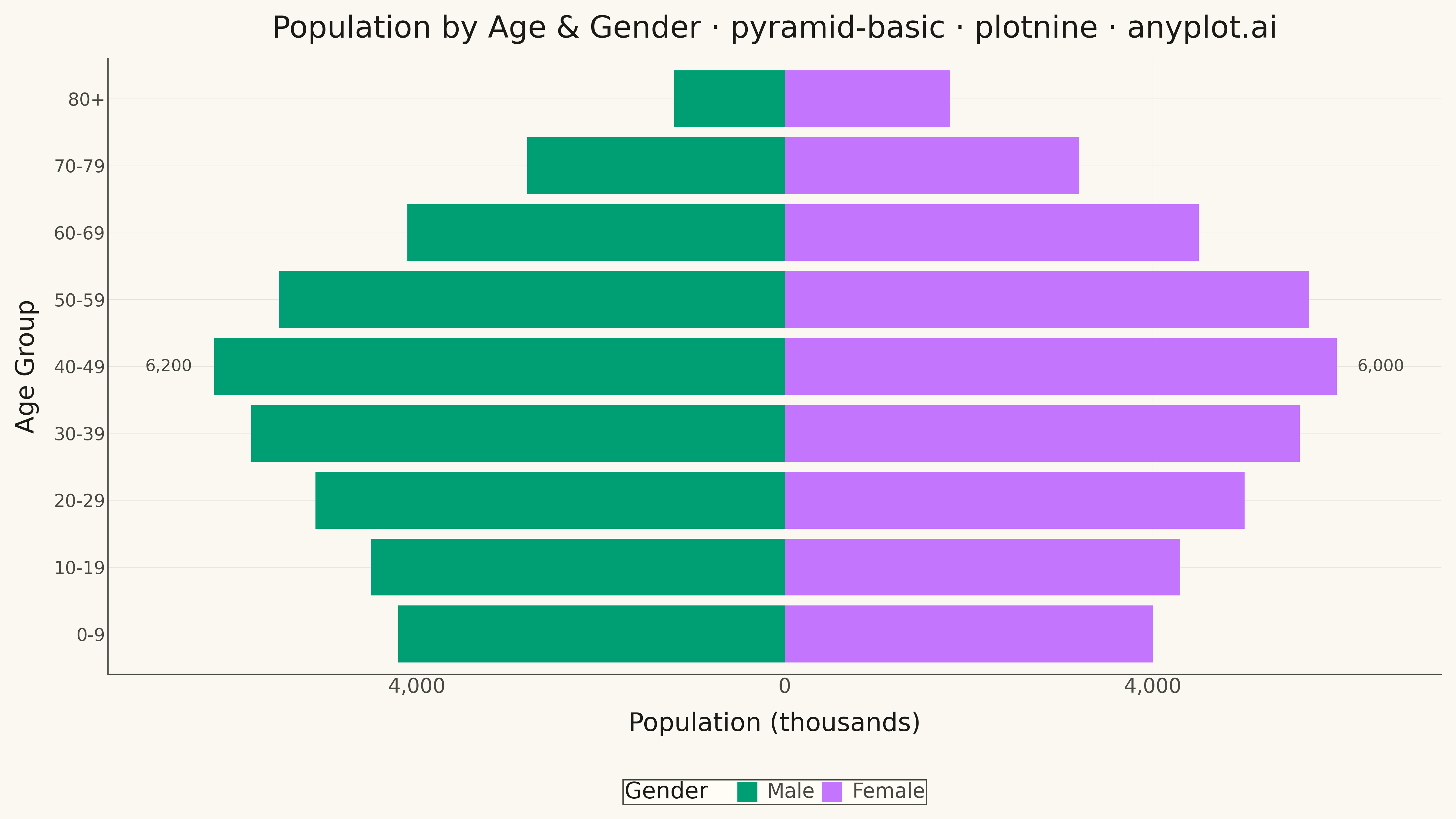

Basic Pyramid Chart rendered with plotnine

Python source (plotnine)

""" anyplot.ai
pyramid-basic: Basic Pyramid Chart
Library: plotnine 0.15.3 | Python 3.13.13
Quality: 91/100 | Updated: 2026-04-29
"""

import os
import sys


sys.path[0:1] = []  # Prevent script dir from shadowing the plotnine package

import pandas as pd
from plotnine import (
    aes,
    coord_flip,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_col,
    geom_text,
    ggplot,
    labs,
    scale_fill_manual,
    scale_y_continuous,
    theme,
    theme_minimal,
)


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]

# Data
age_groups = ["0-9", "10-19", "20-29", "30-39", "40-49", "50-59", "60-69", "70-79", "80+"]
male_pop = [4200, 4500, 5100, 5800, 6200, 5500, 4100, 2800, 1200]
female_pop = [4000, 4300, 5000, 5600, 6000, 5700, 4500, 3200, 1800]

df = pd.DataFrame(
    {
        "age_group": age_groups * 2,
        "population": [-m for m in male_pop] + female_pop,
        "gender": ["Male"] * len(age_groups) + ["Female"] * len(age_groups),
    }
)

df["age_group"] = pd.Categorical(df["age_group"], categories=age_groups, ordered=True)
# Male first in legend — matches left-side visual position
df["gender"] = pd.Categorical(df["gender"], categories=["Male", "Female"], ordered=True)

anyplot_theme = theme(
    figure_size=(16, 9),
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG),
    panel_grid_major=element_line(color=INK, size=0.3, alpha=0.10),
    panel_grid_minor=element_blank(),
    panel_border=element_blank(),
    axis_line=element_line(color=INK_SOFT),
    axis_title=element_text(color=INK, size=20),
    axis_text=element_text(color=INK_SOFT, size=16),
    axis_text_x=element_text(color=INK_SOFT, size=16),
    axis_text_y=element_text(color=INK_SOFT, size=14),
    plot_title=element_text(color=INK, size=24),
    legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
    legend_text=element_text(color=INK_SOFT, size=16),
    legend_title=element_text(color=INK, size=18),
    legend_position="bottom",
)

# Labels for the peak 40-49 row to emphasise the working-age bulge
df_peak = df[df["age_group"] == "40-49"].copy()
df_peak["label"] = df_peak["population"].apply(lambda v: f"{abs(v):,}")
# Position labels just outside each bar end (negative side left, positive side right)
df_peak["label_y"] = df_peak["population"].apply(lambda v: v * 1.08)

# Plot
plot = (
    ggplot(df, aes(x="age_group", y="population", fill="gender"))
    + geom_col(width=0.85)
    + geom_text(
        data=df_peak, mapping=aes(x="age_group", y="label_y", label="label"), color=INK_SOFT, size=13, inherit_aes=False
    )
    + scale_fill_manual(values={"Male": IMPRINT[0], "Female": IMPRINT[1]})
    + scale_y_continuous(labels=lambda breaks: [f"{abs(int(b)):,}" for b in breaks])
    + labs(
        x="Age Group",
        y="Population (thousands)",
        title="Population by Age & Gender · pyramid-basic · plotnine · anyplot.ai",
        fill="Gender",
    )
    + theme_minimal()
    + anyplot_theme
    + coord_flip()
)

# Save
plot.save(f"plot-{THEME}.png", dpi=300, verbose=False)

Part of Basic Pyramid Chart on anyplot.ai.
