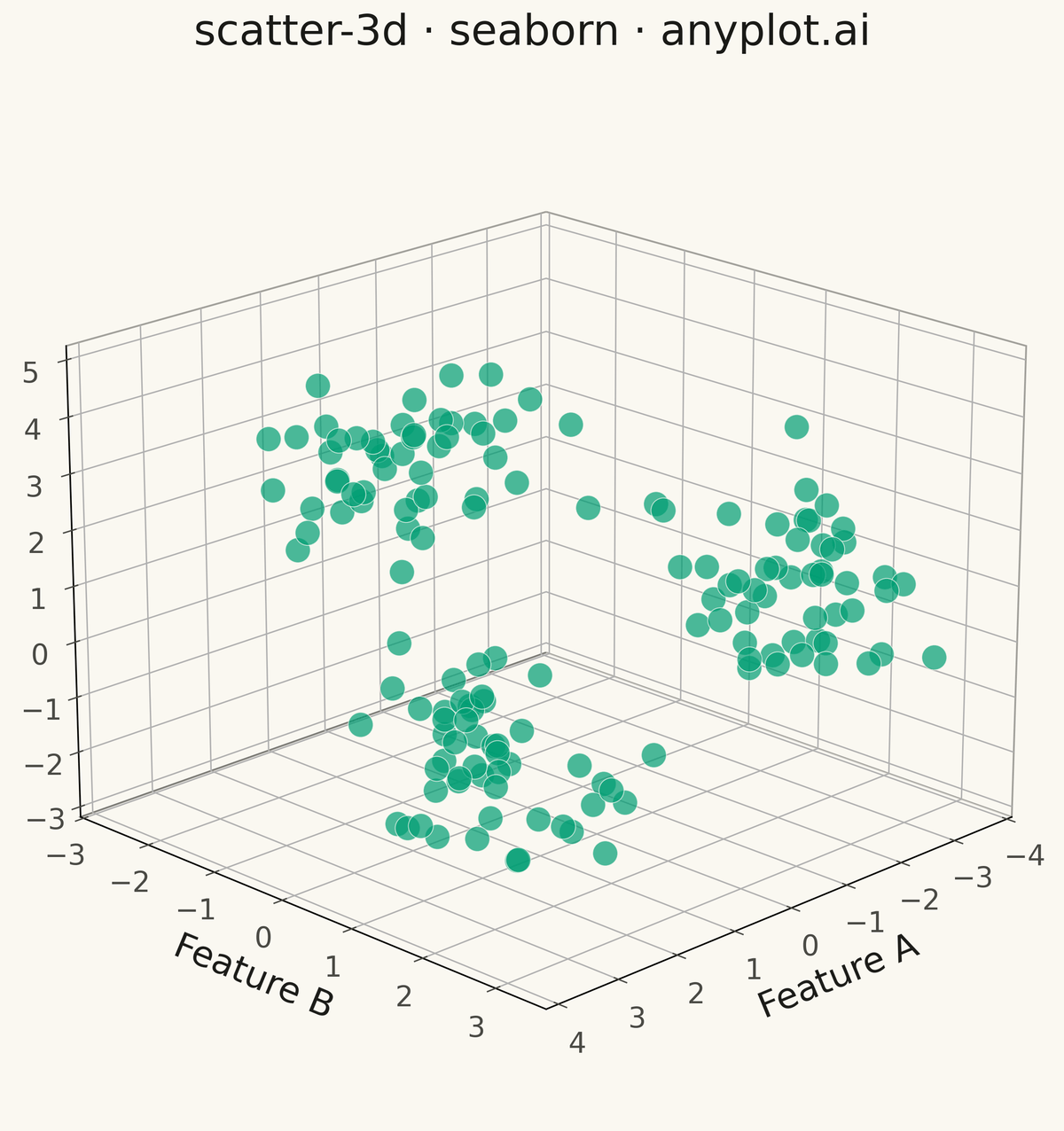

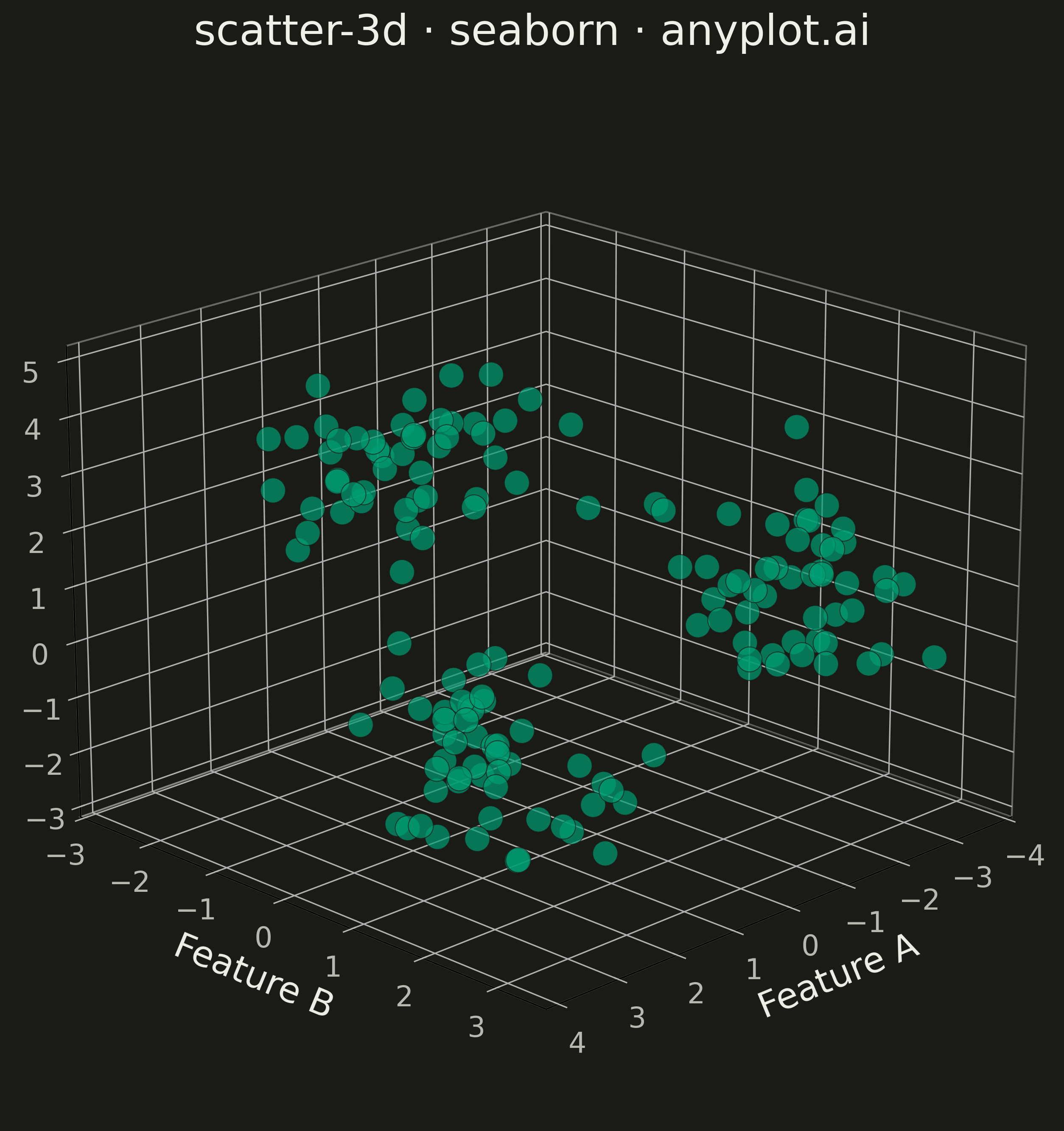

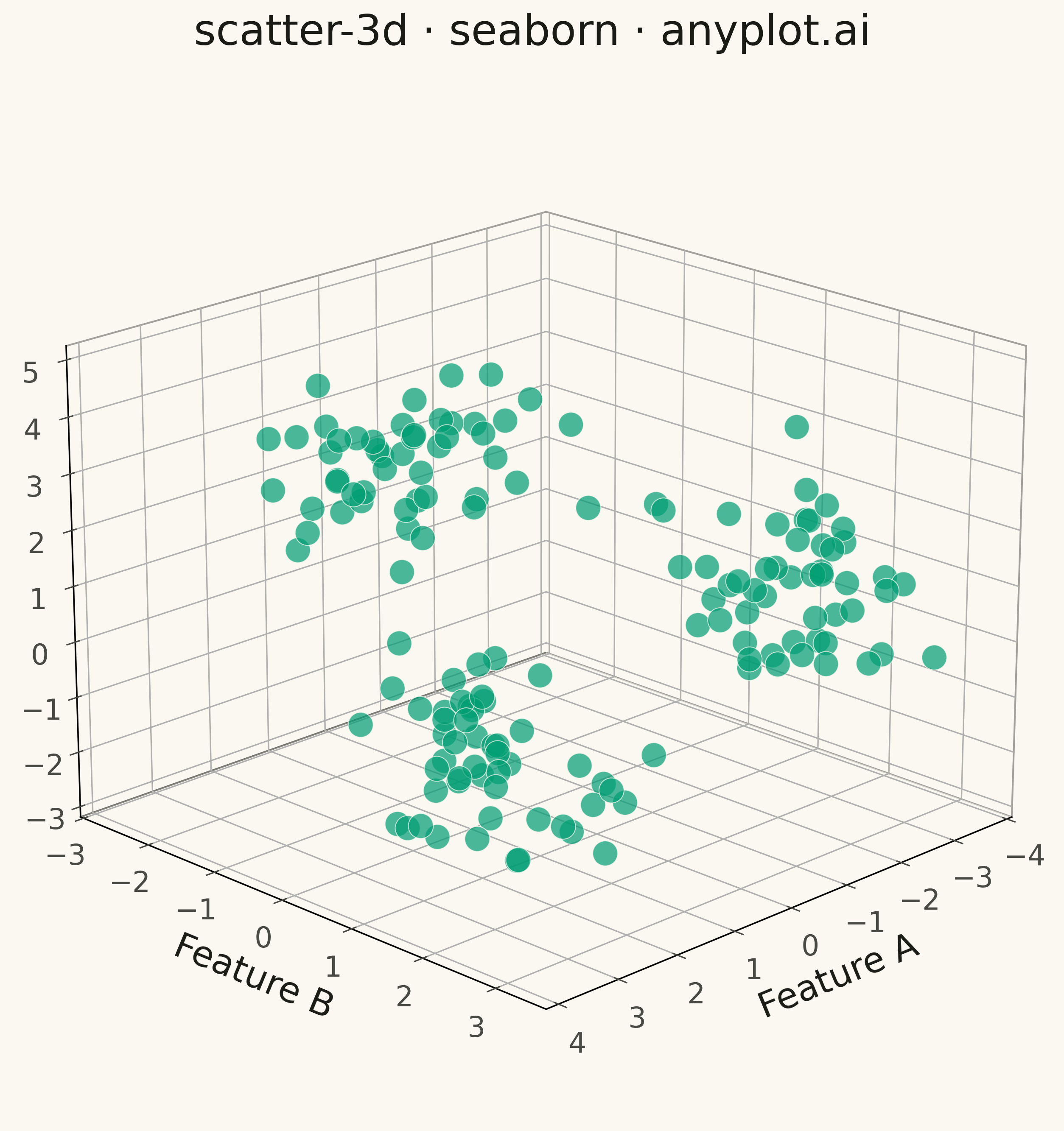

A three-dimensional scatter plot that displays the relationship between three numeric variables by plotting points in 3D space. This visualization extends the classic 2D scatter plot to reveal patterns, clusters, and correlations across three dimensions simultaneously, making it invaluable for multivariate data exploration.
""" anyplot.ai
scatter-3d: 3D Scatter Plot
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 93/100 | Created: 2026-05-08
"""
import os
import matplotlib.pyplot as plt
import numpy as np
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73"
# Data
np.random.seed(42)
n_points = 150
cluster1_x = np.random.normal(-2, 0.8, n_points // 3)
cluster1_y = np.random.normal(2, 0.8, n_points // 3)
cluster1_z = np.random.normal(1, 0.8, n_points // 3)
cluster2_x = np.random.normal(1, 0.8, n_points // 3)
cluster2_y = np.random.normal(-1, 0.8, n_points // 3)
cluster2_z = np.random.normal(3, 0.8, n_points // 3)
cluster3_x = np.random.normal(2, 0.8, n_points - 2 * (n_points // 3))
cluster3_y = np.random.normal(1, 0.8, n_points - 2 * (n_points // 3))
cluster3_z = np.random.normal(-1, 0.8, n_points - 2 * (n_points // 3))
x = np.concatenate([cluster1_x, cluster2_x, cluster3_x])
y = np.concatenate([cluster1_y, cluster2_y, cluster3_y])
z = np.concatenate([cluster1_z, cluster2_z, cluster3_z])
# Plot
fig = plt.figure(figsize=(16, 9), facecolor=PAGE_BG)
ax = fig.add_subplot(111, projection="3d")
ax.set_facecolor(PAGE_BG)
ax.scatter(x, y, z, c=BRAND, s=200, alpha=0.7, edgecolors=PAGE_BG, linewidth=0.5)
# Style
ax.set_xlabel("Feature A", fontsize=20, color=INK, labelpad=10)
ax.set_ylabel("Feature B", fontsize=20, color=INK, labelpad=10)
ax.set_zlabel("Feature C", fontsize=20, color=INK, labelpad=10)
ax.set_title("scatter-3d · seaborn · anyplot.ai", fontsize=24, fontweight="medium", color=INK, pad=20)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)
ax.xaxis.pane.set_facecolor(PAGE_BG)
ax.yaxis.pane.set_facecolor(PAGE_BG)
ax.zaxis.pane.set_facecolor(PAGE_BG)
ax.xaxis.pane.set_edgecolor(INK_SOFT)
ax.yaxis.pane.set_edgecolor(INK_SOFT)
ax.zaxis.pane.set_edgecolor(INK_SOFT)
ax.view_init(elev=20, azim=45)
plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)
plt.close()
Part of 3D Scatter Plot on anyplot.ai.
