Annotated Scatter Plot with Text Labels — Bokeh

A scatter plot where each data point can have a text label annotation, useful for identifying specific points of interest. This visualization enhances basic scatter plots by adding contextual information directly on the chart, making it easy to highlight outliers, named entities, or key data points that deserve special attention.

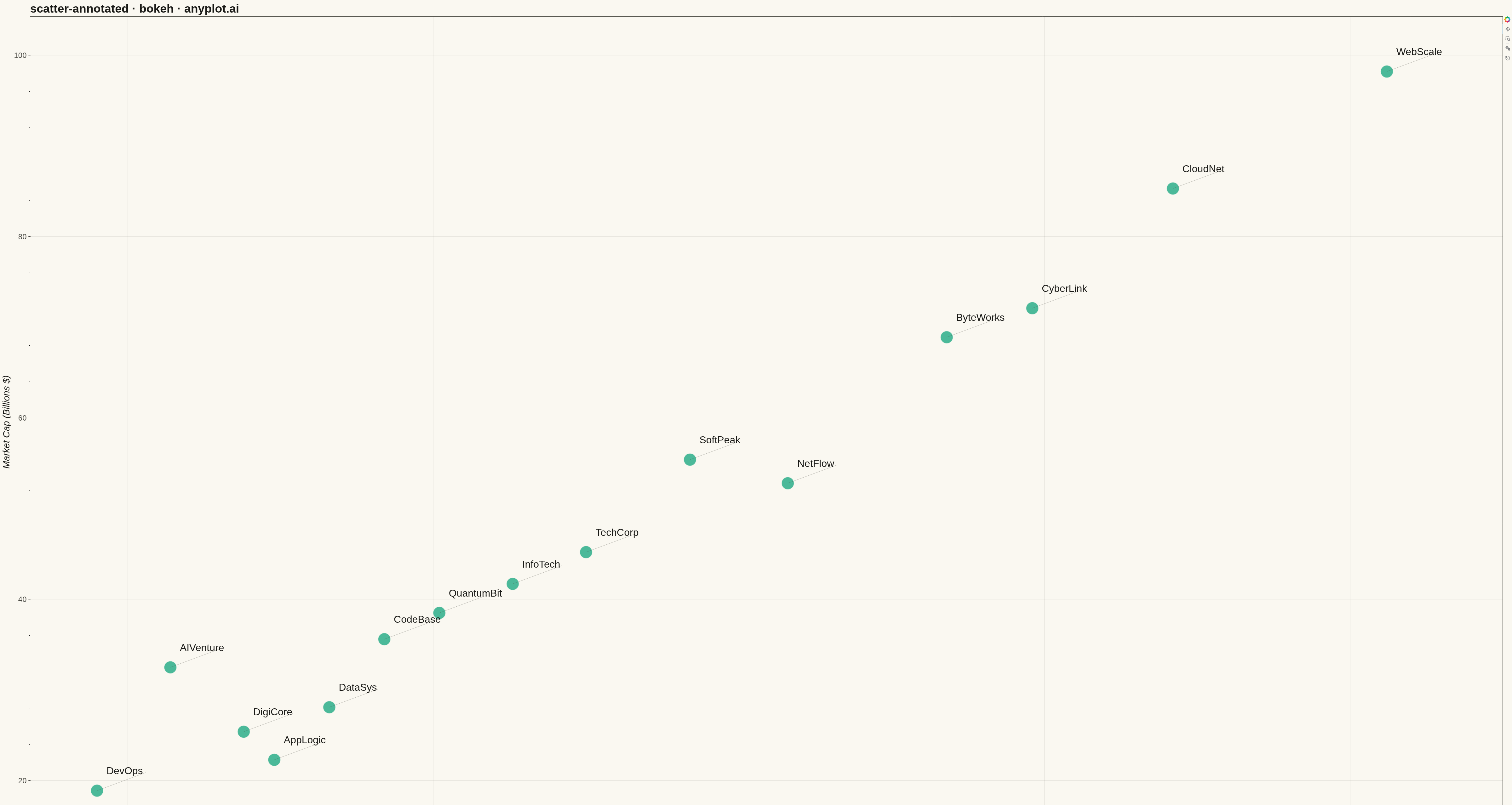

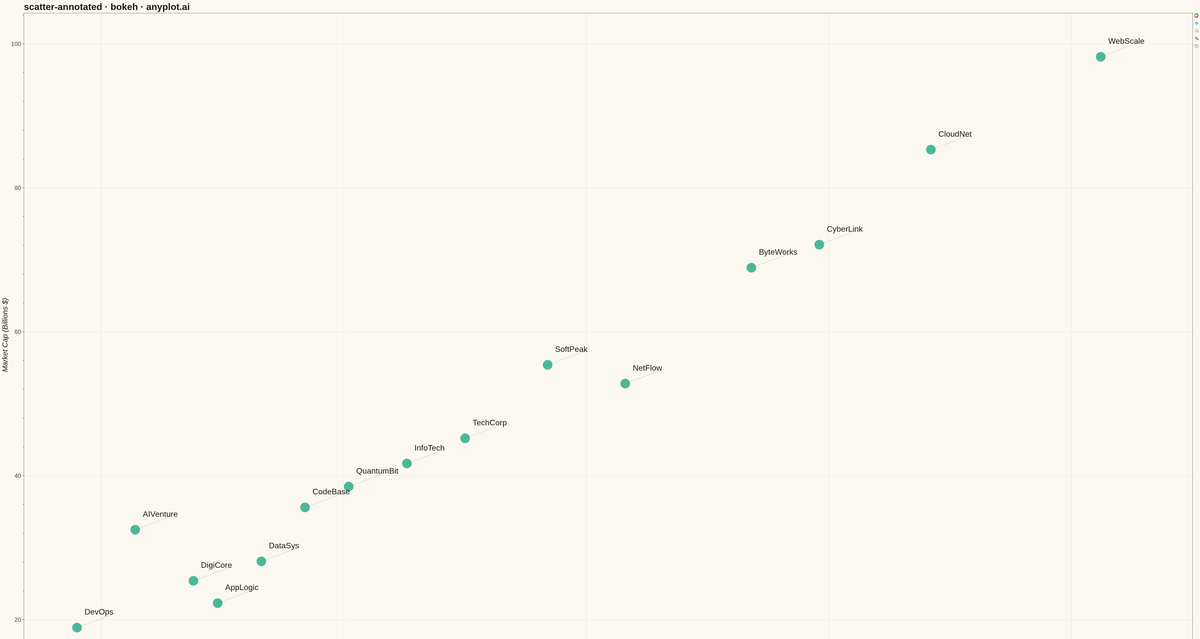

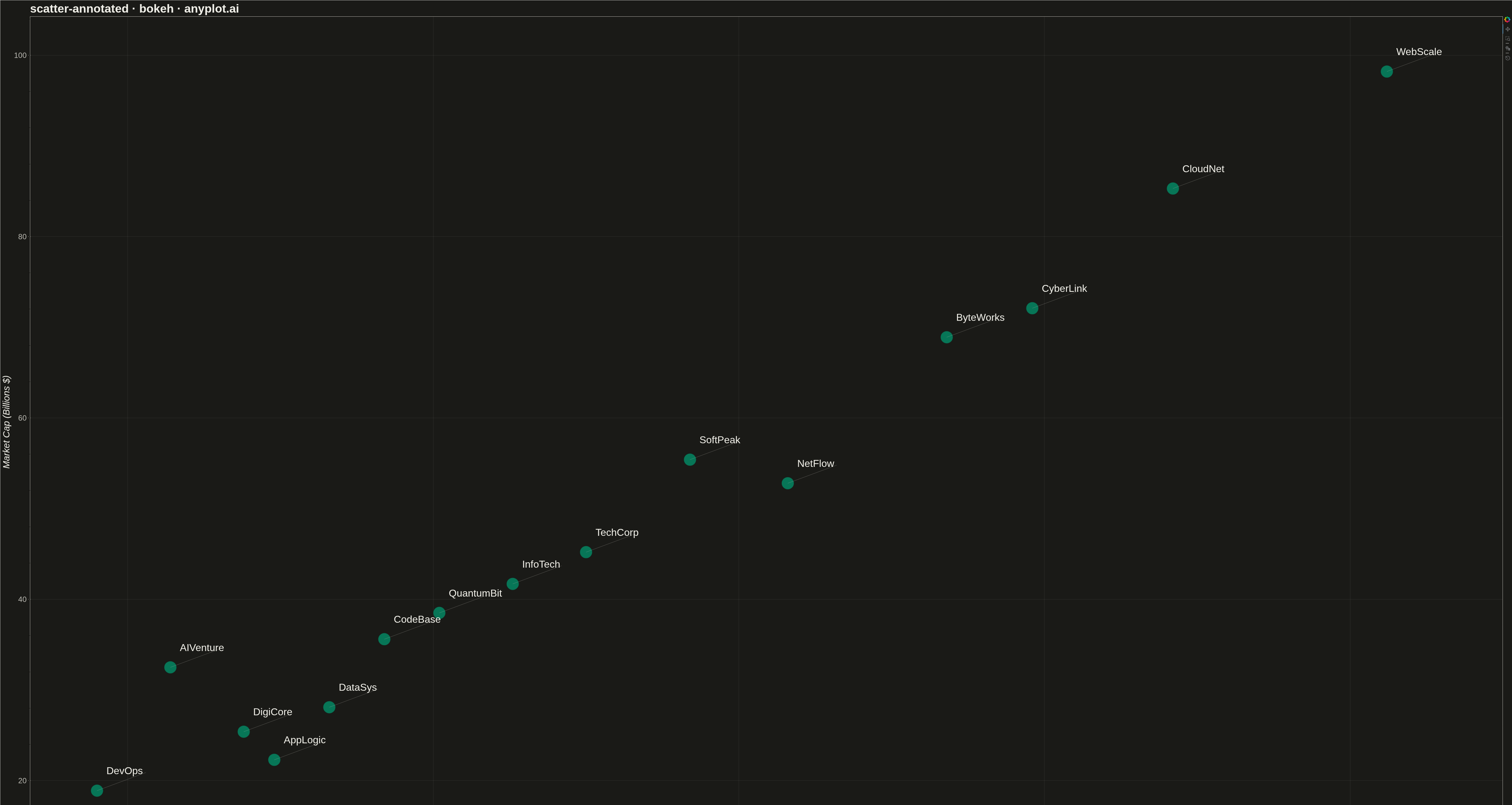

Annotated Scatter Plot with Text Labels rendered with Bokeh

Python source (Bokeh)

""" anyplot.ai
scatter-annotated: Annotated Scatter Plot with Text Labels
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-13
"""

import sys


sys.path = [p for p in sys.path if not p.endswith("implementations/python")]

import os
import time
from pathlib import Path

import bokeh.io
import bokeh.models
import bokeh.plotting
import numpy as np
from selenium import webdriver
from selenium.webdriver.chrome.options import Options


# Create aliases to avoid name shadowing with bokeh.py module name
output_file = bokeh.io.output_file
save = bokeh.io.save
ColumnDataSource = bokeh.models.ColumnDataSource
LabelSet = bokeh.models.LabelSet
figure = bokeh.plotting.figure

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73"

# Data - Company market performance example
np.random.seed(42)
companies = [
    "TechCorp",
    "DataSys",
    "CloudNet",
    "AIVenture",
    "NetFlow",
    "CodeBase",
    "ByteWorks",
    "DigiCore",
    "InfoTech",
    "WebScale",
    "AppLogic",
    "SoftPeak",
    "CyberLink",
    "DevOps",
    "QuantumBit",
]

# Revenue (billions) and Market Cap (billions)
revenue = np.array([12.5, 8.3, 22.1, 5.7, 15.8, 9.2, 18.4, 6.9, 11.3, 25.6, 7.4, 14.2, 19.8, 4.5, 10.1])
market_cap = np.array([45.2, 28.1, 85.3, 32.5, 52.8, 35.6, 68.9, 25.4, 41.7, 98.2, 22.3, 55.4, 72.1, 18.9, 38.5])

# Create ColumnDataSource with label offsets
source = ColumnDataSource(
    data={
        "x": revenue,
        "y": market_cap,
        "labels": companies,
        "x_offset": np.full(len(companies), 0.8),
        "y_offset": np.full(len(companies), 2.0),
    }
)

# Create figure
p = figure(
    width=4800,
    height=2700,
    title="scatter-annotated · bokeh · anyplot.ai",
    x_axis_label="Revenue (Billions $)",
    y_axis_label="Market Cap (Billions $)",
    tools="pan,wheel_zoom,box_zoom,reset",
)

# Plot scatter points
p.scatter(x="x", y="y", source=source, size=40, color=BRAND, alpha=0.7, line_color=PAGE_BG, line_width=2)

# Add connecting line segments from points to labels
segments_source = ColumnDataSource(data={"x0": revenue, "y0": market_cap, "x1": revenue + 0.8, "y1": market_cap + 2.0})
p.segment(x0="x0", y0="y0", x1="x1", y1="y1", source=segments_source, line_color=INK_SOFT, line_width=1, line_alpha=0.4)

# Add text labels
labels = LabelSet(
    x="x",
    y="y",
    text="labels",
    source=source,
    x_offset=30,
    y_offset=45,
    text_font_size="24pt",
    text_color=INK,
    text_font_style="normal",
)
p.add_layout(labels)

# Style title
p.title.text_font_size = "28pt"
p.title.text_color = INK

# Style axes labels
p.xaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_font_size = "22pt"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK

# Style tick labels
p.xaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_font_size = "18pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT

# Style grid
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_alpha = 0.10

# Background
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT

# Axis styling
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT

# Save HTML
output_file(f"plot-{THEME}.html")
save(p)

# Screenshot with headless Chrome
W, H = 4800, 2700
opts = Options()
opts.binary_location = "/usr/bin/chromium"
for arg in (
    "--headless=new",
    "--no-sandbox",
    "--disable-dev-shm-usage",
    "--disable-gpu",
    f"--window-size={W},{H}",
    "--hide-scrollbars",
):
    opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()

Part of Annotated Scatter Plot with Text Labels on anyplot.ai.
