Annotated Scatter Plot with Text Labels — plotnine

A scatter plot where each data point can have a text label annotation, useful for identifying specific points of interest. This visualization enhances basic scatter plots by adding contextual information directly on the chart, making it easy to highlight outliers, named entities, or key data points that deserve special attention.

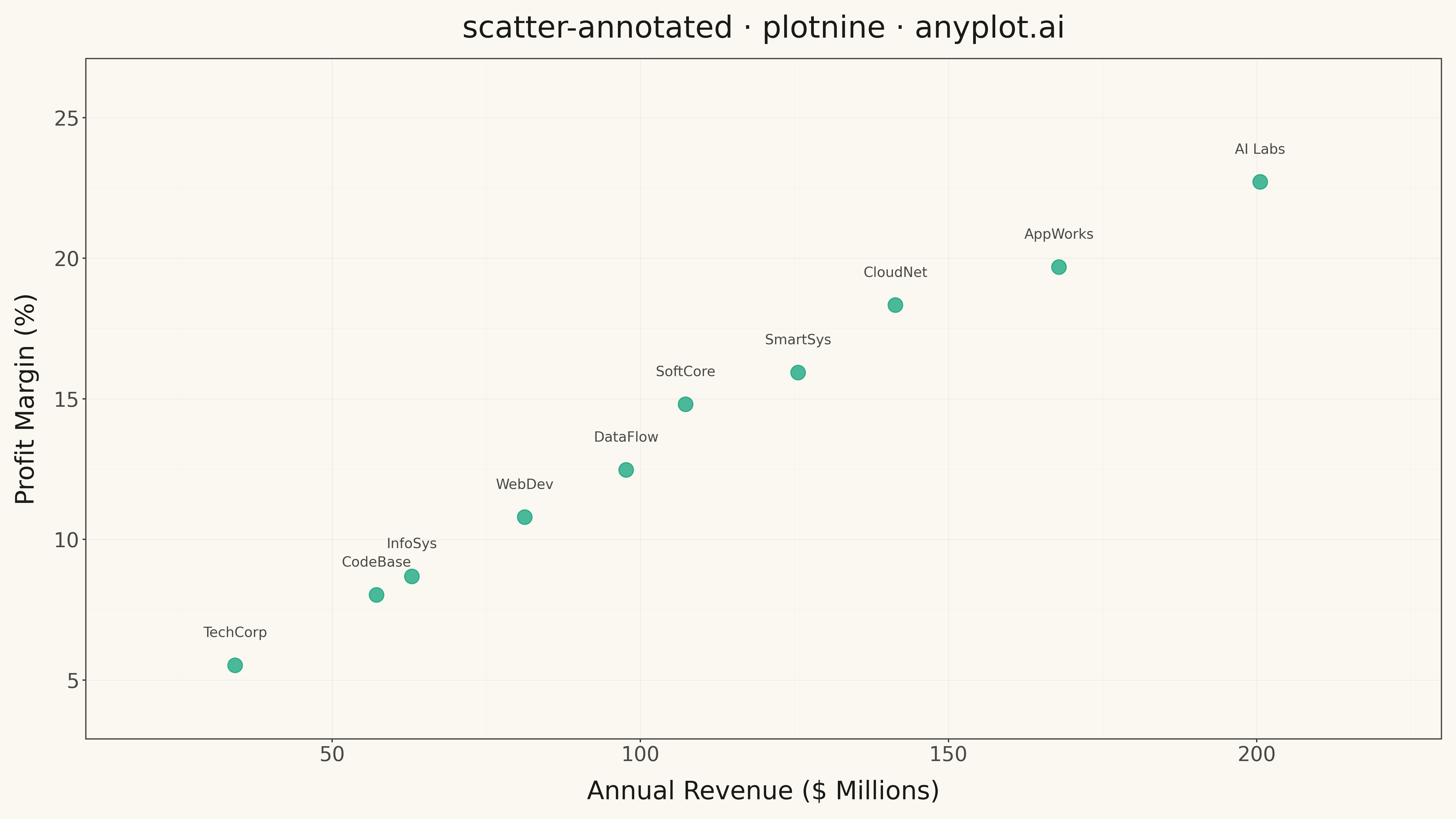

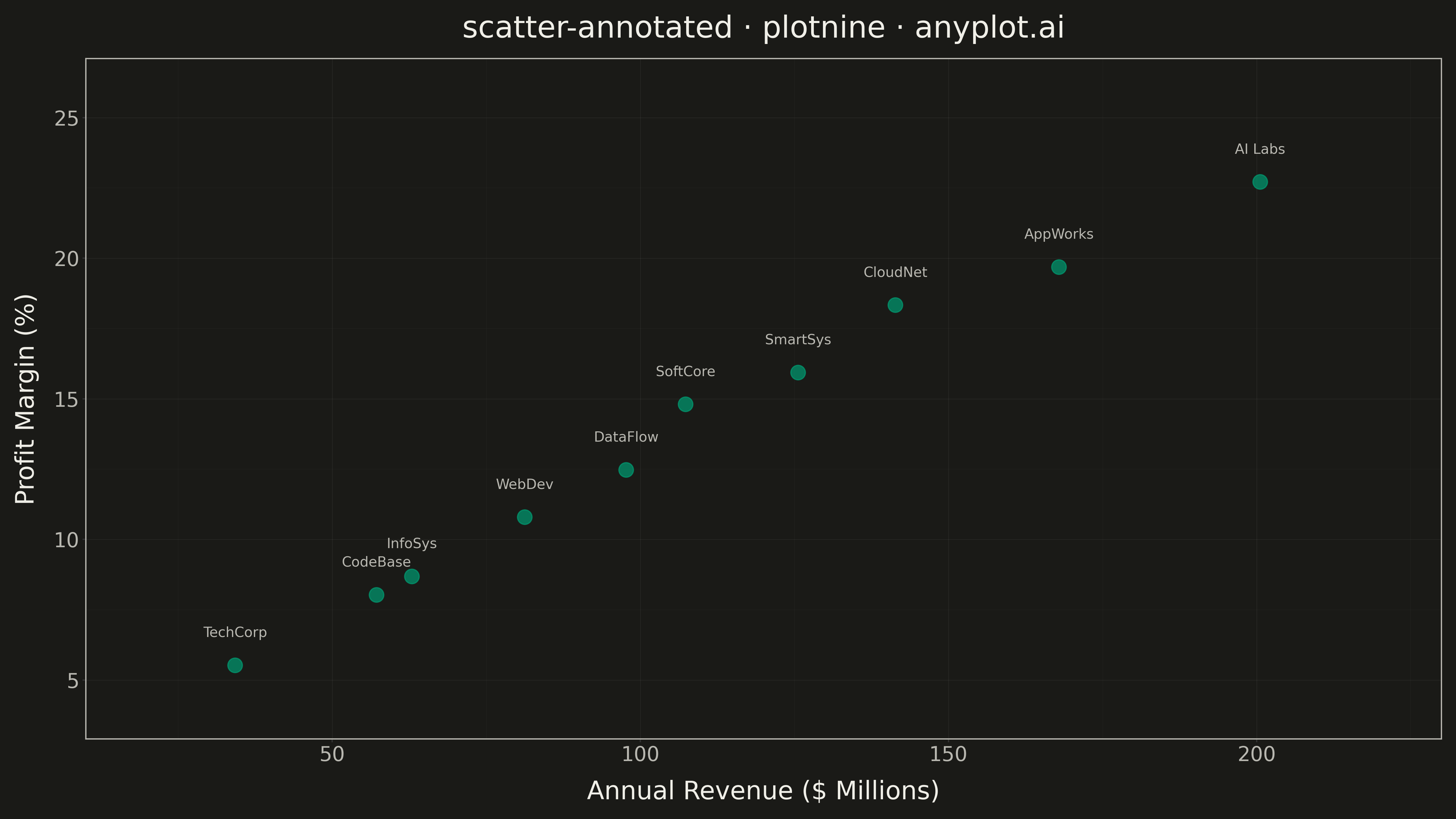

Annotated Scatter Plot with Text Labels rendered with plotnine

Python source (plotnine)

""" anyplot.ai
scatter-annotated: Annotated Scatter Plot with Text Labels
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 72/100 | Updated: 2026-05-13
"""

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    element_text,
    geom_point,
    geom_text,
    ggplot,
    labs,
    scale_x_continuous,
    scale_y_continuous,
    theme,
    theme_minimal,
)


# Data - Company performance metrics (fewer points to avoid label overlap)
np.random.seed(42)

companies = [
    "TechCorp",
    "DataFlow",
    "CloudNet",
    "AI Labs",
    "InfoSys",
    "AppWorks",
    "SoftCore",
    "CodeBase",
    "SmartSys",
    "WebDev",
]

# Revenue (millions) and Profit Margin (percentage) - spread out to avoid overlap
revenue = np.array([35, 95, 140, 200, 65, 170, 110, 55, 125, 80])
profit_margin = np.array([6, 12, 18, 23, 9, 20, 15, 8, 16, 11])

# Add small variation
revenue = revenue + np.random.uniform(-3, 3, len(companies))
profit_margin = profit_margin + np.random.uniform(-0.5, 0.5, len(companies))

df = pd.DataFrame({"company": companies, "revenue": revenue, "profit_margin": profit_margin})

# Create plot
plot = (
    ggplot(df, aes(x="revenue", y="profit_margin"))
    + geom_point(size=6, alpha=0.7, color="#306998")
    + geom_text(aes(label="company"), size=11, nudge_y=0.9, color="#333333", va="bottom")
    + labs(x="Annual Revenue ($ Millions)", y="Profit Margin (%)", title="scatter-annotated · plotnine · pyplots.ai")
    + scale_x_continuous(limits=(20, 220))
    + scale_y_continuous(limits=(4, 26))
    + theme_minimal()
    + theme(
        figure_size=(16, 9),
        text=element_text(size=14),
        axis_title=element_text(size=20),
        axis_text=element_text(size=16),
        plot_title=element_text(size=24),
    )
)

# Save
plot.save("plot.png", dpi=300, verbose=False)

Part of Annotated Scatter Plot with Text Labels on anyplot.ai.
