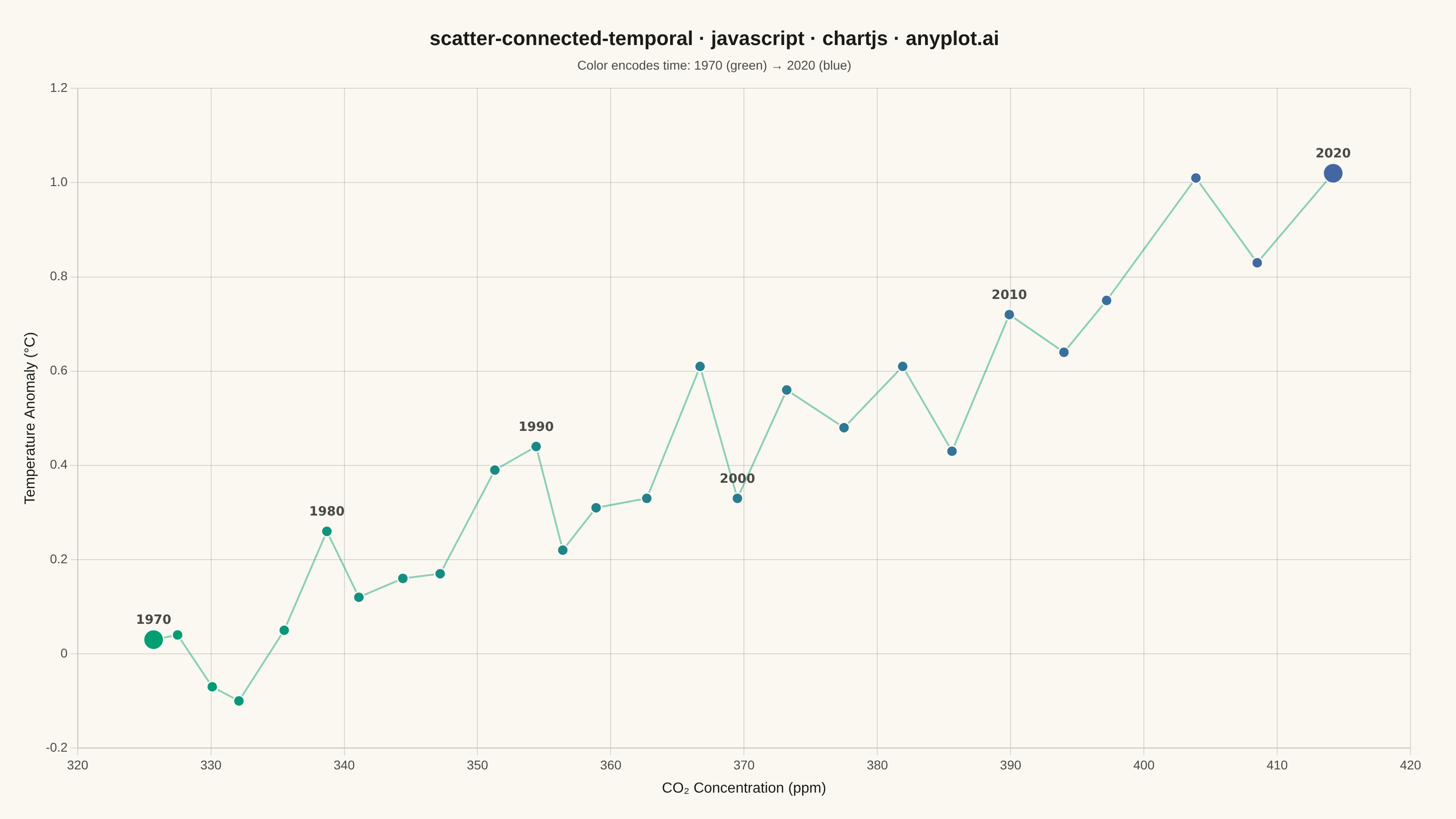

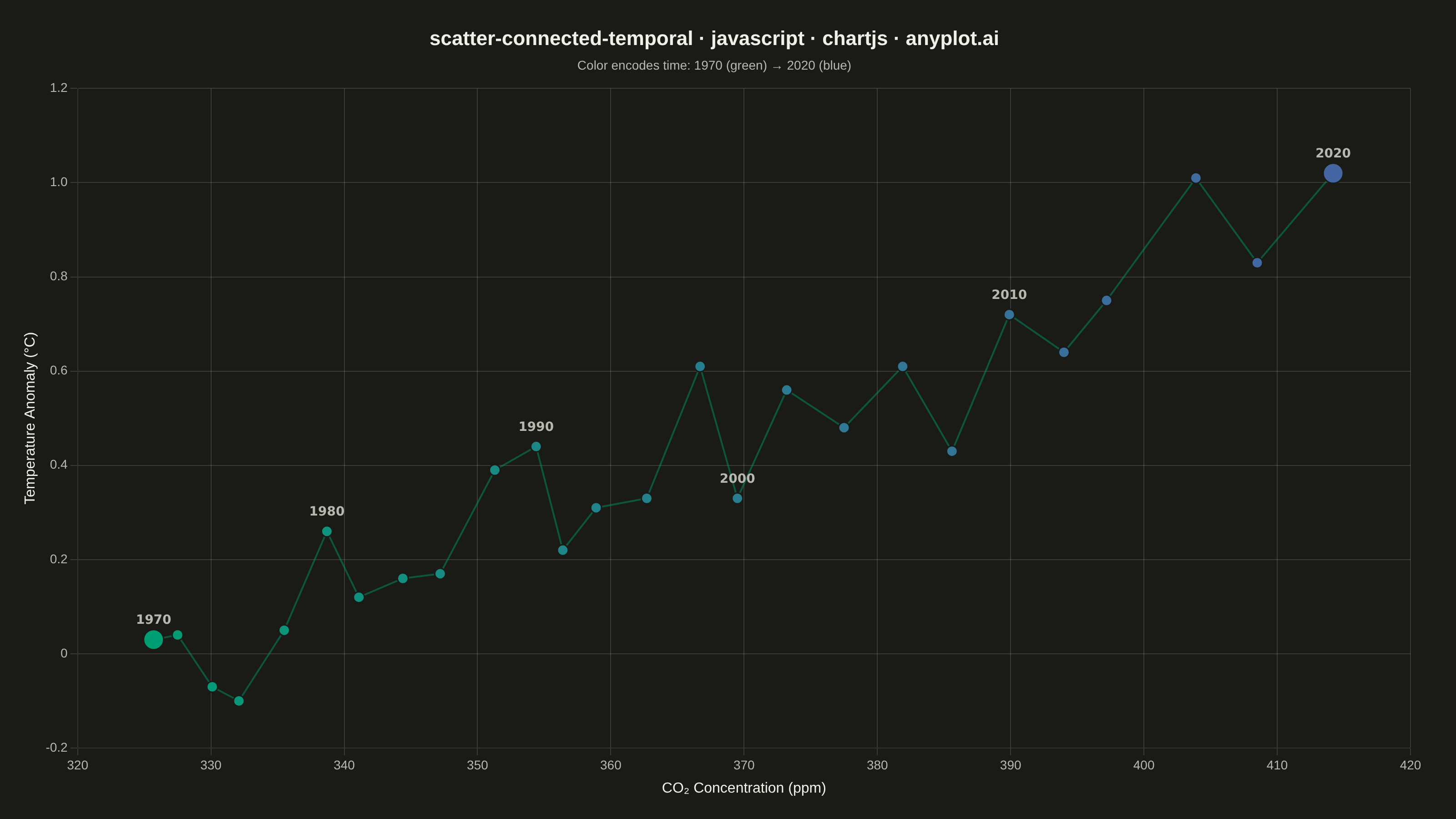

A scatter plot where data points are connected by lines in temporal order, revealing how two variables co-evolve over time. Unlike standard time series plots that show one variable against time, this plot encodes time as movement through 2D space, making cyclical patterns, regime changes, and directional trends visible. Popularized by the New York Times, it is a powerful tool for narrative data visualization.
// anyplot.ai
// scatter-connected-temporal: Connected Scatter Plot with Temporal Path
// Library: chartjs 4.4.7 | JavaScript 22.22.3
// Quality: 92/100 | Created: 2026-06-09
const t = window.ANYPLOT_TOKENS;
// CO₂ concentration (ppm) vs global temperature anomaly (°C), biennial 1970–2020
const climateData = [
{ year: 1970, co2: 325.7, temp: 0.03 },
{ year: 1972, co2: 327.5, temp: 0.04 },
{ year: 1974, co2: 330.1, temp: -0.07 },
{ year: 1976, co2: 332.1, temp: -0.10 },
{ year: 1978, co2: 335.5, temp: 0.05 },
{ year: 1980, co2: 338.7, temp: 0.26 },
{ year: 1982, co2: 341.1, temp: 0.12 },
{ year: 1984, co2: 344.4, temp: 0.16 },
{ year: 1986, co2: 347.2, temp: 0.17 },
{ year: 1988, co2: 351.3, temp: 0.39 },
{ year: 1990, co2: 354.4, temp: 0.44 },
{ year: 1992, co2: 356.4, temp: 0.22 },
{ year: 1994, co2: 358.9, temp: 0.31 },
{ year: 1996, co2: 362.7, temp: 0.33 },
{ year: 1998, co2: 366.7, temp: 0.61 },
{ year: 2000, co2: 369.5, temp: 0.33 },
{ year: 2002, co2: 373.2, temp: 0.56 },
{ year: 2004, co2: 377.5, temp: 0.48 },
{ year: 2006, co2: 381.9, temp: 0.61 },
{ year: 2008, co2: 385.6, temp: 0.43 },
{ year: 2010, co2: 389.9, temp: 0.72 },
{ year: 2012, co2: 394.0, temp: 0.64 },
{ year: 2014, co2: 397.2, temp: 0.75 },
{ year: 2016, co2: 403.9, temp: 1.01 },
{ year: 2018, co2: 408.5, temp: 0.83 },
{ year: 2020, co2: 414.2, temp: 1.02 },
];
const n = climateData.length;
// Parse hex to [r, g, b]
function hexToRgb(hex) {
return [
parseInt(hex.slice(1, 3), 16),
parseInt(hex.slice(3, 5), 16),
parseInt(hex.slice(5, 7), 16),
];
}
// Temporal gradient: Imprint brand green → Imprint blue (via t.seq)
const [r1, g1, b1] = hexToRgb(t.seq[0]);
const [r2, g2, b2] = hexToRgb(t.seq[1]);
function lerpColor(frac) {
const r = Math.round(r1 + (r2 - r1) * frac);
const g = Math.round(g1 + (g2 - g1) * frac);
const b = Math.round(b1 + (b2 - b1) * frac);
return `rgb(${r},${g},${b})`;
}
const pointColors = climateData.map((_, i) => lerpColor(i / (n - 1)));
const pointRadius = climateData.map((_, i) => (i === 0 || i === n - 1 ? 11 : 6));
const lineColor = `rgba(${r1},${g1},${b1},0.45)`;
const labelYears = new Set([1970, 1980, 1990, 2000, 2010, 2020]);
// Fill canvas background before chart renders
Chart.register({
id: "canvasBg",
beforeDraw(chart) {
const ctx = chart.ctx;
ctx.save();
ctx.fillStyle = t.pageBg;
ctx.fillRect(0, 0, chart.width, chart.height);
ctx.restore();
},
});
// Draw year labels above annotated key points
Chart.register({
id: "temporalLabels",
afterDatasetsDraw(chart) {
const ctx = chart.ctx;
const meta = chart.getDatasetMeta(0);
ctx.save();
ctx.font = "bold 14px system-ui, sans-serif";
ctx.textAlign = "center";
ctx.textBaseline = "bottom";
ctx.fillStyle = t.inkSoft;
climateData.forEach((d, i) => {
if (!labelYears.has(d.year)) return;
const pt = meta.data[i];
if (!pt) return;
ctx.fillText(String(d.year), pt.x, pt.y - 14);
});
ctx.restore();
},
});
// Mount
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// Chart
new Chart(canvas, {
type: "scatter",
data: {
datasets: [
{
label: "CO₂ vs Temperature",
data: climateData.map(d => ({ x: d.co2, y: d.temp })),
showLine: true,
borderColor: lineColor,
borderWidth: 2,
pointBackgroundColor: pointColors,
pointBorderColor: t.pageBg,
pointBorderWidth: 1.5,
pointRadius,
pointHoverRadius: pointRadius.map(r => r + 2),
tension: 0,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: "scatter-connected-temporal · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22, weight: "600" },
padding: { top: 20, bottom: 8 },
},
subtitle: {
display: true,
text: "Color encodes time: 1970 (green) → 2020 (blue)",
color: t.inkSoft,
font: { size: 14 },
padding: { bottom: 16 },
},
legend: { display: false },
},
scales: {
x: {
title: {
display: true,
text: "CO₂ Concentration (ppm)",
color: t.ink,
font: { size: 16 },
},
ticks: { color: t.inkSoft, font: { size: 14 } },
grid: { color: t.grid },
},
y: {
title: {
display: true,
text: "Temperature Anomaly (°C)",
color: t.ink,
font: { size: 16 },
},
ticks: { color: t.inkSoft, font: { size: 14 } },
grid: { color: t.grid },
},
},
layout: {
padding: { top: 10, right: 50, bottom: 20, left: 20 },
},
},
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/scatter-connected-temporal/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "scatter-connected-temporal",
"language": "javascript",
"library": "chartjs",
"page": "https://anyplot.ai/scatter-connected-temporal/javascript/chartjs",
"hub": "https://anyplot.ai/scatter-connected-temporal",
"code_json": "https://api.anyplot.ai/specs/scatter-connected-temporal/chartjs/code",
"spec_json": "https://api.anyplot.ai/specs/scatter-connected-temporal",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/scatter-connected-temporal/javascript/chartjs/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/scatter-connected-temporal/javascript/chartjs/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/scatter-connected-temporal/javascript/chartjs/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/scatter-connected-temporal/javascript/chartjs/plot-dark.html",
"quality_score": 92.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Connected Scatter Plot with Temporal Path on anyplot.ai.
