Connected Scatter Plot with Temporal Path — Apache ECharts

A scatter plot where data points are connected by lines in temporal order, revealing how two variables co-evolve over time. Unlike standard time series plots that show one variable against time, this plot encodes time as movement through 2D space, making cyclical patterns, regime changes, and directional trends visible. Popularized by the New York Times, it is a powerful tool for narrative data visualization.

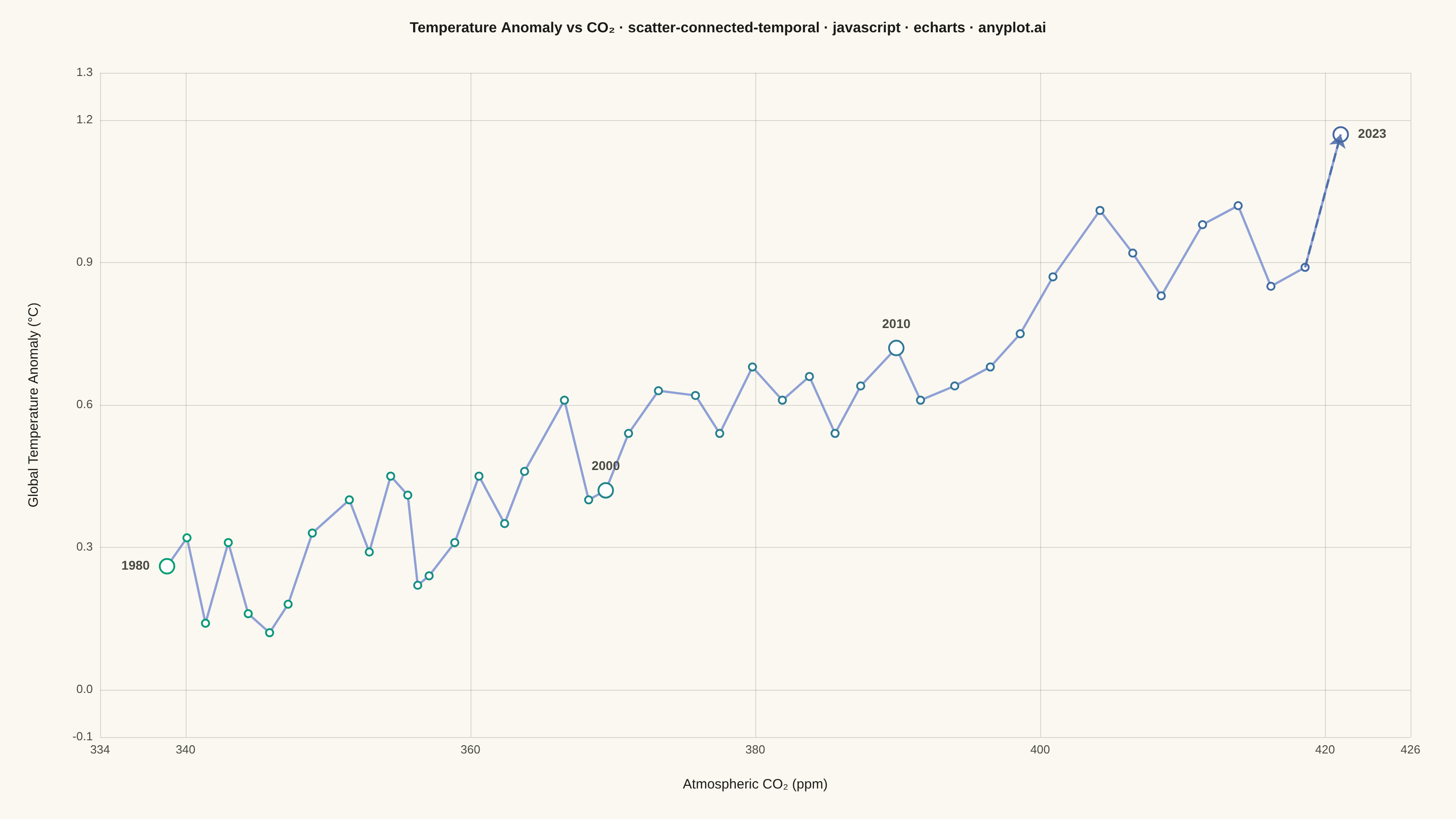

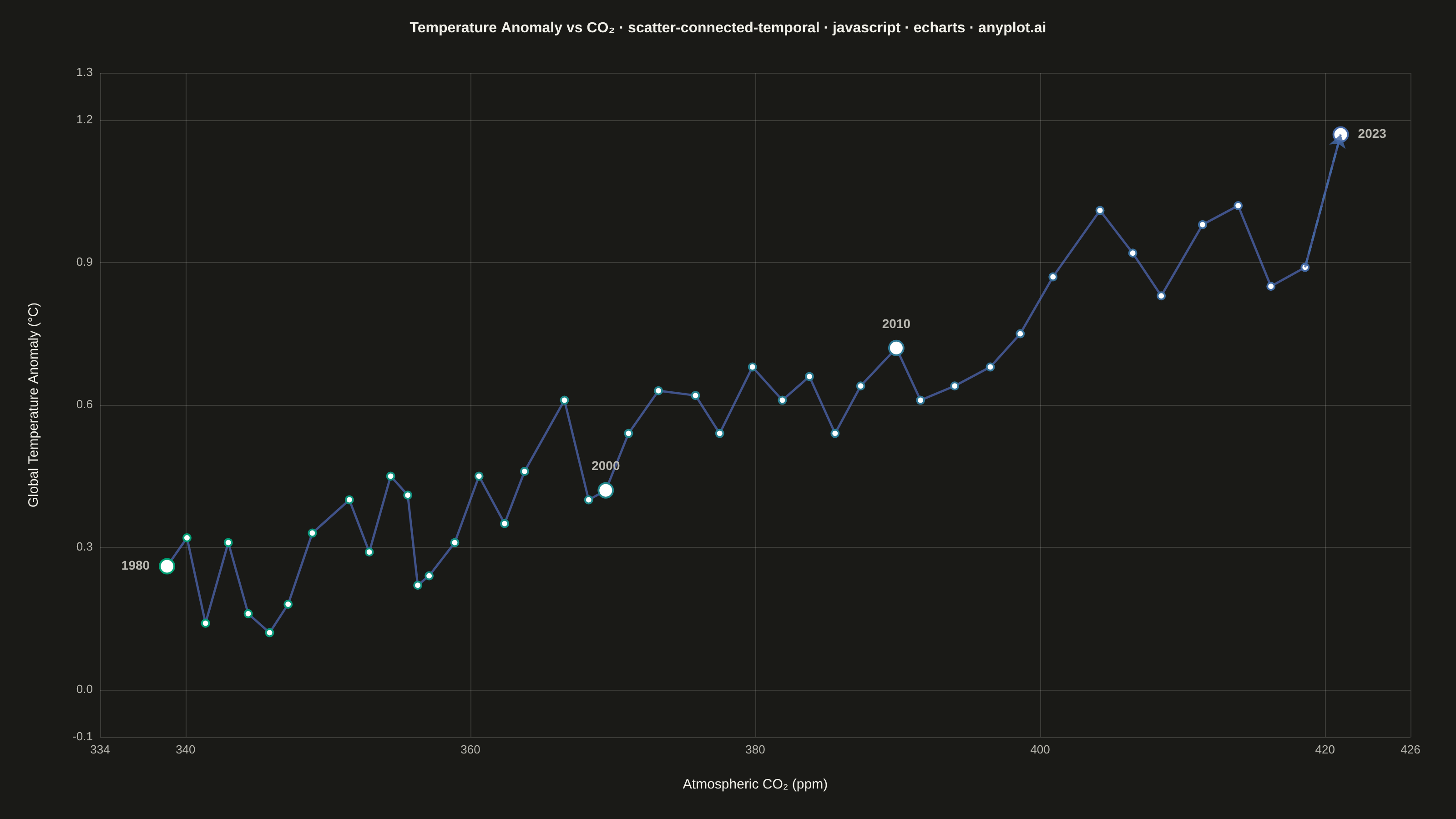

Connected Scatter Plot with Temporal Path rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// scatter-connected-temporal: Connected Scatter Plot with Temporal Path
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 93/100 | Updated: 2026-06-10

const t = window.ANYPLOT_TOKENS;

// Annual CO₂ concentration (ppm) vs. global temperature anomaly (°C), 1980–2023
const years = [
  1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989,
  1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999,
  2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009,
  2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019,
  2020, 2021, 2022, 2023
];

const co2 = [
  338.7, 340.1, 341.4, 343.0, 344.4, 345.9, 347.2, 348.9, 351.5, 352.9,
  354.4, 355.6, 356.3, 357.1, 358.9, 360.6, 362.4, 363.8, 366.6, 368.3,
  369.5, 371.1, 373.2, 375.8, 377.5, 379.8, 381.9, 383.8, 385.6, 387.4,
  389.9, 391.6, 394.0, 396.5, 398.6, 400.9, 404.2, 406.5, 408.5, 411.4,
  413.9, 416.2, 418.6, 421.1
];

const tempAnomaly = [
  0.26, 0.32, 0.14, 0.31, 0.16, 0.12, 0.18, 0.33, 0.40, 0.29,
  0.45, 0.41, 0.22, 0.24, 0.31, 0.45, 0.35, 0.46, 0.61, 0.40,
  0.42, 0.54, 0.63, 0.62, 0.54, 0.68, 0.61, 0.66, 0.54, 0.64,
  0.72, 0.61, 0.64, 0.68, 0.75, 0.87, 1.01, 0.92, 0.83, 0.98,
  1.02, 0.85, 0.89, 1.17
];

const keyYears = new Set([1980, 2000, 2010, 2023]);
const labelPos = { 1980: "left", 2000: "top", 2010: "top", 2023: "right" };
const n = years.length;

// Encode temporal index as 3rd dimension for native visualMap coloring
const seriesData = years.map((year, i) => {
  const isKey = keyYears.has(year);
  return {
    value: [co2[i], tempAnomaly[i], i],
    name: String(year),
    symbolSize: isKey ? 16 : 8,
    itemStyle: { borderColor: t.pageBg, borderWidth: 1.5 },
    label: {
      show: isKey,
      formatter: String(year),
      position: labelPos[year] || "top",
      color: t.inkSoft,
      fontSize: 14,
      fontWeight: "bold",
      distance: 10
    }
  };
});

const titleText =
  "Temperature Anomaly vs CO₂ · scatter-connected-temporal · javascript · echarts · anyplot.ai";
const titleFontSize = Math.max(13, Math.round(22 * (67 / titleText.length)));

const chart = echarts.init(document.getElementById("container"));

chart.setOption({
  animation: false,
  backgroundColor: "transparent",
  // Native ECharts continuous colormap for temporal gradient — no manual lerp needed
  visualMap: {
    show: false,
    type: "continuous",
    min: 0,
    max: n - 1,
    dimension: 2,
    inRange: { color: t.seq }
  },
  title: {
    text: titleText,
    left: "center",
    top: 18,
    textStyle: { color: t.ink, fontSize: titleFontSize, fontWeight: "bold" }
  },
  grid: { left: 110, right: 50, top: 80, bottom: 90 },
  xAxis: {
    type: "value",
    name: "Atmospheric CO₂ (ppm)",
    nameLocation: "middle",
    nameGap: 45,
    nameTextStyle: { color: t.ink, fontSize: 15 },
    min: 334,
    max: 426,
    axisLabel: { color: t.inkSoft, fontSize: 13 },
    axisLine: { show: false },
    axisTick: { show: false },
    splitLine: { lineStyle: { color: t.grid } }
  },
  yAxis: {
    type: "value",
    name: "Global Temperature Anomaly (°C)",
    nameLocation: "middle",
    nameGap: 65,
    nameTextStyle: { color: t.ink, fontSize: 15 },
    min: -0.1,
    max: 1.3,
    axisLabel: {
      color: t.inkSoft,
      fontSize: 13,
      formatter: (v) => v.toFixed(1)
    },
    axisLine: { show: false },
    axisTick: { show: false },
    splitLine: { lineStyle: { color: t.grid } }
  },
  series: [
    {
      type: "line",
      showSymbol: true,
      label: { show: false },
      lineStyle: { width: 2.5, opacity: 0.65 },
      // Arrow at path terminus: ECharts markLine makes time direction unmissable
      markLine: {
        silent: true,
        label: { show: false },
        lineStyle: { color: t.seq[1], width: 2.5, opacity: 0.85 },
        symbol: ["none", "arrow"],
        symbolSize: 14,
        data: [[
          { coord: [co2[n - 2], tempAnomaly[n - 2]] },
          { coord: [co2[n - 1], tempAnomaly[n - 1]] }
        ]]
      },
      data: seriesData
    }
  ]
});

Retrieve this implementation
