A scatter plot where data points are connected by lines in temporal order, revealing how two variables co-evolve over time. Unlike standard time series plots that show one variable against time, this plot encodes time as movement through 2D space, making cyclical patterns, regime changes, and directional trends visible. Popularized by the New York Times, it is a powerful tool for narrative data visualization.
""" anyplot.ai

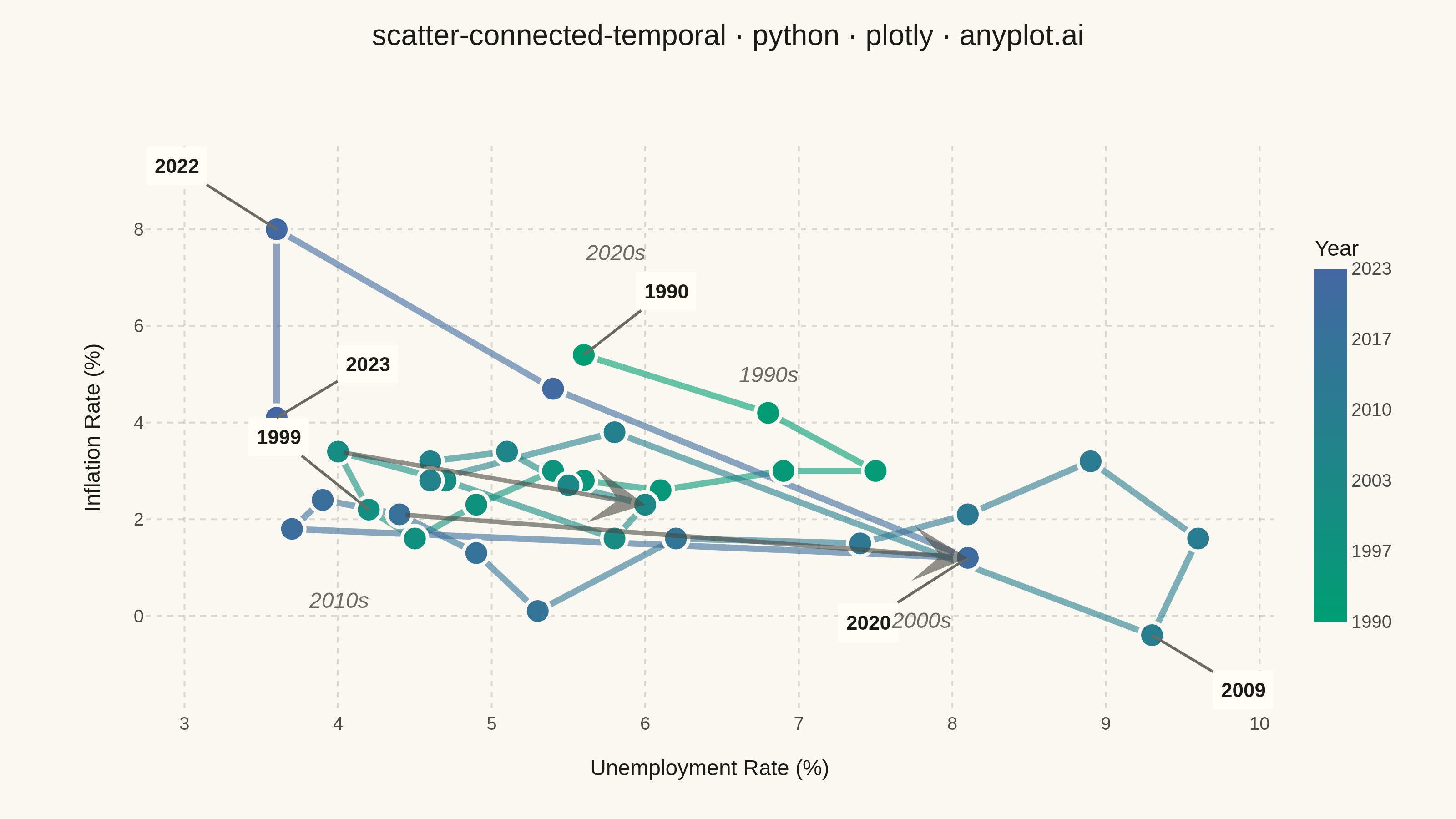

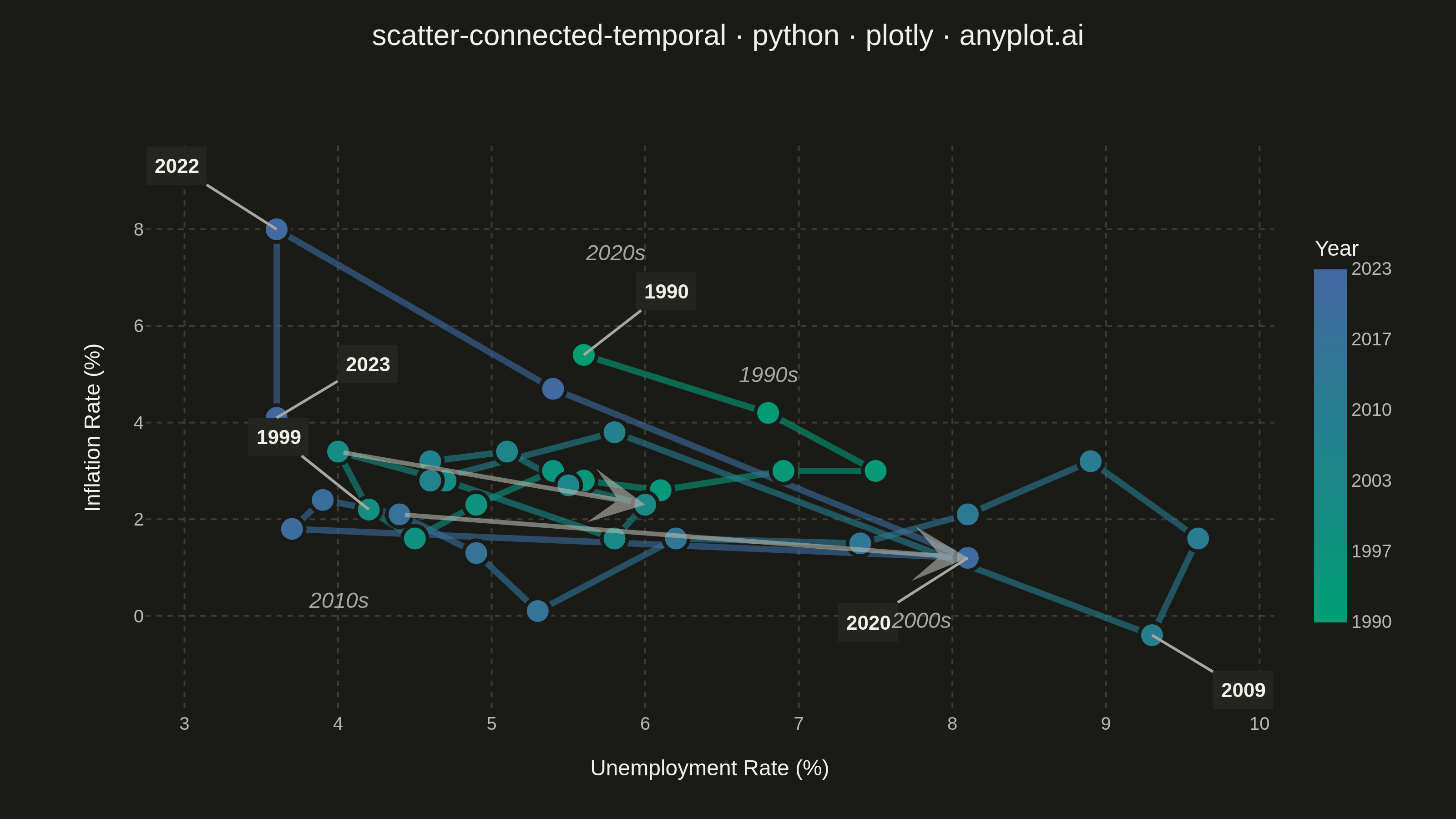

scatter-connected-temporal: Connected Scatter Plot with Temporal Path
Library: plotly 6.8.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-06-09
"""
import os
import numpy as np
import plotly.colors as pc
import plotly.graph_objects as go
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
GRID = "rgba(26,26,23,0.15)" if THEME == "light" else "rgba(240,239,232,0.15)"
# Imprint sequential colormap — green (#009E73) → blue (#4467A3)
imprint_seq = [[0.0, "#009E73"], [1.0, "#4467A3"]]
# Data - US Phillips Curve: Unemployment vs Inflation (1990-2023)
years = np.arange(1990, 2024)
n = len(years)
unemployment = np.array(
[
5.6,
6.8,
7.5,
6.9,
6.1,
5.6,
5.4,
4.9,
4.5,
4.2, # 1990s recovery
4.0,
4.7,
5.8,
6.0,
5.5,
5.1,
4.6,
4.6,
5.8,
9.3, # 2000s + recession
9.6,
8.9,
8.1,
7.4,
6.2,
5.3,
4.9,
4.4,
3.9,
3.7, # 2010s recovery
8.1,
5.4,
3.6,
3.6, # 2020s pandemic
]
)
inflation = np.array(
[
5.4,
4.2,
3.0,
3.0,
2.6,
2.8,
3.0,
2.3,
1.6,
2.2, # 1990s
3.4,
2.8,
1.6,
2.3,
2.7,
3.4,
3.2,
2.8,
3.8,
-0.4, # 2000s
1.6,
3.2,
2.1,
1.5,
1.6,
0.1,
1.3,
2.1,
2.4,
1.8, # 2010s
1.2,
4.7,
8.0,
4.1, # 2020s
]
)
t_norm = np.linspace(0, 1, n)
fig = go.Figure()
# Line segments colored by Imprint sequential gradient
seg_colors = pc.sample_colorscale(imprint_seq, [t_norm[i] for i in range(n - 1)])
for i in range(n - 1):
r, g, b = pc.unlabel_rgb(seg_colors[i])
fig.add_trace(
go.Scatter(
x=unemployment[i : i + 2],
y=inflation[i : i + 2],
mode="lines",
line={"color": f"rgba({r}, {g}, {b}, 0.6)", "width": 3.5},
hoverinfo="skip",
showlegend=False,
)
)
# Data points with Imprint sequential gradient and colorbar
fig.add_trace(
go.Scatter(
x=unemployment,
y=inflation,
mode="markers",
marker={
"size": 14,
"color": t_norm,
"colorscale": imprint_seq,
"line": {"color": PAGE_BG, "width": 2},
"colorbar": {
"title": {"text": "Year", "font": {"size": 12, "color": INK}},
"tickvals": [0, 0.2, 0.4, 0.6, 0.8, 1],
"ticktext": ["1990", "1997", "2003", "2010", "2017", "2023"],
"tickfont": {"size": 10, "color": INK_SOFT},
"len": 0.75,
"thickness": 18,
"outlinewidth": 0,
"x": 1.02,
"bgcolor": PAGE_BG,
},
},
customdata=np.column_stack([years, unemployment, inflation]),
hovertemplate=(
"<b>%{customdata[0]:.0f}</b><br>"
"Unemployment: %{customdata[1]:.1f}%<br>"
"Inflation: %{customdata[2]:.1f}%"
"<extra></extra>"
),
showlegend=False,
)
)
# Year annotations at key time points
key_points = {
0: ("1990", 45, -35),
9: ("1999", -50, -40),
19: ("2009", 50, 30),
30: ("2020", -55, 35),
32: ("2022", -55, -35),
33: ("2023", 50, -30),
}
for idx, (label, ax_off, ay_off) in key_points.items():
fig.add_annotation(
x=unemployment[idx],
y=inflation[idx],
text=f"<b>{label}</b>",
showarrow=True,
arrowhead=0,
arrowcolor=INK_MUTED,
arrowwidth=1.5,
ax=ax_off,
ay=ay_off,
font={"size": 11, "color": INK},
bgcolor=ELEVATED_BG,
borderpad=4,
)
# Directional arrows indicating temporal flow
for start_idx, end_idx in [(10, 13), (27, 30)]:
fig.add_annotation(
x=unemployment[end_idx],
y=inflation[end_idx],
ax=unemployment[start_idx],
ay=inflation[start_idx],
xref="x",
yref="y",
axref="x",
ayref="y",
showarrow=True,
arrowhead=3,
arrowsize=2,
arrowwidth=2.5,
arrowcolor=INK_SOFT,
opacity=0.6,
)
# Decade labels for context
for x_pos, y_pos, decade in [(6.8, 5.0, "1990s"), (7.8, -0.1, "2000s"), (4.0, 0.3, "2010s"), (5.8, 7.5, "2020s")]:
fig.add_annotation(
x=x_pos, y=y_pos, text=f"<i>{decade}</i>", showarrow=False, font={"size": 12, "color": INK_MUTED}
)
# Layout
title_text = "scatter-connected-temporal · python · plotly · anyplot.ai"
title_n = len(title_text)
title_size = max(round(16 * (67 / title_n if title_n > 67 else 1.0)), 11)
fig.update_layout(
autosize=False,
title={"text": title_text, "font": {"size": title_size, "color": INK}, "x": 0.5, "y": 0.97},
xaxis={
"title": {"text": "Unemployment Rate (%)", "font": {"size": 12, "color": INK}},
"tickfont": {"size": 10, "color": INK_SOFT},
"showgrid": True,
"gridcolor": GRID,
"gridwidth": 1,
"griddash": "dot",
"zeroline": False,
"showline": False,
"linecolor": INK_SOFT,
"zerolinecolor": INK_SOFT,
},
yaxis={
"title": {"text": "Inflation Rate (%)", "font": {"size": 12, "color": INK}},
"tickfont": {"size": 10, "color": INK_SOFT},
"showgrid": True,
"gridcolor": GRID,
"gridwidth": 1,
"griddash": "dot",
"zeroline": False,
"showline": False,
"linecolor": INK_SOFT,
"zerolinecolor": INK_SOFT,
},
paper_bgcolor=PAGE_BG,
plot_bgcolor=PAGE_BG,
font={"color": INK},
template="plotly_white",
margin={"l": 80, "r": 100, "t": 80, "b": 60},
)
# Save
fig.write_image(f"plot-{THEME}.png", width=800, height=450, scale=4)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")
Part of Connected Scatter Plot with Temporal Path on anyplot.ai.
