Basic Strip Plot — D3.js

A strip plot displays individual data points for each category along a single axis, with random horizontal jitter applied to reduce overplotting. Unlike box plots or violin plots that show summary statistics, strip plots reveal every observation, making them ideal for small to medium datasets where individual values matter. The random jitter spreads points horizontally within each category to show density through point accumulation.

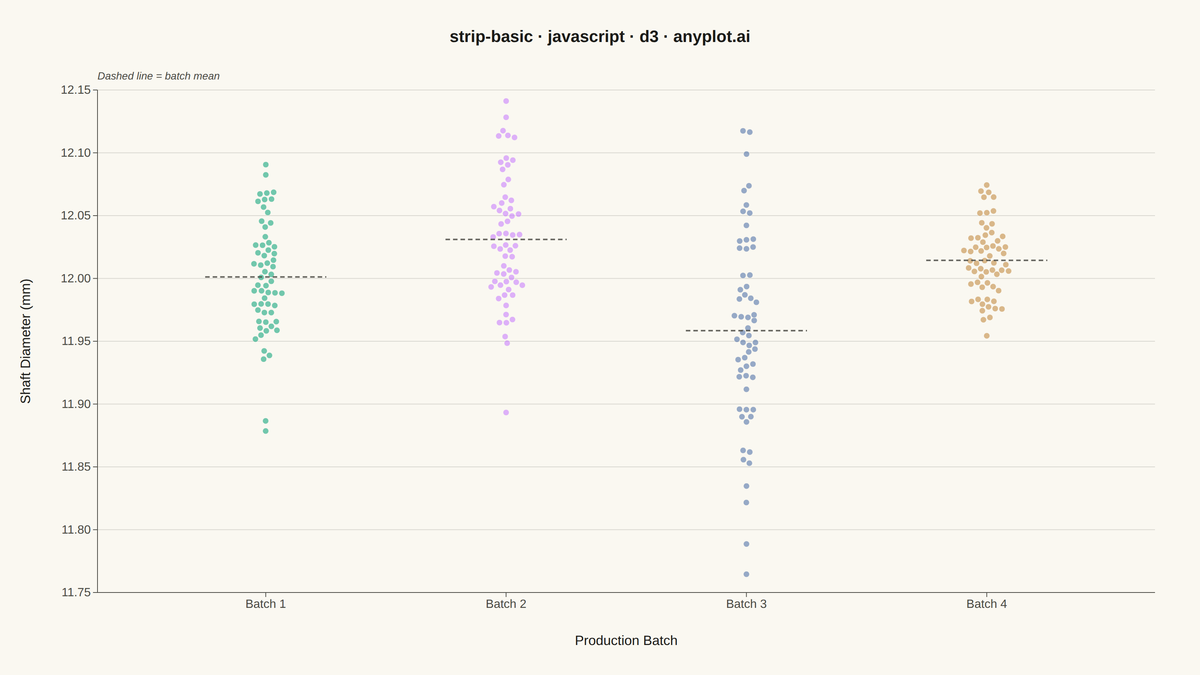

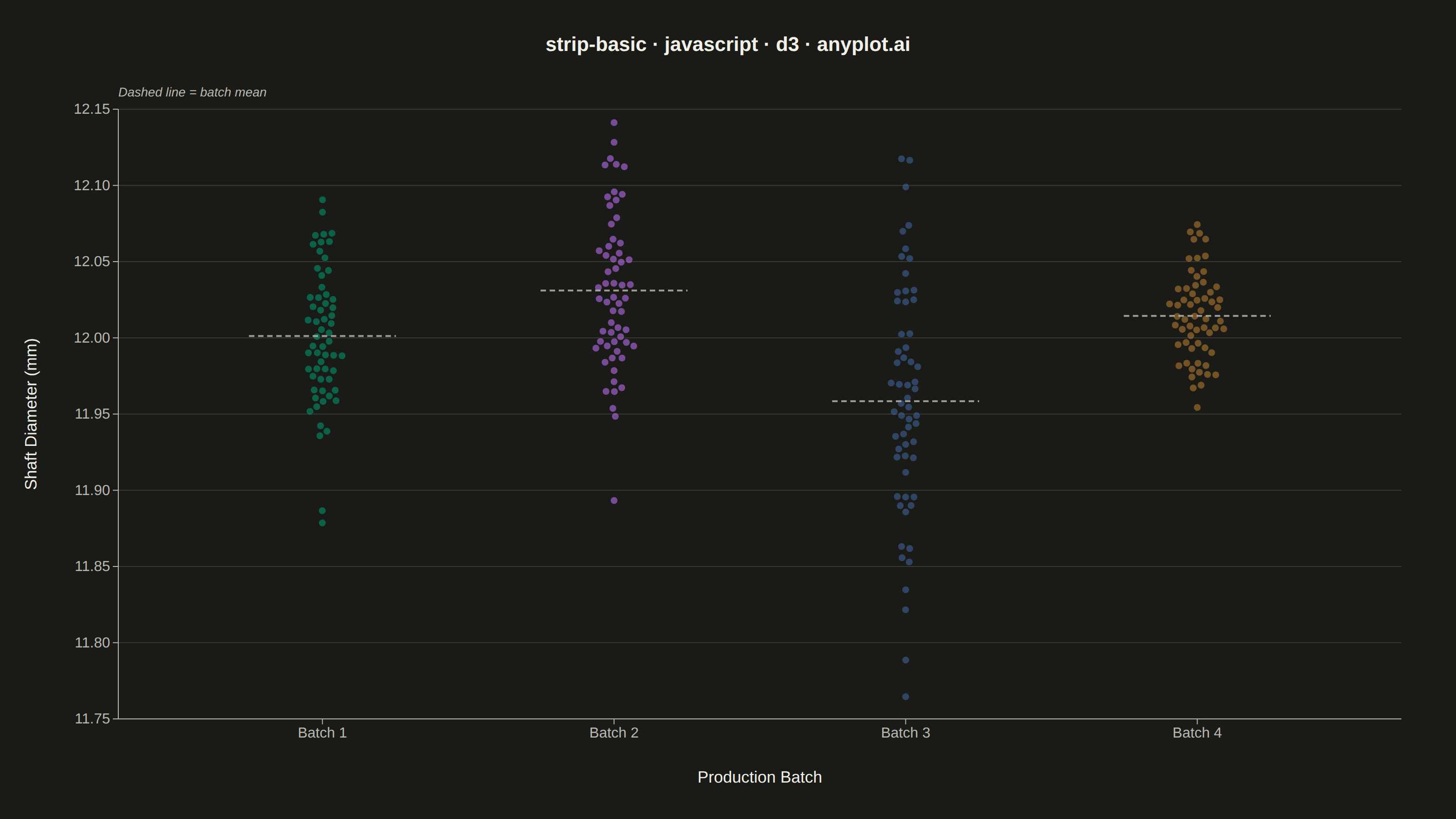

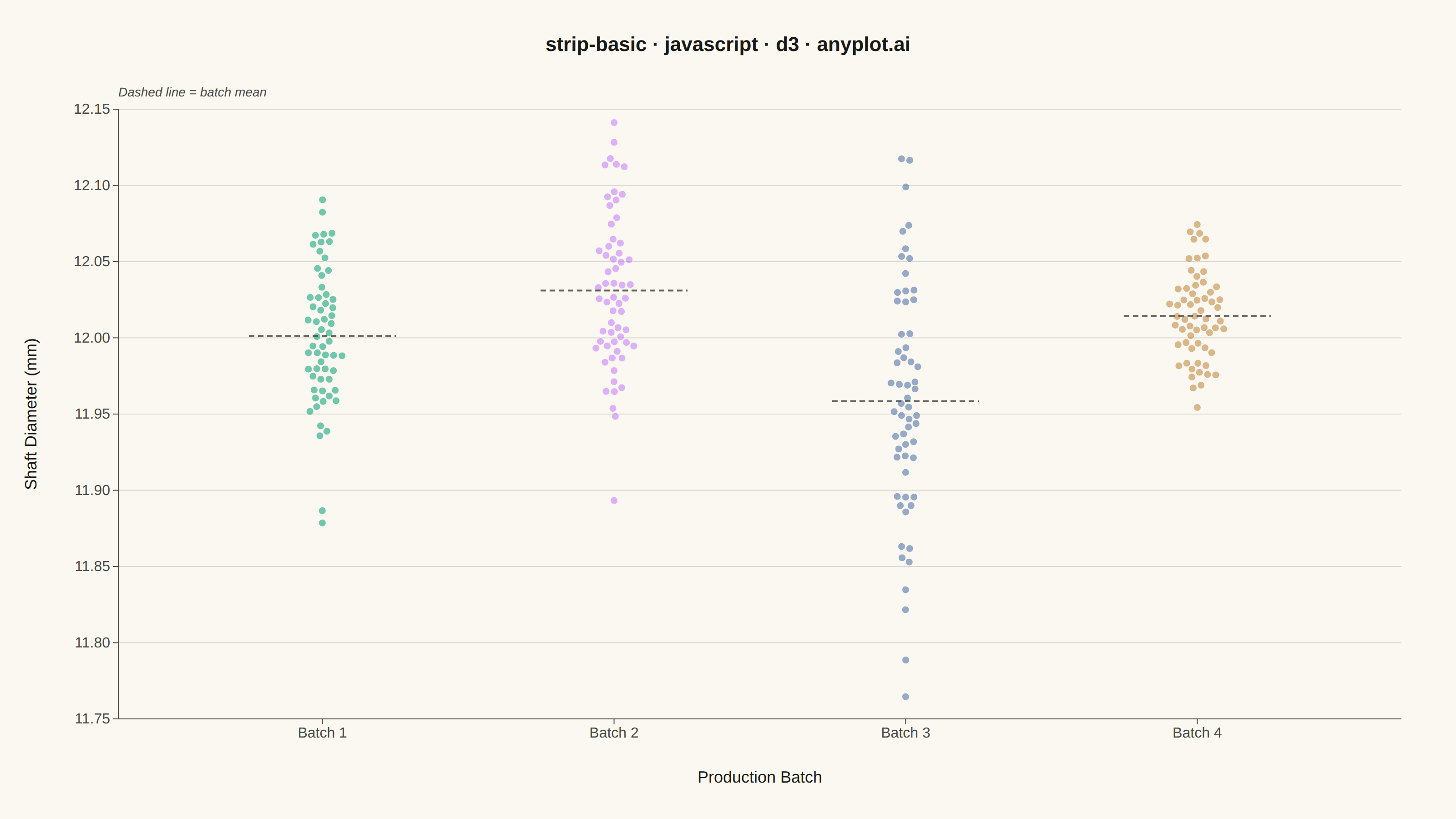

Basic Strip Plot rendered with D3.js

Renders

JavaScript source (D3.js)

// anyplot.ai
// strip-basic: Basic Strip Plot
// Library: d3 7.9.0 | JavaScript 22.23.1
// Quality: 89/100 | Created: 2026-08-05

//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;

// --- Data (in-memory, deterministic LCG) ------------------------------------
let seed = 42;
function rand() {
  seed = (seed * 1103515245 + 12345) & 0x7fffffff;
  return seed / 0x7fffffff;
}
function randNormal(mean, std) {
  const u1 = Math.max(rand(), 1e-9);
  const u2 = rand();
  const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
  return mean + z * std;
}

const batches = [
  { name: "Batch 1", mean: 12.0, std: 0.04 },
  { name: "Batch 2", mean: 12.02, std: 0.05 },
  { name: "Batch 3", mean: 11.97, std: 0.09 },
  { name: "Batch 4", mean: 12.01, std: 0.03 },
];
const pointsPerBatch = 60;
const data = [];
for (const b of batches) {
  for (let i = 0; i < pointsPerBatch; i++) {
    data.push({ category: b.name, value: randNormal(b.mean, b.std) });
  }
}

// --- Layout -------------------------------------------------------------
const margin = { top: 120, right: 60, bottom: 110, left: 130 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;

// --- SVG mount ------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);

// --- Scales -----------------------------------------------------------------
const x = d3
  .scaleBand()
  .domain(batches.map((b) => b.name))
  .range([0, iw])
  .padding(0.4);
const y = d3
  .scaleLinear()
  .domain(d3.extent(data, (d) => d.value))
  .nice()
  .range([ih, 0]);
const color = d3
  .scaleOrdinal()
  .domain(batches.map((b) => b.name))
  .range(t.palette);

// --- Gridlines (y-axis only, scatter-style plot) -----------------------------
const grid = g.append("g").attr("class", "grid").call(d3.axisLeft(y).tickSize(-iw).tickFormat(""));
grid.select(".domain").remove();
grid.selectAll("line").attr("stroke", t.grid);

// --- Axes -------------------------------------------------------------------
const xAxis = g.append("g").attr("transform", `translate(0,${ih})`).call(d3.axisBottom(x).tickSizeOuter(0));
const yAxis = g.append("g").call(d3.axisLeft(y).tickFormat(d3.format(".2f")).tickSizeOuter(0));
for (const ax of [xAxis, yAxis]) {
  ax.selectAll("text").attr("fill", t.inkSoft).style("font-size", "16px");
  ax.selectAll("line").attr("stroke", t.inkSoft);
  ax.select(".domain").attr("stroke", t.inkSoft);
}
g.selectAll(".tick line").attr("stroke", t.inkSoft);
grid.selectAll(".tick line").attr("stroke", t.grid);

// --- Jittered strip points (D3 force-simulation beeswarm) --------------------
// True values stay pinned on y (fy); a collision + centering force resolves x
// so points spread just enough to avoid overlap, instead of plain uniform jitter.
const xCenter = (name) => x(name) + x.bandwidth() / 2;
const jitterWidth = x.bandwidth() * 0.6;
const pointRadius = 4;

const nodes = data.map((d) => ({
  ...d,
  x: xCenter(d.category) + (rand() - 0.5) * jitterWidth,
  y: y(d.value),
  fy: y(d.value),
}));

d3.forceSimulation(nodes)
  .force("x", d3.forceX((d) => xCenter(d.category)).strength(0.08))
  .force("collide", d3.forceCollide(pointRadius + 0.6))
  .stop()
  .tick(150);

for (const n of nodes) {
  const lo = xCenter(n.category) - jitterWidth / 2;
  const hi = xCenter(n.category) + jitterWidth / 2;
  n.x = Math.min(hi, Math.max(lo, n.x));
}

g.selectAll("circle")
  .data(nodes)
  .join("circle")
  .attr("cx", (d) => d.x)
  .attr("cy", (d) => d.y)
  .attr("r", pointRadius)
  .attr("fill", (d) => color(d.category))
  .attr("fill-opacity", 0.55)
  .attr("stroke", t.pageBg)
  .attr("stroke-width", 0.5);

// --- Mean reference lines (data storytelling: highlights Batch 3's shift) ----
for (const b of batches) {
  const mean = d3.mean(data, (d) => (d.category === b.name ? d.value : undefined));
  g.append("line")
    .attr("x1", x(b.name) + x.bandwidth() * 0.08)
    .attr("x2", x(b.name) + x.bandwidth() * 0.92)
    .attr("y1", y(mean))
    .attr("y2", y(mean))
    .attr("stroke", t.inkSoft)
    .attr("stroke-width", 2)
    .attr("stroke-dasharray", "6,4")
    .attr("opacity", 0.85);
}

g.append("text")
  .attr("x", 0)
  .attr("y", -14)
  .attr("text-anchor", "start")
  .attr("fill", t.inkSoft)
  .style("font-size", "14px")
  .style("font-style", "italic")
  .text("Dashed line = batch mean");

// --- Axis labels --------------------------------------------------------------
g.append("text")
  .attr("x", iw / 2)
  .attr("y", ih + 70)
  .attr("text-anchor", "middle")
  .attr("fill", t.ink)
  .style("font-size", "18px")
  .text("Production Batch");

g.append("text")
  .attr("transform", "rotate(-90)")
  .attr("x", -ih / 2)
  .attr("y", -90)
  .attr("text-anchor", "middle")
  .attr("fill", t.ink)
  .style("font-size", "18px")
  .text("Shaft Diameter (mm)");

// --- Title ------------------------------------------------------------------
svg
  .append("text")
  .attr("x", width / 2)
  .attr("y", 56)
  .attr("text-anchor", "middle")
  .attr("fill", t.ink)
  .style("font-size", "22px")
  .style("font-weight", "600")
  .text("strip-basic · javascript · d3 · anyplot.ai");
