Basic Strip Plot — Apache ECharts

A strip plot displays individual data points for each category along a single axis, with random horizontal jitter applied to reduce overplotting. Unlike box plots or violin plots that show summary statistics, strip plots reveal every observation, making them ideal for small to medium datasets where individual values matter. The random jitter spreads points horizontally within each category to show density through point accumulation.

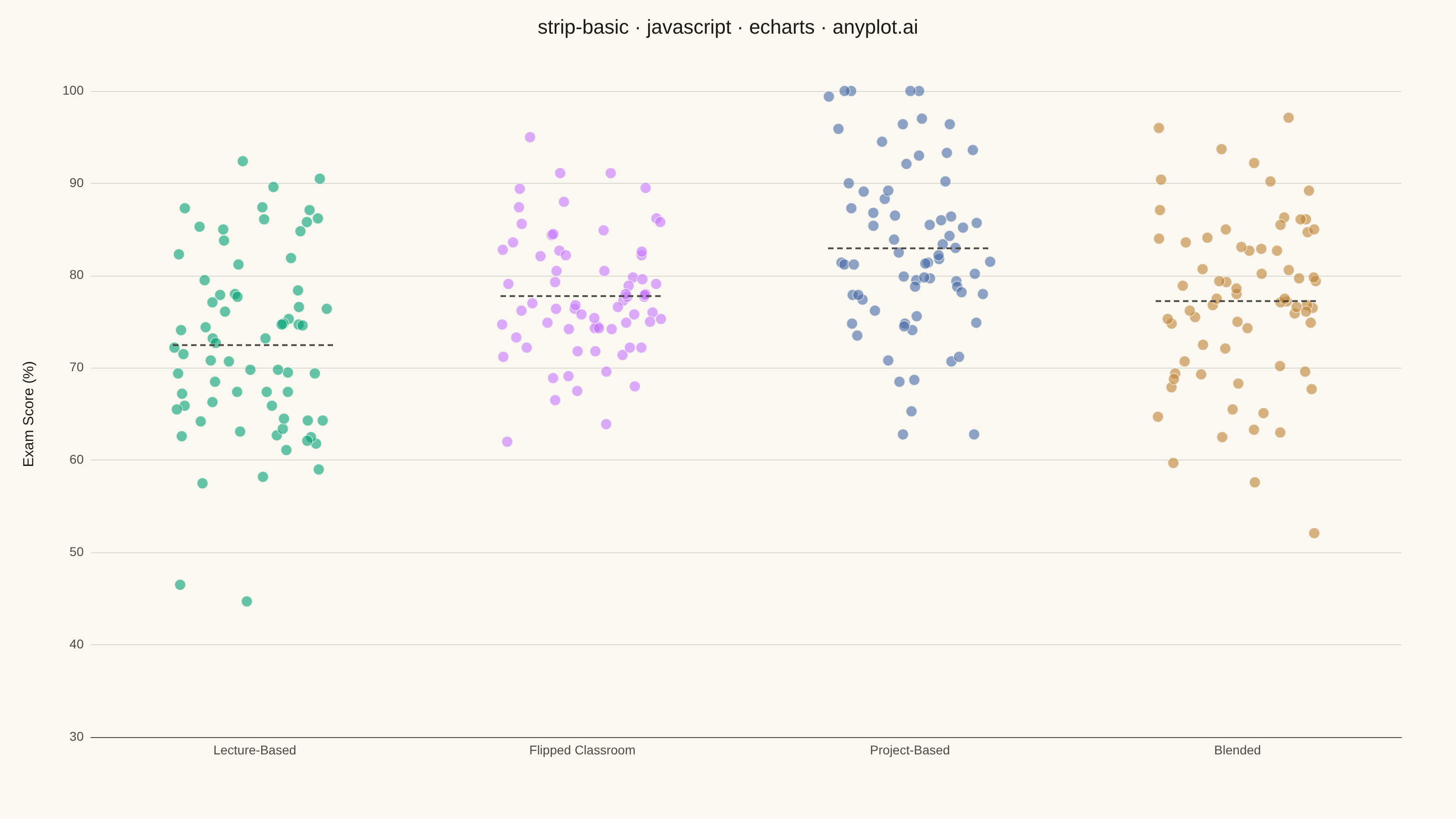

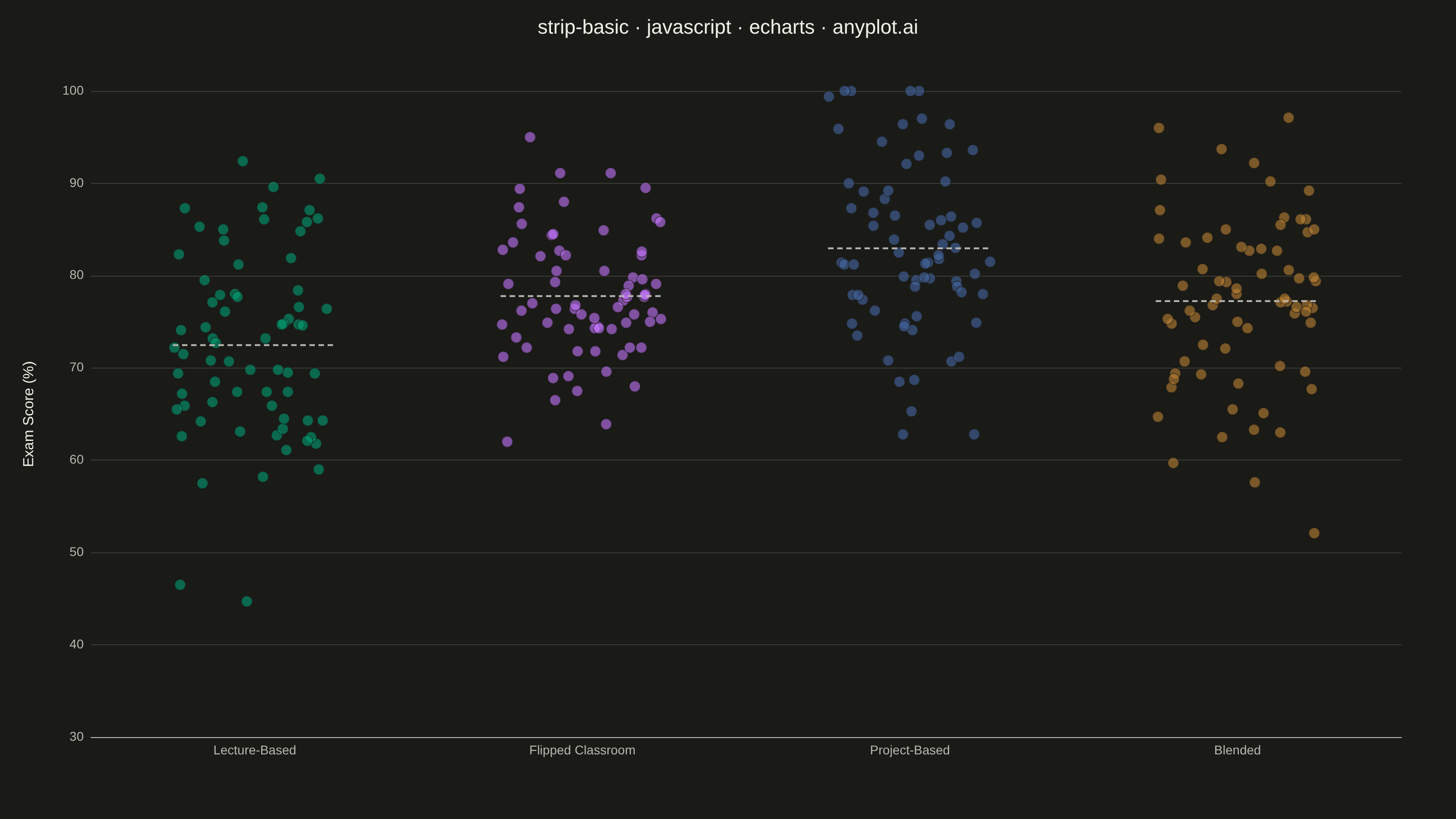

Basic Strip Plot rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// strip-basic: Basic Strip Plot
// Library: echarts 6.1.0 | JavaScript 22.23.1
// Quality: 93/100 | Created: 2026-08-05

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic LCG + Box-Muller) -----------------------
function makeRng(seed) {
  let state = seed;
  return function next() {
    state = (state * 1103515245 + 12345) & 0x7fffffff;
    return state / 0x7fffffff;
  };
}

function gaussian(rng) {
  const u1 = Math.max(rng(), 1e-9);
  const u2 = rng();
  return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}

const rng = makeRng(42);

const methods = [
  { name: "Lecture-Based", mean: 72, std: 9, n: 70 },
  { name: "Flipped Classroom", mean: 78, std: 7, n: 70 },
  { name: "Project-Based", mean: 81, std: 11, n: 70 },
  { name: "Blended", mean: 76, std: 8, n: 70 },
];

// Jitter width: fraction of the category band, spread as a pixel offset so
// points stay centered on the category tick without perturbing the x value.
const JITTER_PX = 90;

const categoryMeans = [];

const series = methods.map((method, i) => {
  const scores = Array.from({ length: method.n }, () => {
    const raw = method.mean + gaussian(rng) * method.std;
    return Math.round(Math.min(100, Math.max(0, raw)) * 10) / 10;
  });
  categoryMeans.push([method.name, scores.reduce((sum, s) => sum + s, 0) / scores.length]);

  return {
    name: method.name,
    type: "scatter",
    data: scores.map((score) => ({
      value: [method.name, score],
      symbolOffset: [(rng() - 0.5) * 2 * JITTER_PX, 0],
    })),
    symbolSize: 12,
    itemStyle: { color: t.palette[i], opacity: 0.6, borderColor: t.pageBg, borderWidth: 1 },
  };
});

// Group-mean reference line (spec Notes: "adding horizontal lines for group
// means... as reference"). A category axis snaps any fractional coordinate
// to its nearest integer index, so a markLine confined to one category's
// band is impossible via axis coords; instead draw it as a `custom` series
// with a pixel-space offset, exactly like the jitter above.
const meanLineSeries = {
  name: "Group Mean",
  type: "custom",
  silent: true,
  z: 5,
  data: categoryMeans,
  encode: { x: 0, y: 1 },
  renderItem: (params, api) => {
    const point = api.coord([api.value(0), api.value(1)]);
    return {
      type: "line",
      shape: {
        x1: point[0] - JITTER_PX,
        y1: point[1],
        x2: point[0] + JITTER_PX,
        y2: point[1],
      },
      style: { stroke: t.inkSoft, lineWidth: 2, lineDash: [6, 4] },
    };
  },
};

// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option ---------------------------------------------------------------
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",
  title: {
    text: "strip-basic · javascript · echarts · anyplot.ai",
    left: "center",
    textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
  },
  grid: { left: 100, right: 60, top: 100, bottom: 90 },
  xAxis: {
    type: "category",
    data: methods.map((m) => m.name),
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { show: false },
    splitLine: { show: false },
  },
  yAxis: {
    type: "value",
    name: "Exam Score (%)",
    nameLocation: "middle",
    nameGap: 60,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    min: 30,
    max: 100,
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    splitLine: { lineStyle: { color: t.grid } },
  },
  series: [...series, meanLineSeries],
});

Part of Basic Strip Plot on anyplot.ai.
