Basic Strip Plot — Highcharts

A strip plot displays individual data points for each category along a single axis, with random horizontal jitter applied to reduce overplotting. Unlike box plots or violin plots that show summary statistics, strip plots reveal every observation, making them ideal for small to medium datasets where individual values matter. The random jitter spreads points horizontally within each category to show density through point accumulation.

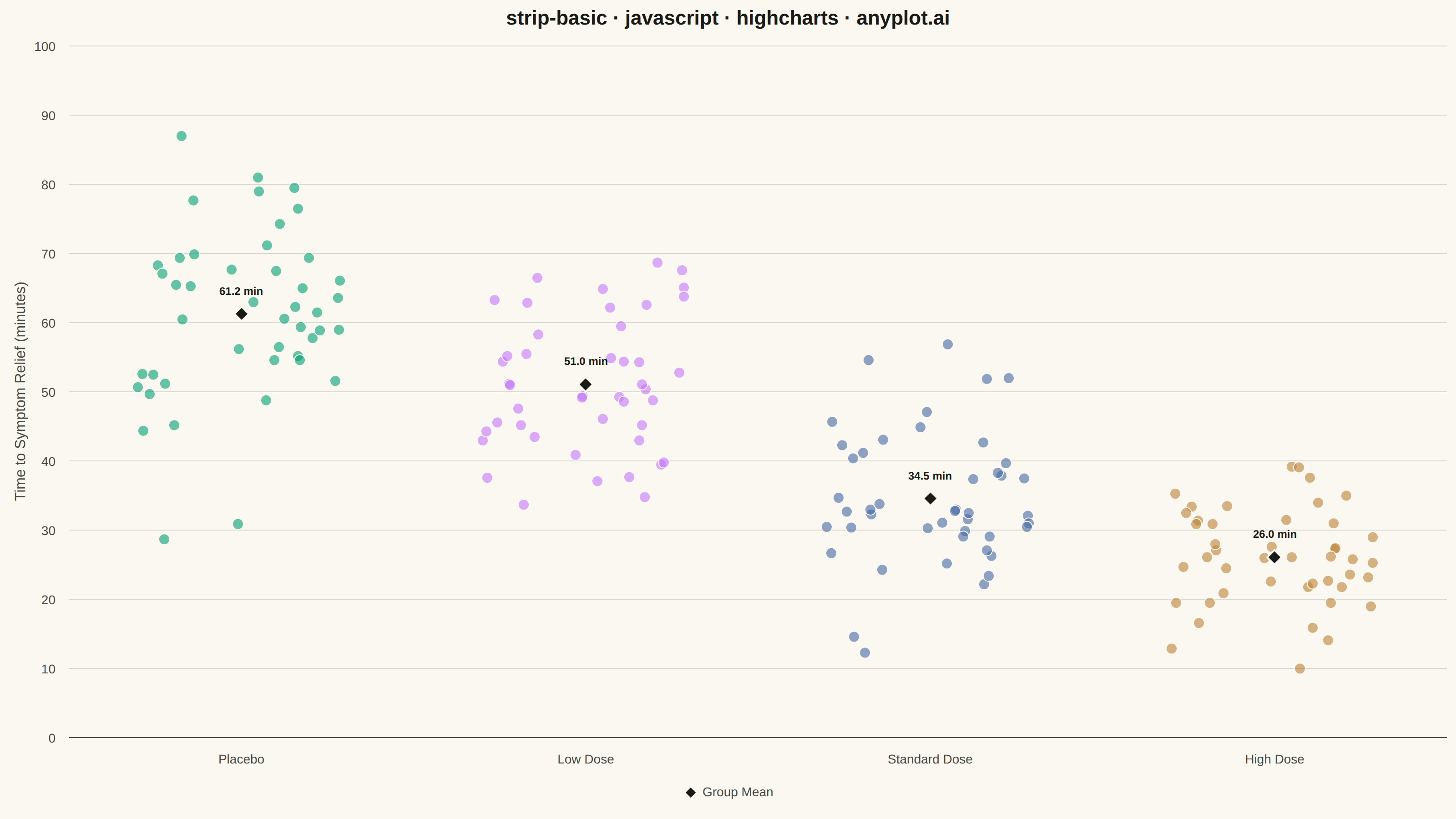

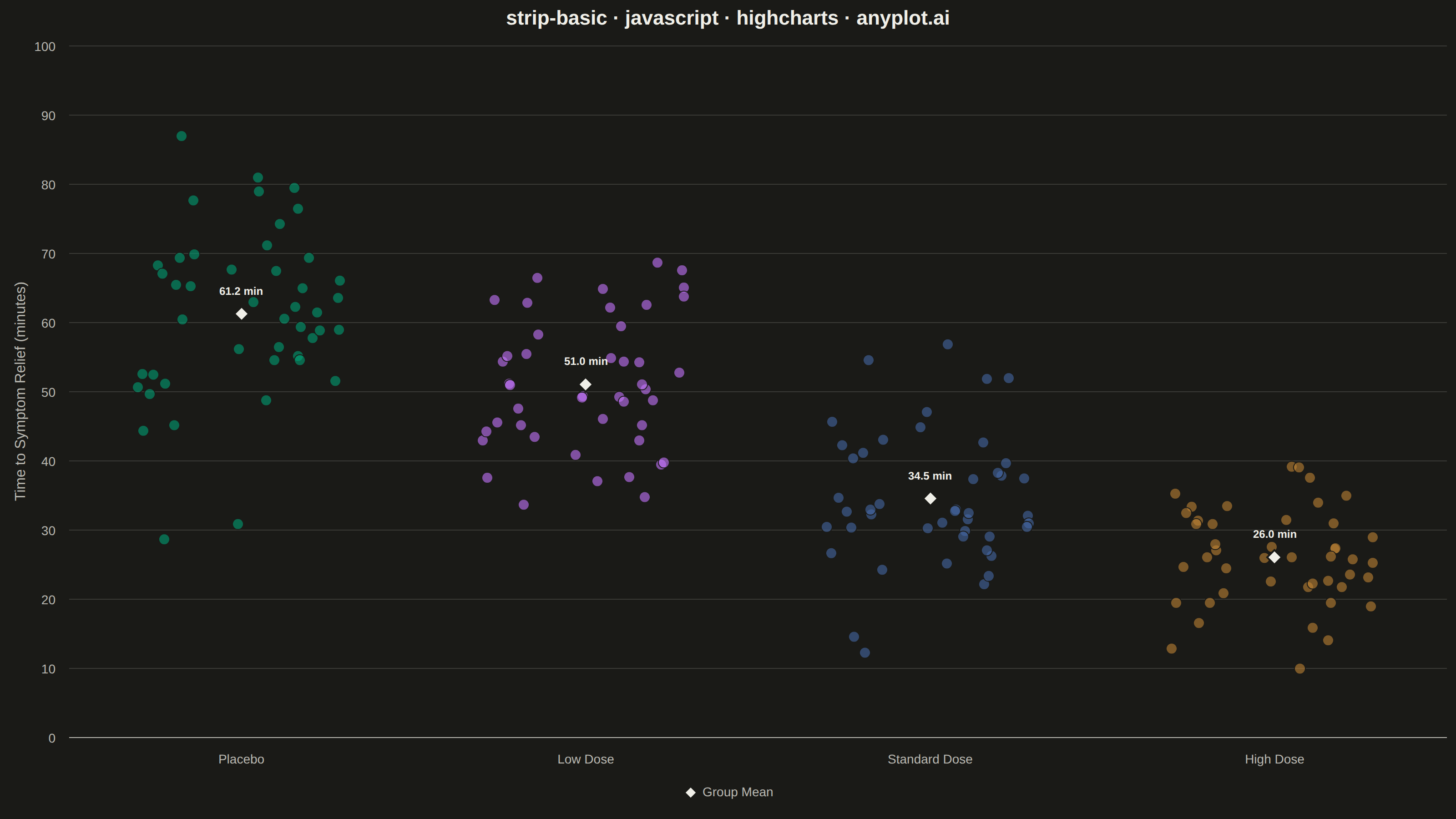

Basic Strip Plot rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// strip-basic: Basic Strip Plot
// Library: highcharts 12.6.0 | JavaScript 22.23.1
// Quality: 88/100 | Created: 2026-08-05

//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic LCG) -----------------------------------
let seed = 42;
function nextUniform() {
  seed = (seed * 1103515245 + 12345) & 0x7fffffff;
  return seed / 0x7fffffff;
}
function nextGaussian() {
  const u1 = Math.max(nextUniform(), 1e-9);
  const u2 = nextUniform();
  return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
function hexToRgba(hex, alpha) {
  const r = parseInt(hex.slice(1, 3), 16);
  const g = parseInt(hex.slice(3, 5), 16);
  const b = parseInt(hex.slice(5, 7), 16);
  return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}

const groups = [
  { name: "Placebo", mean: 62, sd: 11 },
  { name: "Low Dose", mean: 48, sd: 10 },
  { name: "Standard Dose", mean: 35, sd: 9 },
  { name: "High Dose", mean: 26, sd: 8 },
];
const pointsPerGroup = 45;

const groupData = groups.map((group) => {
  const values = Array.from({ length: pointsPerGroup }, () => {
    const responseMinutes = Math.max(5, group.mean + nextGaussian() * group.sd);
    return Math.round(responseMinutes * 10) / 10;
  });
  const mean = values.reduce((sum, value) => sum + value, 0) / values.length;
  return { name: group.name, values, mean };
});

const series = groupData.map((group, groupIndex) => ({
  name: group.name,
  color: t.palette[groupIndex],
  showInLegend: false,
  marker: {
    fillColor: hexToRgba(t.palette[groupIndex], 0.6),
    lineWidth: 1,
    lineColor: t.pageBg,
  },
  data: group.values.map((value) => [groupIndex, value]),
}));

const meanSeries = {
  name: "Group Mean",
  showInLegend: true,
  color: t.ink,
  jitter: { x: 0, y: 0 },
  marker: {
    symbol: "diamond",
    radius: 8,
    fillColor: t.ink,
    lineWidth: 2,
    lineColor: t.pageBg,
  },
  dataLabels: {
    enabled: true,
    format: "{y:.1f} min",
    y: -14,
    style: { color: t.ink, fontSize: "12px", fontWeight: "600", textOutline: "none" },
  },
  data: groupData.map((group, groupIndex) => [
    groupIndex,
    Math.round(group.mean * 10) / 10,
  ]),
};

// --- Chart -----------------------------------------------------------------
Highcharts.chart("container", {
  chart: {
    type: "scatter",
    backgroundColor: "transparent",
    animation: false,
    style: { fontFamily: "inherit" },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: "strip-basic · javascript · highcharts · anyplot.ai",
    style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
  },
  xAxis: {
    categories: groups.map((group) => group.name),
    lineColor: t.inkSoft,
    tickColor: t.inkSoft,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
  },
  yAxis: {
    title: {
      text: "Time to Symptom Relief (minutes)",
      style: { color: t.inkSoft, fontSize: "16px" },
    },
    gridLineColor: t.grid,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
  },
  legend: {
    enabled: true,
    itemStyle: { color: t.inkSoft, fontSize: "14px" },
    itemHoverStyle: { color: t.ink },
  },
  plotOptions: {
    series: { animation: false },
    scatter: {
      jitter: { x: 0.3, y: 0 },
      marker: { radius: 6, symbol: "circle" },
    },
  },
  series: [...series, meanSeries],
});

Part of Basic Strip Plot on anyplot.ai.
