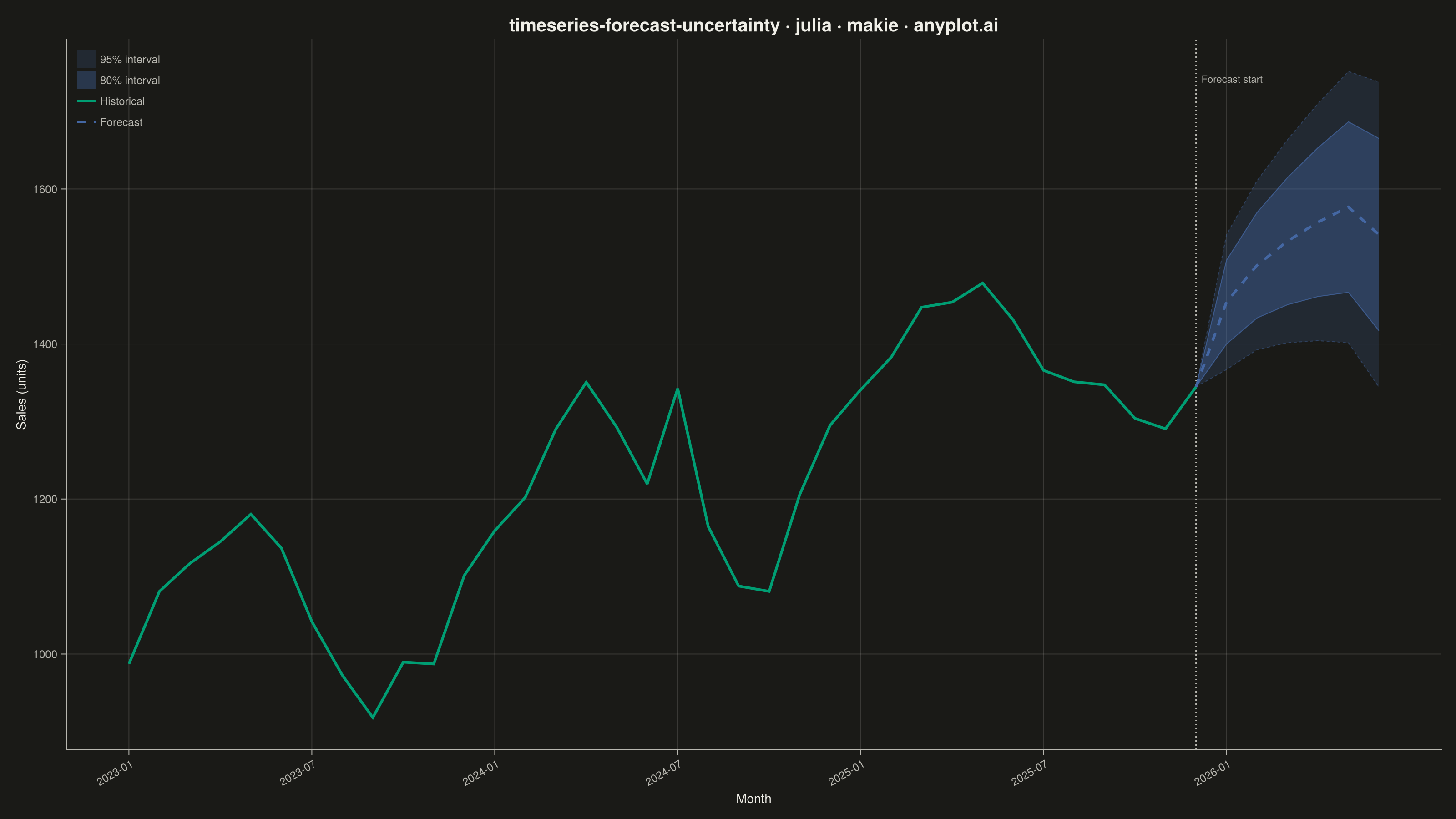

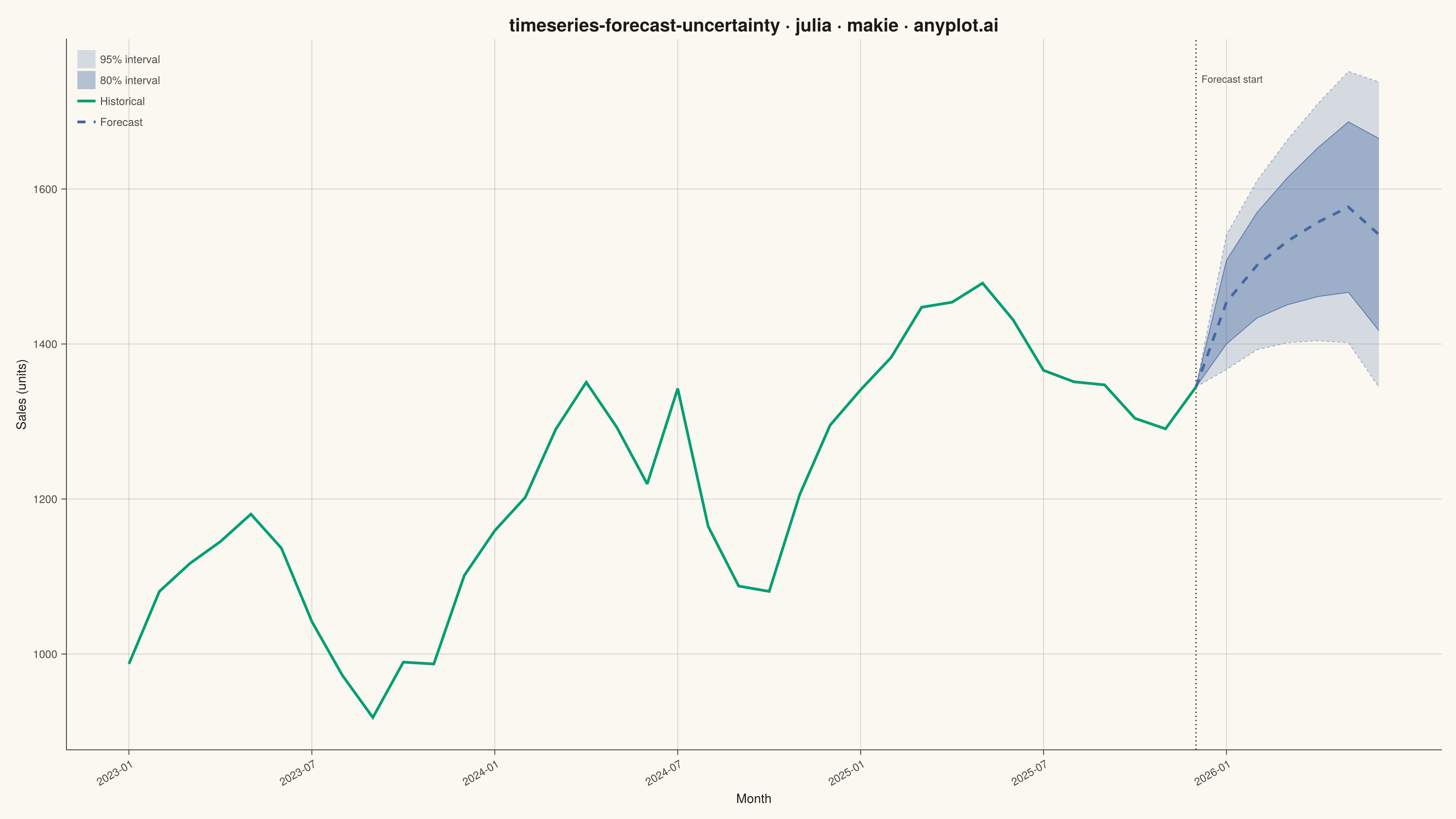

A time series plot that displays historical observed data followed by a forecast projection with confidence intervals or uncertainty bands. The plot clearly distinguishes between the historical period and the forecast period using a vertical line marker, with shaded bands representing different confidence levels (typically 80% and 95%). This visualization is essential for communicating prediction uncertainty in forecasting applications, helping stakeholders understand both the expected values and the range of possible outcomes.
# anyplot.ai
# timeseries-forecast-uncertainty: Time Series Forecast with Uncertainty Band
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 85/100 | Created: 2026-09-02
using CairoMakie
using Colors
using Random
using Dates
Random.seed!(42)
# --- Theme tokens -----------------------------------------------------------
const THEME = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const IMPRINT_PALETTE = [
colorant"#009E73", colorant"#C475FD", colorant"#4467A3", colorant"#BD8233",
colorant"#AE3030", colorant"#2ABCCD", colorant"#954477", colorant"#99B314",
]
# --- Data --------------------------------------------------------------------
# Monthly sales, 3 years of history plus a 6-month forecast with 80/95% bands.
n_hist = 36
n_fcst = 6
n_total = n_hist + n_fcst
months = collect(0:(n_total - 1))
trend = 1000.0 .+ 12.0 .* months
seasonal = 120.0 .* sin.(2π .* months ./ 12)
noise = randn(n_total) .* 35.0
series = trend .+ seasonal .+ noise
actual = fill(NaN, n_total)
actual[1:n_hist] .= series[1:n_hist]
forecast = fill(NaN, n_total)
forecast[n_hist:n_total] .= series[n_hist:n_total]
horizon = 1:n_fcst
spread_80 = 40.0 .+ 14.0 .* horizon
spread_95 = 65.0 .+ 22.0 .* horizon
lower_80 = fill(NaN, n_total)
upper_80 = fill(NaN, n_total)
lower_95 = fill(NaN, n_total)
upper_95 = fill(NaN, n_total)
lower_80[n_hist:n_total] .= [series[n_hist]; series[(n_hist + 1):n_total] .- spread_80]
upper_80[n_hist:n_total] .= [series[n_hist]; series[(n_hist + 1):n_total] .+ spread_80]
lower_95[n_hist:n_total] .= [series[n_hist]; series[(n_hist + 1):n_total] .- spread_95]
upper_95[n_hist:n_total] .= [series[n_hist]; series[(n_hist + 1):n_total] .+ spread_95]
start_date = Date(2023, 1, 1)
dates = [start_date + Month(m) for m in months]
x = Float64.(months)
date_labels = Dict(m => Dates.format(start_date + Month(m), "yyyy-mm") for m in months)
tick_positions = collect(0:6:(n_total - 1))
tick_labels = [date_labels[m] for m in tick_positions]
# --- Plot ---------------------------------------------------------------------
title_str = "timeseries-forecast-uncertainty · julia · makie · anyplot.ai"
fig = Figure(
size = (1600, 900),
fontsize = 14,
backgroundcolor = PAGE_BG,
)
ax = Axis(
fig[1, 1];
title = title_str,
titlesize = 20,
titlecolor = INK,
xlabel = "Month",
ylabel = "Sales (units)",
xlabelsize = 14,
ylabelsize = 14,
xlabelcolor = INK,
ylabelcolor = INK,
xticklabelsize = 12,
yticklabelsize = 12,
xticklabelcolor = INK_SOFT,
yticklabelcolor = INK_SOFT,
xtickcolor = INK_SOFT,
ytickcolor = INK_SOFT,
backgroundcolor = PAGE_BG,
topspinevisible = false,
rightspinevisible = false,
leftspinecolor = INK_SOFT,
bottomspinecolor = INK_SOFT,
xgridcolor = RGBAf(INK.r, INK.g, INK.b, 0.15),
ygridcolor = RGBAf(INK.r, INK.g, INK.b, 0.15),
xminorgridvisible = false,
yminorgridvisible = false,
xticks = (tick_positions, tick_labels),
xticklabelrotation = π / 6,
)
# Forecast start marker
vlines!(ax, [Float64(n_hist - 1)]; color = INK_SOFT, linestyle = :dot, linewidth = 1.5)
# 95% band (lighter), then 80% band (darker) nested on top
band!(ax, x, lower_95, upper_95; color = (IMPRINT_PALETTE[3], 0.20), label = "95% interval")
band!(ax, x, lower_80, upper_80; color = (IMPRINT_PALETTE[3], 0.38), label = "80% interval")
# Thin edge strokes distinguish the 80%/95% band boundaries from each other
lines!(ax, x, lower_95; color = (IMPRINT_PALETTE[3], 0.45), linewidth = 1, linestyle = :dash)
lines!(ax, x, upper_95; color = (IMPRINT_PALETTE[3], 0.45), linewidth = 1, linestyle = :dash)
lines!(ax, x, lower_80; color = (IMPRINT_PALETTE[3], 0.75), linewidth = 1)
lines!(ax, x, upper_80; color = (IMPRINT_PALETTE[3], 0.75), linewidth = 1)
lines!(ax, x, actual; color = IMPRINT_PALETTE[1], linewidth = 3, label = "Historical")
lines!(ax, x, forecast; color = IMPRINT_PALETTE[3], linewidth = 3, linestyle = :dash, label = "Forecast")
# Callout labeling the historical/forecast transition point
y_max = maximum(filter(!isnan, vcat(actual, forecast, upper_95)))
text!(
ax, Float64(n_hist - 1), y_max;
text = "Forecast start",
color = INK_SOFT,
fontsize = 11,
align = (:left, :top),
offset = (6, -2),
)
axislegend(ax; position = :lt, framevisible = false, labelcolor = INK_SOFT, labelsize = 12)
# --- Save ----------------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)
