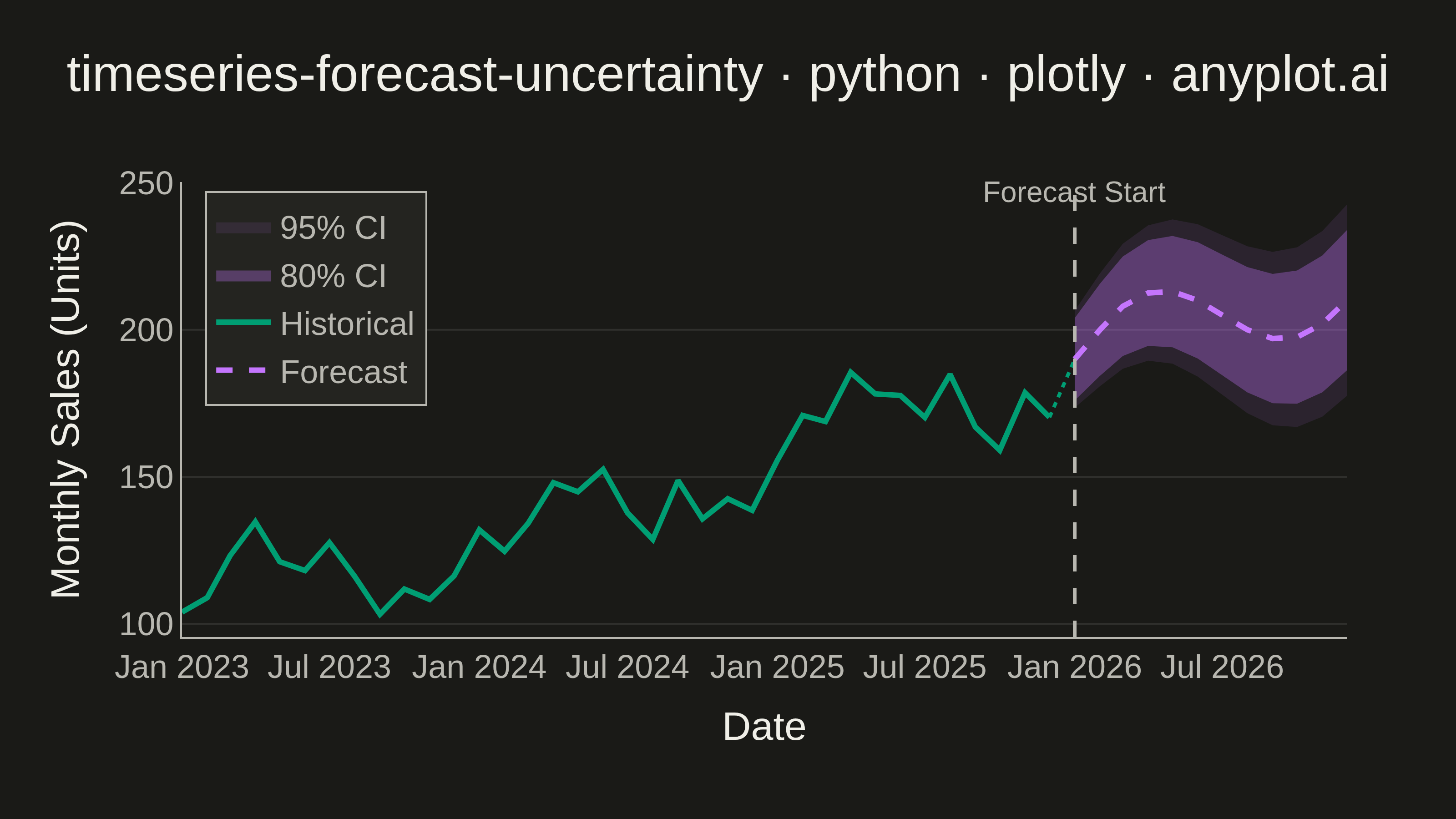

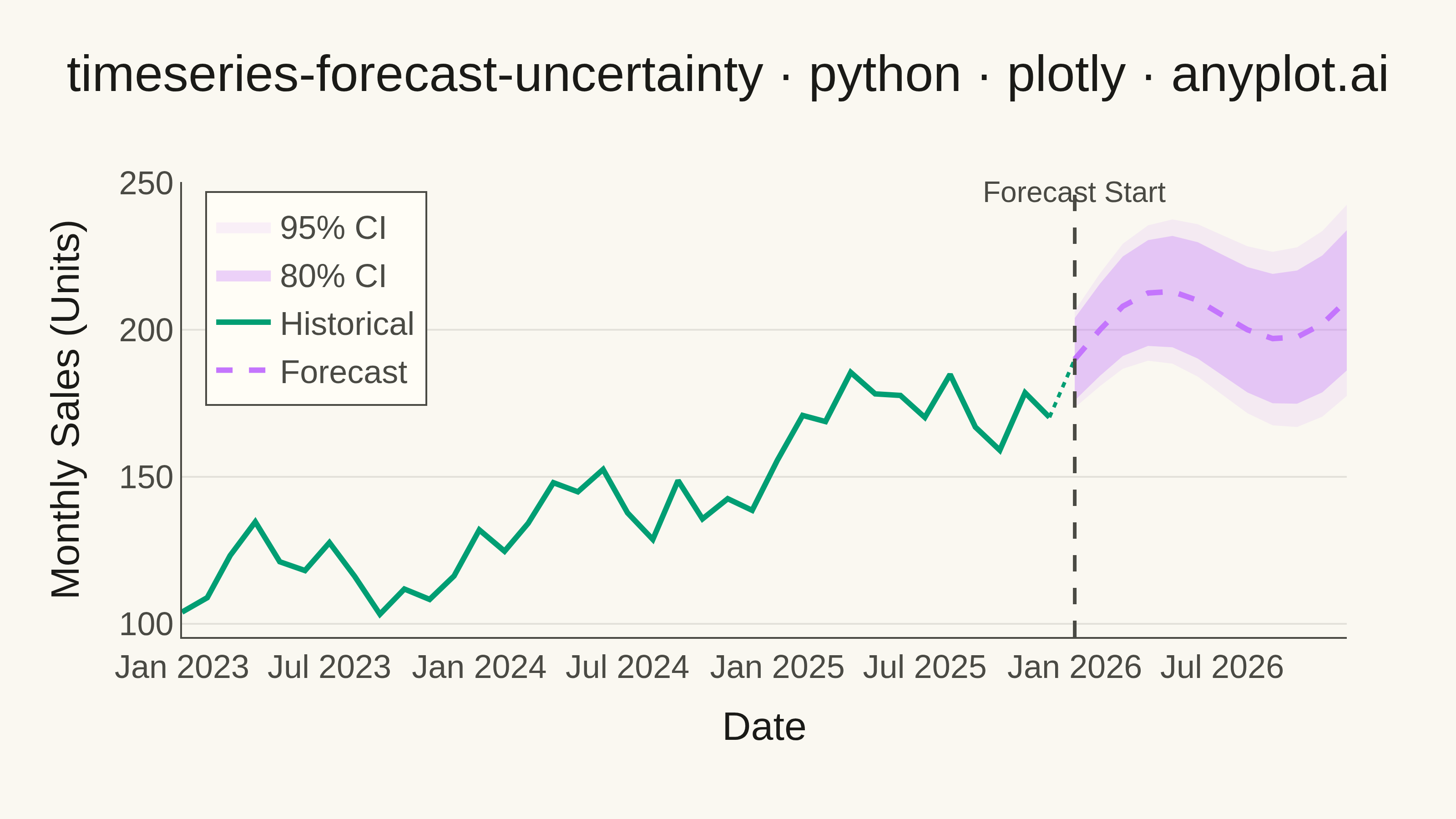

A time series plot that displays historical observed data followed by a forecast projection with confidence intervals or uncertainty bands. The plot clearly distinguishes between the historical period and the forecast period using a vertical line marker, with shaded bands representing different confidence levels (typically 80% and 95%). This visualization is essential for communicating prediction uncertainty in forecasting applications, helping stakeholders understand both the expected values and the range of possible outcomes.
""" anyplot.ai
timeseries-forecast-uncertainty: Time Series Forecast with Uncertainty Band
Library: plotly 6.7.0 | Python 3.13.13
Quality: 87/100 | Updated: 2026-05-19
"""
import os
import numpy as np
import pandas as pd
import plotly.graph_objects as go
# Theme and chrome colors
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26, 26, 23, 0.10)" if THEME == "light" else "rgba(240, 239, 232, 0.10)"
# Okabe-Ito palette
COLOR_HISTORICAL = "#009E73" # Position 1 - brand green
COLOR_FORECAST = "#C475FD" # Position 2 - vermillion
# Data generation
np.random.seed(42)
n_historical = 36
n_forecast = 12
dates_hist_range = pd.date_range("2023-01-01", periods=n_historical, freq="MS")
dates_historical = dates_hist_range.strftime("%Y-%m-%d").tolist()
dates_forecast_range = pd.date_range(dates_hist_range[-1] + pd.DateOffset(months=1), periods=n_forecast, freq="MS")
dates_forecast = dates_forecast_range.strftime("%Y-%m-%d").tolist()
# Historical data: trend + seasonality + noise
time_idx = np.arange(n_historical)
trend = 100 + 2.5 * time_idx
seasonality = 15 * np.sin(2 * np.pi * time_idx / 12)
noise = np.random.normal(0, 8, n_historical)
actual = trend + seasonality + noise
# Forecast values
forecast_time_idx = np.arange(n_historical, n_historical + n_forecast)
forecast_trend = 100 + 2.5 * forecast_time_idx
forecast_seasonality = 15 * np.sin(2 * np.pi * forecast_time_idx / 12)
forecast_values = forecast_trend + forecast_seasonality
# Confidence intervals (widening over time)
uncertainty_base = 10
uncertainty_growth = np.sqrt(np.arange(1, n_forecast + 1)) * 5
lower_80 = forecast_values - (uncertainty_base + uncertainty_growth * 0.8)
upper_80 = forecast_values + (uncertainty_base + uncertainty_growth * 0.8)
lower_95 = forecast_values - (uncertainty_base + uncertainty_growth * 1.3)
upper_95 = forecast_values + (uncertainty_base + uncertainty_growth * 1.3)
# Create figure
fig = go.Figure()
# 95% confidence band (lighter)
fig.add_trace(
go.Scatter(
x=dates_forecast + dates_forecast[::-1],
y=np.concatenate([upper_95, lower_95[::-1]]),
fill="toself",
fillcolor="rgba(196, 117, 253, 0.10)",
line=dict(color="rgba(196, 117, 253, 0)"),
name="95% CI",
showlegend=True,
hoverinfo="skip",
)
)
# 80% confidence band (darker)
fig.add_trace(
go.Scatter(
x=dates_forecast + dates_forecast[::-1],
y=np.concatenate([upper_80, lower_80[::-1]]),
fill="toself",
fillcolor="rgba(196, 117, 253, 0.32)",
line=dict(color="rgba(196, 117, 253, 0)"),
name="80% CI",
showlegend=True,
hoverinfo="skip",
)
)
# Forecast start marker
forecast_start = dates_forecast[0]
fig.add_shape(
type="line",
x0=forecast_start,
x1=forecast_start,
y0=0,
y1=1,
yref="paper",
line=dict(color=INK_SOFT, width=2, dash="dash"),
)
# Forecast start annotation
fig.add_annotation(
x=forecast_start, y=1.02, yref="paper", text="Forecast Start", showarrow=False, font=dict(size=16, color=INK_SOFT)
)
# Historical data (solid line)
fig.add_trace(
go.Scatter(
x=dates_historical,
y=actual,
mode="lines",
name="Historical",
line=dict(color=COLOR_HISTORICAL, width=3),
hovertemplate="Date: %{x}<br>Sales: %{y:.1f}<extra></extra>",
)
)
# Forecast line (dashed)
fig.add_trace(
go.Scatter(
x=dates_forecast,
y=forecast_values,
mode="lines",
name="Forecast",
line=dict(color=COLOR_FORECAST, width=3, dash="dash"),
hovertemplate="Date: %{x}<br>Forecast: %{y:.1f}<extra></extra>",
)
)
# Connection line between historical and forecast
fig.add_trace(
go.Scatter(
x=[dates_historical[-1], dates_forecast[0]],
y=[actual[-1], forecast_values[0]],
mode="lines",
line=dict(color=COLOR_HISTORICAL, width=2, dash="dot"),
showlegend=False,
hoverinfo="skip",
)
)
# Layout with theme-adaptive colors and chrome
fig.update_layout(
title=dict(
text="timeseries-forecast-uncertainty · python · plotly · anyplot.ai",
font=dict(size=28, color=INK),
x=0.5,
xanchor="center",
),
xaxis=dict(
title=dict(text="Date", font=dict(size=22, color=INK)),
tickfont=dict(size=18, color=INK_SOFT),
showgrid=False,
showline=True,
mirror=False,
linecolor=INK_SOFT,
zerolinecolor=INK_SOFT,
),
yaxis=dict(
title=dict(text="Monthly Sales (Units)", font=dict(size=22, color=INK)),
tickfont=dict(size=18, color=INK_SOFT),
showgrid=True,
gridcolor=GRID,
showline=True,
mirror=False,
linecolor=INK_SOFT,
zerolinecolor=INK_SOFT,
),
paper_bgcolor=PAGE_BG,
plot_bgcolor=PAGE_BG,
legend=dict(
font=dict(size=18, color=INK_SOFT),
x=0.02,
y=0.98,
xanchor="left",
yanchor="top",
bgcolor=ELEVATED_BG,
bordercolor=INK_SOFT,
borderwidth=1,
),
margin=dict(l=100, r=60, t=100, b=100),
hovermode="x unified",
)
# Save outputs
fig.write_image(f"plot-{THEME}.png", width=800, height=450, scale=4)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")
