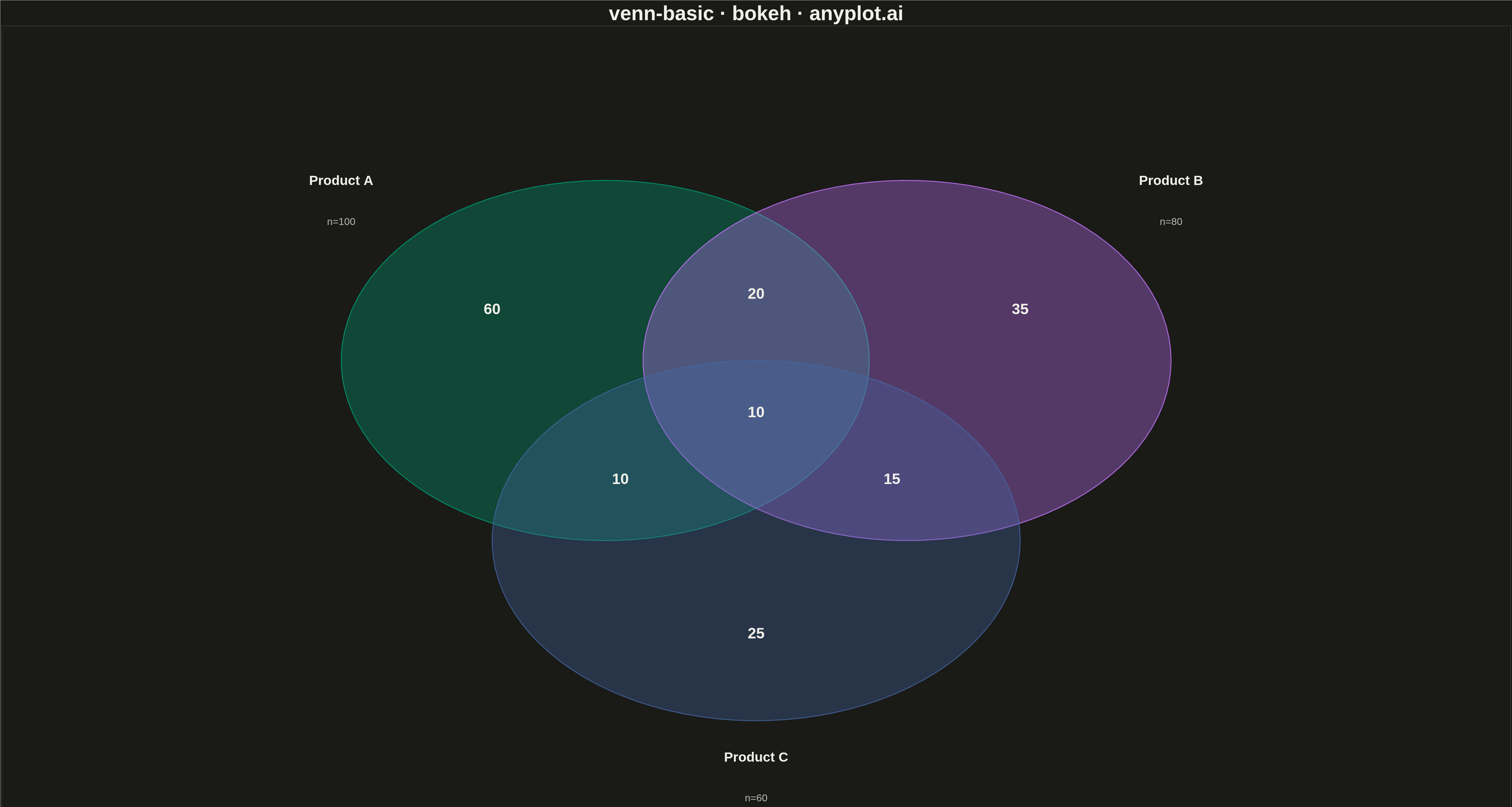

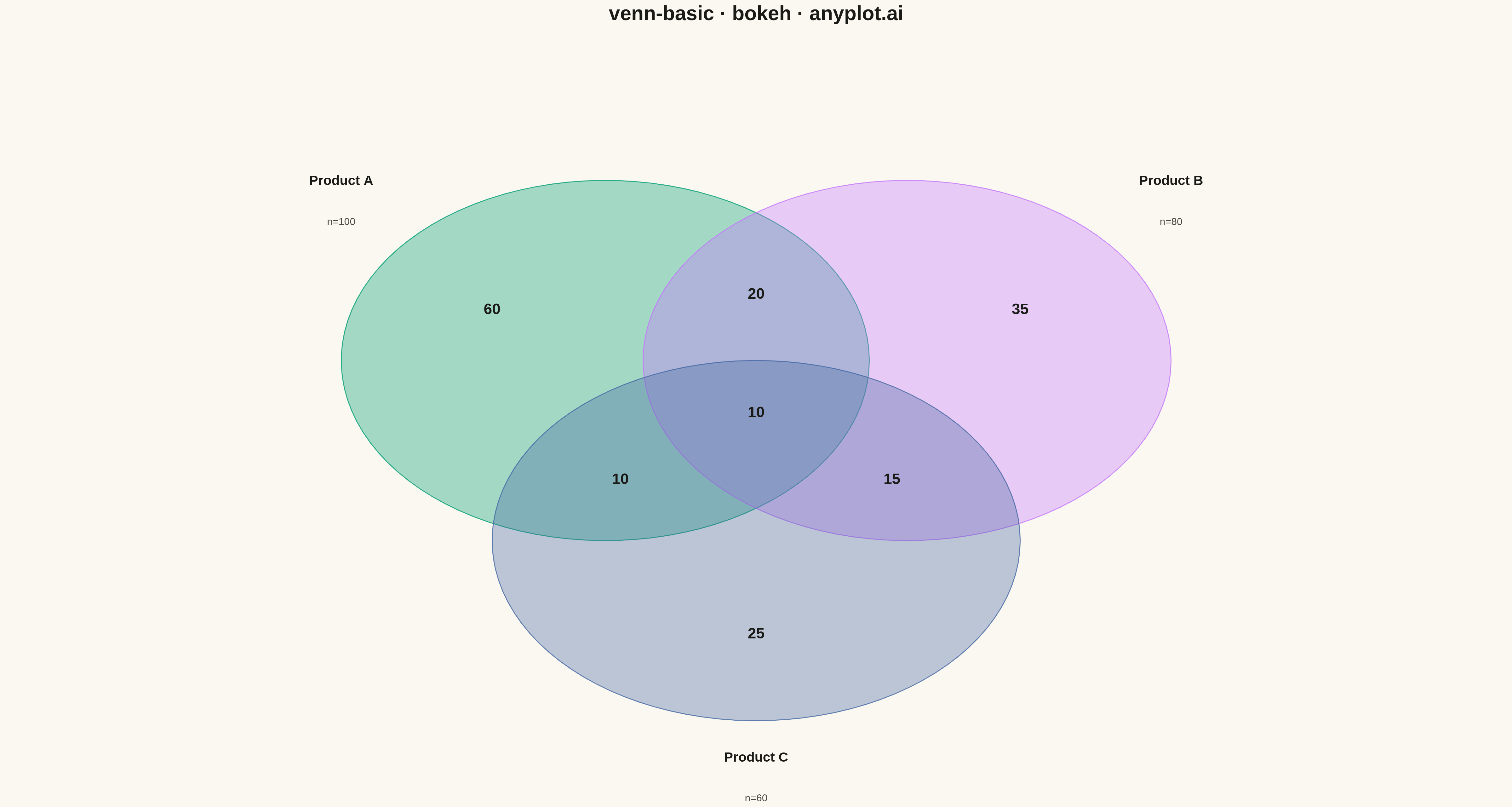

A Venn diagram visualizes the logical relationships between two or three sets using overlapping circles. Each circle represents a set, and overlapping regions show elements shared between sets. This classic visualization is ideal for showing intersections, unions, and exclusive memberships, making abstract set relationships immediately intuitive.
""" anyplot.ai
venn-basic: Venn Diagram
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 89/100 | Updated: 2026-05-11
"""
import os
import time
from pathlib import Path
import numpy as np
from bokeh.io import output_file, save
from bokeh.models import Label
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Okabe-Ito palette for three sets
OI_COLORS = ["#009E73", "#C475FD", "#4467A3"]
# Data - Three sets representing product feature categories
set_labels = ["Product A", "Product B", "Product C"]
set_sizes = [100, 80, 60]
# Calculate region sizes
only_a = 100 - 30 - 20 + 10 # 60
only_b = 80 - 30 - 25 + 10 # 35
only_c = 60 - 20 - 25 + 10 # 25
only_ab = 30 - 10 # 20
only_ac = 20 - 10 # 10
only_bc = 25 - 10 # 15
abc = 10
# Circle parameters for 3-set Venn diagram
radius = 0.35
centers = [
(-0.2, 0.15), # A - top left
(0.2, 0.15), # B - top right
(0.0, -0.2), # C - bottom center
]
# Create figure
p = figure(
width=4800,
height=2700,
title="venn-basic · bokeh · anyplot.ai",
x_range=(-1, 1),
y_range=(-0.8, 0.8),
toolbar_location=None,
)
# Draw three circles
n_points = 100
theta = np.linspace(0, 2 * np.pi, n_points)
for i, (cx, cy) in enumerate(centers):
x_pts = (cx + radius * np.cos(theta)).tolist()
y_pts = (cy + radius * np.sin(theta)).tolist()
p.patch(
x_pts, y_pts, fill_color=OI_COLORS[i], fill_alpha=0.35, line_color=OI_COLORS[i], line_width=3, line_alpha=0.8
)
# Add set labels and sizes
label_positions = [
(-0.55, 0.50, set_labels[0], f"n={set_sizes[0]}"),
(0.55, 0.50, set_labels[1], f"n={set_sizes[1]}"),
(0.0, -0.62, set_labels[2], f"n={set_sizes[2]}"),
]
for lx, ly, text, size_text in label_positions:
label = Label(
x=lx,
y=ly,
text=text,
text_font_size="32pt",
text_font_style="bold",
text_align="center",
text_baseline="middle",
text_color=INK,
)
p.add_layout(label)
size_label = Label(
x=lx,
y=ly - 0.08,
text=size_text,
text_font_size="24pt",
text_align="center",
text_baseline="middle",
text_color=INK_SOFT,
)
p.add_layout(size_label)
# Add region counts
region_labels = [
(-0.35, 0.25, str(only_a)), # Only A
(0.35, 0.25, str(only_b)), # Only B
(0.0, -0.38, str(only_c)), # Only C
(0.0, 0.28, str(only_ab)), # A ∩ B only
(-0.18, -0.08, str(only_ac)), # A ∩ C only
(0.18, -0.08, str(only_bc)), # B ∩ C only
(0.0, 0.05, str(abc)), # A ∩ B ∩ C
]
for rx, ry, count in region_labels:
count_label = Label(
x=rx,
y=ry,
text=count,
text_font_size="36pt",
text_font_style="bold",
text_align="center",
text_baseline="middle",
text_color=INK,
)
p.add_layout(count_label)
# Style
p.title.text_font_size = "48pt"
p.title.align = "center"
p.title.text_color = INK
p.xaxis.visible = False
p.yaxis.visible = False
p.xgrid.visible = False
p.ygrid.visible = False
p.outline_line_color = None
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
# Save HTML
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot with headless Chrome
W, H = 4800, 2700
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
Part of Venn Diagram on anyplot.ai.
