A Venn diagram visualizes the logical relationships between two or three sets using overlapping circles. Each circle represents a set, and overlapping regions show elements shared between sets. This classic visualization is ideal for showing intersections, unions, and exclusive memberships, making abstract set relationships immediately intuitive.

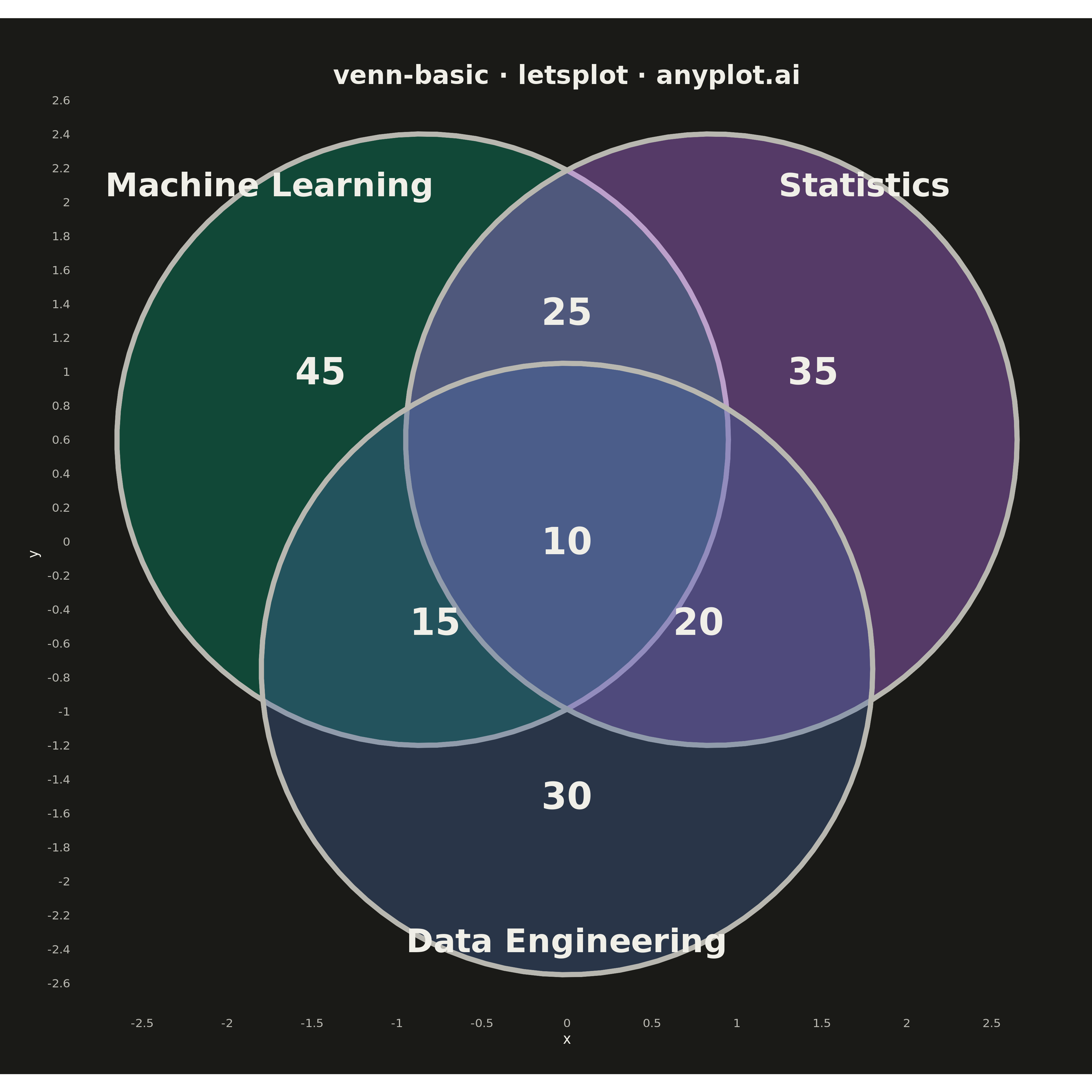

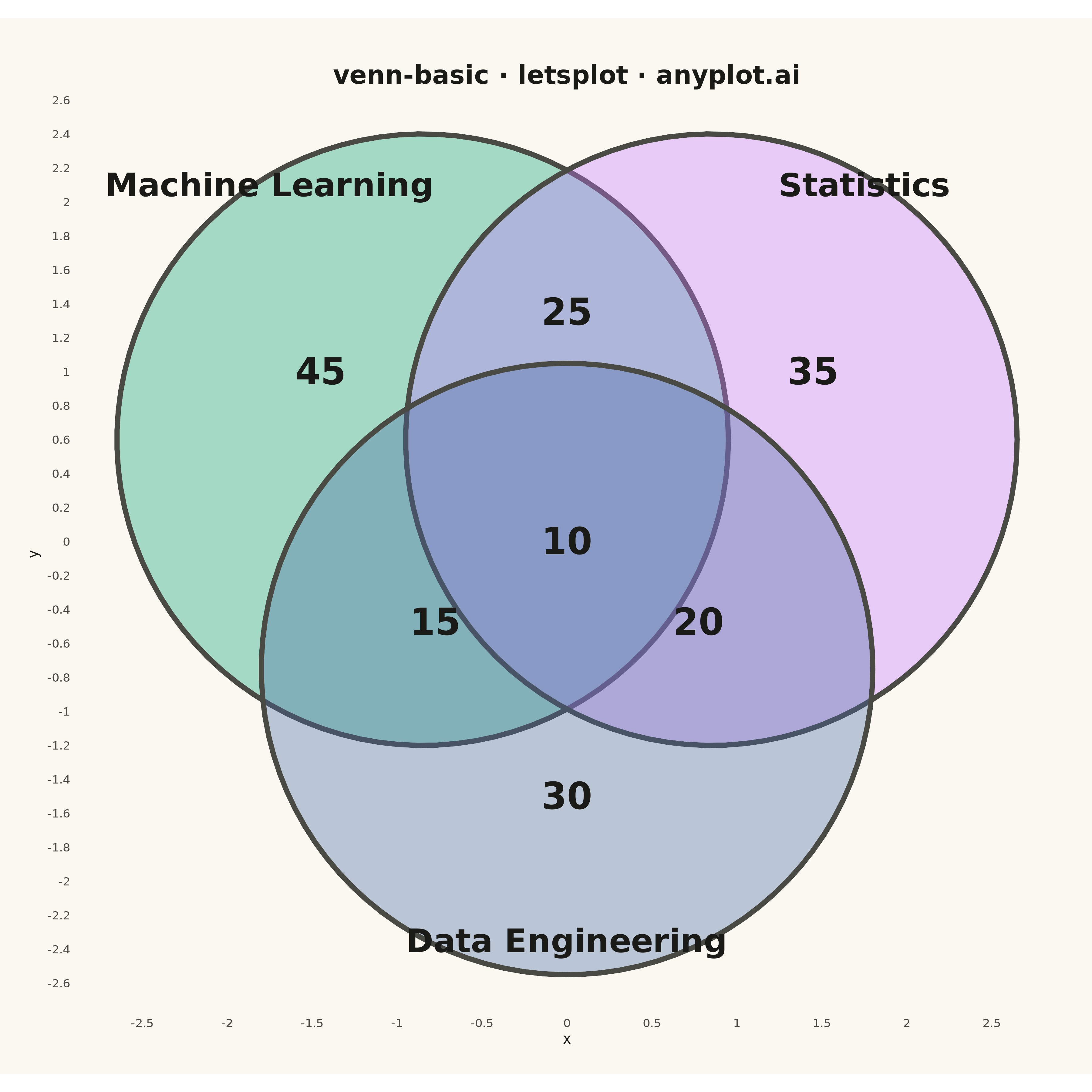

Venn Diagram rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
venn-basic: Venn Diagram
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-11
"""

import os

import numpy as np
import pandas as pd
from lets_plot import *


np.random.seed(42)

LetsPlot.setup_html()

THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]

# Data: Three research fields with overlapping expertise
set_a_label = "Machine Learning"
set_b_label = "Statistics"
set_c_label = "Data Engineering"

# Set sizes and intersections
only_a = 45
only_b = 35
only_c = 30
ab_only = 25
ac_only = 15
bc_only = 20
abc = 10

# Circle parameters (for 3-set Venn diagram)
r = 1.8
cx_a, cy_a = -0.85, 0.6
cx_b, cy_b = 0.85, 0.6
cx_c, cy_c = 0.0, -0.75

# Generate circle points
theta = np.linspace(0, 2 * np.pi, 100)

# Create circle data
circle_a_x = cx_a + r * np.cos(theta)
circle_a_y = cy_a + r * np.sin(theta)
circle_b_x = cx_b + r * np.cos(theta)
circle_b_y = cy_b + r * np.sin(theta)
circle_c_x = cx_c + r * np.cos(theta)
circle_c_y = cy_c + r * np.sin(theta)

# Create DataFrames for circles
df_a = pd.DataFrame({"x": circle_a_x, "y": circle_a_y, "set": set_a_label})
df_b = pd.DataFrame({"x": circle_b_x, "y": circle_b_y, "set": set_b_label})
df_c = pd.DataFrame({"x": circle_c_x, "y": circle_c_y, "set": set_c_label})
df_circles = pd.concat([df_a, df_b, df_c], ignore_index=True)

# Label positions and values
labels_data = pd.DataFrame(
    {
        "x": [cx_a - 0.6, cx_b + 0.6, cx_c, (cx_a + cx_b) / 2, (cx_a + cx_c) / 2 - 0.35, (cx_b + cx_c) / 2 + 0.35, 0.0],
        "y": [cy_a + 0.4, cy_b + 0.4, cy_c - 0.75, cy_a + 0.75, (cy_a + cy_c) / 2 - 0.4, (cy_b + cy_c) / 2 - 0.4, 0.0],
        "label": [str(only_a), str(only_b), str(only_c), str(ab_only), str(ac_only), str(bc_only), str(abc)],
    }
)

# Set name labels (outside circles)
set_labels_data = pd.DataFrame(
    {
        "x": [cx_a - 0.9, cx_b + 0.9, cx_c],
        "y": [cy_a + 1.5, cy_b + 1.5, cy_c - 1.6],
        "label": [set_a_label, set_b_label, set_c_label],
    }
)

# Map sets to Okabe-Ito palette
set_colors = {set_a_label: IMPRINT[0], set_b_label: IMPRINT[1], set_c_label: IMPRINT[2]}

# Create custom theme for chrome styling
anyplot_theme = theme(
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    axis_title=element_text(color=INK),
    axis_text=element_text(color=INK_SOFT),
    axis_line=element_blank(),
    plot_title=element_text(size=28, face="bold", hjust=0.5, color=INK),
    legend_position="none",
    plot_margin=[50, 30, 30, 30],
)

# Create plot
plot = (
    ggplot()
    + geom_polygon(aes(x="x", y="y", fill="set"), data=df_circles, alpha=0.35, color=INK_SOFT, size=2.5)
    + geom_text(aes(x="x", y="y", label="label"), data=labels_data, size=20, fontface="bold", color=INK)
    + geom_text(aes(x="x", y="y", label="label"), data=set_labels_data, size=18, fontface="bold", color=INK)
    + scale_fill_manual(values=set_colors)
    + coord_fixed(ratio=1)
    + labs(title="venn-basic · letsplot · anyplot.ai")
    + theme_void()
    + anyplot_theme
    + ggsize(1200, 1200)
)

# Save as PNG and HTML with theme suffix
ggsave(plot, f"plot-{THEME}.png", scale=3)
ggsave(plot, f"plot-{THEME}.html")

# Move files from lets-plot-images subdirectory if needed
if os.path.exists(f"lets-plot-images/plot-{THEME}.png"):
    os.rename(f"lets-plot-images/plot-{THEME}.png", f"plot-{THEME}.png")
if os.path.exists(f"lets-plot-images/plot-{THEME}.html"):
    os.rename(f"lets-plot-images/plot-{THEME}.html", f"plot-{THEME}.html")
if os.path.exists("lets-plot-images") and not os.listdir("lets-plot-images"):
    os.rmdir("lets-plot-images")
