Violin Plot with Overlaid Swarm Points — Bokeh

A violin plot with individual data points overlaid as a swarm plot, combining smooth kernel density estimation with raw data visibility. The violin shape shows the distribution density while the swarm points reveal actual observations, enabling viewers to see both the overall distribution pattern and individual data values simultaneously. This hybrid approach provides maximum transparency, showing exactly how many observations exist at each level while maintaining the smooth distribution visualization.

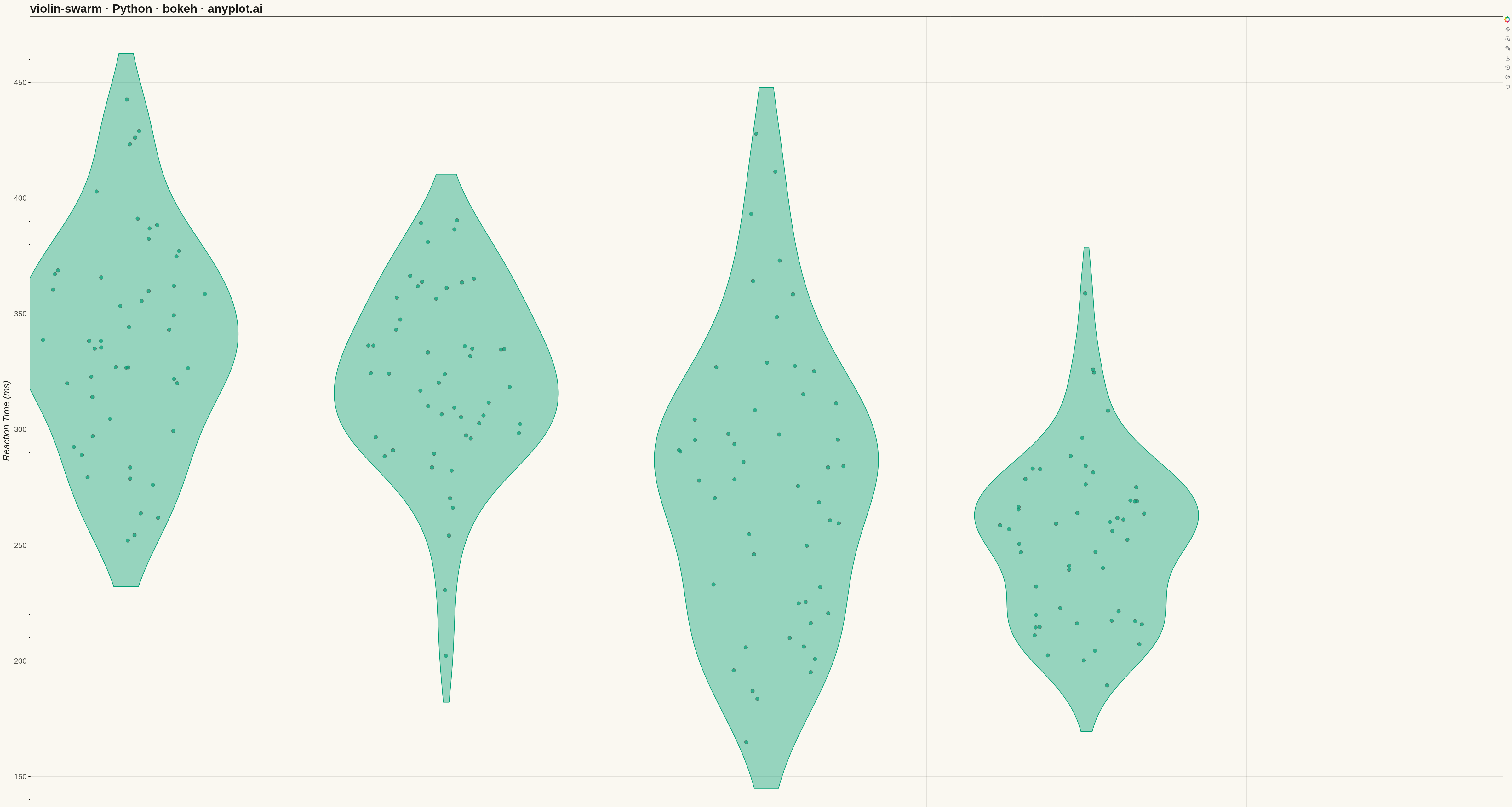

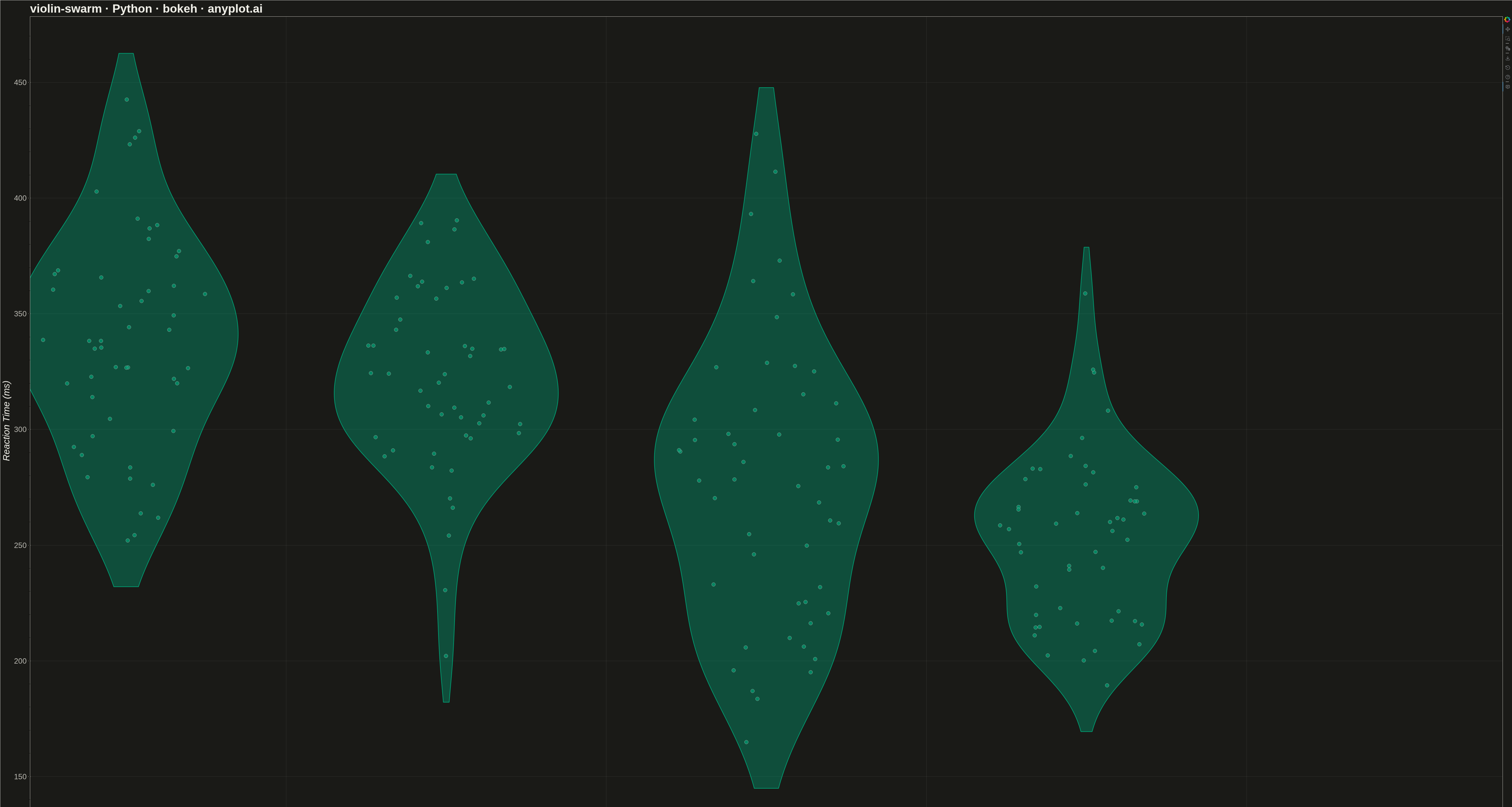

Violin Plot with Overlaid Swarm Points rendered with Bokeh

Python source (Bokeh)

""" anyplot.ai
violin-swarm: Violin Plot with Overlaid Swarm Points
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 82/100 | Updated: 2026-05-18
"""

import os
import time
from pathlib import Path

import numpy as np
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, FactorRange, HoverTool
from bokeh.plotting import figure
from bokeh.resources import CDN
from scipy import stats
from selenium import webdriver
from selenium.webdriver.chrome.options import Options


# Theme-adaptive colors
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Data color (brand green, theme-independent)
DATA_COLOR = "#009E73"

# Data - Reaction times (ms) across 4 experimental conditions
np.random.seed(42)

categories = ["Control", "Low Dose", "Medium Dose", "High Dose"]
n_per_group = 50

# Generate different distributions for each condition
data = {
    "Control": np.random.normal(350, 50, n_per_group),
    "Low Dose": np.random.normal(320, 45, n_per_group),
    "Medium Dose": np.random.normal(280, 60, n_per_group),
    "High Dose": np.random.normal(250, 40, n_per_group),
}

# Create figure with padding for violins
p = figure(
    width=4800,
    height=2700,
    title="violin-swarm · Python · bokeh · anyplot.ai",
    x_range=FactorRange(*categories, range_padding=0.15),
    y_axis_label="Reaction Time (ms)",
    x_axis_label="Experimental Condition",
)

# Background and chrome
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = INK_SOFT

# Styling - larger text for 4800x2700 canvas
p.title.text_font_size = "28pt"
p.title.text_color = INK
p.xaxis.axis_label_text_font_size = "22pt"
p.yaxis.axis_label_text_font_size = "22pt"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_font_size = "18pt"
p.yaxis.major_label_text_font_size = "18pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT
p.xgrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.10
p.ygrid.grid_line_color = INK
p.ygrid.grid_line_alpha = 0.10

# Build violin shapes and swarm points
violin_patches_x = []
violin_patches_y = []
swarm_x = []
swarm_y = []
swarm_categories = []

for i, cat in enumerate(categories):
    values = data[cat]

    # Kernel density estimation for violin
    kde = stats.gaussian_kde(values)
    y_range = np.linspace(values.min() - 20, values.max() + 20, 200)
    density = kde(y_range)

    # Normalize density to max width of 0.4 (so violin fits within category space)
    max_width = 0.35
    density_normalized = density / density.max() * max_width

    # Create violin shape (mirrored density)
    x_violin = np.concatenate([i - density_normalized, (i + density_normalized)[::-1]])
    y_violin = np.concatenate([y_range, y_range[::-1]])

    violin_patches_x.append(x_violin.tolist())
    violin_patches_y.append(y_violin.tolist())

    # Create swarm points (jitter within violin boundary)
    for val in values:
        # Get the density at this y value to determine jitter range
        val_density = kde(val)[0]
        jitter_range = (val_density / density.max()) * max_width * 0.8
        jitter = np.random.uniform(-jitter_range, jitter_range)
        swarm_x.append(i + jitter)
        swarm_y.append(val)
        swarm_categories.append(cat)

# Draw violins as patches (semi-transparent)
for vx, vy in zip(violin_patches_x, violin_patches_y, strict=True):
    p.patch(vx, vy, fill_color=DATA_COLOR, fill_alpha=0.4, line_color=DATA_COLOR, line_width=2)

# Draw swarm points with HoverTool
swarm_source = ColumnDataSource(data={"x": swarm_x, "y": swarm_y, "category": swarm_categories})
hover = HoverTool(tooltips=[("Category", "@category"), ("Value (ms)", "@y{0.0}")])
p.add_tools(hover)
p.scatter("x", "y", source=swarm_source, size=12, color=DATA_COLOR, alpha=0.7, line_color=INK_SOFT, line_width=1)

# Save HTML
output_file(f"plot-{THEME}.html")
save(p, resources=CDN)

# Screenshot with headless Chrome
W, H = 4800, 2700
opts = Options()
for arg in (
    "--headless=new",
    "--no-sandbox",
    "--disable-dev-shm-usage",
    "--disable-gpu",
    f"--window-size={W},{H}",
    "--hide-scrollbars",
):
    opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)  # let bokeh's JS render the canvas
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()

Part of Violin Plot with Overlaid Swarm Points on anyplot.ai.
