Violin Plot with Overlaid Swarm Points — lets-plot

A violin plot with individual data points overlaid as a swarm plot, combining smooth kernel density estimation with raw data visibility. The violin shape shows the distribution density while the swarm points reveal actual observations, enabling viewers to see both the overall distribution pattern and individual data values simultaneously. This hybrid approach provides maximum transparency, showing exactly how many observations exist at each level while maintaining the smooth distribution visualization.

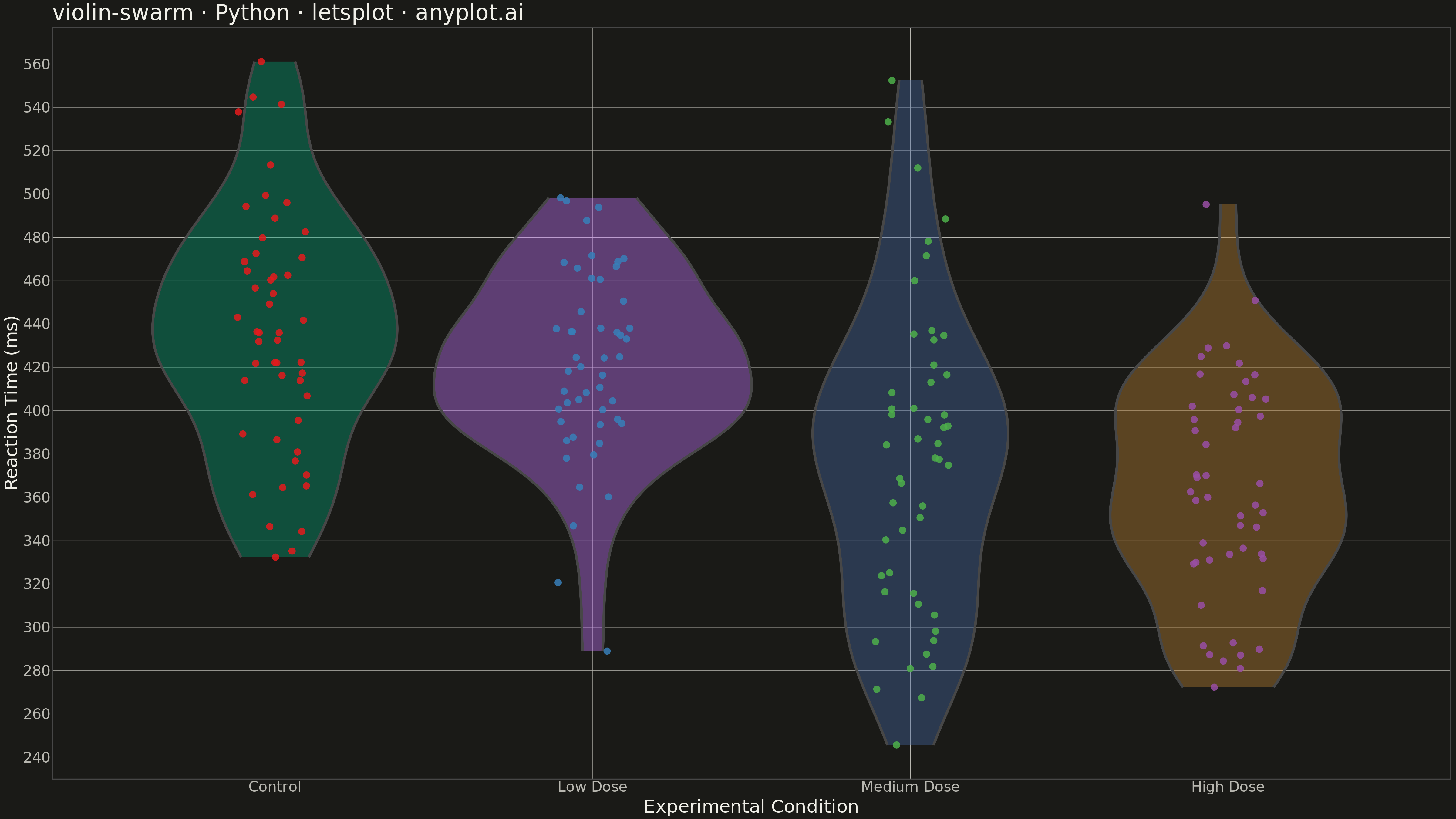

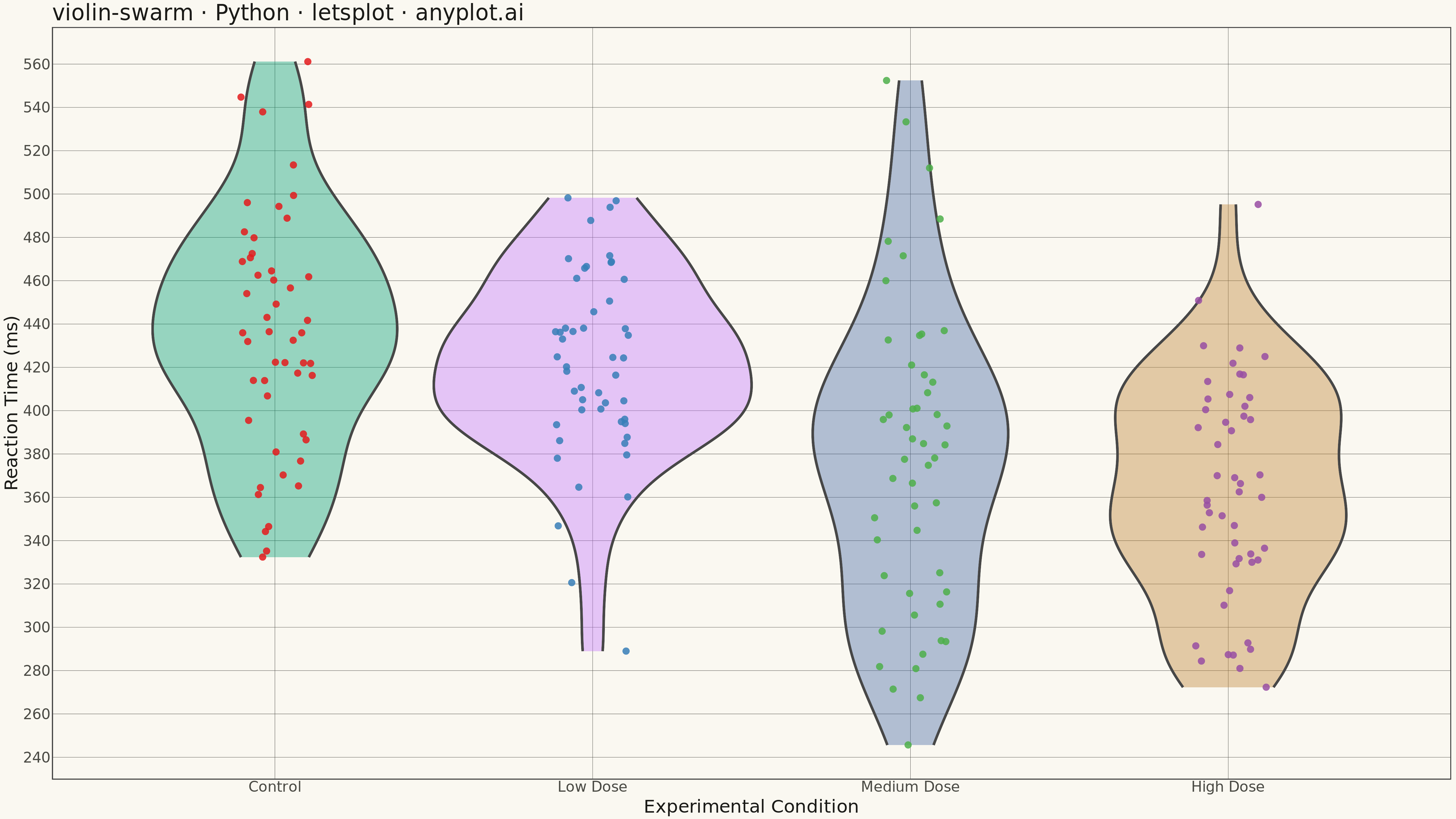

Violin Plot with Overlaid Swarm Points rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
violin-swarm: Violin Plot with Overlaid Swarm Points
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-18
"""

import os

import numpy as np
import pandas as pd
from lets_plot import (
    LetsPlot,
    aes,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_jitter,
    geom_violin,
    ggplot,
    ggsize,
    labs,
    scale_fill_manual,
    theme,
    theme_minimal,
)
from lets_plot.export import ggsave


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]

# Data: Reaction times (ms) across 4 experimental conditions
np.random.seed(42)

conditions = ["Control", "Low Dose", "Medium Dose", "High Dose"]
n_per_group = 50

data = []
for condition in conditions:
    if condition == "Control":
        # Normal distribution centered at 450ms
        values = np.random.normal(450, 60, n_per_group)
    elif condition == "Low Dose":
        # Slightly faster, narrower distribution
        values = np.random.normal(420, 50, n_per_group)
    elif condition == "Medium Dose":
        # Faster with some variability
        values = np.random.normal(380, 70, n_per_group)
    else:  # High Dose
        # Fastest but bimodal (some responders, some non-responders)
        responders = np.random.normal(320, 40, n_per_group // 2)
        non_responders = np.random.normal(400, 35, n_per_group - n_per_group // 2)
        values = np.concatenate([responders, non_responders])

    for v in values:
        data.append({"Condition": condition, "Reaction Time": v})

df = pd.DataFrame(data)

# Ensure categorical order
df["Condition"] = pd.Categorical(df["Condition"], categories=conditions, ordered=True)

# Create plot with violin and overlaid swarm points
plot = (
    ggplot(df, aes(x="Condition", y="Reaction Time"))
    + geom_violin(aes(fill="Condition"), alpha=0.4, size=1.2)
    + geom_jitter(aes(color="Condition"), width=0.12, height=0, size=3.5, alpha=0.85)
    + scale_fill_manual(values=IMPRINT)
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        panel_grid_major=element_line(color=INK_SOFT, size=0.3),
        panel_grid_minor=element_blank(),
        plot_title=element_text(size=24, color=INK),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        axis_line=element_line(color=INK_SOFT),
        legend_position="none",
    )
    + labs(x="Experimental Condition", y="Reaction Time (ms)", title="violin-swarm · Python · letsplot · anyplot.ai")
    + ggsize(1600, 900)
)

# Save PNG (scale 3x for 4800 × 2700 px) and HTML
ggsave(plot, f"plot-{THEME}.png", path=".", scale=3)
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Violin Plot with Overlaid Swarm Points on anyplot.ai.
