Violin Plot with Overlaid Swarm Points — Plotly

A violin plot with individual data points overlaid as a swarm plot, combining smooth kernel density estimation with raw data visibility. The violin shape shows the distribution density while the swarm points reveal actual observations, enabling viewers to see both the overall distribution pattern and individual data values simultaneously. This hybrid approach provides maximum transparency, showing exactly how many observations exist at each level while maintaining the smooth distribution visualization.

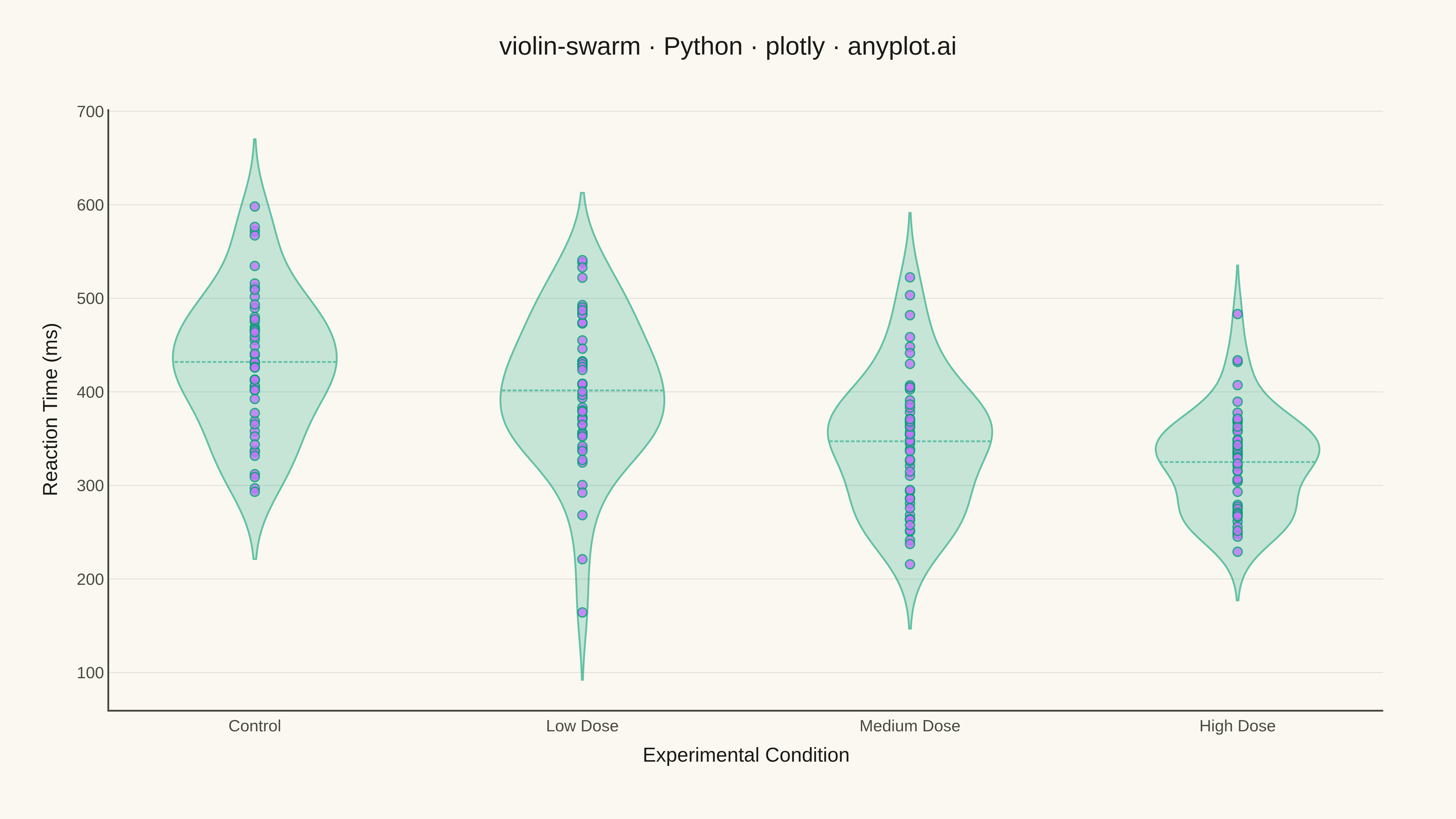

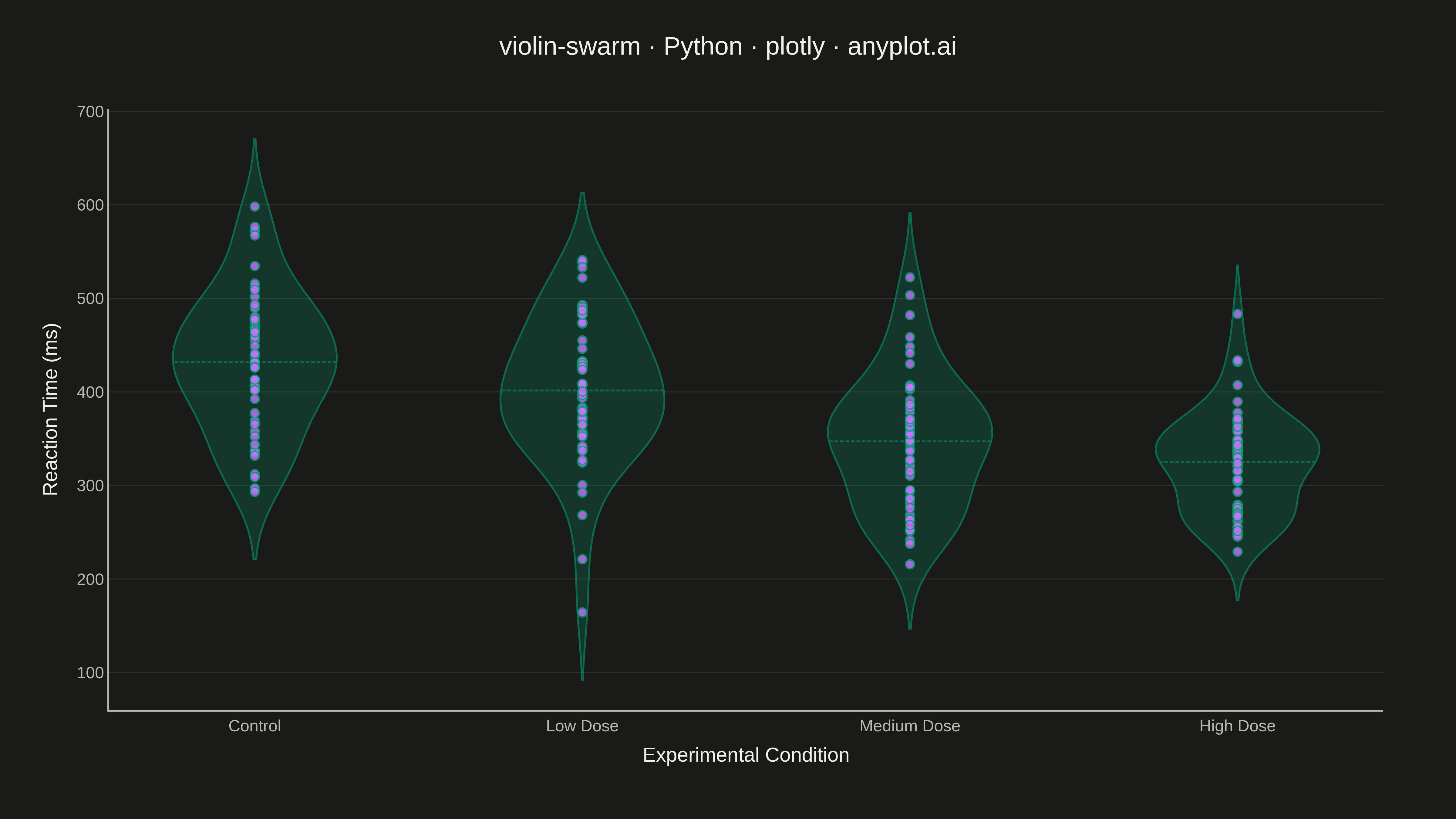

Violin Plot with Overlaid Swarm Points rendered with Plotly

Python source (Plotly)

""" anyplot.ai
violin-swarm: Violin Plot with Overlaid Swarm Points
Library: plotly 6.7.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-18
"""

import os
import sys

# Handle import shadowing: remove current directory from path during imports
_cwd = sys.path[0] if sys.path and sys.path[0] else ""
if _cwd and _cwd in sys.path:
    sys.path.remove(_cwd)

import numpy as np
import pandas as pd
import plotly.graph_objects as go

# Restore path
if _cwd:
    sys.path.insert(0, _cwd)

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"

# Colors - Okabe-Ito palette
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]
VIOLIN_COLOR = IMPRINT[0]  # Bluish green
POINT_COLOR = IMPRINT[1]  # Vermillion

# Data - Reaction times (ms) across 4 experimental conditions
np.random.seed(42)

conditions = ["Control", "Low Dose", "Medium Dose", "High Dose"]
n_per_group = 50

data = []
for condition in conditions:
    if condition == "Control":
        values = np.random.normal(450, 80, n_per_group)
    elif condition == "Low Dose":
        values = np.random.normal(400, 90, n_per_group)
    elif condition == "Medium Dose":
        values = np.random.normal(350, 70, n_per_group)
    else:  # High Dose
        values = np.random.normal(320, 60, n_per_group)
    for v in values:
        data.append({"condition": condition, "reaction_time": v})

df = pd.DataFrame(data)

# Create figure
fig = go.Figure()

# Add violin plots with improved swarm jittering
np.random.seed(42)
for condition in conditions:
    condition_data = df[df["condition"] == condition]["reaction_time"]

    # Add violin with transparency to show points beneath
    fig.add_trace(
        go.Violin(
            x=[condition] * len(condition_data),
            y=condition_data,
            name=condition,
            box_visible=False,
            meanline_visible=True,
            fillcolor="rgba(0, 158, 115, 0.35)",
            line={"color": VIOLIN_COLOR, "width": 2},
            opacity=0.6,
            showlegend=False,
            width=0.5,
            points=False,
        )
    )

# Add swarm points with improved jittering to reduce overlap
np.random.seed(123)
for condition in conditions:
    condition_data = df[df["condition"] == condition]["reaction_time"].values

    # Create jittered x positions - swarm-like jitter within violin width
    np.random.uniform(-0.15, 0.15, len(condition_data))

    fig.add_trace(
        go.Scatter(
            x=[condition] * len(condition_data),
            y=condition_data,
            mode="markers",
            marker={"size": 10, "color": POINT_COLOR, "line": {"width": 1.5, "color": VIOLIN_COLOR}, "opacity": 0.8},
            customdata=condition_data,
            hovertemplate=f"<b>{condition}</b><br>Reaction Time: %{{y:.1f}} ms<extra></extra>",
            name=condition,
            showlegend=False,
            xaxis="x",
            yaxis="y",
        )
    )

# Update layout with theme-adaptive styling
fig.update_layout(
    title={
        "text": "violin-swarm · Python · plotly · anyplot.ai",
        "font": {"size": 28, "color": INK},
        "x": 0.5,
        "xanchor": "center",
    },
    xaxis={
        "title": {"text": "Experimental Condition", "font": {"size": 22, "color": INK}},
        "tickfont": {"size": 18, "color": INK_SOFT},
        "showgrid": False,
        "linecolor": INK_SOFT,
        "linewidth": 2,
    },
    yaxis={
        "title": {"text": "Reaction Time (ms)", "font": {"size": 22, "color": INK}},
        "tickfont": {"size": 18, "color": INK_SOFT},
        "gridcolor": GRID,
        "gridwidth": 1,
        "linecolor": INK_SOFT,
        "linewidth": 2,
    },
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    font={"color": INK},
    showlegend=False,
    margin={"l": 120, "r": 80, "t": 120, "b": 120},
    width=1600,
    height=900,
)

# Save outputs
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Violin Plot with Overlaid Swarm Points on anyplot.ai.
