Violin Plot with Overlaid Swarm Points — Matplotlib

A violin plot with individual data points overlaid as a swarm plot, combining smooth kernel density estimation with raw data visibility. The violin shape shows the distribution density while the swarm points reveal actual observations, enabling viewers to see both the overall distribution pattern and individual data values simultaneously. This hybrid approach provides maximum transparency, showing exactly how many observations exist at each level while maintaining the smooth distribution visualization.

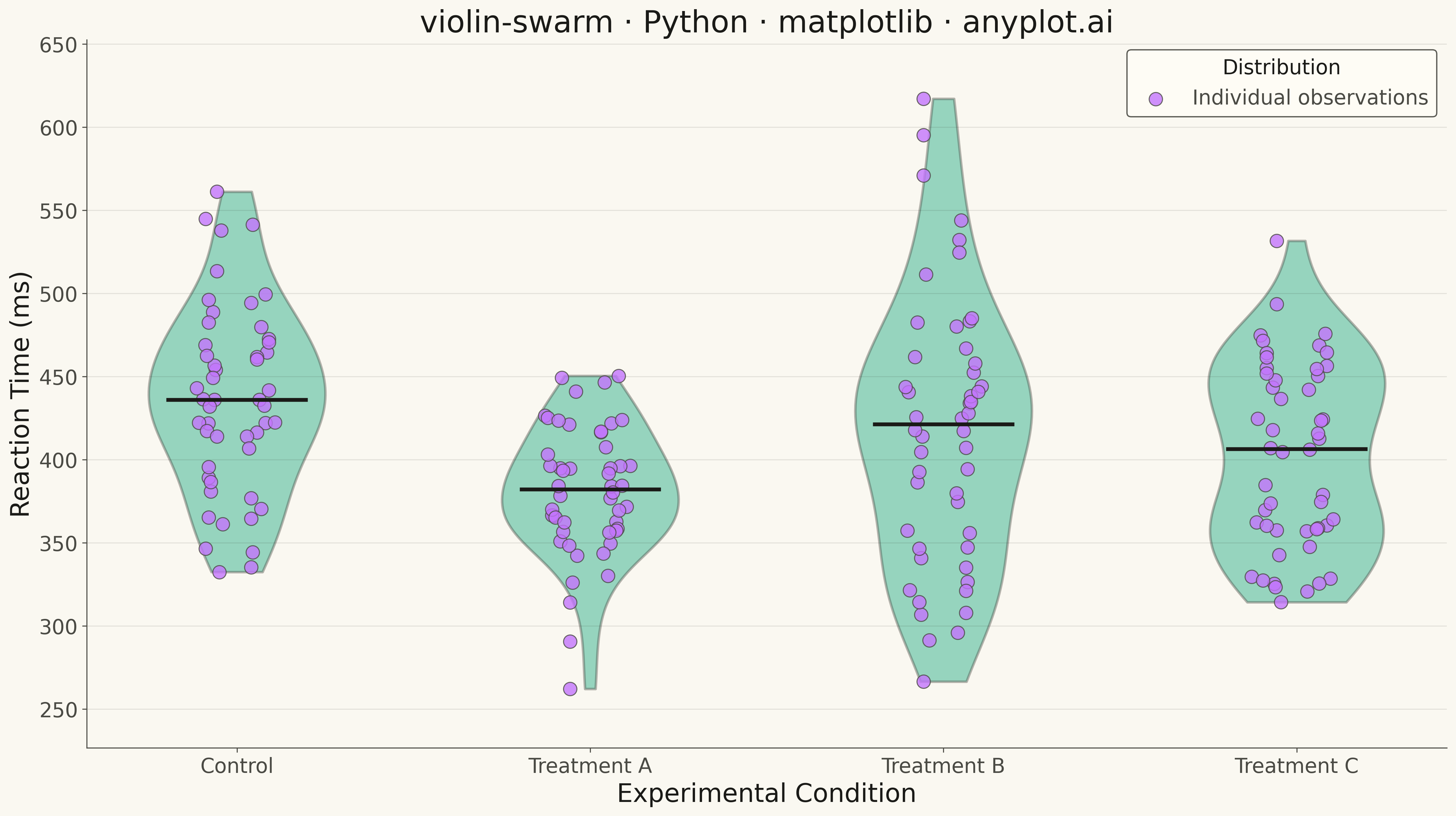

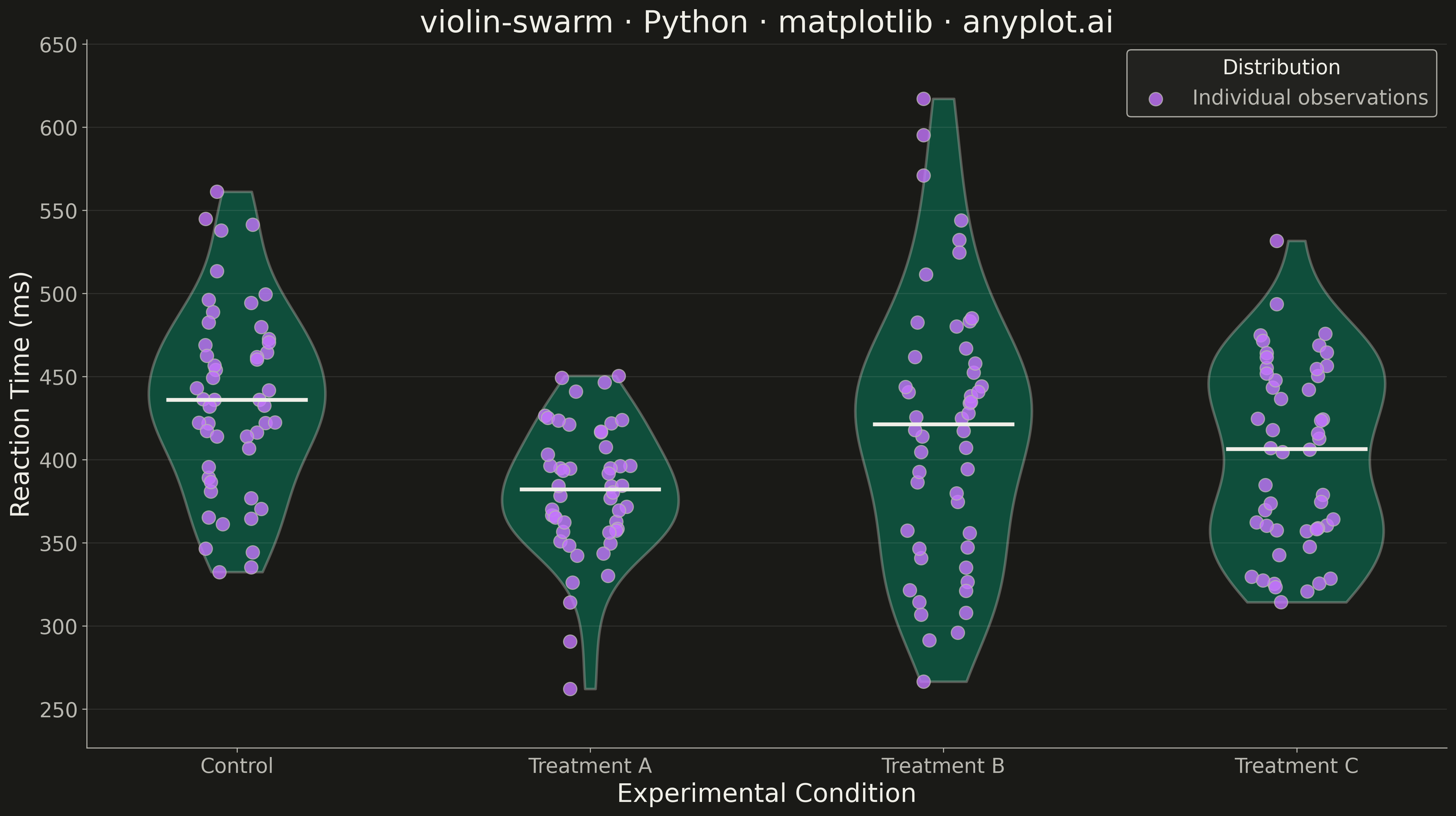

Violin Plot with Overlaid Swarm Points rendered with Matplotlib

Python source (Matplotlib)

""" anyplot.ai
violin-swarm: Violin Plot with Overlaid Swarm Points
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-18
"""

import os

import matplotlib.pyplot as plt
import numpy as np


# Theme tokens (read from environment)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette - first series is always #009E73
BRAND = "#009E73"  # violin fill
ACCENT = "#C475FD"  # swarm points

# Data - Reaction times (ms) across 4 experimental conditions
np.random.seed(42)

conditions = ["Control", "Treatment A", "Treatment B", "Treatment C"]
n_per_group = 50

# Generate different distributions for each condition
data = {
    "Control": np.random.normal(450, 60, n_per_group),
    "Treatment A": np.random.normal(380, 45, n_per_group),
    "Treatment B": np.random.normal(420, 80, n_per_group),
    "Treatment C": np.concatenate(
        [np.random.normal(350, 30, n_per_group // 2), np.random.normal(450, 30, n_per_group // 2)]
    ),  # Bimodal
}

# Create figure
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Prepare data for violin plot
violin_data = [data[cond] for cond in conditions]
positions = np.arange(len(conditions))

# Draw violin plot with transparency
parts = ax.violinplot(violin_data, positions=positions, showmeans=False, showmedians=False, showextrema=False)

# Style violins with Okabe-Ito brand color and transparency
for pc in parts["bodies"]:
    pc.set_facecolor(BRAND)
    pc.set_edgecolor(INK_SOFT)
    pc.set_alpha(0.4)
    pc.set_linewidth(2)

# Overlay swarm points
for cond, pos in zip(conditions, positions, strict=True):
    y = data[cond]
    # Add jitter to spread points horizontally (swarm-like effect)
    # Calculate density-based jitter
    n_points = len(y)
    jitter = np.zeros(n_points)

    # Sort points and assign horizontal positions based on local density
    sorted_indices = np.argsort(y)
    sorted_y = y[sorted_indices]

    # Calculate jitter based on nearby point density
    bandwidth = (np.max(y) - np.min(y)) / 20
    for j, (idx, val) in enumerate(zip(sorted_indices, sorted_y, strict=True)):
        # Count nearby points
        nearby = np.sum(np.abs(sorted_y - val) < bandwidth)
        # Assign alternating jitter based on position within group
        local_idx = np.sum(np.abs(sorted_y[: j + 1] - val) < bandwidth) - 1
        max_jitter = 0.25 * (nearby / n_points) ** 0.5 + 0.05
        jitter[idx] = (local_idx % 2 * 2 - 1) * max_jitter * ((local_idx // 2 + 1) / (nearby / 2 + 1))

    x = np.full(n_points, pos) + jitter
    ax.scatter(
        x,
        y,
        s=110,
        alpha=0.8,
        color=ACCENT,
        edgecolor=INK_SOFT,
        linewidth=0.8,
        zorder=3,
        label="Individual observations" if pos == 0 else "",
    )

# Add median lines
for i, pos in enumerate(positions):
    median = np.median(violin_data[i])
    ax.hlines(median, pos - 0.2, pos + 0.2, color=INK, linewidth=3, zorder=4)

# Styling
ax.set_xticks(positions)
ax.set_xticklabels(conditions, fontsize=18, color=INK_SOFT)
ax.set_xlabel("Experimental Condition", fontsize=20, color=INK)
ax.set_ylabel("Reaction Time (ms)", fontsize=20, color=INK)
ax.set_title("violin-swarm · Python · matplotlib · anyplot.ai", fontsize=24, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=16, colors=INK_SOFT)

# Grid styling
ax.yaxis.grid(True, alpha=0.10, linewidth=0.8, color=INK)
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
for s in ("left", "bottom"):
    ax.spines[s].set_color(INK_SOFT)

# Legend
leg = ax.legend(loc="upper right", fontsize=16, title="Distribution", title_fontsize=16)
if leg:
    leg.get_frame().set_facecolor(ELEVATED_BG)
    leg.get_frame().set_edgecolor(INK_SOFT)
    leg.get_frame().set_alpha(0.9)
    plt.setp(leg.get_texts(), color=INK_SOFT)
    plt.setp(leg.get_title(), color=INK)

# Set y-axis limits with padding
all_values = np.concatenate(violin_data)
y_min, y_max = np.min(all_values), np.max(all_values)
y_padding = (y_max - y_min) * 0.1
ax.set_ylim(y_min - y_padding, y_max + y_padding)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)
