Andrews Curves for Multivariate Data — lets-plot

Andrews curves visualization transforms multivariate observations into smooth Fourier series curves. Each data point is represented as a continuous function where variable values become coefficients in a Fourier expansion, producing distinctive wave patterns. This technique enables visual comparison of multivariate patterns, cluster identification, and outlier detection—observations with similar values across variables produce similar curves, while outliers appear as distinctly different patterns.

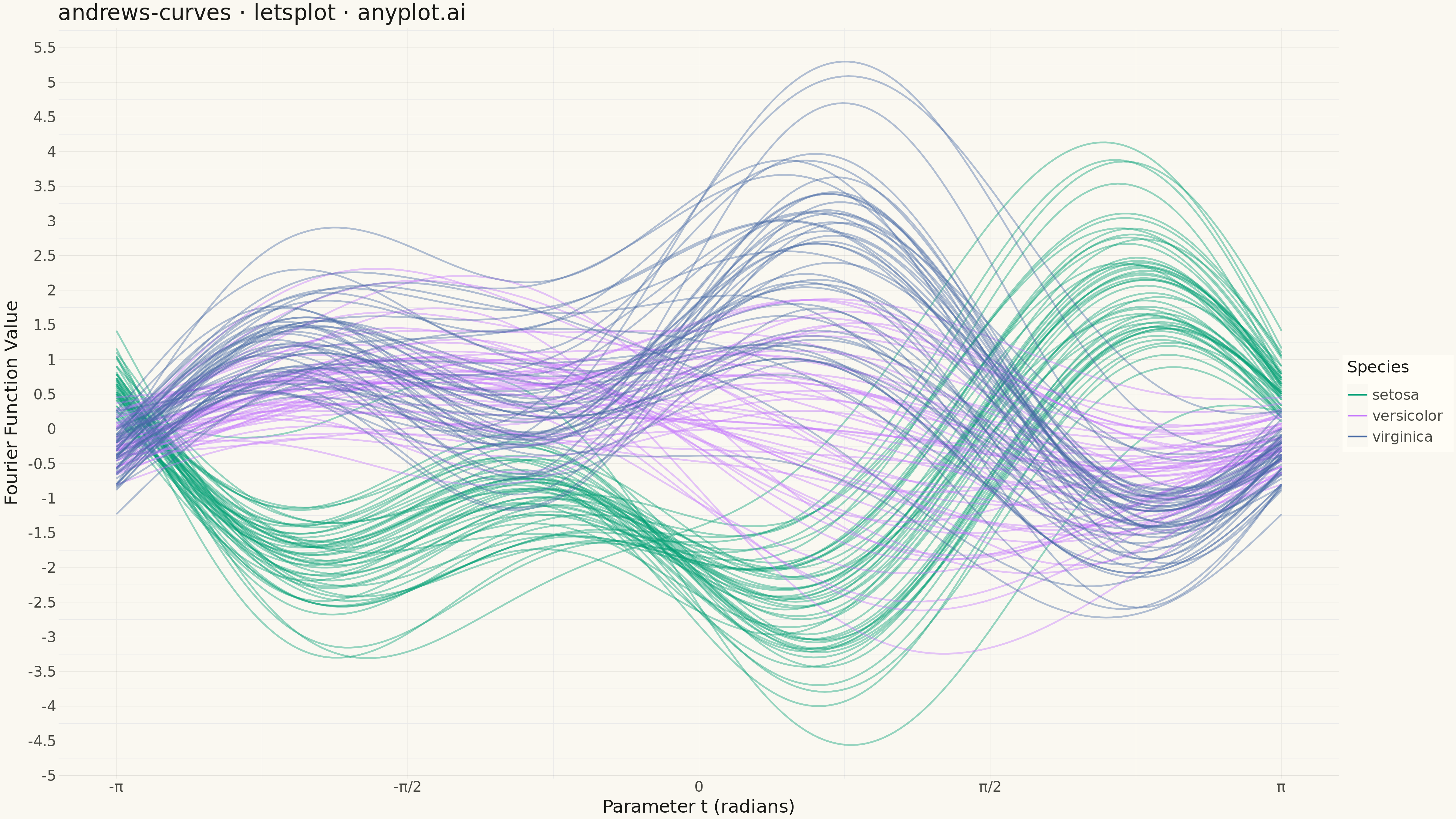

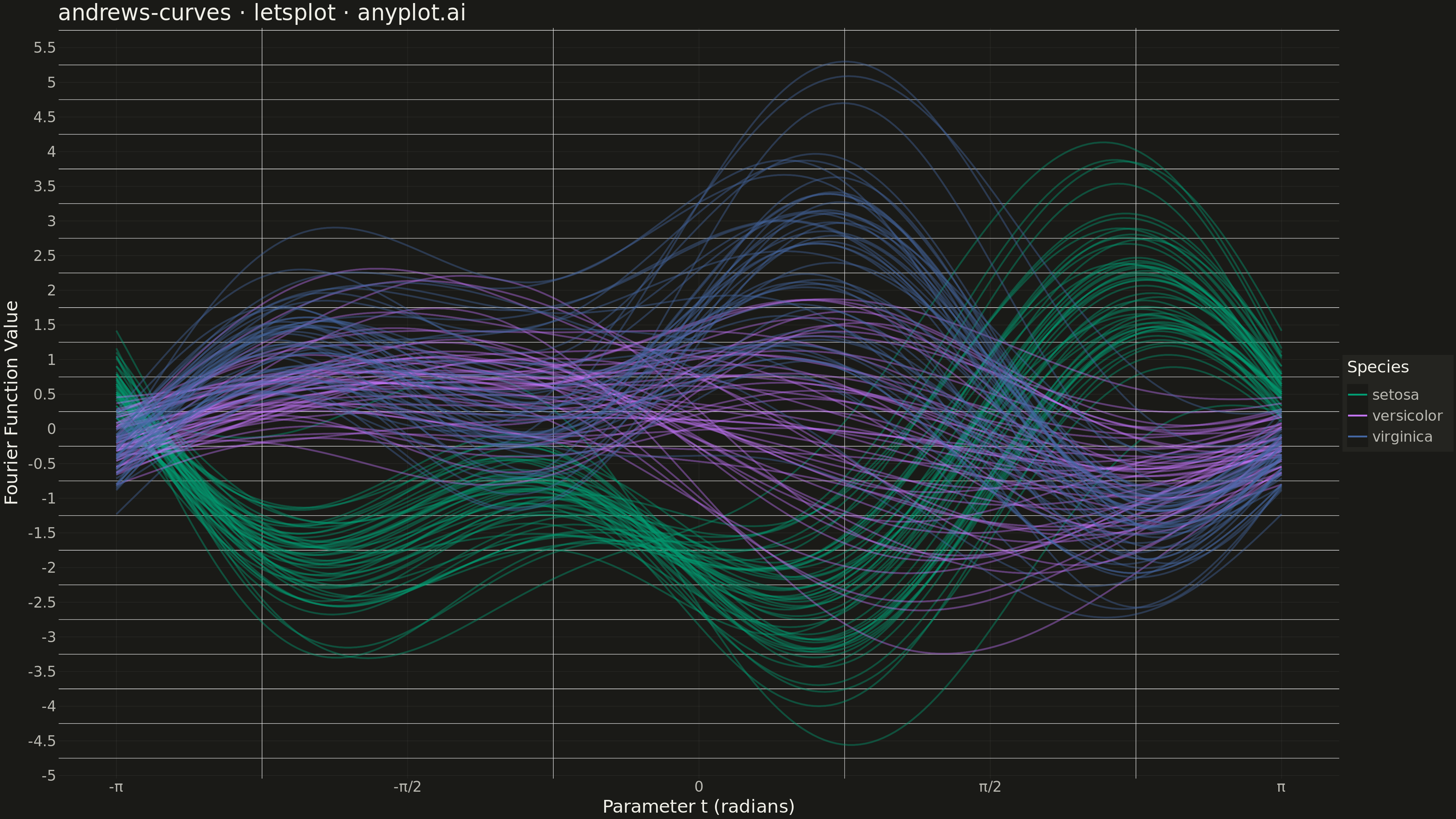

Andrews Curves for Multivariate Data rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
andrews-curves: Andrews Curves for Multivariate Data
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-15
"""

import os

import numpy as np
import pandas as pd
from lets_plot import (
    LetsPlot,
    aes,
    element_line,
    element_rect,
    element_text,
    geom_line,
    ggplot,
    ggsize,
    labs,
    scale_color_manual,
    scale_x_continuous,
    theme,
    theme_minimal,
)
from lets_plot.export import ggsave
from sklearn.datasets import load_iris
from sklearn.preprocessing import StandardScaler


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
RULE = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"

# Okabe-Ito palette (first series always #009E73)
IMPRINT = ["#009E73", "#C475FD", "#4467A3"]

# Set seed for reproducibility
np.random.seed(42)

# Load and prepare data
iris = load_iris()
X = iris.data
y = iris.target
feature_names = iris.feature_names
target_names = iris.target_names

# Normalize variables to similar scales
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X)

# Create DataFrame with normalized features and species
df_features = pd.DataFrame(X_scaled, columns=feature_names)
df_features["species"] = [target_names[i] for i in y]

# Andrews curves transformation
# f(t) = x1/sqrt(2) + x2*sin(t) + x3*cos(t) + x4*sin(2t) + x5*cos(2t) + ...
t_values = np.linspace(-np.pi, np.pi, 200)

curves_data = []
for idx, row in df_features.iterrows():
    values = row[feature_names].values
    species = row["species"]

    for t in t_values:
        # Fourier expansion
        y_val = values[0] / np.sqrt(2)
        for i in range(1, len(values)):
            if i % 2 == 1:
                y_val += values[i] * np.sin((i // 2 + 1) * t)
            else:
                y_val += values[i] * np.cos((i // 2) * t)

        curves_data.append({"t": t, "y": y_val, "observation": idx, "species": species})

df_curves = pd.DataFrame(curves_data)

# Map species to Okabe-Ito colors
species_colors = {
    target_names[0]: IMPRINT[0],  # setosa: #009E73 (brand green)
    target_names[1]: IMPRINT[1],  # versicolor: #C475FD (vermillion)
    target_names[2]: IMPRINT[2],  # virginica: #4467A3 (blue)
}

# Create plot
plot = (
    ggplot(df_curves, aes(x="t", y="y", group="observation", color="species"))
    + geom_line(alpha=0.4, size=0.8)
    + scale_color_manual(values=list(species_colors.values()))
    + scale_x_continuous(breaks=[-np.pi, -np.pi / 2, 0, np.pi / 2, np.pi], labels=["-π", "-π/2", "0", "π/2", "π"])
    + labs(
        x="Parameter t (radians)",
        y="Fourier Function Value",
        title="andrews-curves · letsplot · anyplot.ai",
        color="Species",
    )
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_grid_major=element_line(color=RULE, size=0.3),
        axis_title=element_text(size=20, color=INK),
        axis_text=element_text(size=16, color=INK_SOFT),
        axis_line=element_line(color=INK_SOFT, size=0.5),
        plot_title=element_text(size=24, color=INK),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
        legend_title=element_text(size=18, color=INK),
        legend_text=element_text(size=16, color=INK_SOFT),
        legend_position="right",
    )
    + ggsize(1600, 900)
)

# Save PNG (scale 3x to get 4800 × 2700 px)
ggsave(plot, f"plot-{THEME}.png", path=".", scale=3)

# Save HTML for interactivity
ggsave(plot, f"plot-{THEME}.html", path=".")
