Andrews Curves for Multivariate Data — plotnine

Andrews curves visualization transforms multivariate observations into smooth Fourier series curves. Each data point is represented as a continuous function where variable values become coefficients in a Fourier expansion, producing distinctive wave patterns. This technique enables visual comparison of multivariate patterns, cluster identification, and outlier detection—observations with similar values across variables produce similar curves, while outliers appear as distinctly different patterns.

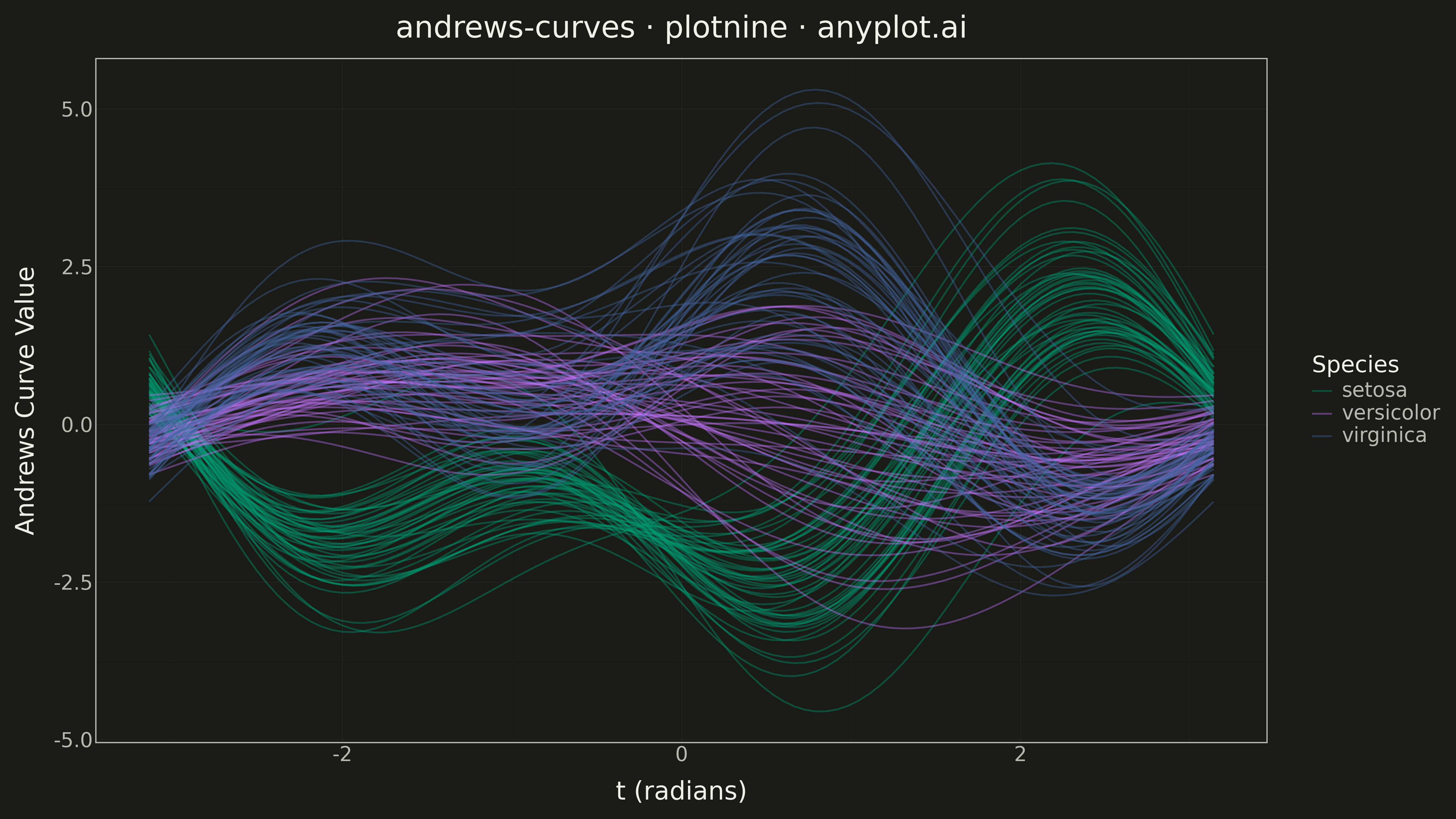

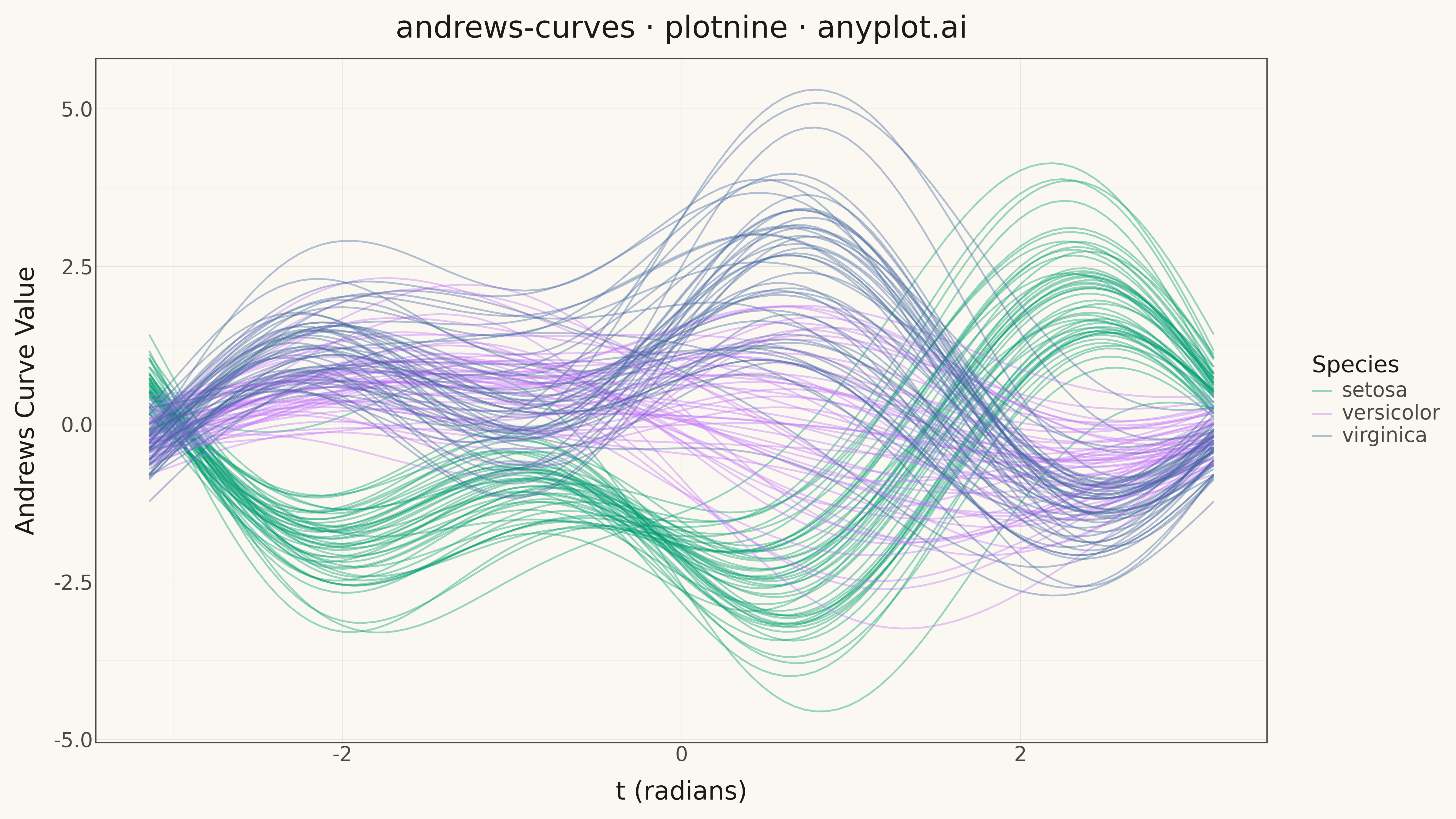

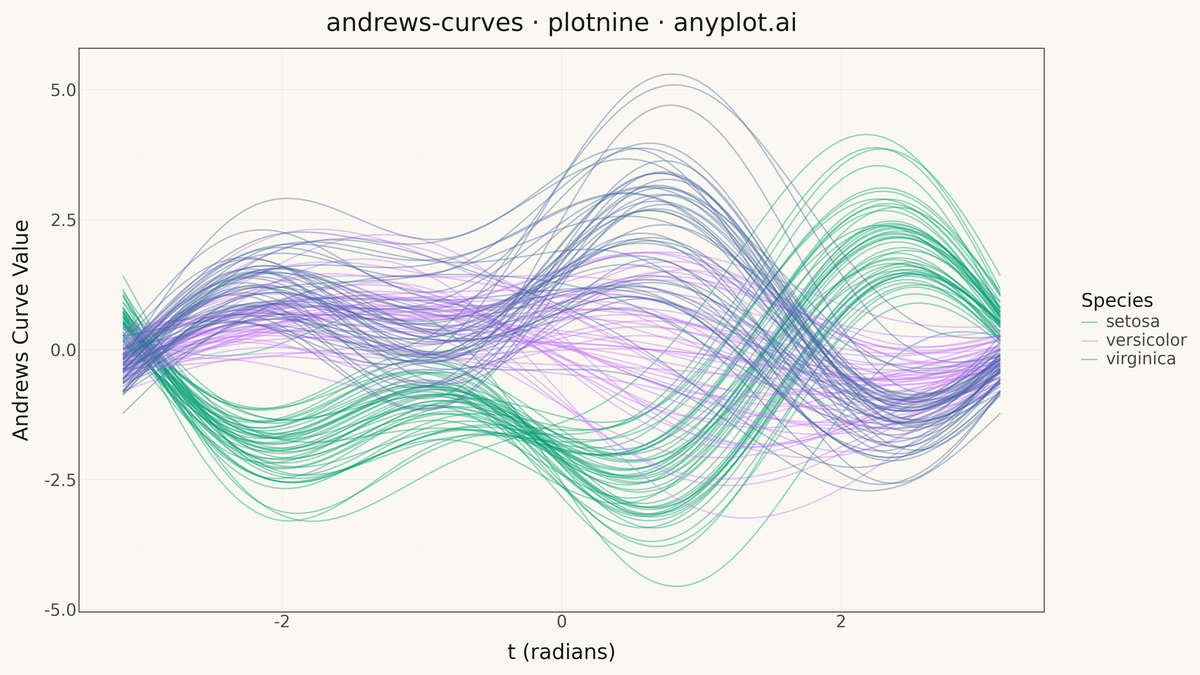

Andrews Curves for Multivariate Data rendered with plotnine

Python source (plotnine)

""" anyplot.ai
andrews-curves: Andrews Curves for Multivariate Data
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-15
"""

import os

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    element_line,
    element_rect,
    element_text,
    geom_line,
    ggplot,
    labs,
    scale_color_manual,
    theme,
    theme_minimal,
)
from sklearn.datasets import load_iris
from sklearn.preprocessing import StandardScaler


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (first series is always #009E73)
IMPRINT = ["#009E73", "#C475FD", "#4467A3"]

# Data
iris = load_iris()
X = iris.data
y = iris.target
feature_names = iris.feature_names
target_names = iris.target_names

# Normalize the data
scaler = StandardScaler()
X_normalized = scaler.fit_transform(X)

# Generate t values for the curve
t = np.linspace(-np.pi, np.pi, 100)

# Create data for plotting with inlined Andrews curve transformation
plot_data = []
for idx in range(len(X_normalized)):
    row = X_normalized[idx]
    n = len(row)
    # Andrews curve Fourier transformation: x1/sqrt(2) + x2*sin(t) + x3*cos(t) + x4*sin(2t) + ...
    curve_values = row[0] / np.sqrt(2)
    for i in range(1, n):
        if i % 2 == 1:
            curve_values = curve_values + row[i] * np.sin((i // 2 + 1) * t)
        else:
            curve_values = curve_values + row[i] * np.cos((i // 2) * t)
    species = target_names[y[idx]]
    for t_val, curve_val in zip(t, curve_values, strict=True):
        plot_data.append({"t": t_val, "value": curve_val, "species": species, "observation": idx})

df = pd.DataFrame(plot_data)

# Theme-adaptive styling
anyplot_theme = theme(
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_grid_major=element_line(color=INK, size=0.3, alpha=0.10),
    panel_grid_minor=element_line(color=INK, size=0.2, alpha=0.05),
    panel_border=element_rect(color=INK_SOFT, fill=None),
    axis_title=element_text(size=20, color=INK),
    axis_text=element_text(size=16, color=INK_SOFT),
    axis_line=element_line(color=INK_SOFT),
    plot_title=element_text(size=24, color=INK),
    legend_text=element_text(size=16, color=INK_SOFT),
    legend_title=element_text(size=18, color=INK),
)

# Plot
plot = (
    ggplot(df, aes(x="t", y="value", color="species", group="observation"))
    + geom_line(alpha=0.4, size=0.8)
    + labs(title="andrews-curves · plotnine · anyplot.ai", x="t (radians)", y="Andrews Curve Value", color="Species")
    + scale_color_manual(values=IMPRINT)
    + theme_minimal()
    + anyplot_theme
    + theme(figure_size=(16, 9))
)

# Save
plot.save(f"plot-{THEME}.png", dpi=300, verbose=False)

Part of Andrews Curves for Multivariate Data on anyplot.ai.
