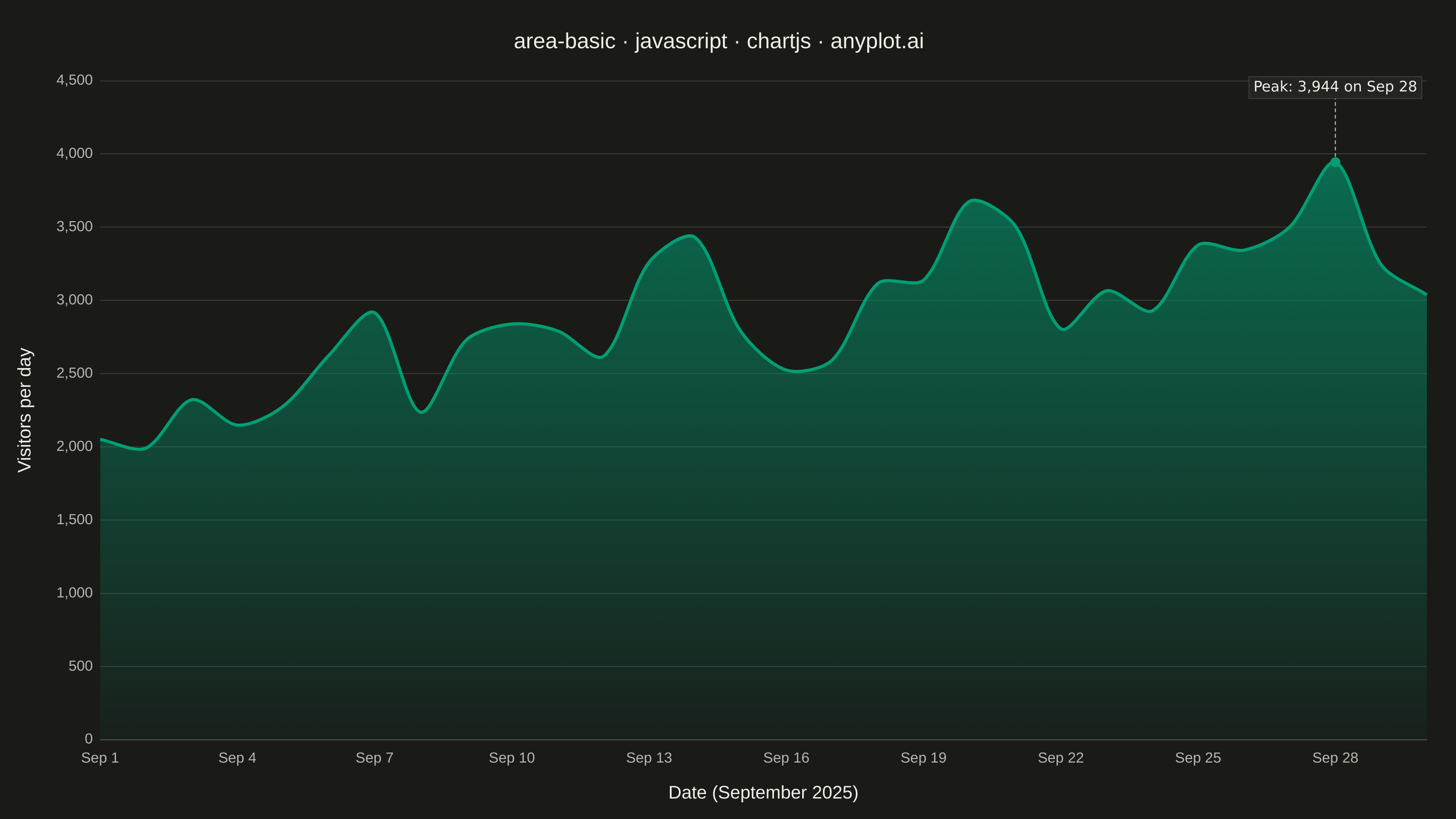

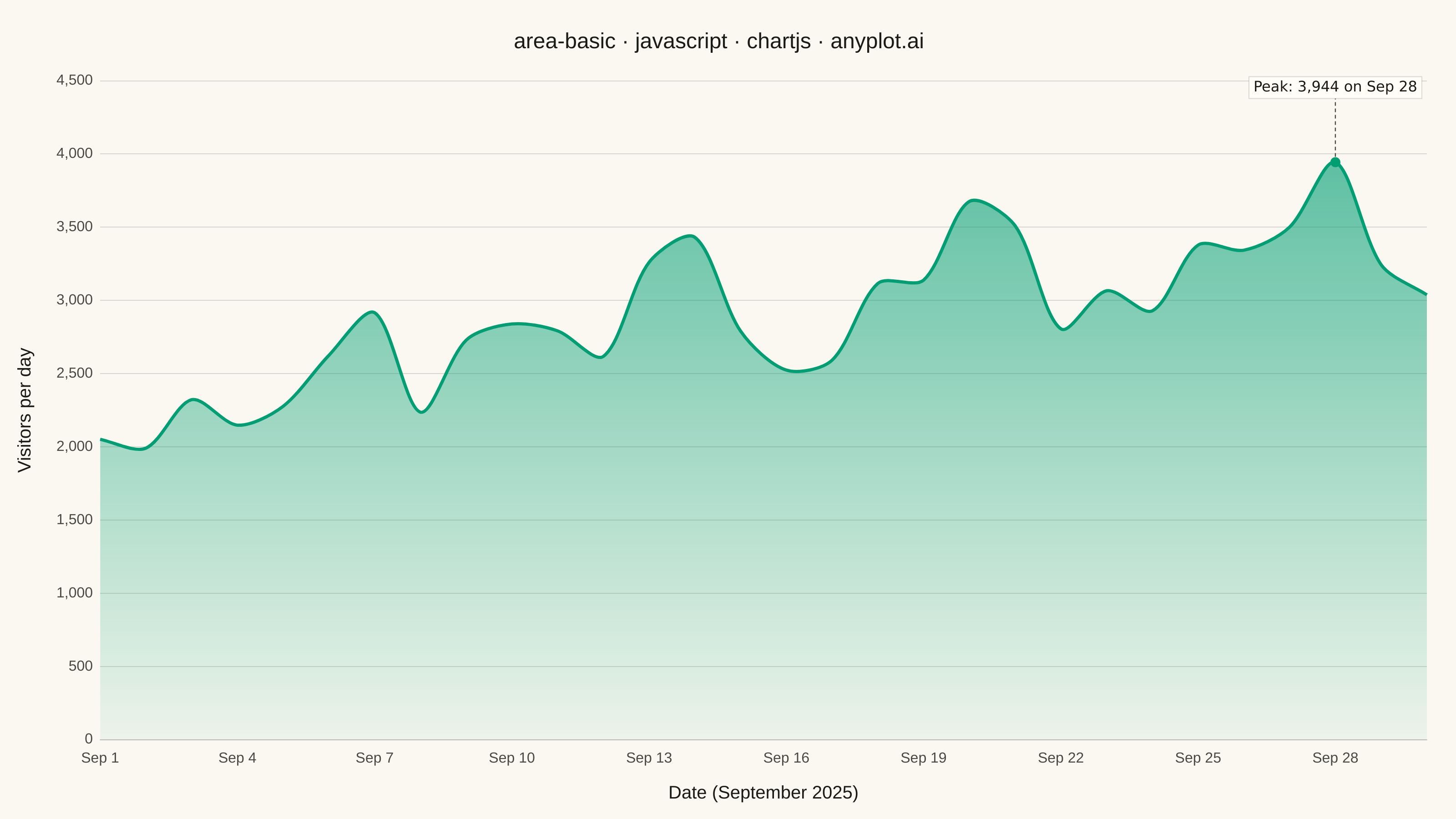

An area chart showing quantitative data over a continuous axis with the area below the line filled. It emphasizes the magnitude of values over time by filling the space between the line and axis, creating visual weight that helps readers understand volume and trends. Particularly effective for showing cumulative totals, resource consumption, or any data where the "amount" is as important as the trend.
// anyplot.ai
// area-basic: Basic Area Chart
// Library: chartjs 4.4.7 | JavaScript 22.22.3
// Quality: 92/100 | Created: 2026-06-02
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Data: daily website visitors over a 30-day month -----------------------
// Deterministic seeded LCG so the silhouette is identical across renders.
const SEED = 42;
let _s = SEED;
const rand = () => {
_s = (_s * 1664525 + 1013904223) >>> 0;
return _s / 0x100000000;
};
const days = 30;
const labels = [];
const visitors = [];
const baseline = 2200;
const growth = 38;
const weekendLift = 520;
for (let i = 0; i < days; i++) {
const date = new Date(2025, 8, i + 1);
labels.push(date.toLocaleDateString("en-US", { month: "short", day: "numeric" }));
const dow = date.getDay();
const weekend = dow === 0 || dow === 6 ? weekendLift : 0;
const noise = (rand() - 0.5) * 600;
visitors.push(Math.round(baseline + growth * i + weekend + noise));
}
// --- Imprint brand-green fill, vertical gradient for depth ------------------
function hexToRgba(hex, alpha) {
const r = parseInt(hex.slice(1, 3), 16);
const g = parseInt(hex.slice(3, 5), 16);
const b = parseInt(hex.slice(5, 7), 16);
return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}
const BRAND = t.palette[0];
// CanvasGradient: opaque brand green at the line, fading to transparent at the axis.
const areaGradient = (ctx) => {
const { chartArea } = ctx.chart;
if (!chartArea) return hexToRgba(BRAND, 0.35);
const g = ctx.chart.ctx.createLinearGradient(0, chartArea.top, 0, chartArea.bottom);
g.addColorStop(0, hexToRgba(BRAND, 0.7));
g.addColorStop(1, hexToRgba(BRAND, 0.05));
return g;
};
// --- Peak annotation: highlight Sep 28 with a leader line + label -----------
const peakIdx = visitors.indexOf(Math.max(...visitors));
const peakLabel = `Peak: ${visitors[peakIdx].toLocaleString("en-US")} on ${labels[peakIdx]}`;
const peakAnnotation = {
id: "peakAnnotation",
afterDatasetsDraw(chart) {
const { ctx, scales } = chart;
const x = scales.x.getPixelForValue(peakIdx);
const y = scales.y.getPixelForValue(visitors[peakIdx]);
const leaderEnd = y - 70;
ctx.save();
// Leader line
ctx.strokeStyle = t.inkSoft;
ctx.lineWidth = 1.2;
ctx.setLineDash([4, 3]);
ctx.beginPath();
ctx.moveTo(x, y - 6);
ctx.lineTo(x, leaderEnd);
ctx.stroke();
ctx.setLineDash([]);
// Peak dot
ctx.fillStyle = BRAND;
ctx.beginPath();
ctx.arc(x, y, 5.5, 0, Math.PI * 2);
ctx.fill();
// Label
ctx.font = "500 16px system-ui, -apple-system, sans-serif";
ctx.fillStyle = t.ink;
ctx.textBaseline = "bottom";
const textWidth = ctx.measureText(peakLabel).width;
const padX = 10, padY = 6;
const boxLeft = Math.min(x - textWidth / 2, scales.x.right - textWidth - padX);
const labelX = Math.max(boxLeft, scales.x.left + padX);
// Subtle pill background for legibility over the gradient
ctx.fillStyle = t.elevatedBg;
ctx.strokeStyle = t.grid;
ctx.lineWidth = 1;
const boxY = leaderEnd - 24;
ctx.beginPath();
ctx.rect(labelX - padX / 2, boxY, textWidth + padX, 24);
ctx.fill();
ctx.stroke();
ctx.fillStyle = t.ink;
ctx.textBaseline = "middle";
ctx.fillText(peakLabel, labelX, boxY + 12);
ctx.restore();
},
};
// --- Mount ------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Chart ------------------------------------------------------------------
new Chart(canvas, {
type: "line",
data: {
labels,
datasets: [
{
label: "Daily visitors",
data: visitors,
borderColor: BRAND,
backgroundColor: areaGradient,
fill: { target: "origin", above: areaGradient },
borderWidth: 3.5,
pointRadius: 0,
pointHoverRadius: 6,
pointHoverBackgroundColor: BRAND,
pointHoverBorderColor: t.pageBg,
pointHoverBorderWidth: 2,
tension: 0.3,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
layout: { padding: { top: 24, right: 32, bottom: 12, left: 12 } },
plugins: {
title: {
display: true,
text: "area-basic · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 24, weight: "500" },
padding: { top: 8, bottom: 28 },
},
legend: { display: false },
tooltip: {
backgroundColor: t.elevatedBg,
titleColor: t.ink,
bodyColor: t.inkSoft,
borderColor: t.grid,
borderWidth: 1,
padding: 12,
titleFont: { size: 16 },
bodyFont: { size: 14 },
},
},
scales: {
x: {
title: {
display: true,
text: "Date (September 2025)",
color: t.ink,
font: { size: 20 },
padding: { top: 14 },
},
ticks: {
color: t.inkSoft,
font: { size: 16 },
maxRotation: 0,
autoSkip: true,
maxTicksLimit: 10,
},
grid: { display: false },
border: { color: t.grid },
},
y: {
title: {
display: true,
text: "Visitors per day",
color: t.ink,
font: { size: 20 },
padding: { bottom: 14 },
},
ticks: {
color: t.inkSoft,
font: { size: 16 },
padding: 8,
callback: (v) => v.toLocaleString("en-US"),
},
grid: { color: t.grid, drawTicks: false },
border: { display: false },
beginAtZero: true,
suggestedMax: Math.max(...visitors) * 1.1,
},
},
interaction: { mode: "index", intersect: false },
},
plugins: [peakAnnotation],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/area-basic/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "area-basic",
"language": "javascript",
"library": "chartjs",
"page": "https://anyplot.ai/area-basic/javascript/chartjs",
"hub": "https://anyplot.ai/area-basic",
"code_json": "https://api.anyplot.ai/specs/area-basic/chartjs/code",
"spec_json": "https://api.anyplot.ai/specs/area-basic",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/area-basic/javascript/chartjs/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/area-basic/javascript/chartjs/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/area-basic/javascript/chartjs/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/area-basic/javascript/chartjs/plot-dark.html",
"quality_score": 92.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Basic Area Chart on anyplot.ai.
