Basic Area Chart — Apache ECharts

An area chart showing quantitative data over a continuous axis with the area below the line filled. It emphasizes the magnitude of values over time by filling the space between the line and axis, creating visual weight that helps readers understand volume and trends. Particularly effective for showing cumulative totals, resource consumption, or any data where the "amount" is as important as the trend.

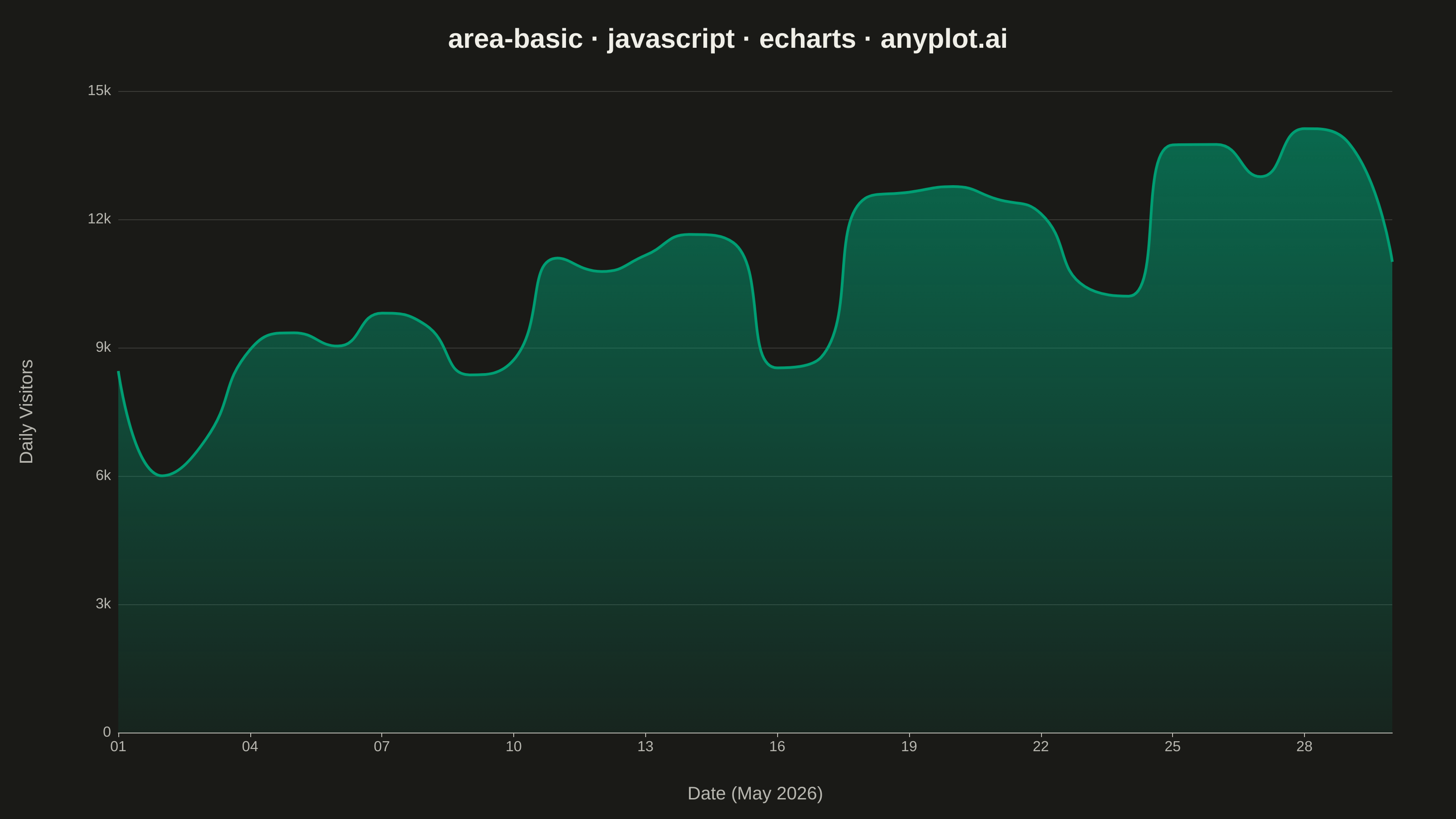

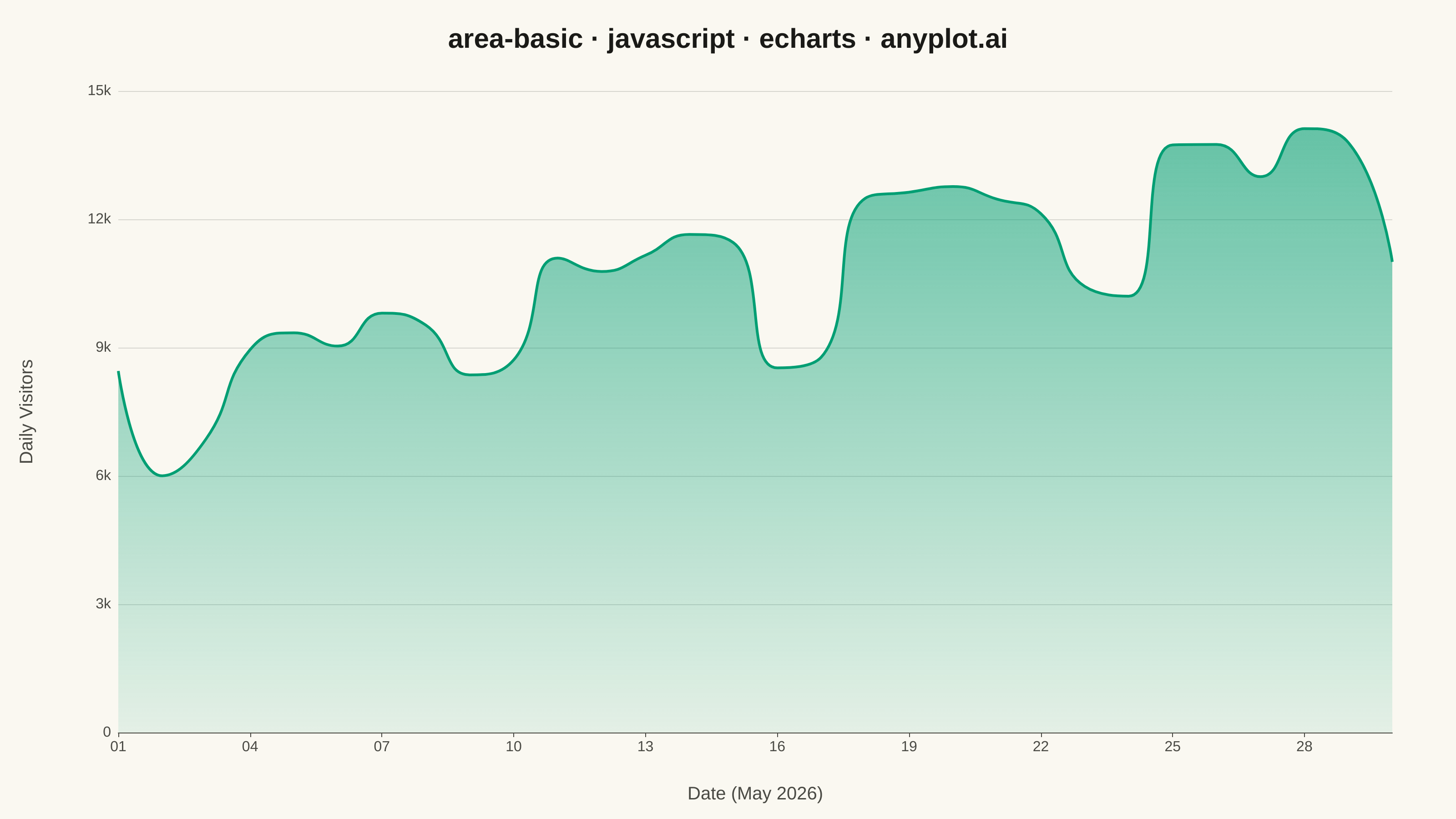

Basic Area Chart rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// area-basic: Basic Area Chart
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 93/100 | Created: 2026-06-02

//# anyplot-orientation: landscape

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic LCG) -----------------------------------
// Daily website visitors across 30 days: gentle upward trend + weekly cycle
// (weekdays peak, weekends dip) + small noise. Imprint palette position 1 is
// the brand green for the filled trend.
let seed = 42;
const rng = () => { seed = (seed * 1664525 + 1013904223) >>> 0; return seed / 4294967296; };

const days = 30;
const start = new Date(2026, 4, 1); // 2026-05-01 (months are 0-indexed)
const dates = [];
const visitors = [];
for (let i = 0; i < days; i++) {
  const d = new Date(start.getTime() + i * 86400000);
  dates.push(`${d.getFullYear()}-${String(d.getMonth() + 1).padStart(2, "0")}-${String(d.getDate()).padStart(2, "0")}`);
  const trend = 8200 + i * 180;
  const dow = d.getDay(); // 0 = Sun, 6 = Sat
  const weekly = (dow === 0 || dow === 6) ? -1800 : 600;
  const noise = (rng() - 0.5) * 1400;
  visitors.push(Math.round(trend + weekly + noise));
}

// --- Init -------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option -----------------------------------------------------------------
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",
  title: {
    text: "area-basic · javascript · echarts · anyplot.ai",
    left: "center",
    top: 24,
    textStyle: { color: t.ink, fontSize: 30, fontWeight: "bold" },
  },
  tooltip: {
    trigger: "axis",
    backgroundColor: t.elevatedBg,
    borderColor: t.grid,
    textStyle: { color: t.ink, fontSize: 14 },
    valueFormatter: (v) => `${v.toLocaleString()} visitors`,
  },
  grid: { left: 130, right: 70, top: 100, bottom: 95, borderWidth: 0 },
  xAxis: {
    type: "category",
    data: dates,
    boundaryGap: false,
    name: "Date (May 2026)",
    nameLocation: "middle",
    nameGap: 58,
    nameTextStyle: { color: t.inkSoft, fontSize: 20, fontWeight: "normal" },
    axisLabel: {
      color: t.inkSoft,
      fontSize: 16,
      formatter: (val) => val.slice(-2), // show day-of-month only
      interval: 2,
    },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { lineStyle: { color: t.inkSoft } },
    splitLine: { show: false },
  },
  yAxis: {
    type: "value",
    min: 0,
    name: "Daily Visitors",
    nameLocation: "middle",
    nameRotate: 90,
    nameGap: 90,
    nameTextStyle: { color: t.inkSoft, fontSize: 20, fontWeight: "normal" },
    axisLabel: {
      color: t.inkSoft,
      fontSize: 16,
      formatter: (v) => v >= 1000 ? `${(v / 1000).toFixed(0)}k` : `${v}`,
    },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { lineStyle: { color: t.inkSoft } },
    splitLine: { lineStyle: { color: t.grid } },
  },
  series: [
    {
      type: "line",
      data: visitors,
      smooth: true,
      symbol: "circle",
      symbolSize: 8,
      showSymbol: false,
      lineStyle: { color: t.palette[0], width: 3 },
      itemStyle: { color: t.palette[0], borderColor: t.pageBg, borderWidth: 2 },
      // ECharts-distinctive: vertical LinearGradient fill from line down to axis
      areaStyle: {
        opacity: 0.85,
        color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
          { offset: 0, color: t.palette[0] + "B3" }, // ~70% alpha at top
          { offset: 1, color: t.palette[0] + "1A" }, // ~10% alpha at axis
        ]),
      },
      emphasis: { focus: "series" },
    },
  ],
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/area-basic/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "area-basic",
  "language": "javascript",
  "library": "echarts",
  "page": "https://anyplot.ai/area-basic/javascript/echarts",
  "hub": "https://anyplot.ai/area-basic",
  "code_json": "https://api.anyplot.ai/specs/area-basic/echarts/code",
  "spec_json": "https://api.anyplot.ai/specs/area-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/area-basic/javascript/echarts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/area-basic/javascript/echarts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/area-basic/javascript/echarts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/area-basic/javascript/echarts/plot-dark.html",
  "quality_score": 93.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Basic Area Chart on anyplot.ai.
