Basic Area Chart — Altair

An area chart showing quantitative data over a continuous axis with the area below the line filled. It emphasizes the magnitude of values over time by filling the space between the line and axis, creating visual weight that helps readers understand volume and trends. Particularly effective for showing cumulative totals, resource consumption, or any data where the "amount" is as important as the trend.

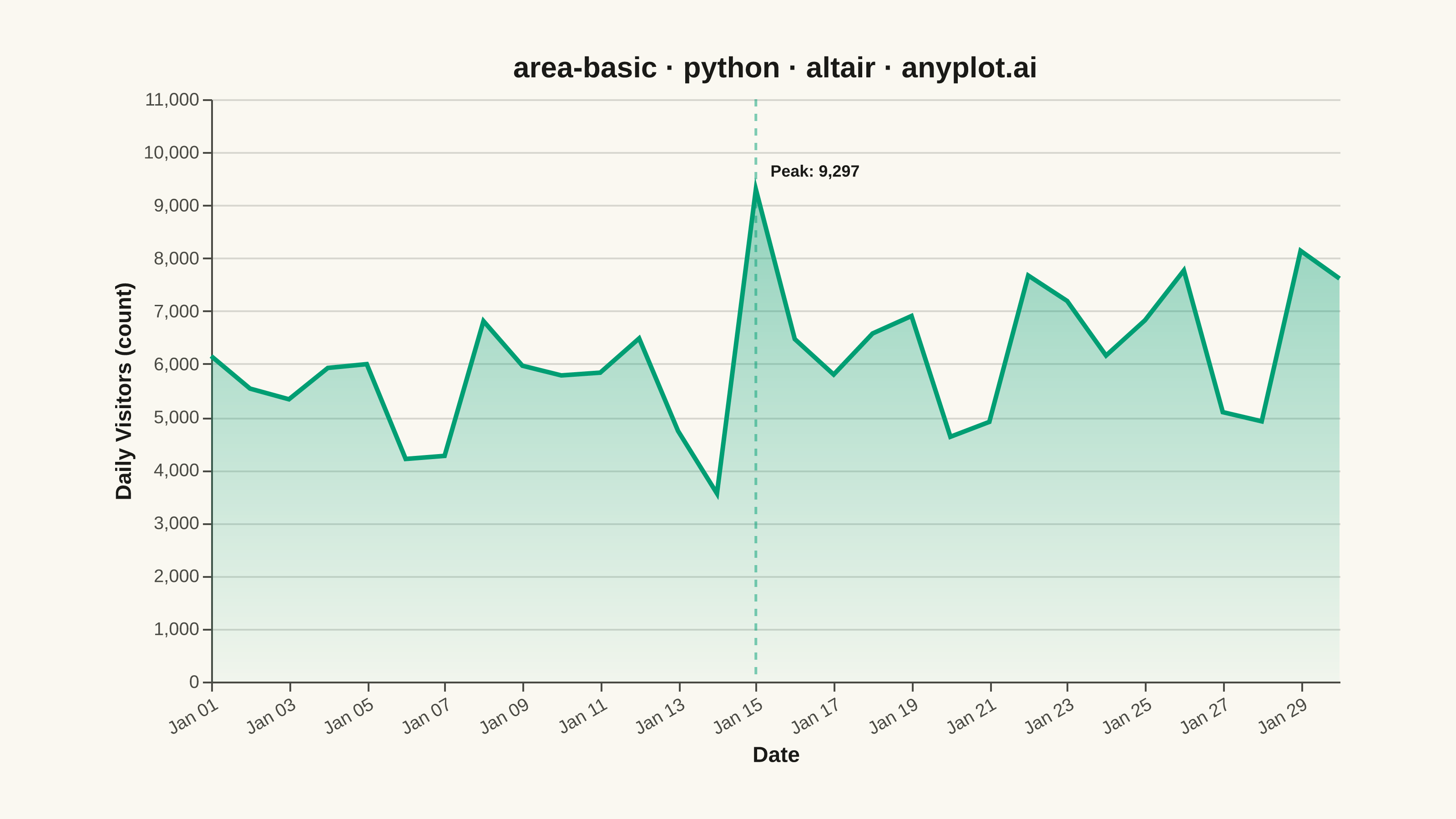

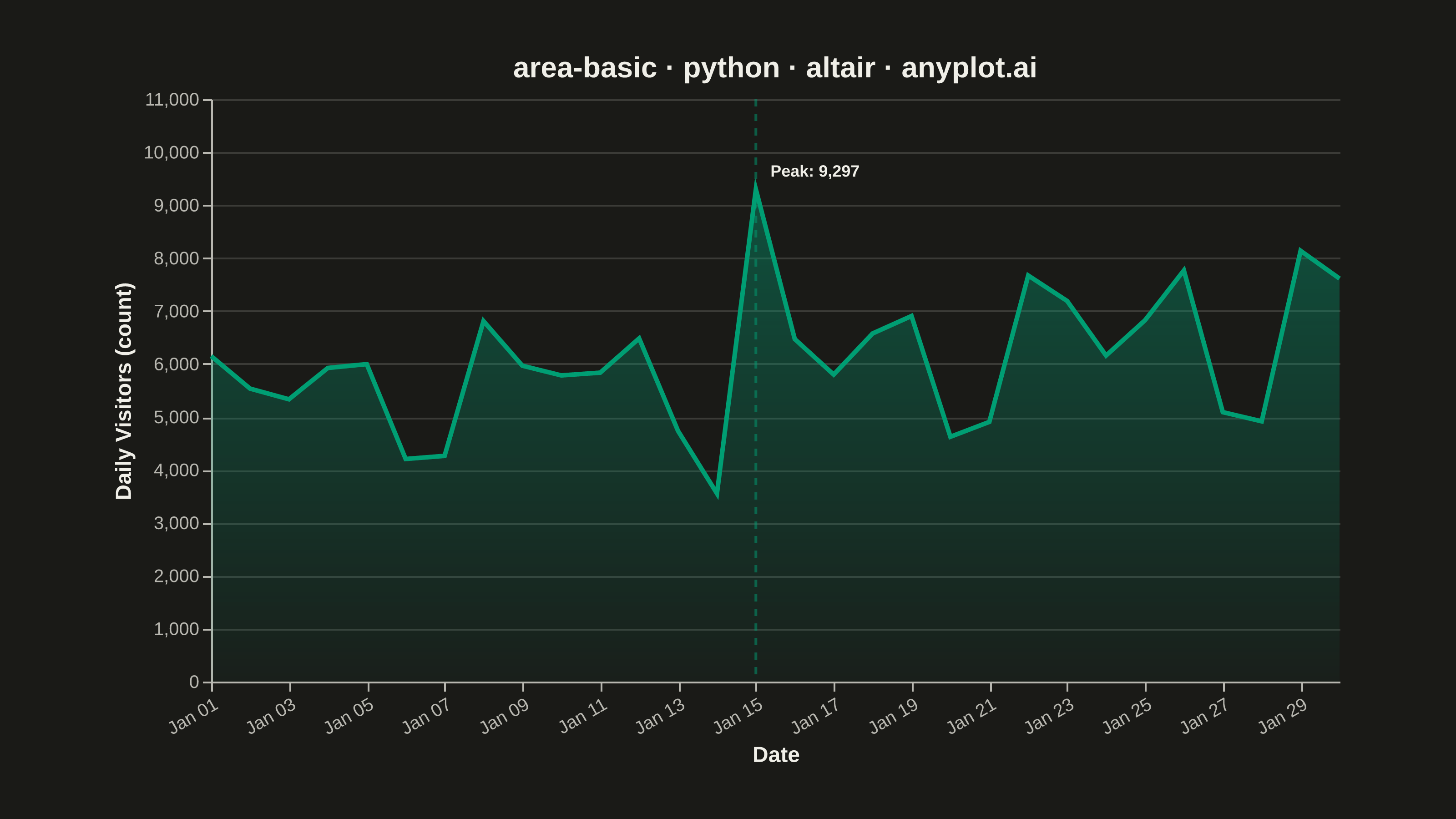

Basic Area Chart rendered with Altair

Python source (Altair)

""" anyplot.ai
area-basic: Basic Area Chart
Library: altair 6.1.0 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-28
"""

import os
import sys


# Prevent self-import: this file is named altair.py, so remove its directory
# from sys.path before importing the altair package.
_this_dir = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if p and os.path.abspath(p) != _this_dir]

import altair as alt
import numpy as np
import pandas as pd
from PIL import Image


# Theme
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73"

# Data - daily website visitors over January 2024
np.random.seed(42)
dates = pd.date_range(start="2024-01-01", periods=30, freq="D")
base = 5000
trend = np.linspace(0, 2000, 30)
weekly_pattern = np.array([1.2, 1.1, 1.0, 1.05, 1.15, 0.8, 0.7] * 5)[:30]
noise = np.random.randn(30) * 300
visitors = (base + trend) * weekly_pattern + noise
visitors[14] *= 1.4
visitors = np.maximum(visitors, 1000).astype(int)
df = pd.DataFrame({"date": dates, "visitors": visitors})

# Peak annotation data
peak_idx = df["visitors"].idxmax()
peak_row = df.loc[peak_idx]
peak_df = pd.DataFrame(
    {"date": [peak_row["date"]], "visitors": [peak_row["visitors"]], "label": [f"Peak: {int(peak_row['visitors']):,}"]}
)

# Chart title
title = "area-basic · python · altair · anyplot.ai"

# Area layer
area = (
    alt.Chart(df)
    .mark_area(
        line={"color": BRAND, "strokeWidth": 2.5},
        color=alt.Gradient(
            gradient="linear",
            stops=[
                alt.GradientStop(color="rgba(0, 158, 115, 0.05)", offset=0),
                alt.GradientStop(color="rgba(0, 158, 115, 0.60)", offset=1),
            ],
            x1=1,
            x2=1,
            y1=1,
            y2=0,
        ),
    )
    .encode(
        x=alt.X("date:T", title="Date", axis=alt.Axis(format="%b %d", labelAngle=-30)),
        y=alt.Y(
            "visitors:Q", title="Daily Visitors (count)", scale=alt.Scale(domain=[0, int(df["visitors"].max() * 1.15)])
        ),
        tooltip=[
            alt.Tooltip("date:T", title="Date", format="%b %d, %Y"),
            alt.Tooltip("visitors:Q", title="Visitors", format=","),
        ],
    )
)

# Vertical rule at peak
peak_rule = (
    alt.Chart(peak_df).mark_rule(color=BRAND, strokeDash=[4, 4], strokeWidth=1.5, opacity=0.5).encode(x=alt.X("date:T"))
)

# Text label at peak
peak_text = (
    alt.Chart(peak_df)
    .mark_text(align="left", dx=8, dy=-10, color=INK, fontSize=9, fontWeight="bold")
    .encode(x=alt.X("date:T"), y=alt.Y("visitors:Q"), text="label:N")
)

chart = (
    alt.layer(area, peak_rule, peak_text)
    .properties(width=620, height=320, background=PAGE_BG, title=alt.Title(title, fontSize=16))
    .configure_view(continuousWidth=620, continuousHeight=320, fill=PAGE_BG, strokeWidth=0)
    .configure_axis(
        domainColor=INK_SOFT,
        tickColor=INK_SOFT,
        gridColor=INK,
        gridOpacity=0.15,
        labelColor=INK_SOFT,
        titleColor=INK,
        labelFontSize=10,
        titleFontSize=12,
    )
    .configure_axisX(grid=False)
    .configure_title(color=INK)
    .configure_legend(fillColor=ELEVATED_BG, strokeColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK)
)

# Save PNG
chart.save(f"plot-{THEME}.png", scale_factor=4.0)

# Pad to exact 3200×1800
TW, TH = 3200, 1800
_img = Image.open(f"plot-{THEME}.png").convert("RGB")
_w, _h = _img.size
if _w > TW or _h > TH:
    raise SystemExit(
        f"altair vl-convert produced {_w}×{_h}, exceeds target {TW}×{TH}. "
        f"Shrink chart .properties(width=, height=) values and re-render."
    )
if _w < TW or _h < TH:
    _canvas = Image.new("RGB", (TW, TH), PAGE_BG)
    _canvas.paste(_img, ((TW - _w) // 2, (TH - _h) // 2))
    _canvas.save(f"plot-{THEME}.png")

# Save HTML
chart.save(f"plot-{THEME}.html")

Part of Basic Area Chart on anyplot.ai.
