Basic Area Chart — Highcharts

An area chart showing quantitative data over a continuous axis with the area below the line filled. It emphasizes the magnitude of values over time by filling the space between the line and axis, creating visual weight that helps readers understand volume and trends. Particularly effective for showing cumulative totals, resource consumption, or any data where the "amount" is as important as the trend.

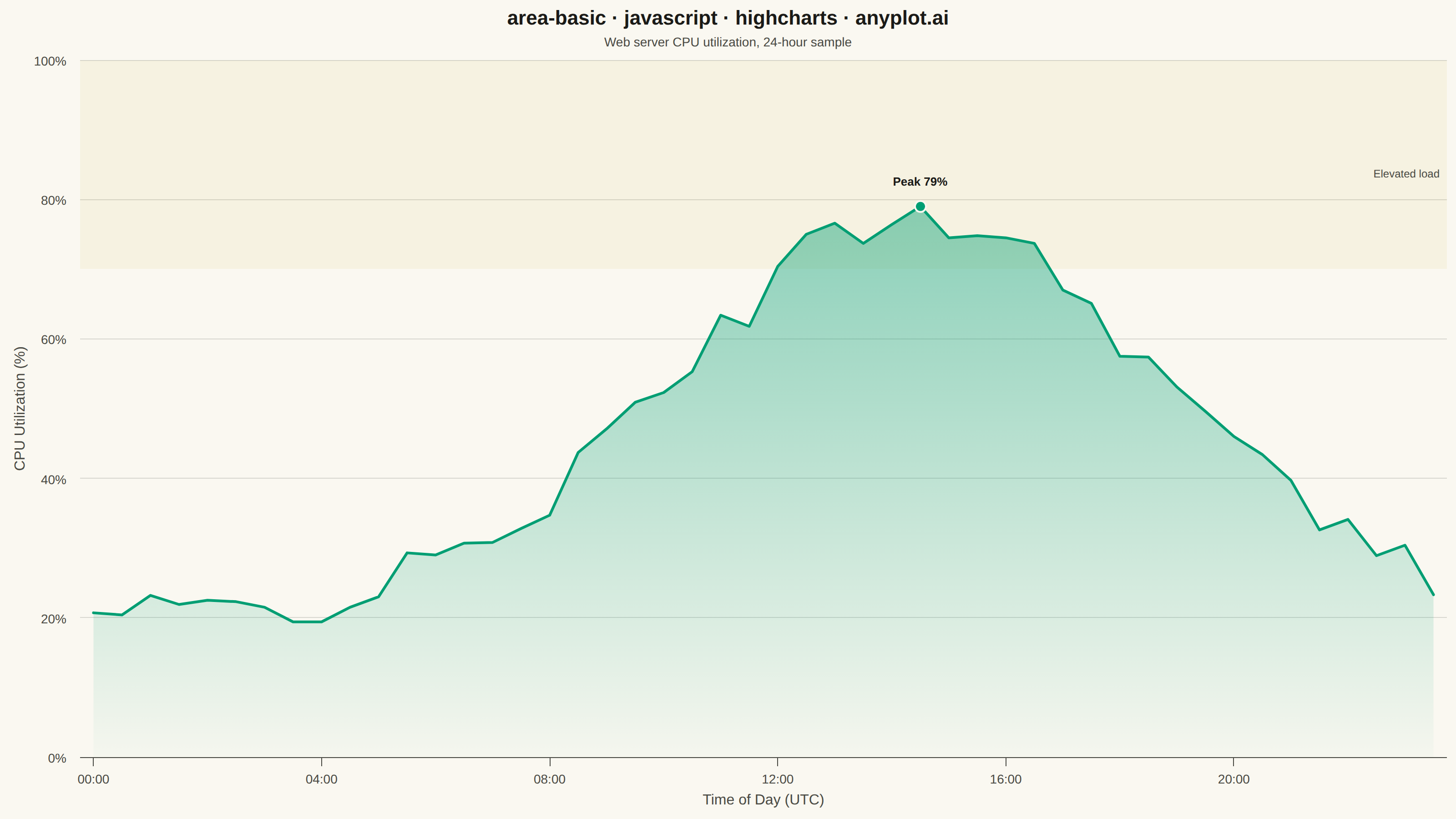

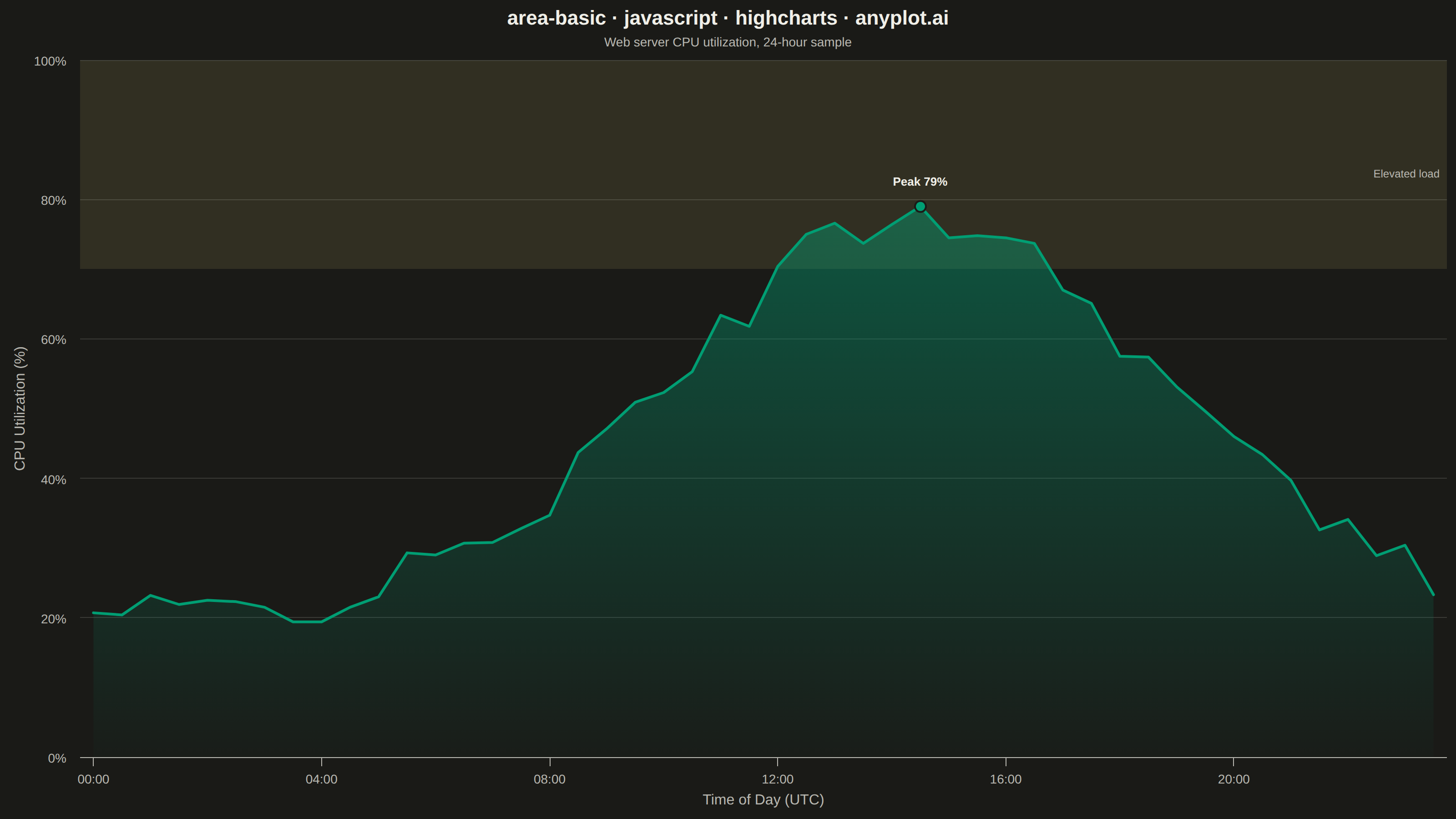

Basic Area Chart rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// area-basic: Basic Area Chart
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 92/100 | Created: 2026-08-20

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Web server CPU utilization sampled every 30 minutes over a 24-hour window —
// low overnight, ramping up through the workday, peaking mid-afternoon.
function lcg(seed) {
  let state = seed;
  return function next() {
    state = (state * 1103515245 + 12345) % 2147483648;
    return state / 2147483648;
  };
}
const random = lcg(42);

const cpuUtilization = [];
for (let step = 0; step < 48; step += 1) {
  const hour = step * 0.5;
  const dailyCurve = 20 + 58 * Math.exp(-((hour - 14.5) ** 2) / (2 * 4.2 ** 2));
  const noise = (random() - 0.5) * 7;
  const timestamp = Date.UTC(2026, 0, 12, Math.floor(hour), (hour % 1) * 60);
  const percent = Math.max(3, Math.min(97, dailyCurve + noise));
  cpuUtilization.push([timestamp, Math.round(percent * 10) / 10]);
}

// Call out the daily peak with a highlighted marker + data label.
let peakIndex = 0;
for (let i = 1; i < cpuUtilization.length; i += 1) {
  if (cpuUtilization[i][1] > cpuUtilization[peakIndex][1]) peakIndex = i;
}
const [peakX, peakY] = cpuUtilization[peakIndex];
cpuUtilization[peakIndex] = {
  x: peakX,
  y: peakY,
  marker: {
    enabled: true,
    radius: 6,
    fillColor: t.palette[0],
    lineColor: t.pageBg,
    lineWidth: 2,
  },
  dataLabels: {
    enabled: true,
    format: "Peak {y}%",
    y: -16,
    style: { color: t.ink, fontSize: "13px", fontWeight: "600", textOutline: "none" },
  },
};

// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
  chart: {
    type: "area",
    backgroundColor: "transparent",
    animation: false,
    style: { fontFamily: "inherit" },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: "area-basic · javascript · highcharts · anyplot.ai",
    style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
  },
  subtitle: {
    text: "Web server CPU utilization, 24-hour sample",
    style: { color: t.inkSoft, fontSize: "14px" },
  },
  xAxis: {
    type: "datetime",
    tickInterval: 4 * 3600 * 1000,
    lineColor: t.inkSoft,
    tickColor: t.inkSoft,
    gridLineColor: t.grid,
    labels: {
      style: { color: t.inkSoft, fontSize: "14px" },
      format: "{value:%H:%M}",
    },
    title: {
      text: "Time of Day (UTC)",
      style: { color: t.inkSoft, fontSize: "16px" },
    },
  },
  yAxis: {
    min: 0,
    max: 100,
    tickInterval: 20,
    gridLineColor: t.grid,
    labels: {
      style: { color: t.inkSoft, fontSize: "14px" },
      format: "{value}%",
    },
    title: {
      text: "CPU Utilization (%)",
      style: { color: t.inkSoft, fontSize: "16px" },
    },
    plotBands: [
      {
        from: 70,
        to: 100,
        color: Highcharts.color(t.amber).setOpacity(0.12).get("rgba"),
        label: {
          text: "Elevated load",
          align: "right",
          x: -8,
          y: 14,
          style: { color: t.inkSoft, fontSize: "12px" },
        },
      },
    ],
  },
  legend: { enabled: false },
  plotOptions: {
    series: { animation: false },
    area: {
      lineWidth: 3,
      lineColor: t.palette[0],
      fillColor: {
        linearGradient: { x1: 0, y1: 0, x2: 0, y2: 1 },
        stops: [
          [0, Highcharts.color(t.palette[0]).setOpacity(0.45).get("rgba")],
          [1, Highcharts.color(t.palette[0]).setOpacity(0.02).get("rgba")],
        ],
      },
      marker: { enabled: false, states: { hover: { enabled: true, radius: 5 } } },
      states: { hover: { lineWidthPlus: 0 } },
    },
  },
  series: [{ name: "CPU Utilization", data: cpuUtilization }],
});
