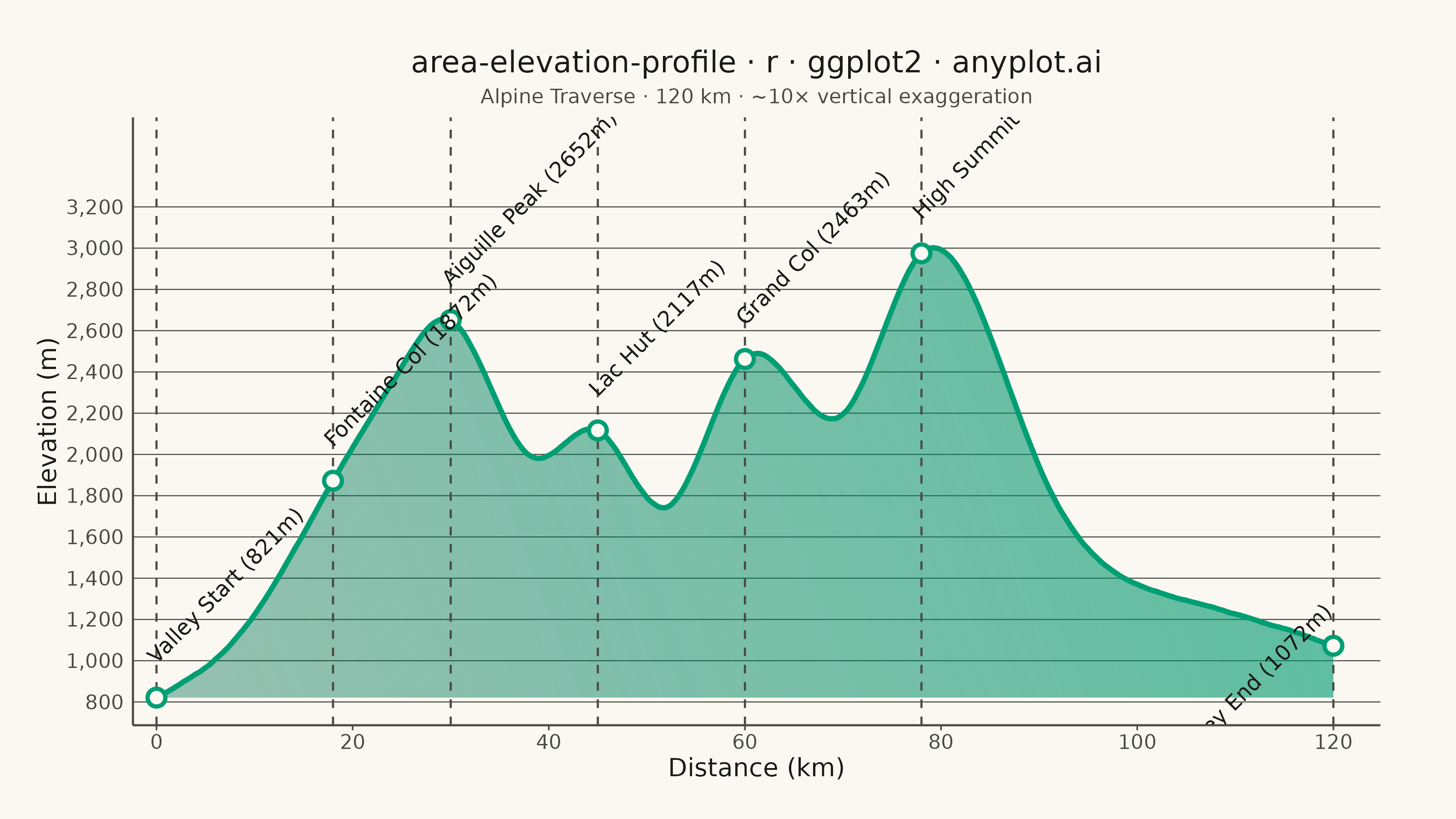

A cross-sectional line plot showing ground elevation along a path or transect line, with the area below the profile filled to create a terrain silhouette. Distance along the transect is plotted on the x-axis and elevation on the y-axis. This visualization is widely used in hiking and cycling route planning, civil engineering corridor design, and geomorphology to convey terrain shape and difficulty at a glance.
#' anyplot.ai
#' area-elevation-profile: Terrain Elevation Profile Along Transect
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 88/100 | Created: 2026-06-10
library(ggplot2)
library(scales)
library(ragg)
library(grid)
set.seed(42)
# --- Theme tokens -----------------------------------------------------------
THEME <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
ELEVATED_BG <- if (THEME == "light") "#FFFDF6" else "#242420"
INK <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
INK_MUTED <- if (THEME == "light") "#6B6A63" else "#A8A79F"
IMPRINT_PALETTE <- c(
"#009E73", "#C475FD", "#4467A3", "#BD8233",
"#AE3030", "#2ABCCD", "#954477", "#99B314"
)
# --- Data -------------------------------------------------------------------
# Alpine traverse: 120 km transect, sampled every 250 m (481 points)
ctrl_km <- c(0, 8, 18, 25, 30, 38, 45, 52, 60, 70, 78, 90, 105, 120)
ctrl_elv <- c(820, 1100, 1870, 2420, 2650, 2000, 2120, 1750, 2470, 2200, 2980, 1950, 1300, 1080)
sfn <- splinefun(ctrl_km, ctrl_elv, method = "natural")
distance <- seq(0, 120, by = 0.25)
noise <- cumsum(rnorm(length(distance), 0, 3)) * 0.25
elevation <- pmax(sfn(distance) + noise, 750)
trail <- data.frame(distance = distance, elevation = elevation)
# Valley floor for ribbon base — matches the actual data minimum
elev_floor <- min(elevation)
# Key landmarks — elevation matched to the noisy profile
lm_dist <- c(0, 18, 30, 45, 60, 78, 120)
lm_name <- c("Valley Start", "Fontaine Col", "Aiguille Peak",
"Lac Hut", "Grand Col", "High Summit", "Valley End")
lm_elev <- approx(trail$distance, trail$elevation, xout = lm_dist)$y
landmarks <- data.frame(
name = lm_name,
distance = lm_dist,
elevation = lm_elev,
lbl_hjust = c(0, 0, 0, 0, 0, 0, 1),
label = paste0(lm_name, " (", round(lm_elev), "m)")
)
# --- Title / sizing ---------------------------------------------------------
TITLE <- "area-elevation-profile · r · ggplot2 · anyplot.ai"
title_size <- max(round(12 * min(1, 67 / nchar(TITLE))), 8)
# --- Gradient terrain fill (ggplot2 >= 3.5.0) --------------------------------
# Gradient from muted deep green at valley floor to bright brand green at peaks
terrain_fill <- linearGradient(
colours = c(scales::alpha("#006B4F", 0.40), scales::alpha("#009E73", 0.65)),
y1 = unit(0, "npc"), y2 = unit(1, "npc")
)
# --- Plot -------------------------------------------------------------------
p <- ggplot(trail, aes(x = distance)) +
# Terrain silhouette — gradient fill from valley floor to profile
geom_ribbon(
aes(ymin = elev_floor, ymax = elevation),
fill = terrain_fill, color = NA
) +
# Profile line
geom_line(
aes(y = elevation),
color = IMPRINT_PALETTE[1], linewidth = 1.0
) +
# Landmark dashed verticals
geom_vline(
data = landmarks, aes(xintercept = distance),
color = INK_SOFT, linewidth = 0.4, linetype = "dashed"
) +
# Landmark dots (open circle, page-bg fill for definition)
geom_point(
data = landmarks, aes(x = distance, y = elevation),
shape = 21, size = 2.5,
color = IMPRINT_PALETTE[1], fill = PAGE_BG, stroke = 1.2
) +
# Landmark labels with name and elevation at 45° angle
geom_text(
data = landmarks,
aes(x = distance, y = elevation + 160, label = label, hjust = lbl_hjust),
color = INK, size = 3.0, vjust = 0, angle = 45
) +
labs(
title = TITLE,
subtitle = "Alpine Traverse · 120 km · ~10× vertical exaggeration",
x = "Distance (km)",
y = "Elevation (m)"
) +
scale_x_continuous(
breaks = seq(0, 120, 20),
expand = expansion(mult = c(0.02, 0.04))
) +
scale_y_continuous(
breaks = seq(800, 3200, 200),
labels = scales::comma
) +
coord_cartesian(ylim = c(elev_floor, 3500)) +
theme_minimal(base_size = 8) +
theme(
plot.background = element_rect(fill = PAGE_BG, color = PAGE_BG),
panel.background = element_rect(fill = PAGE_BG, color = NA),
panel.grid.major.y = element_line(color = INK_SOFT, linewidth = 0.2),
panel.grid.major.x = element_blank(),
panel.grid.minor = element_blank(),
panel.border = element_blank(),
axis.title = element_text(color = INK, size = 10),
axis.text = element_text(color = INK_SOFT, size = 8),
axis.line.x = element_line(color = INK_SOFT, linewidth = 0.4),
axis.line.y = element_line(color = INK_SOFT, linewidth = 0.4),
axis.ticks.x = element_line(color = INK_SOFT, linewidth = 0.3),
axis.ticks.y = element_blank(),
plot.title = element_text(color = INK, size = title_size, hjust = 0.5),
plot.subtitle = element_text(color = INK_SOFT, size = 8, hjust = 0.5),
plot.margin = margin(20, 30, 15, 15, "pt")
)
# --- Save -------------------------------------------------------------------
ggsave(
filename = sprintf("plot-%s.png", THEME),
plot = p,
device = ragg::agg_png,
width = 8,
height = 4.5,
units = "in",
dpi = 400
)
