Basic Band Plot — Makie.jl

A band plot displays a filled region between two boundary lines, commonly used to show confidence intervals, prediction intervals, or ranges around a central trend line. The semi-transparent band provides visual representation of uncertainty or variability while maintaining visibility of underlying data or overlapping elements.

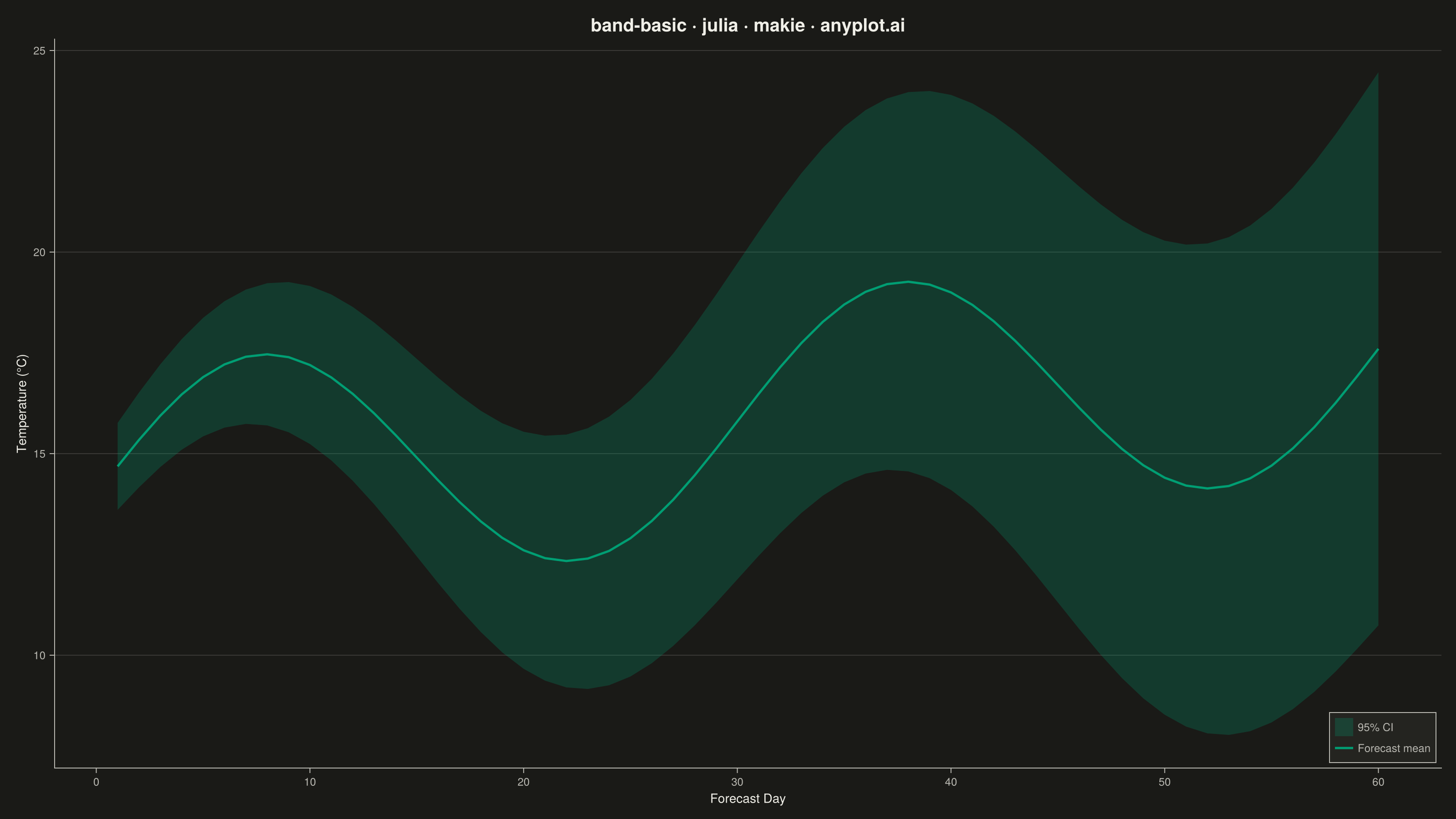

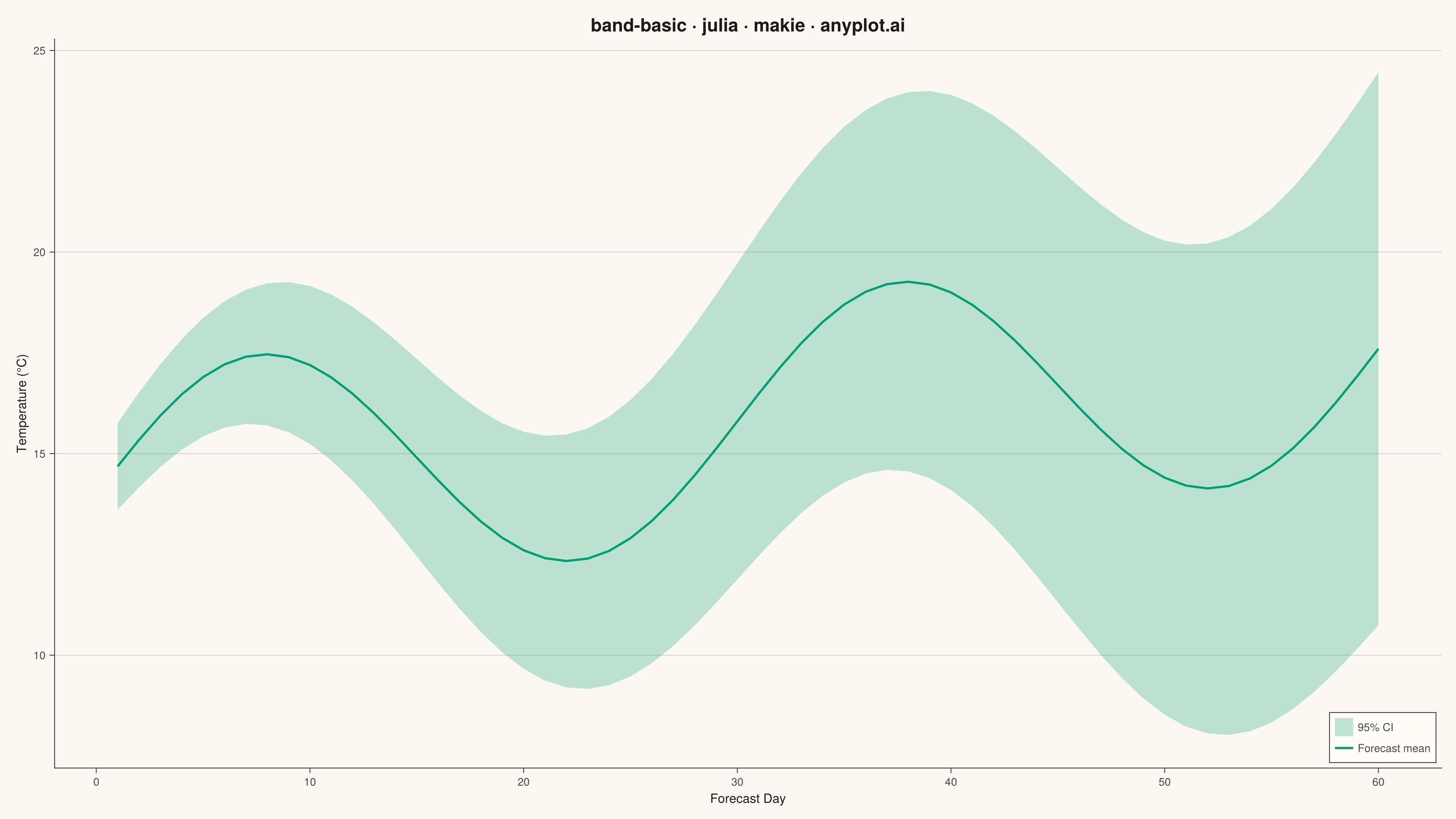

Basic Band Plot rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# band-basic: Basic Band Plot
# Library: makie 0.22.10 | Julia 1.11.9
# Quality: 89/100 | Created: 2026-05-29

using CairoMakie
using Colors
using Random

Random.seed!(42)

# Theme tokens
const THEME       = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG     = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const ELEVATED_BG = THEME == "light" ? colorant"#FFFDF6" : colorant"#242420"
const INK         = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT    = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"

const IMPRINT_PALETTE = [
    colorant"#009E73",  # 1 — brand green, ALWAYS first series (Imprint palette)
    colorant"#C475FD",  # 2 — lavender
    colorant"#4467A3",  # 3 — blue
    colorant"#BD8233",  # 4 — ochre
    colorant"#AE3030",  # 5 — matte red
    colorant"#2ABCCD",  # 6 — cyan
    colorant"#954477",  # 7 — rose
    colorant"#99B314",  # 8 — lime
]

# Theme-adaptive band alpha: higher in dark mode for contrast
const BAND_ALPHA = THEME == "light" ? 0.25f0 : 0.35f0

# Data — 60-day temperature forecast with widening 95% confidence interval
n = 60
days = Float64.(1:n)

y_center = 14.0 .+ 0.06 .* days .+ 3.0 .* sin.(2π .* days ./ 30)
sigma = 0.5 .+ 0.05 .* days
y_lower = y_center .- 1.96 .* sigma
y_upper = y_center .+ 1.96 .* sigma

hist_mean = 15.0

# Plot
fig = Figure(
    size            = (1600, 900),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

ax = Axis(
    fig[1, 1];
    title              = "band-basic · julia · makie · anyplot.ai",
    titlesize          = 20,
    titlecolor         = INK,
    titlefont          = :bold,
    xlabel             = "Forecast Day",
    ylabel             = "Temperature (°C)",
    xlabelsize         = 14,
    ylabelsize         = 14,
    xticklabelsize     = 12,
    yticklabelsize     = 12,
    xlabelcolor        = INK,
    ylabelcolor        = INK,
    xticklabelcolor    = INK_SOFT,
    yticklabelcolor    = INK_SOFT,
    xtickcolor         = INK_SOFT,
    ytickcolor         = INK_SOFT,
    backgroundcolor    = PAGE_BG,
    topspinevisible    = false,
    rightspinevisible  = false,
    leftspinecolor     = INK_SOFT,
    bottomspinecolor   = INK_SOFT,
    xgridvisible       = false,
    ygridcolor         = RGBAf(INK.r, INK.g, INK.b, 0.15f0),
    xminorgridvisible  = false,
    yminorgridvisible  = false,
)

# Historical mean reference — hlines! is idiomatic Makie for horizontal reference
hlines!(ax, [hist_mean];
    color     = (IMPRINT_PALETTE[3], 0.65),
    linewidth = 1.5,
    linestyle = :dash)

# 95% confidence interval band (semi-transparent Imprint brand green)
band!(ax, days, y_lower, y_upper;
    color = (IMPRINT_PALETTE[1], BAND_ALPHA))

# Central forecast line
lines!(ax, days, y_center;
    color     = IMPRINT_PALETTE[1],
    linewidth = 2.5)

# Makie bracket! annotation: shows CI width at forecast horizon (day 60)
bracket_x = Float64(n + 3)
ci_label = "±$(round(1.96 * sigma[end], digits=1))°C"
bracket!(ax, bracket_x, y_lower[end], bracket_x, y_upper[end];
    text      = ci_label,
    color     = INK_SOFT,
    textcolor = INK_SOFT,
    fontsize  = 11)

xlims!(ax, 0, n + 16)

# Legend
axislegend(ax,
    [PolyElement(color = (IMPRINT_PALETTE[1], BAND_ALPHA), strokewidth = 0),
     LineElement(color = IMPRINT_PALETTE[1], linewidth = 2.5),
     LineElement(color = (IMPRINT_PALETTE[3], 0.65), linewidth = 1.5, linestyle = :dash)],
    ["95% CI", "Forecast mean", "Historical mean ($(Int(hist_mean))°C)"],
    position         = :lt,
    backgroundcolor  = ELEVATED_BG,
    framecolor       = INK_SOFT,
    labelcolor       = INK_SOFT,
    labelsize        = 12,
)

# Save
save("plot-$(THEME).png", fig; px_per_unit = 2)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/band-basic/makie/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "band-basic",
  "language": "julia",
  "library": "makie",
  "page": "https://anyplot.ai/band-basic/julia/makie",
  "hub": "https://anyplot.ai/band-basic",
  "code_json": "https://api.anyplot.ai/specs/band-basic/makie/code",
  "spec_json": "https://api.anyplot.ai/specs/band-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/band-basic/julia/makie/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/band-basic/julia/makie/plot-dark.png",
  "quality_score": 89.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Basic Band Plot on anyplot.ai.
