Bar Chart with Error Bars — Apache ECharts

A bar chart with error bars displays categorical data as rectangular bars with vertical (or horizontal) lines extending from each bar to indicate uncertainty or variability. Error bars typically represent standard deviation, standard error, confidence intervals, or min/max ranges. This visualization is essential for comparing group means while communicating the reliability and precision of each measurement.

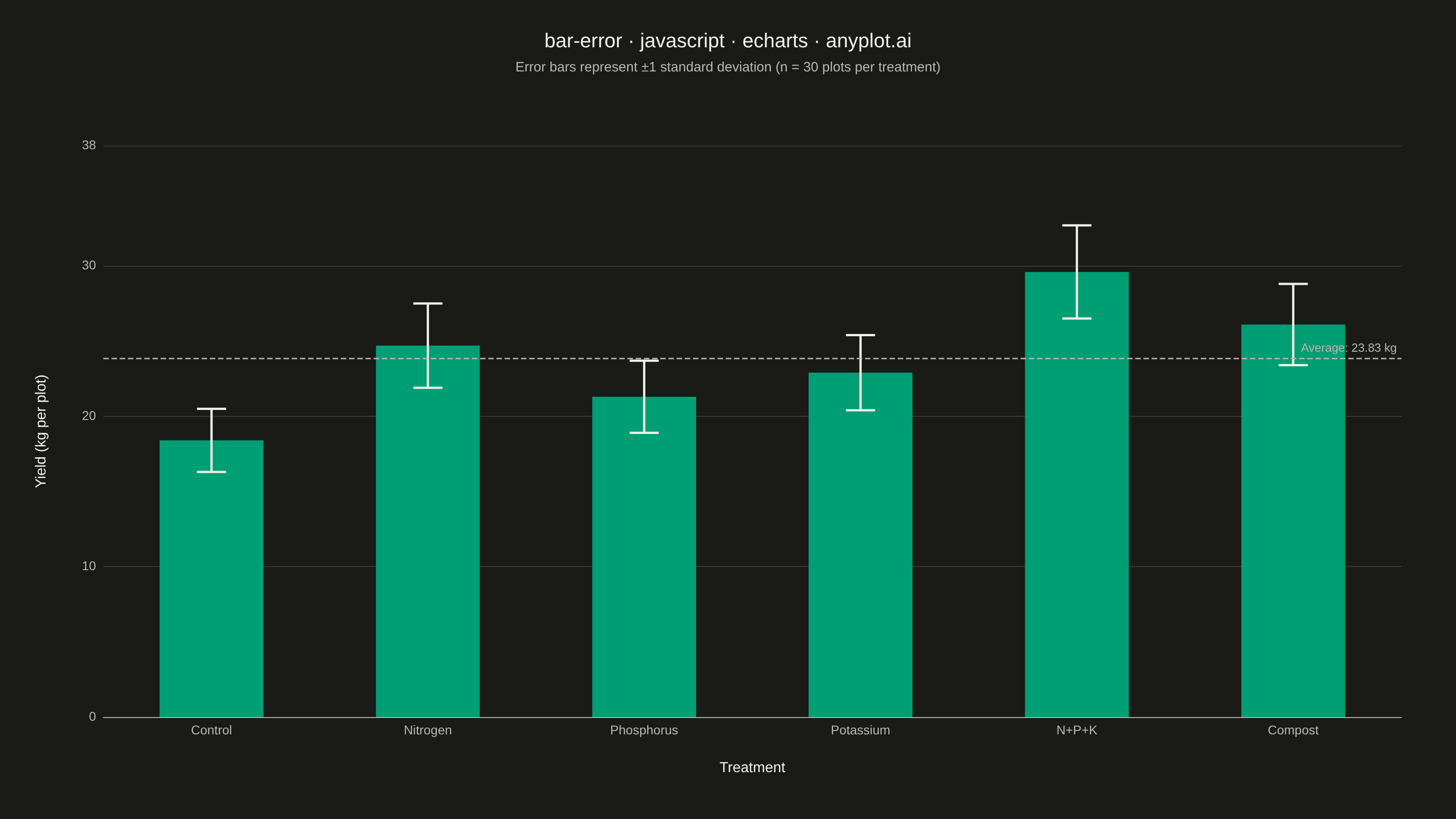

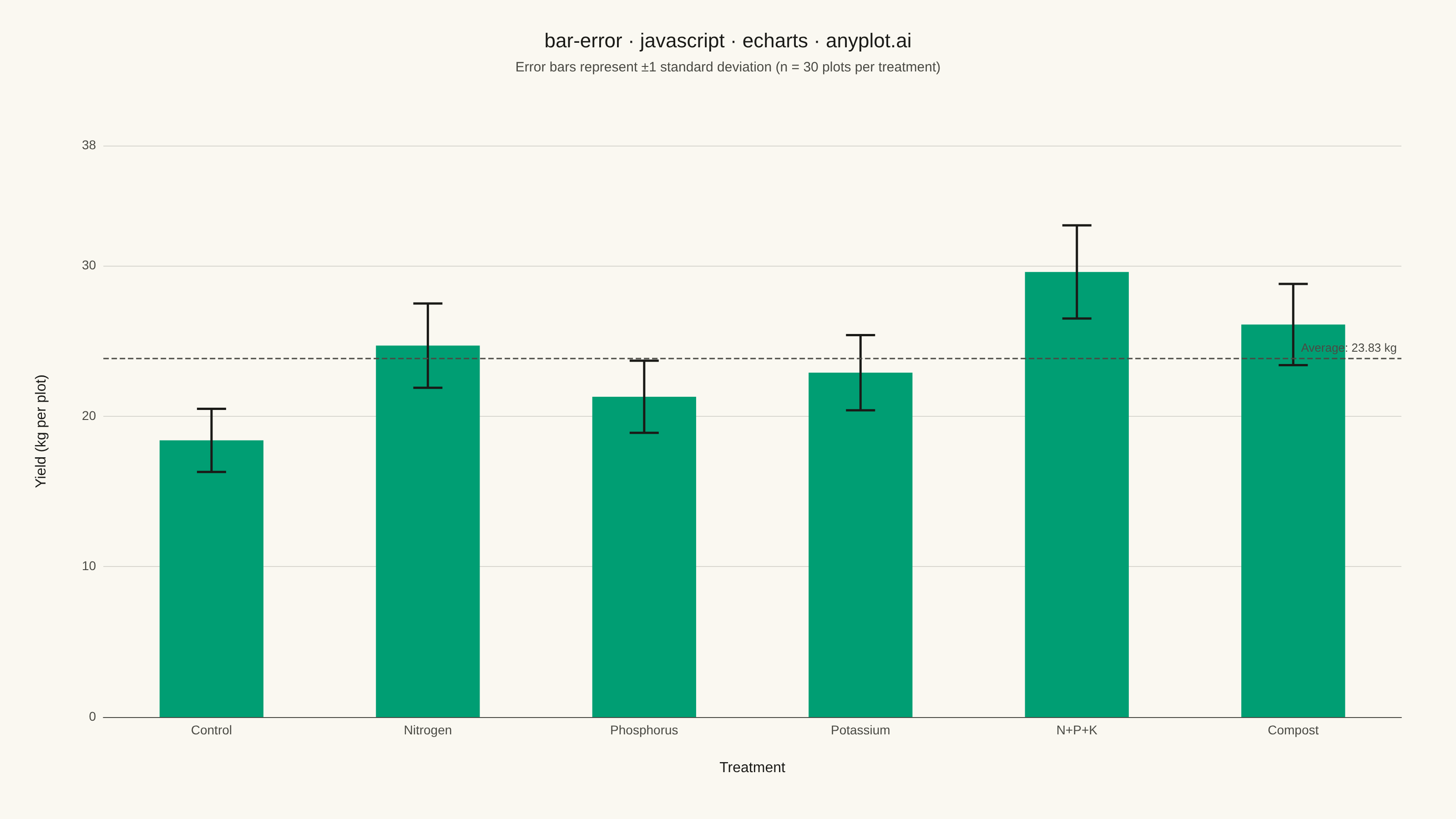

Bar Chart with Error Bars rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// bar-error: Bar Chart with Error Bars
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 89/100 | Created: 2026-09-02

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Mean crop yield by fertilizer treatment, kg per plot (n = 30 plots each),
// with error bars showing ±1 standard deviation.
const categories = ["Control", "Nitrogen", "Phosphorus", "Potassium", "N+P+K", "Compost"];
const means = [18.4, 24.7, 21.3, 22.9, 29.6, 26.1];
const sds = [2.1, 2.8, 2.4, 2.5, 3.1, 2.7];
const rows = categories.map((category, idx) => ({
  idx,
  category,
  low: means[idx] - sds[idx],
  high: means[idx] + sds[idx],
}));
const maxWithError = Math.max(...means.map((m, i) => m + sds[i]));

// --- Custom-series renderer for vertical error-bar whiskers -----------------
function whiskerRenderItem(params, api) {
  const categoryIndex = api.value(0);
  const low = api.coord([categoryIndex, api.value(1)]);
  const high = api.coord([categoryIndex, api.value(2)]);
  const capHalf = 16;
  const style = { stroke: t.ink, lineWidth: 2.5 };
  return {
    type: "group",
    children: [
      { type: "line", shape: { x1: low[0] - capHalf, y1: low[1], x2: low[0] + capHalf, y2: low[1] }, style },
      { type: "line", shape: { x1: high[0] - capHalf, y1: high[1], x2: high[0] + capHalf, y2: high[1] }, style },
      { type: "line", shape: { x1: low[0], y1: low[1], x2: high[0], y2: high[1] }, style },
    ],
  };
}

// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option ---------------------------------------------------------------
chart.setOption({
  animation: false,
  backgroundColor: "transparent",
  title: {
    text: "bar-error · javascript · echarts · anyplot.ai",
    subtext: "Error bars represent ±1 standard deviation (n = 30 plots per treatment)",
    left: "center",
    top: 30,
    textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
    subtextStyle: { color: t.inkSoft, fontSize: 15 },
  },
  grid: { left: 90, right: 60, top: 160, bottom: 90, containLabel: true },
  xAxis: {
    type: "category",
    data: categories,
    name: "Treatment",
    nameLocation: "center",
    nameGap: 48,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { show: false },
    splitLine: { show: false },
  },
  yAxis: {
    type: "value",
    min: 0,
    max: Math.ceil(maxWithError * 1.15),
    name: "Yield (kg per plot)",
    nameLocation: "center",
    nameGap: 60,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { show: false },
    axisTick: { show: false },
    splitLine: { lineStyle: { color: t.grid } },
  },
  series: [
    {
      type: "bar",
      name: "Mean yield",
      barWidth: "48%",
      itemStyle: { color: t.palette[0] },
      data: means,
      z: 2,
      markLine: {
        symbol: "none",
        silent: true,
        label: {
          formatter: "Average: {c} kg",
          color: t.inkSoft,
          fontSize: 13,
          position: "insideEndTop",
        },
        lineStyle: { color: t.inkSoft, type: "dashed", width: 1.5 },
        data: [{ type: "average", name: "Average yield" }],
      },
    },
    {
      type: "custom",
      name: "__error_bars",
      silent: true,
      renderItem: whiskerRenderItem,
      encode: { x: 0, y: [1, 2] },
      data: rows.map((r) => [r.idx, r.low, r.high]),
      z: 3,
    },
  ],
});

Retrieve this implementation
