Bar Chart with Error Bars in Matplotlib (Python)

The same plot in 14 other libraries — Python: Altair, Bokeh, lets-plot, Plotly, plotnine, Pygal, Seaborn; R: ggplot2; Julia: Makie.jl; JavaScript: Chart.js, D3.js, Apache ECharts, Highcharts, MUI X Charts. Compare all 15 side by side: Bar Chart with Error Bars in Python, R, Julia and JavaScript.

A bar chart with error bars displays categorical data as rectangular bars with vertical (or horizontal) lines extending from each bar to indicate uncertainty or variability. Error bars typically represent standard deviation, standard error, confidence intervals, or min/max ranges. This visualization is essential for comparing group means while communicating the reliability and precision of each measurement.

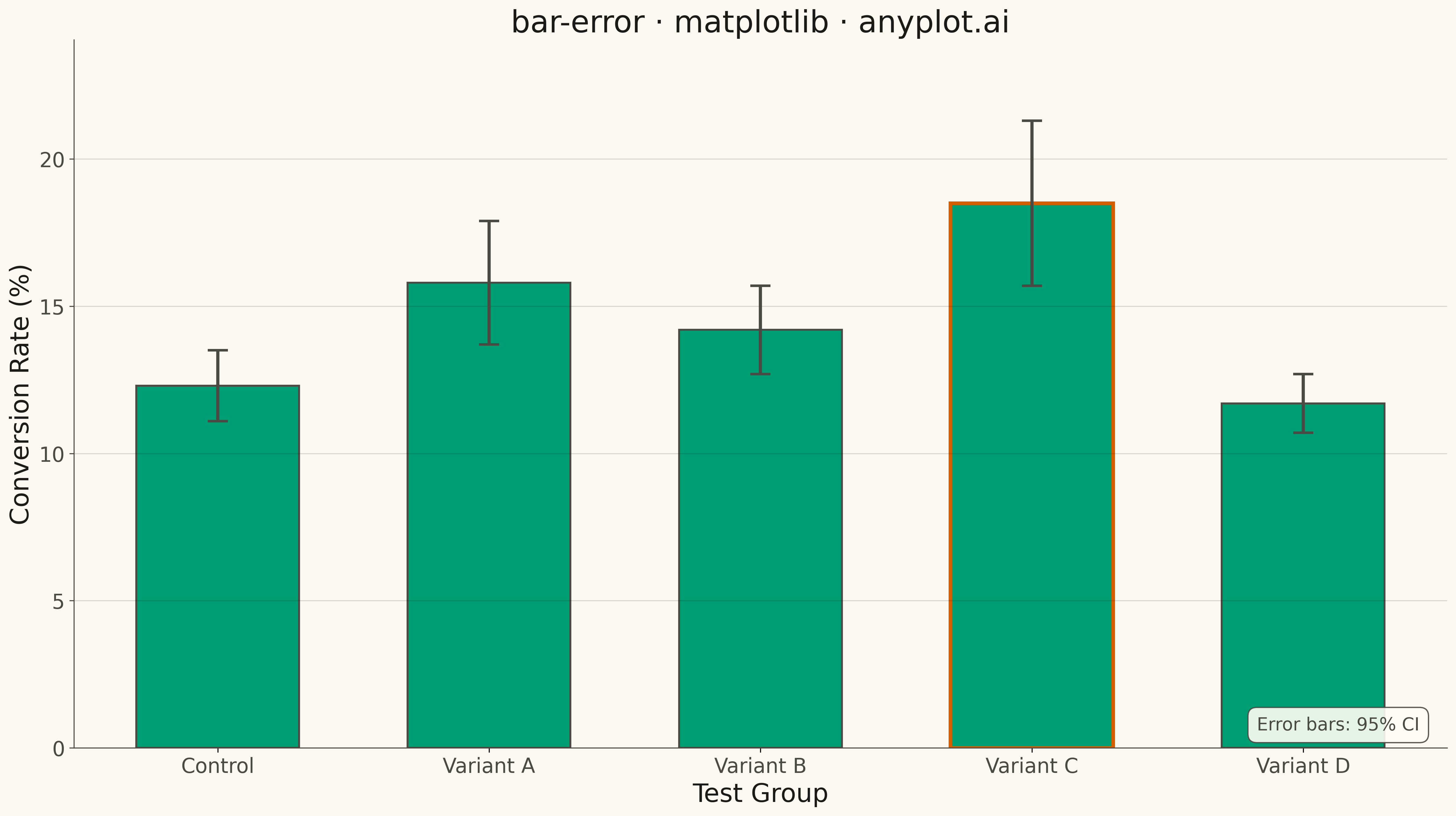

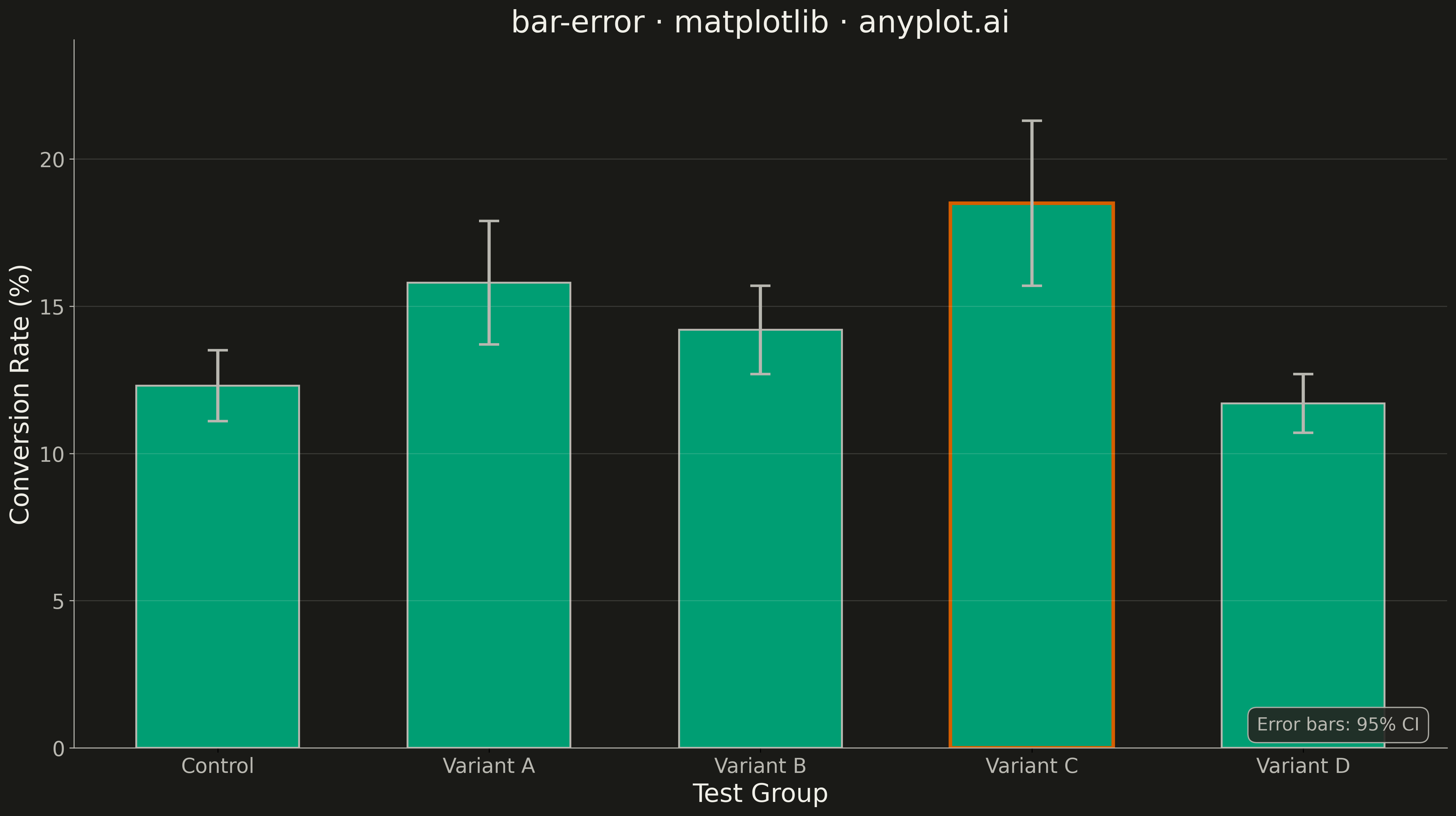

Bar Chart with Error Bars rendered with Matplotlib

Renders

Python source (Matplotlib)

""" anyplot.ai
bar-error: Bar Chart with Error Bars
Library: matplotlib 3.11.2 | Python 3.13.15
Quality: 93/100 | Updated: 2026-09-27
"""

import os

import matplotlib.pyplot as plt
import numpy as np


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
BRAND = "#009E73"  # Imprint palette position 1

# Data: A/B test results comparing feature variants with confidence intervals
np.random.seed(42)
categories = ["Control", "Variant A", "Variant B", "Variant C", "Variant D"]
values = [12.3, 15.8, 14.2, 18.5, 11.7]
errors = [1.2, 2.1, 1.5, 2.8, 1.0]

control_value = values[0]
winner = int(np.argmax(values))
lift_pct = round((values[winner] - control_value) / control_value * 100)

# Plot
fig, ax = plt.subplots(figsize=(8, 4.5), dpi=400, facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

x = np.arange(len(categories))
bar_width = 0.6

bars = ax.bar(x, values, bar_width, color=BRAND, edgecolor=INK_SOFT, linewidth=1.2, zorder=2)
# Focal point: the winning variant gets a bolder outline, everything else stays even-weighted
bars[winner].set_edgecolor(INK)
bars[winner].set_linewidth(2.2)

ax.errorbar(x, values, yerr=errors, fmt="none", ecolor=INK_SOFT, elinewidth=2.2, capsize=7, capthick=1.8, zorder=3)

# Control baseline reference — lets every variant be read as a lift over Control
ax.axhline(control_value, color=INK_MUTED, linestyle="--", linewidth=1, alpha=0.6, zorder=1)

# Value labels above each error cap
for xi, value, error in zip(x, values, errors, strict=True):
    ax.text(xi, value + error + 0.5, f"{value:.1f}%", ha="center", va="bottom", fontsize=9, color=INK_SOFT)

# Labels and styling
ax.set_xlabel("Test Group", fontsize=10, color=INK)
ax.set_ylabel("Conversion Rate (%)", fontsize=10, color=INK)
ax.set_title("bar-error · python · matplotlib · anyplot.ai", fontsize=12, fontweight="medium", color=INK)
ax.set_xticks(x)
ax.set_xticklabels(categories, fontsize=8, color=INK_SOFT)
ax.tick_params(axis="y", labelsize=8, colors=INK_SOFT)

# Spines
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
for s in ("left", "bottom"):
    ax.spines[s].set_color(INK_SOFT)

# Grid
ax.yaxis.grid(True, alpha=0.15, linewidth=0.8, color=INK, zorder=0)

# Annotation: ties the focal point to the story the error bars tell
ax.annotate(
    f"{categories[winner]}: +{lift_pct}% vs Control baseline\n(error bars: 95% CI)",
    xy=(winner, values[winner] + errors[winner]),
    xytext=(winner - 1.4, values[winner] + errors[winner] + 3.5),
    fontsize=9,
    ha="left",
    va="bottom",
    color=INK_SOFT,
    arrowprops={"arrowstyle": "-", "color": INK_SOFT, "linewidth": 1},
    bbox={"boxstyle": "round,pad=0.5", "facecolor": ELEVATED_BG, "edgecolor": INK_SOFT, "alpha": 0.9, "linewidth": 1},
)

ax.set_ylim(0, max(v + e for v, e in zip(values, errors, strict=True)) * 1.5)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=400, facecolor=PAGE_BG)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/bar-error/matplotlib/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "bar-error",
  "language": "python",
  "library": "matplotlib",
  "page": "https://anyplot.ai/bar-error/python/matplotlib",
  "hub": "https://anyplot.ai/bar-error",
  "code_json": "https://api.anyplot.ai/specs/bar-error/matplotlib/code",
  "spec_json": "https://api.anyplot.ai/specs/bar-error",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/bar-error/python/matplotlib/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/bar-error/python/matplotlib/plot-dark.png",
  "quality_score": 93.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Bar Chart with Error Bars on anyplot.ai.
