Bar Chart with Error Bars — Plotly

A bar chart with error bars displays categorical data as rectangular bars with vertical (or horizontal) lines extending from each bar to indicate uncertainty or variability. Error bars typically represent standard deviation, standard error, confidence intervals, or min/max ranges. This visualization is essential for comparing group means while communicating the reliability and precision of each measurement.

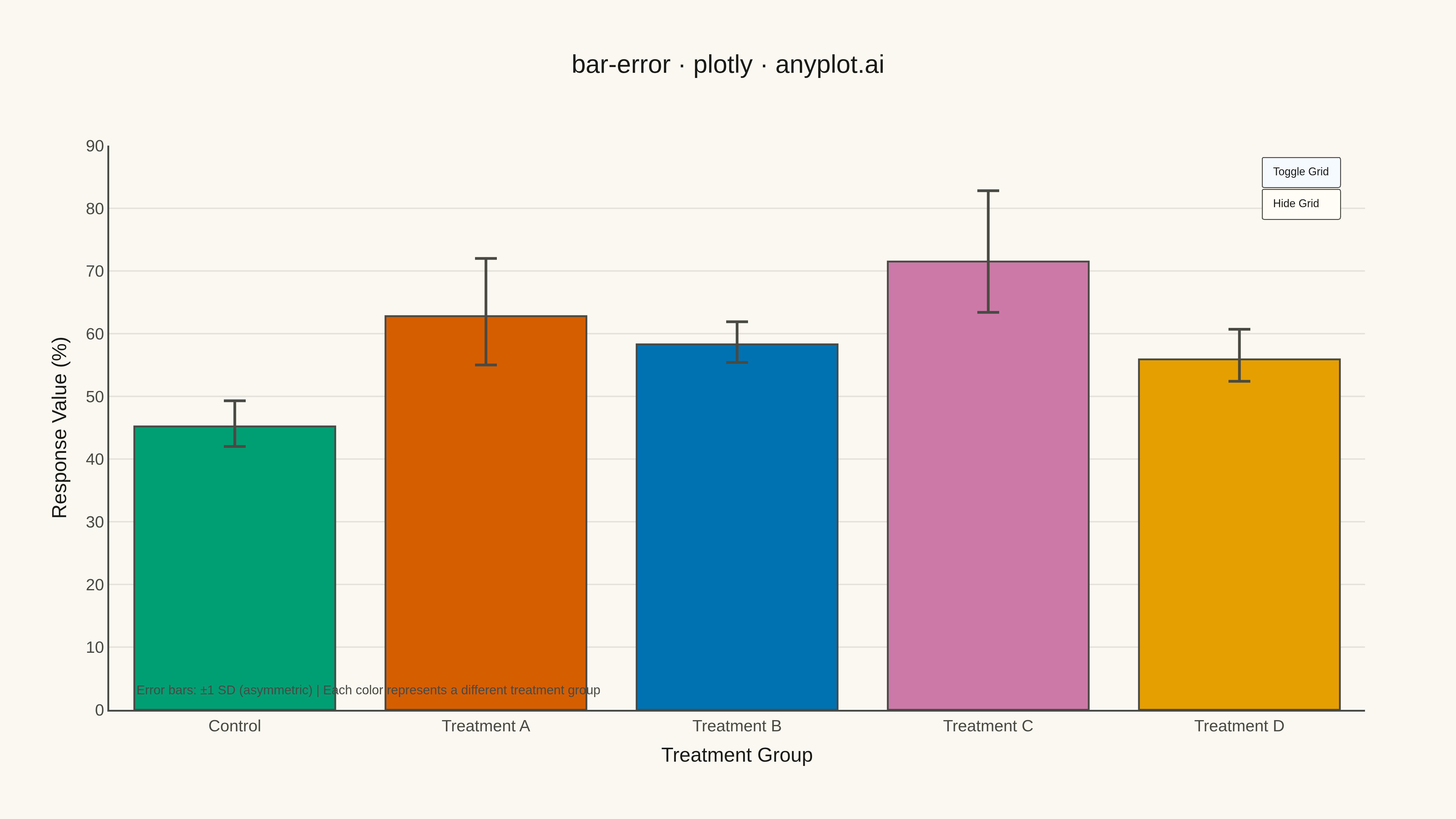

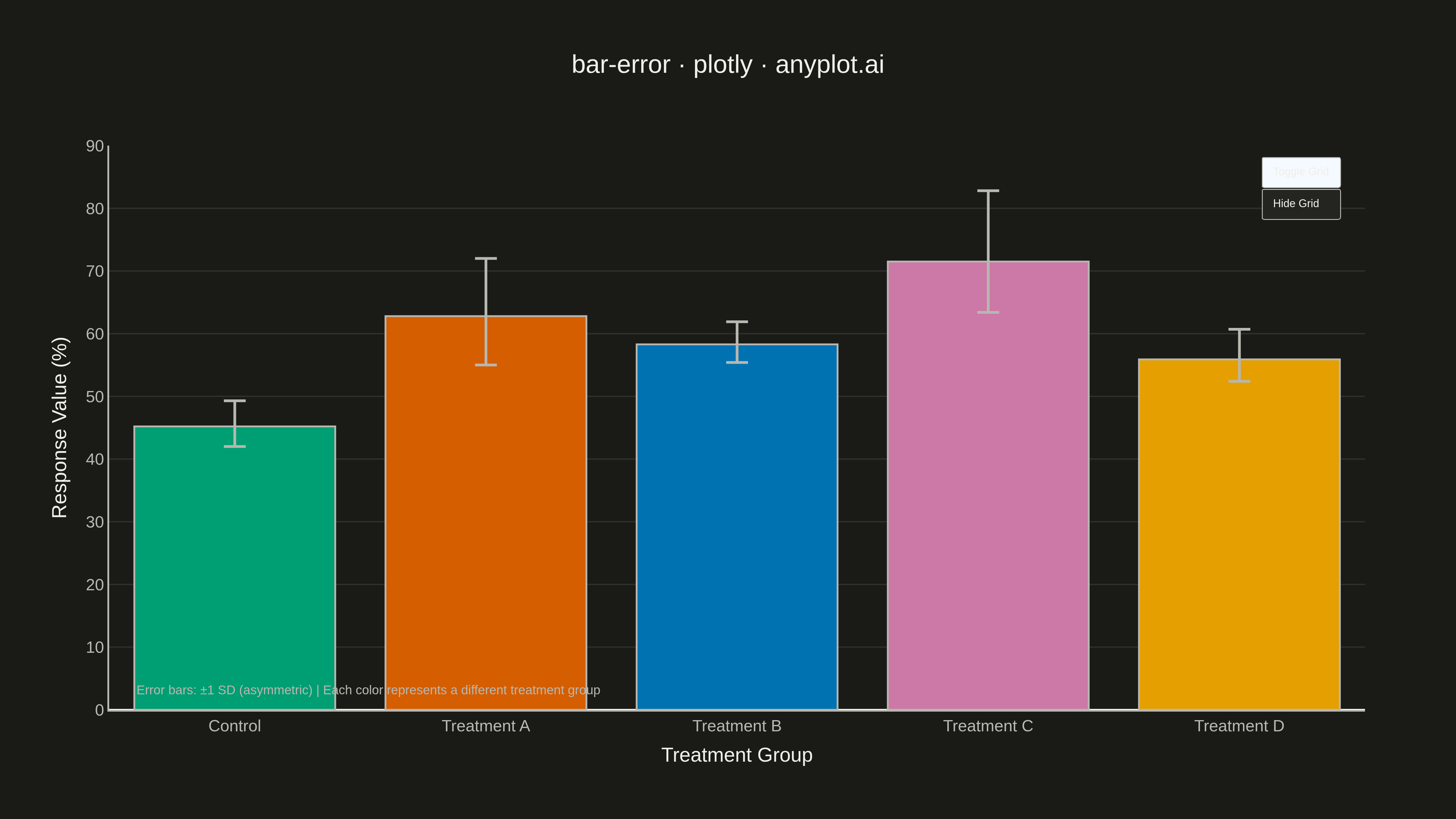

Bar Chart with Error Bars rendered with Plotly

Python source (Plotly)

""" anyplot.ai
bar-error: Bar Chart with Error Bars
Library: plotly 6.7.0 | Python 3.13.13
Quality: 81/100 | Updated: 2026-05-10
"""

import os

import numpy as np
import plotly.graph_objects as go


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"
BRAND = "#009E73"  # Okabe-Ito position 1

# Data - Lab experiment comparing treatment effectiveness
np.random.seed(42)
categories = ["Control", "Treatment A", "Treatment B", "Treatment C", "Treatment D"]
values = np.array([45.2, 62.8, 58.3, 71.5, 55.9])
# Asymmetric errors with more dramatic variation across groups
errors_lower = np.array([3.2, 7.8, 2.9, 8.1, 3.5])
errors_upper = np.array([4.1, 9.2, 3.6, 11.3, 4.8])

# Create figure
fig = go.Figure()

fig.add_trace(
    go.Bar(
        x=categories,
        y=values,
        marker=dict(color=BRAND, line=dict(color=INK_SOFT, width=2)),
        error_y=dict(
            type="data",
            symmetric=False,
            array=errors_upper,
            arrayminus=errors_lower,
            color=INK_SOFT,
            thickness=3,
            width=12,
        ),
        name="Measurement",
        hovertemplate="<b>%{x}</b><br>Value: %{y:.1f}%<br>+%{error_y.array[0]:.1f}% / -%{error_y.arrayminus[0]:.1f}%<extra></extra>",
    )
)

# Layout for 4800x2700 px output
fig.update_layout(
    title=dict(text="bar-error · plotly · anyplot.ai", font=dict(size=28, color=INK), x=0.5, xanchor="center"),
    xaxis=dict(
        title=dict(text="Treatment Group", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        showgrid=False,
        linecolor=INK_SOFT,
        linewidth=1,
    ),
    yaxis=dict(
        title=dict(text="Response Value (%)", font=dict(size=22, color=INK)),
        tickfont=dict(size=18, color=INK_SOFT),
        gridcolor=GRID,
        gridwidth=1,
        linecolor=INK_SOFT,
        linewidth=1,
        range=[0, 90],
    ),
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    font=dict(color=INK),
    showlegend=True,
    legend=dict(
        x=0.98, y=0.98, bgcolor=ELEVATED_BG, bordercolor=INK_SOFT, borderwidth=1, font=dict(size=16, color=INK_SOFT)
    ),
    margin=dict(l=100, r=80, t=120, b=100),
    annotations=[
        dict(
            text="Error bars: ±1 SD (asymmetric)",
            xref="paper",
            yref="paper",
            x=0.02,
            y=0.02,
            xanchor="left",
            yanchor="bottom",
            font=dict(size=14, color=INK_SOFT),
            showarrow=False,
        )
    ],
)

# Save as PNG (4800x2700 px) and HTML
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Bar Chart with Error Bars on anyplot.ai.
