A bar chart with error bars displays categorical data as rectangular bars with vertical (or horizontal) lines extending from each bar to indicate uncertainty or variability. Error bars typically represent standard deviation, standard error, confidence intervals, or min/max ranges. This visualization is essential for comparing group means while communicating the reliability and precision of each measurement.
// anyplot.ai
// bar-error: Bar Chart with Error Bars
// Library: muix 7.29.1 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-02
//# anyplot-orientation: landscape
// anyplot.ai
// bar-error: Bar Chart with Error Bars
// Library: MUI X Charts | React | Node 22
// License: @mui/x-charts — MIT (community). Pro/Premium are out of scope.
// Quality: pending | Created: 2026-09-02
import { ChartContainer } from "@mui/x-charts/ChartContainer";
import { BarPlot } from "@mui/x-charts/BarChart";
import { ChartsXAxis } from "@mui/x-charts/ChartsXAxis";
import { ChartsYAxis } from "@mui/x-charts/ChartsYAxis";
import { ChartsGrid } from "@mui/x-charts/ChartsGrid";
import { useXScale, useYScale } from "@mui/x-charts/hooks";
const t = window.ANYPLOT_TOKENS;
// Customer-support survey: mean satisfaction score (0-10) ± 1 SD across ~150
// respondents per channel. Horizontal layout keeps the longer channel labels
// ("Self-Service", "Social Media") on a single, unrotated line.
const CHANNELS = [
"Email",
"Live Chat",
"Phone",
"Self-Service",
"Social Media",
];
const SCORES = [7.2, 8.4, 7.8, 6.5, 6.9];
const ERRORS = [0.9, 0.6, 0.7, 1.1, 0.95];
// ErrorBars draws ±1 SD whiskers from the chart's own scale functions —
// horizontal layout means the whisker runs along x, its caps run along y.
function ErrorBars() {
const xScale = useXScale("x");
const yScale = useYScale("y");
if (!xScale || !yScale) return null;
const bw = (yScale as any).bandwidth();
const cap = bw * 0.22;
return (
<g>
{CHANNELS.map((channel, i) => {
const cy = (yScale as any)(channel) + bw / 2;
const xLow = (xScale as any)(SCORES[i] - ERRORS[i]);
const xHigh = (xScale as any)(SCORES[i] + ERRORS[i]);
return (
<g key={channel}>
<line
x1={xLow}
y1={cy}
x2={xHigh}
y2={cy}
stroke={t.ink}
strokeWidth={3}
strokeOpacity={0.75}
strokeLinecap="round"
/>
<line
x1={xLow}
y1={cy - cap / 2}
x2={xLow}
y2={cy + cap / 2}
stroke={t.ink}
strokeWidth={3}
strokeOpacity={0.75}
strokeLinecap="round"
/>
<line
x1={xHigh}
y1={cy - cap / 2}
x2={xHigh}
y2={cy + cap / 2}
stroke={t.ink}
strokeWidth={3}
strokeOpacity={0.75}
strokeLinecap="round"
/>
</g>
);
})}
</g>
);
}
export default function Chart() {
const W = window.ANYPLOT_SIZE.width;
const H = window.ANYPLOT_SIZE.height;

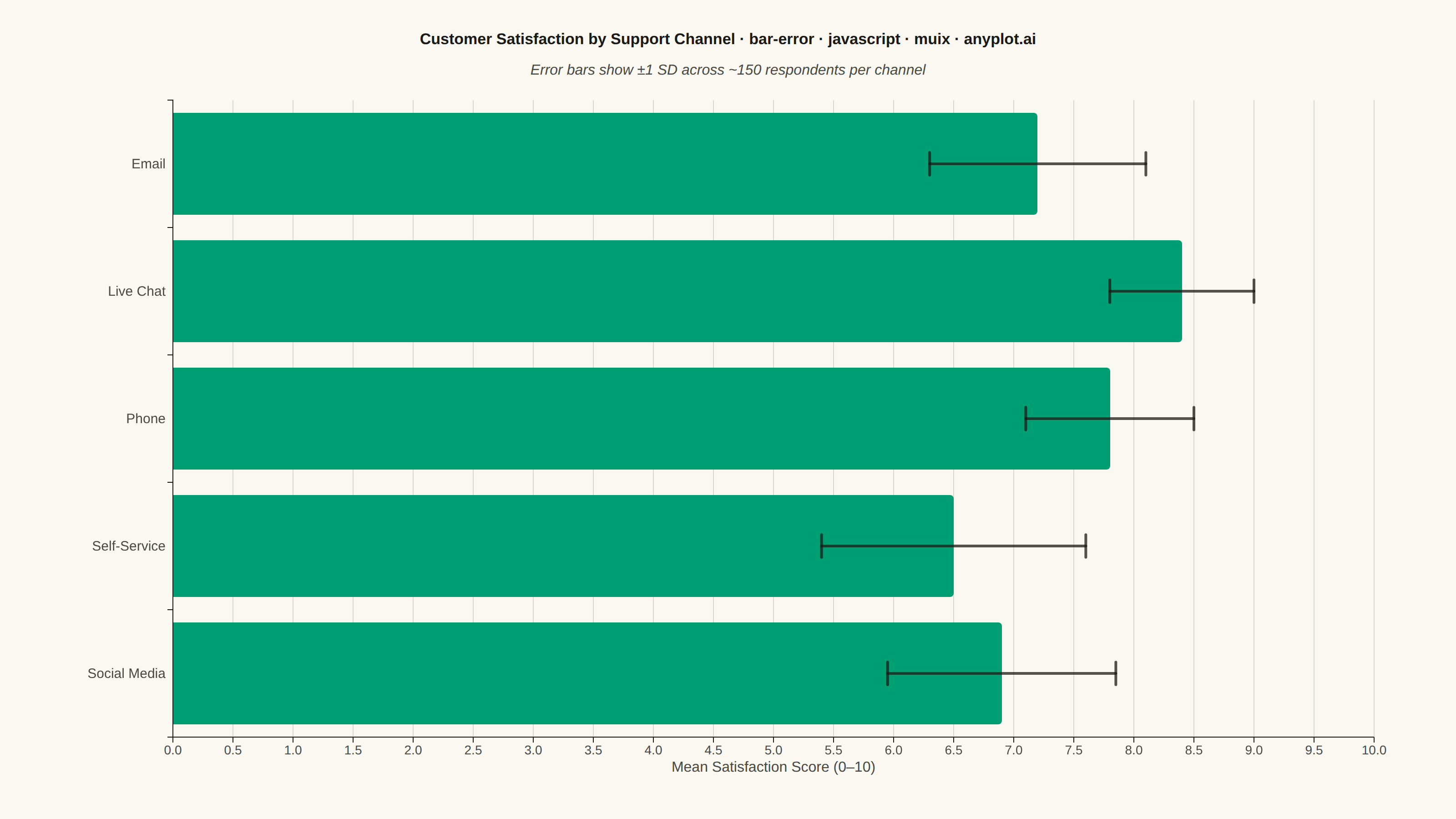

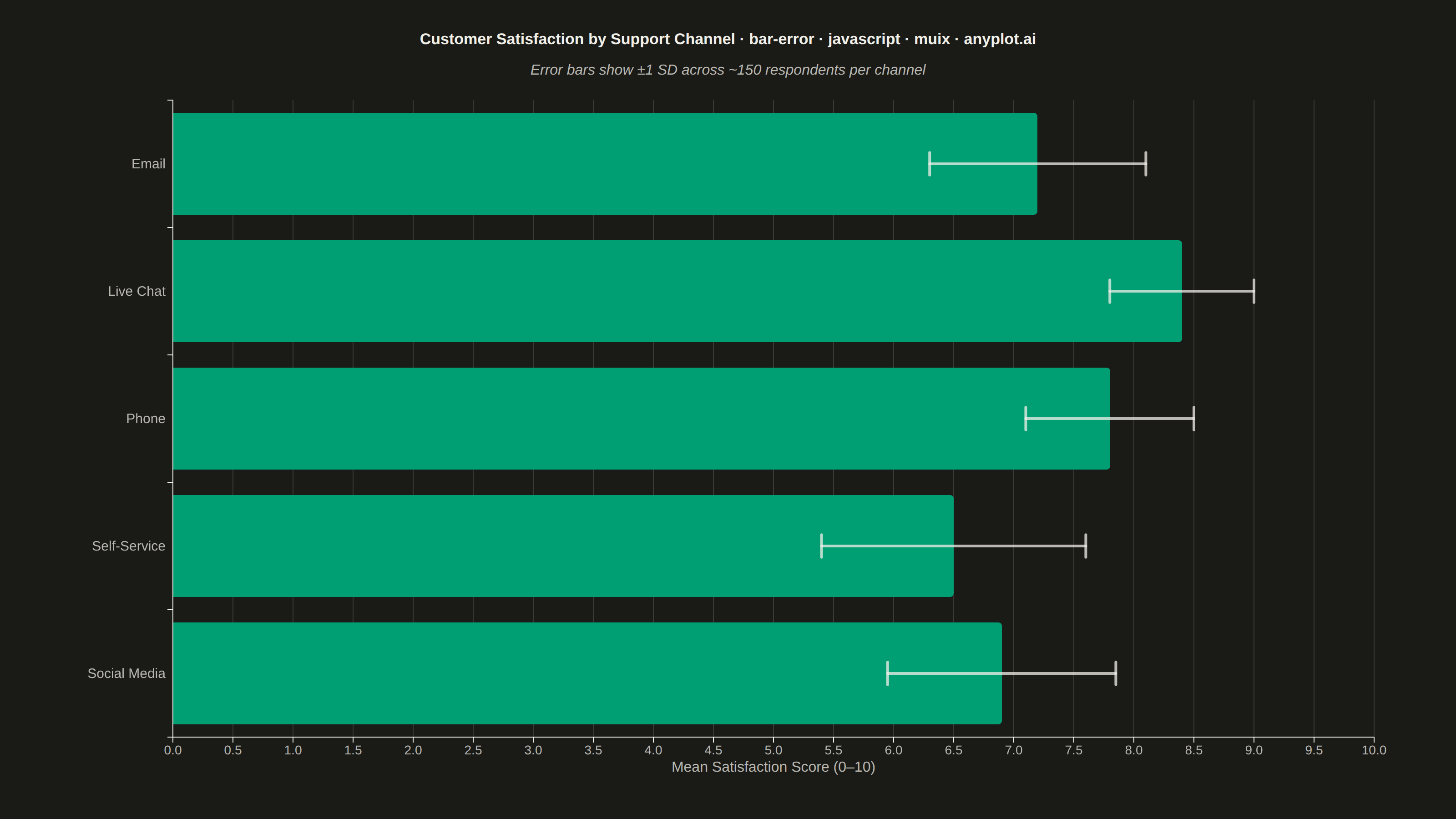

const title =
"Customer Satisfaction by Support Channel · bar-error · javascript · muix · anyplot.ai";
const titleSize =
title.length > 67 ? Math.round(22 * (67 / title.length)) : 22;
const subtitle = "Error bars show ±1 SD across ~150 respondents per channel";
return (
<ChartContainer
width={W}
height={H}
series={[
{
type: "bar",
data: SCORES,
id: "satisfaction",
label: "Mean satisfaction score (0–10)",
layout: "horizontal",
color: t.palette[0],
xAxisId: "x",
yAxisId: "y",
},
]}
xAxis={[
{
id: "x",
scaleType: "linear",
min: 0,
max: 10,
label: "Mean Satisfaction Score (0–10)",
labelStyle: { fontSize: 16, fill: t.inkSoft },
tickLabelStyle: { fontSize: 14, fill: t.inkSoft },
},
]}
yAxis={[
{
id: "y",
scaleType: "band",
data: CHANNELS,
tickLabelStyle: { fontSize: 15, fill: t.inkSoft },
},
]}
margin={{ top: 110, bottom: 90, left: 190, right: 90 }}
>
<ChartsGrid vertical />
<BarPlot borderRadius={4} skipAnimation />
<ErrorBars />
<ChartsXAxis axisId="x" />
<ChartsYAxis axisId="y" />
<text
x={W / 2}
y={44}
textAnchor="middle"
dominantBaseline="middle"
fontSize={titleSize}
fontWeight={600}
fill={t.ink}
fontFamily="-apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, Helvetica, Arial, sans-serif"
>
{title}
</text>
<text
x={W / 2}
y={78}
textAnchor="middle"
dominantBaseline="middle"
fontSize={16}
fontStyle="italic"
fill={t.inkSoft}
fontFamily="-apple-system, BlinkMacSystemFont, 'Segoe UI', Roboto, Helvetica, Arial, sans-serif"
>
{subtitle}
</text>
</ChartContainer>
);
}
