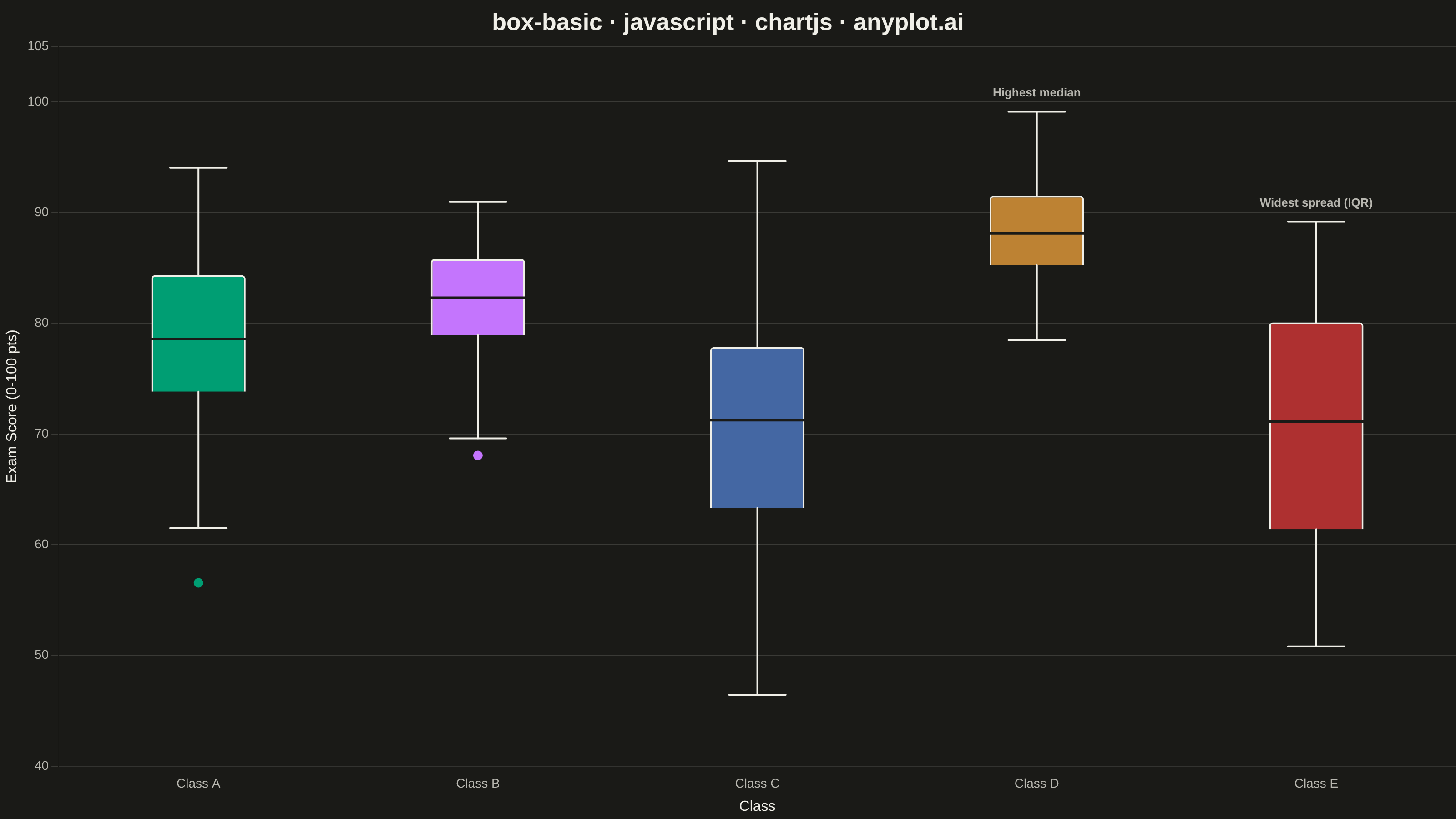

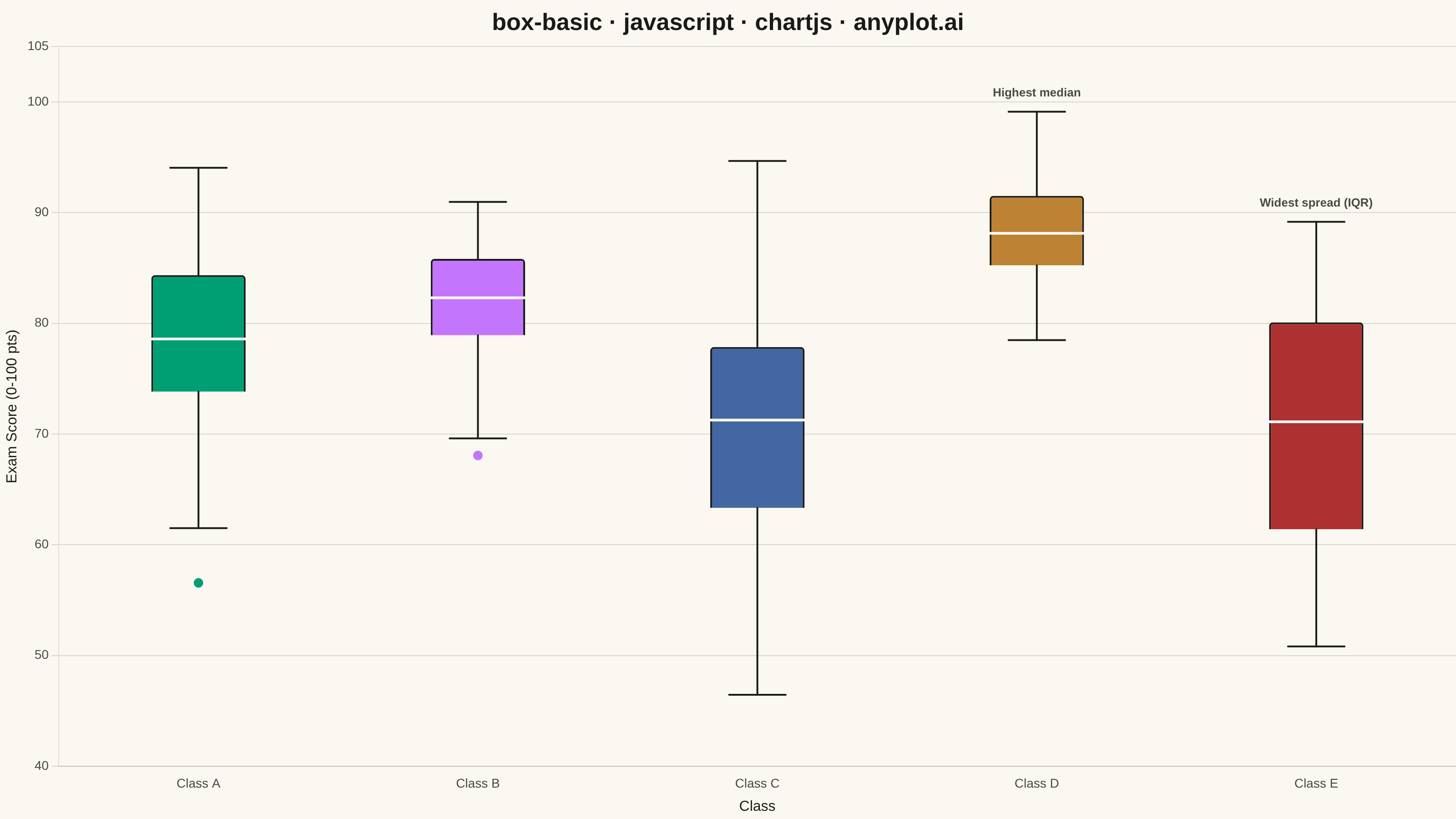

A box plot (box-and-whisker plot) showing the distribution of numerical data through quartiles. Displays the median, first and third quartiles as a box, with whiskers extending to show the data range. Essential for comparing distributions across categories and identifying outliers.
// anyplot.ai
// box-basic: Basic Box Plot
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 92/100 | Created: 2026-08-24
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// --- Deterministic PRNG (LCG) + Box-Muller normal sampling ------------------
let seed = 42;
function lcg() {
seed = (seed * 1664525 + 1013904223) % 4294967296;
return seed / 4294967296;
}
function randNormal(mean, sd) {
const u1 = Math.max(lcg(), 1e-9);
const u2 = lcg();
const z = Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
return mean + z * sd;
}
function quantile(sorted, q) {
const pos = (sorted.length - 1) * q;
const base = Math.floor(pos);
const rest = pos - base;
return sorted[base + 1] !== undefined
? sorted[base] + rest * (sorted[base + 1] - sorted[base])
: sorted[base];
}
// --- Data: exam scores across 5 classes -------------------------------------
const classSpecs = [
{ label: "Class A", mean: 78, sd: 8, n: 60 },
{ label: "Class B", mean: 82, sd: 6, n: 75 },
{ label: "Class C", mean: 70, sd: 10, n: 50 },
{ label: "Class D", mean: 88, sd: 5, n: 90 },
{ label: "Class E", mean: 75, sd: 12, n: 65 },
];
const categories = classSpecs.map((spec) => {
const scores = Array.from({ length: spec.n }, () =>
Math.min(100, Math.max(0, randNormal(spec.mean, spec.sd)))
).sort((a, b) => a - b);
const q1 = quantile(scores, 0.25);
const median = quantile(scores, 0.5);
const q3 = quantile(scores, 0.75);
const iqr = q3 - q1;
const lowerFence = q1 - 1.5 * iqr;
const upperFence = q3 + 1.5 * iqr;
const inRange = scores.filter((v) => v >= lowerFence && v <= upperFence);
const outliers = scores.filter((v) => v < lowerFence || v > upperFence);
return {
label: spec.label,
q1,
median,
q3,
whiskerMin: inRange[0],
whiskerMax: inRange[inRange.length - 1],
outliers,
};
});
const allRangeValues = categories.flatMap((c) => [
c.whiskerMin,
c.whiskerMax,
...c.outliers,
]);
const dataMin = Math.min(...allRangeValues);
const dataMax = Math.max(...allRangeValues);
const pad = (dataMax - dataMin) * 0.1;
const yMin = Math.floor((dataMin - pad) / 5) * 5;
const yMax = Math.ceil((dataMax + pad) / 5) * 5;
// --- Story highlights: call out the strongest and most variable class -------
const highestMedianCat = categories.reduce((best, c) =>
c.median > best.median ? c : best
);
const widestSpreadCat = categories.reduce((widest, c) =>
c.q3 - c.q1 > widest.q3 - widest.q1 ? c : widest
);
// --- Custom plugin: whiskers, caps, median line, outlier points ------------
const boxPlotExtras = {
id: "boxPlotExtras",
afterDatasetsDraw(chart) {
const { ctx } = chart;
const meta = chart.getDatasetMeta(0);
const yScale = chart.scales.y;
ctx.save();
ctx.lineCap = "round";
categories.forEach((cat, i) => {
const bar = meta.data[i];
if (!bar) return;
const centerX = bar.x;
const capHalf = bar.width * 0.3;
const yWhiskerMin = yScale.getPixelForValue(cat.whiskerMin);
const yWhiskerMax = yScale.getPixelForValue(cat.whiskerMax);
const yQ1 = yScale.getPixelForValue(cat.q1);
const yQ3 = yScale.getPixelForValue(cat.q3);
const yMedian = yScale.getPixelForValue(cat.median);
// Whiskers
ctx.strokeStyle = t.ink;
ctx.lineWidth = 2;
ctx.beginPath();
ctx.moveTo(centerX, yWhiskerMin);
ctx.lineTo(centerX, yQ1);
ctx.moveTo(centerX, yQ3);
ctx.lineTo(centerX, yWhiskerMax);
ctx.stroke();
// Whisker caps
ctx.beginPath();
ctx.moveTo(centerX - capHalf, yWhiskerMin);
ctx.lineTo(centerX + capHalf, yWhiskerMin);
ctx.moveTo(centerX - capHalf, yWhiskerMax);
ctx.lineTo(centerX + capHalf, yWhiskerMax);
ctx.stroke();
// Median line — page-bg stroke for contrast against the saturated fill
ctx.strokeStyle = t.pageBg;
ctx.lineWidth = 3;
ctx.beginPath();
ctx.moveTo(centerX - bar.width / 2, yMedian);
ctx.lineTo(centerX + bar.width / 2, yMedian);
ctx.stroke();
// Outliers
const color = t.palette[i % t.palette.length];
cat.outliers.forEach((value) => {
const y = yScale.getPixelForValue(value);
ctx.beginPath();
ctx.arc(centerX, y, 6, 0, Math.PI * 2);
ctx.fillStyle = color;
ctx.fill();
ctx.lineWidth = 1.5;
ctx.strokeStyle = t.pageBg;
ctx.stroke();
});
// Story highlight — call out the standout class(es) above its whisker top
const topValue = Math.max(cat.whiskerMax, ...cat.outliers, -Infinity);
const isHighest = cat === highestMedianCat;
const isWidest = cat === widestSpreadCat;
if (isHighest || isWidest) {
const label =
isHighest && isWidest
? "Highest median · widest spread"
: isHighest
? "Highest median"
: "Widest spread (IQR)";
const yTop = yScale.getPixelForValue(topValue);
const yLabel = Math.max(yScale.top + 14, yTop - 14);
ctx.font = "600 13px sans-serif";
ctx.fillStyle = t.inkSoft;
ctx.textAlign = "center";
ctx.textBaseline = "bottom";
ctx.fillText(label, centerX, yLabel);
}
});
ctx.restore();
},
};
// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Chart: floating bars for Q1-Q3, custom plugin for the rest ------------
new Chart(canvas, {
type: "bar",
data: {
labels: categories.map((c) => c.label),
datasets: [
{
label: "Interquartile range",
data: categories.map((c) => [c.q1, c.q3]),
backgroundColor: categories.map((_, i) => t.palette[i % t.palette.length]),
borderColor: t.ink,
borderWidth: 2,
borderRadius: 4,
barPercentage: 0.45,
categoryPercentage: 0.75,
},
],
},
plugins: [boxPlotExtras],
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: "box-basic · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 26 },
},
legend: { display: false },
},
scales: {
x: {
title: { display: true, text: "Class", color: t.ink, font: { size: 16 } },
ticks: { color: t.inkSoft, font: { size: 14 } },
grid: { display: false },
},
y: {
min: yMin,
max: yMax,
title: {
display: true,
text: "Exam Score (0-100 pts)",
color: t.ink,
font: { size: 16 },
},
ticks: { color: t.inkSoft, font: { size: 14 } },
grid: { color: t.grid },
},
},
},
});
Part of Basic Box Plot on anyplot.ai.
