Basic Bump Chart — Highcharts

A bump chart visualizes how rankings change over time by plotting rank positions and connecting them with lines. Unlike line charts that show values, bump charts focus specifically on ordinal rankings, making it easy to track position changes, overtakes, and rank stability across time periods.

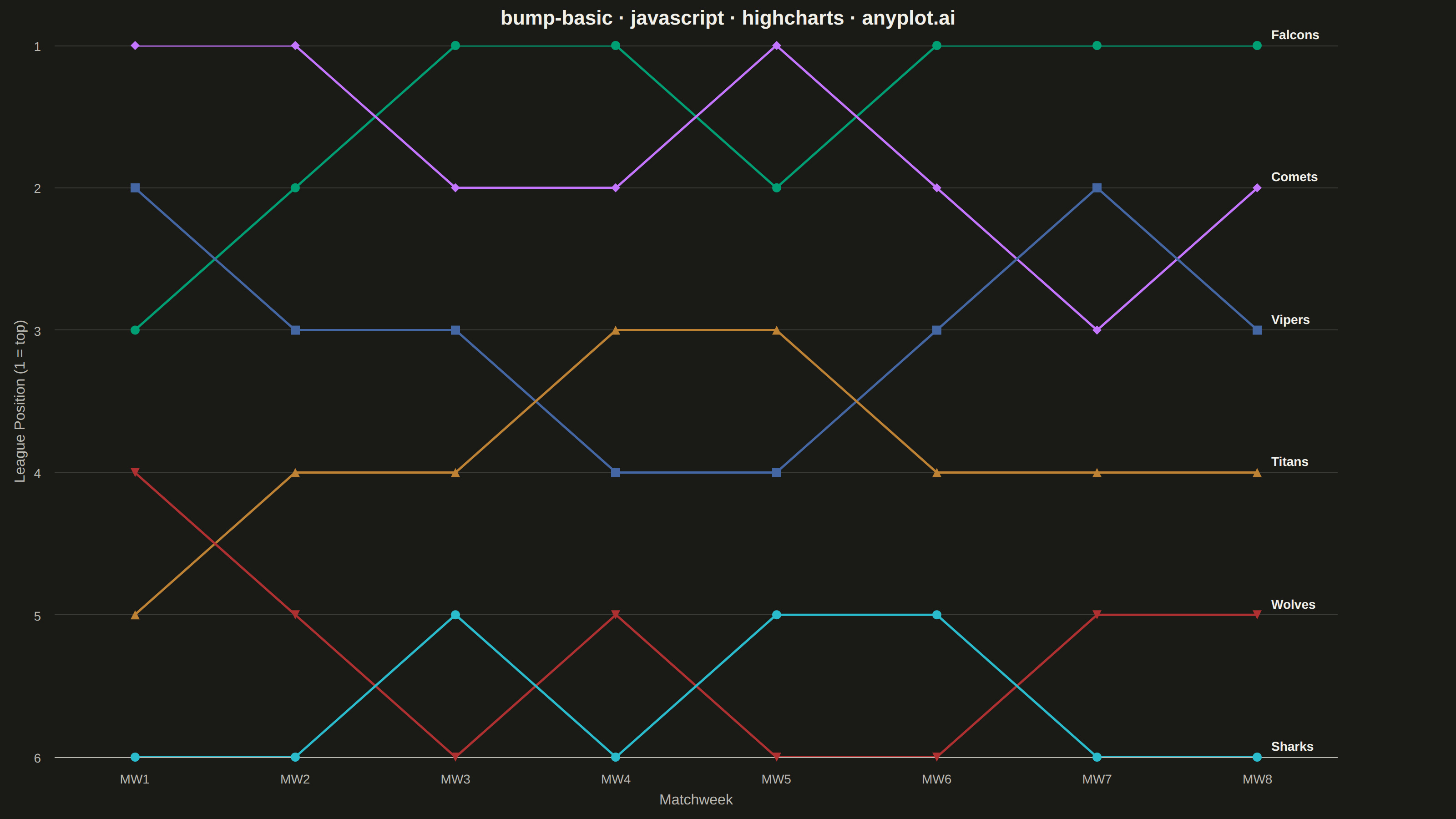

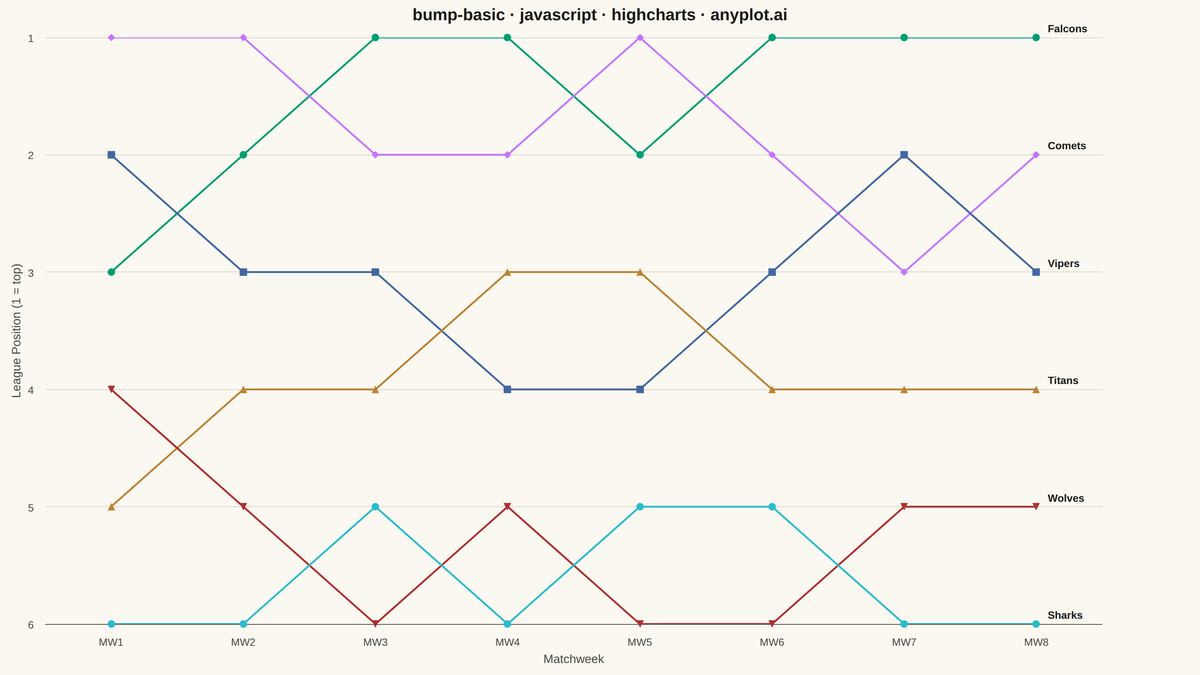

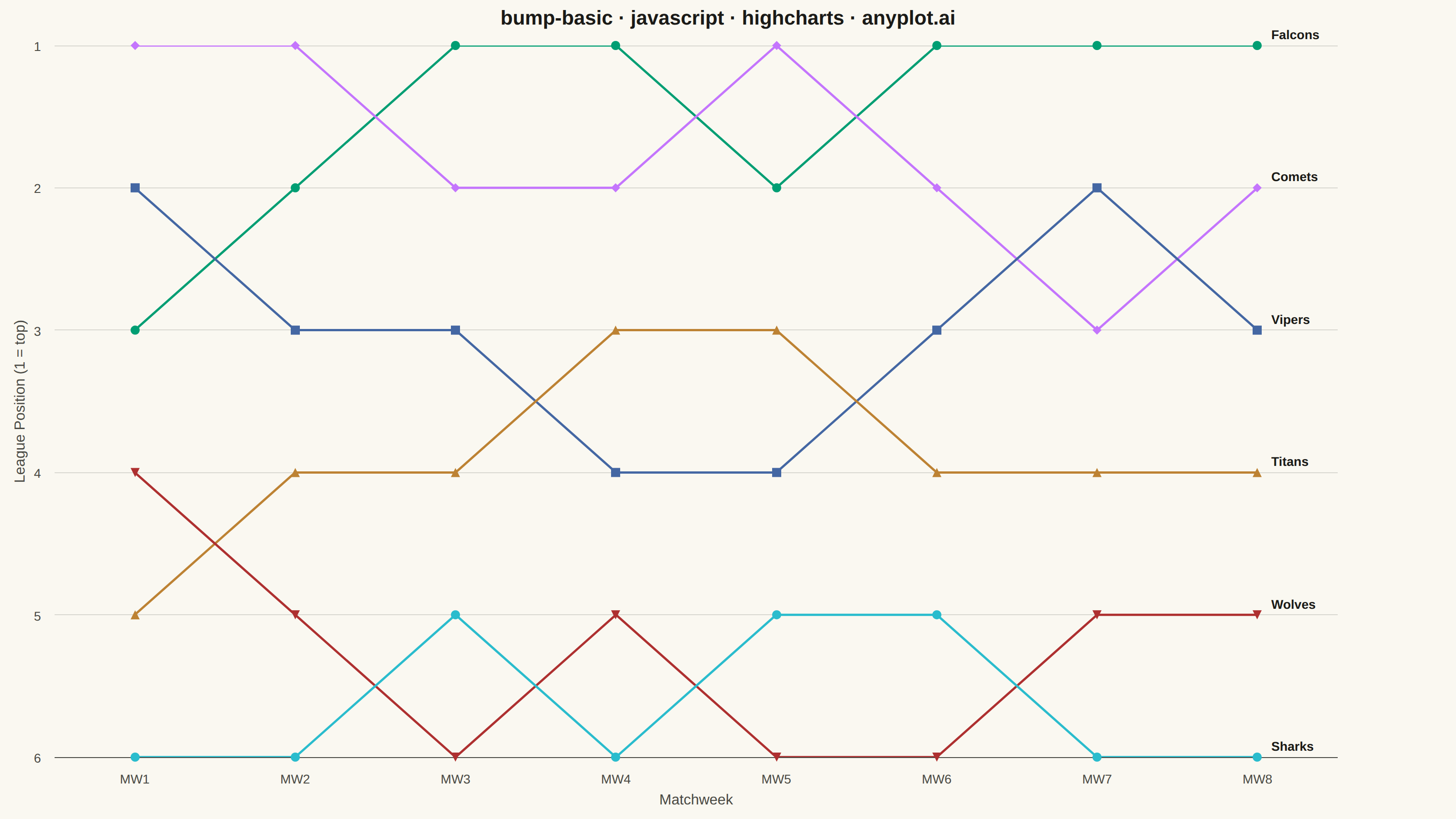

Basic Bump Chart rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// bump-basic: Basic Bump Chart
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-08-24

//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// A regional football league table: rank (1 = top) per team across matchweeks.
const matchweeks = ["MW1", "MW2", "MW3", "MW4", "MW5", "MW6", "MW7", "MW8"];
const standings = [
  { team: "Falcons", ranks: [3, 2, 1, 1, 2, 1, 1, 1], symbol: "circle" },
  { team: "Comets", ranks: [1, 1, 2, 2, 1, 2, 3, 2], symbol: "diamond" },
  { team: "Vipers", ranks: [2, 3, 3, 4, 4, 3, 2, 3], symbol: "square" },
  { team: "Titans", ranks: [5, 4, 4, 3, 3, 4, 4, 4], symbol: "triangle" },
  { team: "Wolves", ranks: [4, 5, 6, 5, 6, 6, 5, 5], symbol: "triangle-down" },
  { team: "Sharks", ranks: [6, 6, 5, 6, 5, 5, 6, 6], symbol: "circle" },
];
const lastIndex = matchweeks.length - 1;

// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
  chart: {
    type: "line",
    backgroundColor: "transparent",
    animation: false,
    marginRight: 130,
    style: { fontFamily: "inherit" },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: "bump-basic · javascript · highcharts · anyplot.ai",
    style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
  },
  xAxis: {
    categories: matchweeks,
    lineColor: t.inkSoft,
    tickColor: t.inkSoft,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
    title: { text: "Matchweek", style: { color: t.inkSoft, fontSize: "16px" } },
  },
  yAxis: {
    title: { text: "League Position (1 = top)", style: { color: t.inkSoft, fontSize: "16px" } },
    min: 1,
    max: standings.length,
    tickInterval: 1,
    allowDecimals: false,
    reversed: true,
    gridLineColor: t.grid,
    lineColor: t.inkSoft,
    labels: { style: { color: t.inkSoft, fontSize: "14px" } },
  },
  legend: { enabled: false },
  tooltip: { headerFormat: "<b>{point.key}</b><br/>", pointFormat: "{series.name}: rank {point.y}" },
  plotOptions: {
    series: {
      animation: false,
      lineWidth: 2.5,
      marker: { radius: 5 },
      dataLabels: { enabled: false, crop: false, overflow: "allow" },
    },
  },
  series: standings.map((entry) => ({
    name: entry.team,
    marker: { symbol: entry.symbol },
    data: entry.ranks.map((rank, i) =>
      i === lastIndex
        ? {
            y: rank,
            dataLabels: {
              enabled: true,
              align: "left",
              x: 10,
              format: entry.team,
              style: { color: t.ink, fontSize: "14px", fontWeight: "600", textOutline: "none" },
            },
          }
        : { y: rank }
    ),
  })),
});

Part of Basic Bump Chart on anyplot.ai.
