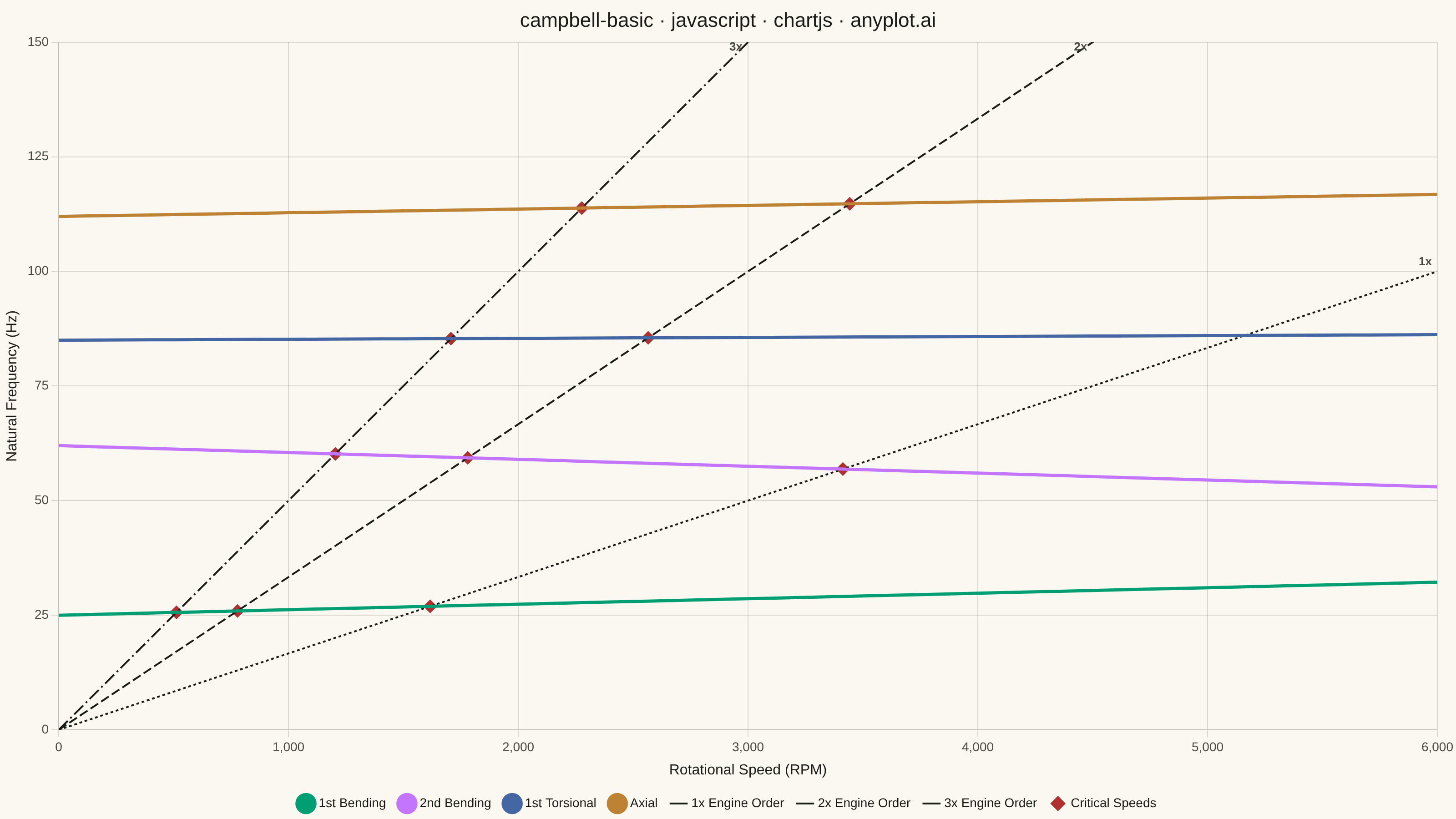

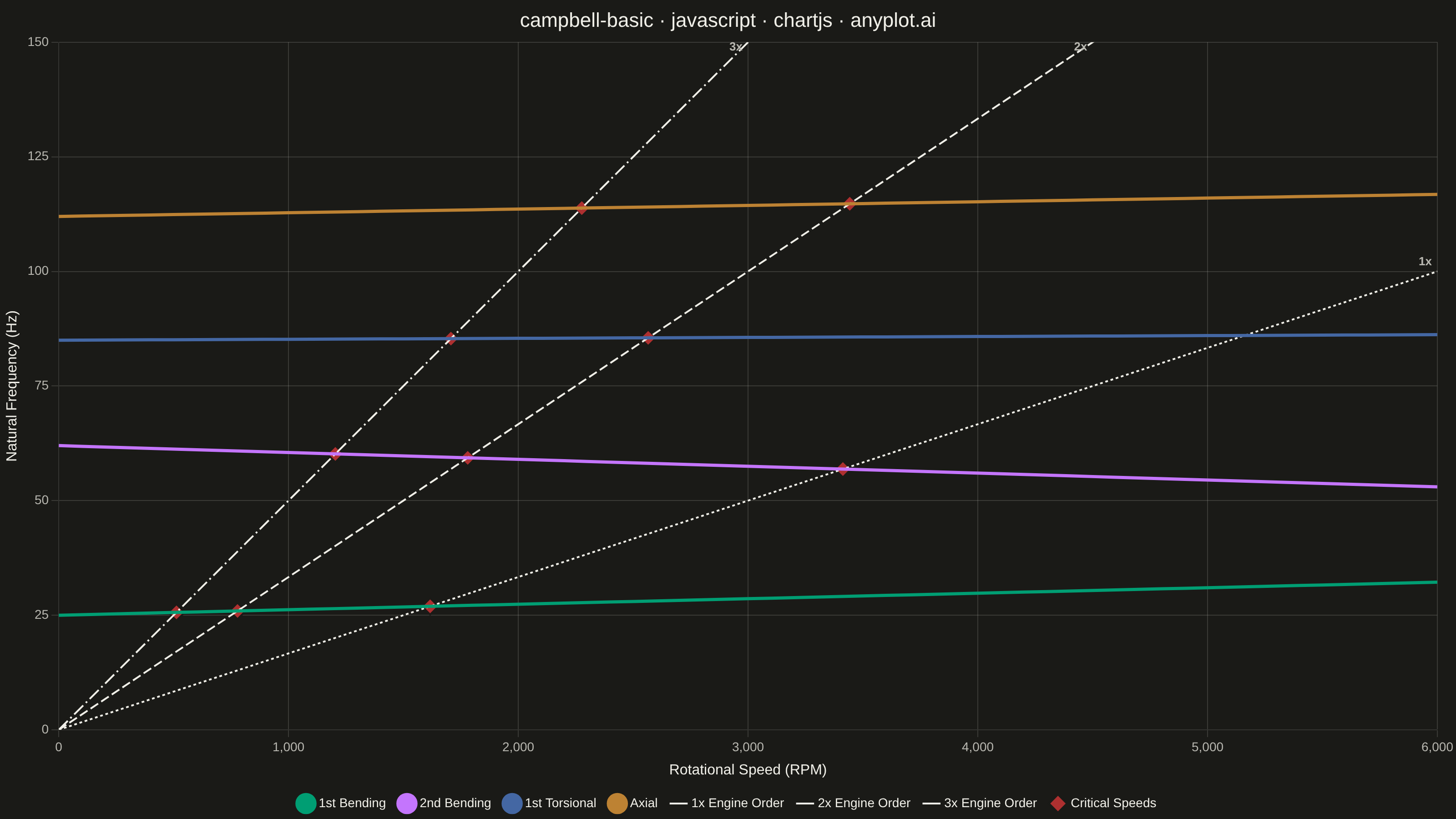

A Campbell Diagram (also called an interference diagram) plots natural frequencies against rotational speed to identify critical speeds and resonance conditions in rotating machinery. It overlays engine order excitation lines (diagonal lines from the origin) on top of natural frequency curves, with intersections marking critical speeds where resonance may occur. This visualization is essential for ensuring safe operating ranges in turbomachinery, automotive powertrains, and other rotating equipment.
// anyplot.ai
// campbell-basic: Campbell Diagram
// Library: chartjs 4.4.7 | JavaScript 22.23.2
// Quality: 87/100 | Created: 2026-08-24
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Natural frequency curves are modeled as linear functions of speed, matching
// the mild stiffening/softening gyroscopic behavior the spec calls for.
const SPEED_MAX = 6000;
const SPEED_STEP = 100;
const FREQ_MAX = 150;
const speeds = [];
for (let speed = 0; speed <= SPEED_MAX; speed += SPEED_STEP) speeds.push(speed);
const modes = [
{ name: "1st Bending", a: 25, b: 0.0012, color: t.palette[0] },
{ name: "2nd Bending", a: 62, b: -0.0015, color: t.palette[1] },
{ name: "1st Torsional", a: 85, b: 0.0002, color: t.palette[2] },
{ name: "Axial", a: 112, b: 0.0008, color: t.palette[3] },
];
const engineOrders = [
{ order: 1, dash: [3, 3] },
{ order: 2, dash: [10, 4] },
{ order: 3, dash: [14, 4, 2, 4] },
];
// Critical speeds: exact intersection of an engine-order line
// (freq = order/60 * speed) with a mode's linear frequency curve
// (freq = a + b * speed), solved algebraically.
const criticalSpeeds = [];
engineOrders.forEach(({ order }) => {
modes.forEach((mode) => {
const slope = order / 60;
if (slope === mode.b) return;
const speed = mode.a / (slope - mode.b);
if (speed > 0 && speed <= SPEED_MAX) {
criticalSpeeds.push({ x: speed, y: slope * speed });
}
});
});
criticalSpeeds.sort((p1, p2) => p1.x - p2.x);
const shownCriticalSpeeds = criticalSpeeds.slice(0, 10);
// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Datasets ------------------------------------------------------------
const modeDatasets = modes.map((mode) => ({
label: mode.name,
data: speeds.map((speed) => ({ x: speed, y: mode.a + mode.b * speed })),
borderColor: mode.color,
backgroundColor: mode.color,
borderWidth: 3.5,
pointRadius: 0,
tension: 0,
}));
const orderDatasets = engineOrders.map(({ order, dash }) => ({
label: `${order}x Engine Order`,
data: [
{ x: 0, y: 0 },
{ x: SPEED_MAX, y: (order * SPEED_MAX) / 60 },
],
borderColor: t.ink,
backgroundColor: t.ink,
borderWidth: 2,
borderDash: dash,
pointRadius: 0,
tension: 0,
}));
const criticalDataset = {
label: "Critical Speeds",
data: shownCriticalSpeeds,
showLine: false,
pointStyle: "rectRot",
pointRadius: 9,
pointBorderWidth: 2,
backgroundColor: t.palette[4],
borderColor: t.pageBg,
};
// Draws "1x"/"2x"/"3x" labels directly on the engine-order lines, at the
// point where each line either reaches the right edge or exits the top of
// the plot area (order lines are steep enough that most exit through the
// top well before SPEED_MAX).
const orderLabelPlugin = {
id: "orderLabelPlugin",
afterDatasetsDraw(chart) {
const { ctx, chartArea, scales } = chart;
ctx.save();
ctx.font = "600 13px sans-serif";
ctx.fillStyle = t.inkSoft;
ctx.textAlign = "right";
ctx.textBaseline = "bottom";
engineOrders.forEach(({ order }) => {
const endX = Math.min(SPEED_MAX, (FREQ_MAX * 60) / order);
const endY = (order / 60) * endX;
const px = Math.min(scales.x.getPixelForValue(endX) - 6, chartArea.right - 4);
const py = Math.max(scales.y.getPixelForValue(endY) - 4, chartArea.top + 12);
ctx.fillText(`${order}x`, px, py);
});
ctx.restore();
},
};
// --- Chart -----------------------------------------------------------------
new Chart(canvas, {
type: "line",
data: { datasets: [...modeDatasets, ...orderDatasets, criticalDataset] },
plugins: [orderLabelPlugin],
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: "campbell-basic · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22, weight: "500" },
},
legend: {
position: "bottom",
labels: {
color: t.ink,
font: { size: 14 },
usePointStyle: true,
boxWidth: 20,
padding: 16,
// Default generateLabels renders every series as a circle, so the
// three engine-order lines are indistinguishable in the legend
// even though they use distinct dash patterns on the plot. Swap
// those entries to the "line" point style, which respects the
// dataset's borderDash when stroked.
generateLabels(chart) {
const items = Chart.defaults.plugins.legend.labels.generateLabels.call(this, chart);
items.forEach((item) => {
const dataset = chart.data.datasets[item.datasetIndex];
if (dataset.borderDash) item.pointStyle = "line";
});
return items;
},
},
},
},
scales: {
x: {
type: "linear",
min: 0,
max: SPEED_MAX,
title: { display: true, text: "Rotational Speed (RPM)", color: t.ink, font: { size: 16 } },
ticks: { color: t.inkSoft, font: { size: 14 }, stepSize: 1000 },
grid: { color: t.grid },
},
y: {
min: 0,
max: FREQ_MAX,
title: { display: true, text: "Natural Frequency (Hz)", color: t.ink, font: { size: 16 } },
ticks: { color: t.inkSoft, font: { size: 14 }, stepSize: 25 },
grid: { color: t.grid },
},
},
},
});
Part of Campbell Diagram on anyplot.ai.
