A Campbell Diagram (also called an interference diagram) plots natural frequencies against rotational speed to identify critical speeds and resonance conditions in rotating machinery. It overlays engine order excitation lines (diagonal lines from the origin) on top of natural frequency curves, with intersections marking critical speeds where resonance may occur. This visualization is essential for ensuring safe operating ranges in turbomachinery, automotive powertrains, and other rotating equipment.

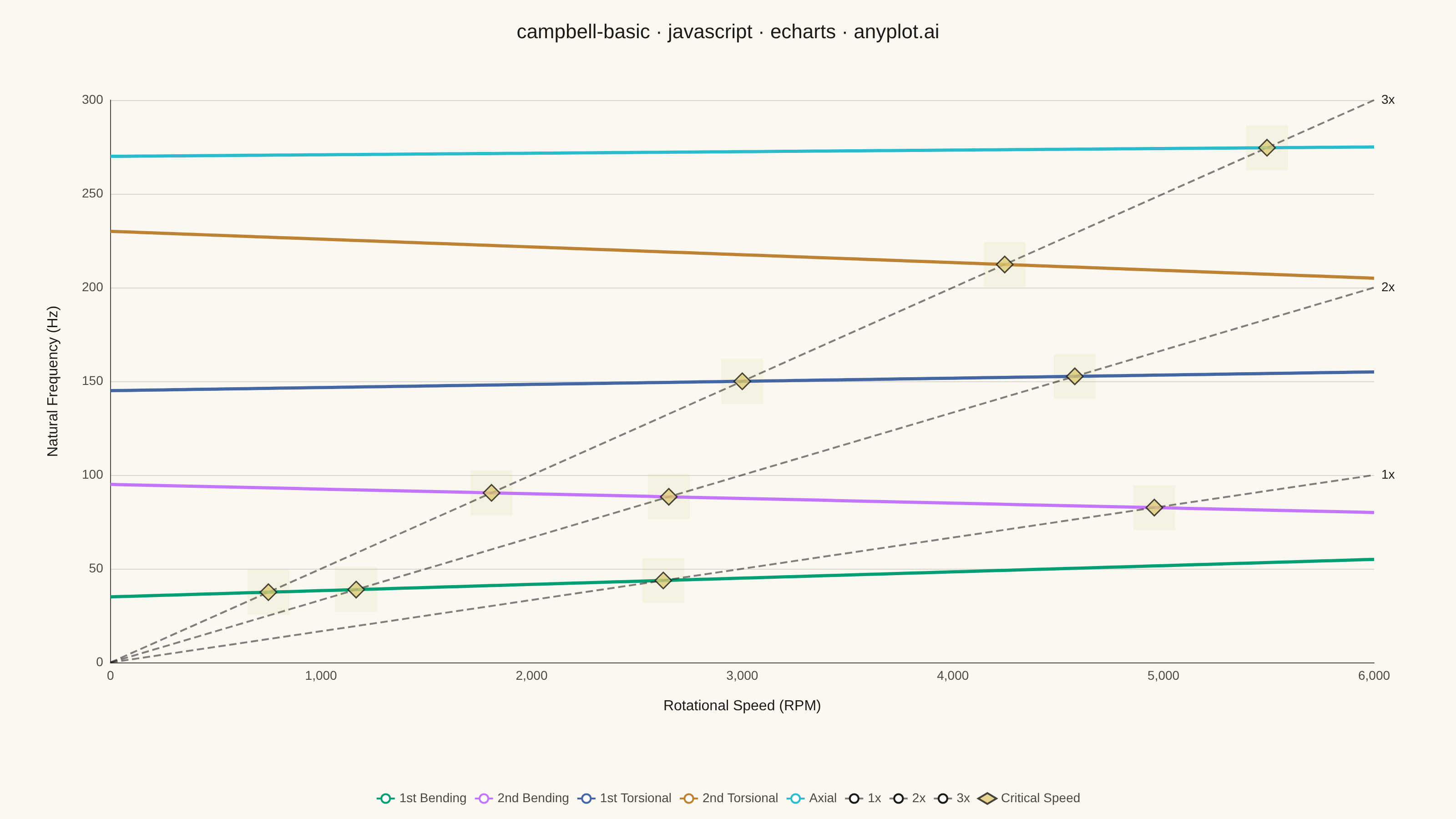

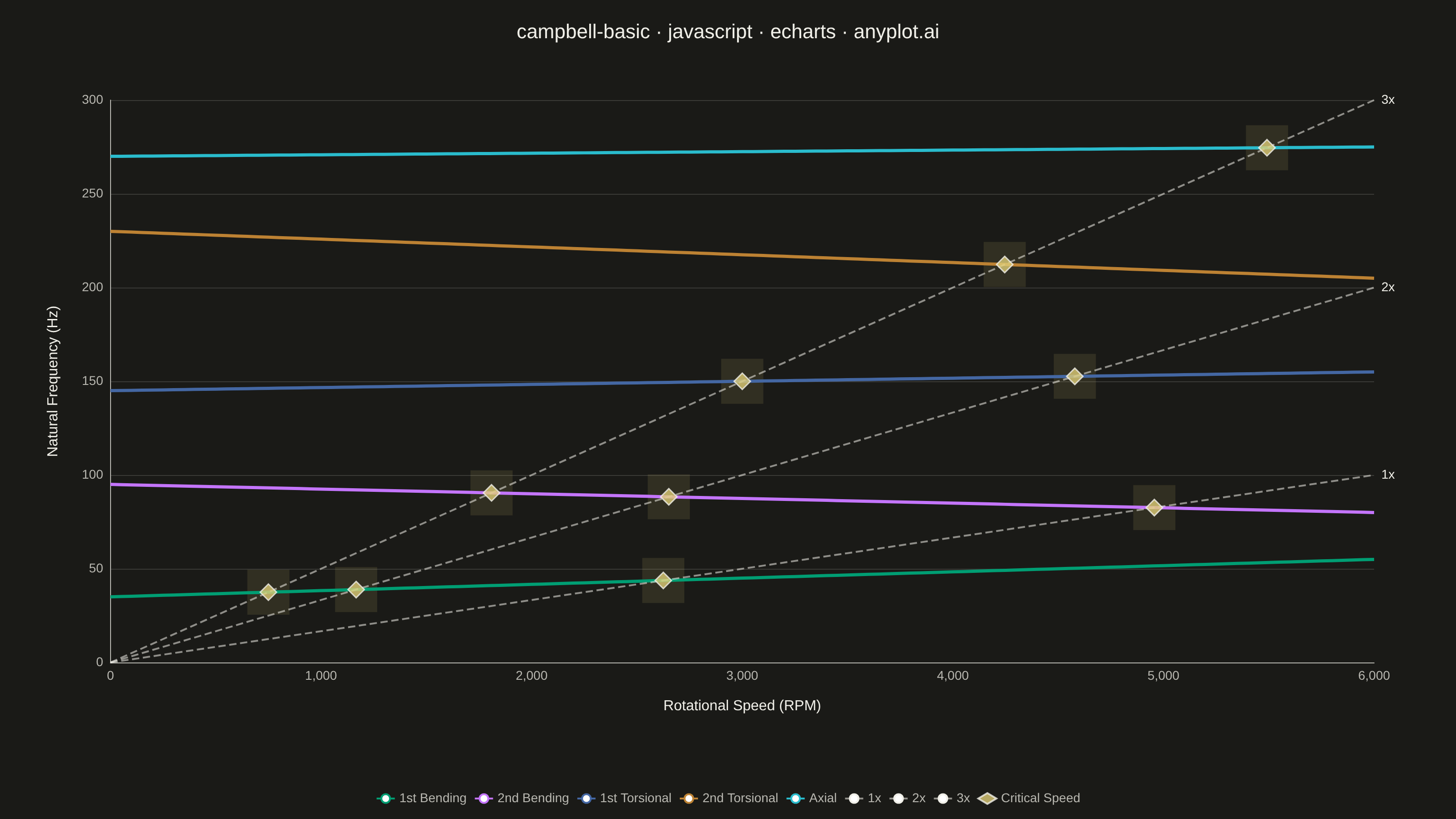

Campbell Diagram rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// campbell-basic: Campbell Diagram
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-08-24

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Rotational speed sweep, 0-6000 RPM.
const SPEED_MAX = 6000;
const N = 61;
const speed = Array.from({ length: N }, (_, i) => (i * SPEED_MAX) / (N - 1));

// Natural frequency curves: base frequency plus a mild linear drift with speed
// (gyroscopic stiffening/softening) — some modes rise, some fall.
const modes = [
  { name: "1st Bending", base: 35, drift: 20, color: t.palette[0] },
  { name: "2nd Bending", base: 95, drift: -15, color: t.palette[1] },
  { name: "1st Torsional", base: 145, drift: 10, color: t.palette[2] },
  { name: "2nd Torsional", base: 230, drift: -25, color: t.palette[3] },
  { name: "Axial", base: 270, drift: 5, color: t.palette[5] },
].map((mode) => ({
  ...mode,
  freq: speed.map((s) => mode.base + mode.drift * (s / SPEED_MAX)),
}));

// Engine order excitation lines: straight lines from the origin, slope =
// order / 60 (RPM -> Hz).
const orders = [1, 2, 3].map((order) => ({
  name: `${order}x`,
  freq: speed.map((s) => (order * s) / 60),
}));

// Critical speeds: RPM where an engine order line crosses a natural
// frequency curve, found by scanning for a sign change and interpolating.
const criticalSpeeds = [];
orders.forEach((order) => {
  modes.forEach((mode) => {
    for (let i = 1; i < N; i++) {
      const prevDiff = order.freq[i - 1] - mode.freq[i - 1];
      const currDiff = order.freq[i] - mode.freq[i];
      if (prevDiff === 0 || prevDiff * currDiff < 0) {
        const frac = prevDiff === 0 ? 0 : prevDiff / (prevDiff - currDiff);
        const s = speed[i - 1] + frac * (speed[i] - speed[i - 1]);
        const f = order.freq[i - 1] + frac * (order.freq[i] - order.freq[i - 1]);
        criticalSpeeds.push([s, f]);
      }
    }
  });
});

// --- Init --------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option --------------------------------------------------------------------
chart.setOption({
  animation: false,
  backgroundColor: "transparent",
  title: {
    text: "campbell-basic · javascript · echarts · anyplot.ai",
    left: "center",
    top: 20,
    textStyle: { color: t.ink, fontSize: 22, fontWeight: 500 },
  },
  grid: { left: 90, right: 90, top: 110, bottom: 150, containLabel: true },
  legend: {
    bottom: 10,
    type: "scroll",
    textStyle: { color: t.inkSoft, fontSize: 14 },
    itemWidth: 20,
    itemHeight: 12,
  },
  xAxis: {
    type: "value",
    name: "Rotational Speed (RPM)",
    nameLocation: "middle",
    nameGap: 40,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    min: 0,
    max: SPEED_MAX,
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { show: false },
    splitLine: { show: false },
  },
  yAxis: {
    type: "value",
    name: "Natural Frequency (Hz)",
    nameLocation: "middle",
    nameGap: 55,
    nameTextStyle: { color: t.ink, fontSize: 16 },
    min: 0,
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { show: false },
    splitLine: { lineStyle: { color: t.grid } },
  },
  series: [
    ...modes.map((mode) => ({
      name: mode.name,
      type: "line",
      data: speed.map((s, i) => [s, mode.freq[i]]),
      showSymbol: false,
      smooth: 0.2,
      lineStyle: { width: 3.5, color: mode.color },
      itemStyle: { color: mode.color },
    })),
    ...orders.map((order) => ({
      name: order.name,
      type: "line",
      data: speed.map((s, i) => [s, order.freq[i]]),
      showSymbol: false,
      lineStyle: { width: 2, type: "dashed", color: t.ink, opacity: 0.55 },
      itemStyle: { color: t.ink },
      endLabel: {
        show: true,
        formatter: "{a}",
        color: t.ink,
        fontSize: 14,
      },
    })),
    {
      name: "Critical Speed",
      type: "scatter",
      data: criticalSpeeds,
      symbol: "diamond",
      symbolSize: 18,
      itemStyle: {
        color: t.amber,
        borderColor: t.ink,
        borderWidth: 1.5,
      },
      z: 10,
      // Light resonance-zone shading around each intersection — showcases
      // markArea while reinforcing the diamond markers as the focal points.
      markArea: {
        silent: true,
        itemStyle: { color: t.amber, opacity: 0.12 },
        data: criticalSpeeds.map(([s, f]) => [
          { xAxis: s - 100, yAxis: f - 12 },
          { xAxis: s + 100, yAxis: f + 12 },
        ]),
      },
    },
  ],
});

Part of Campbell Diagram on anyplot.ai.
