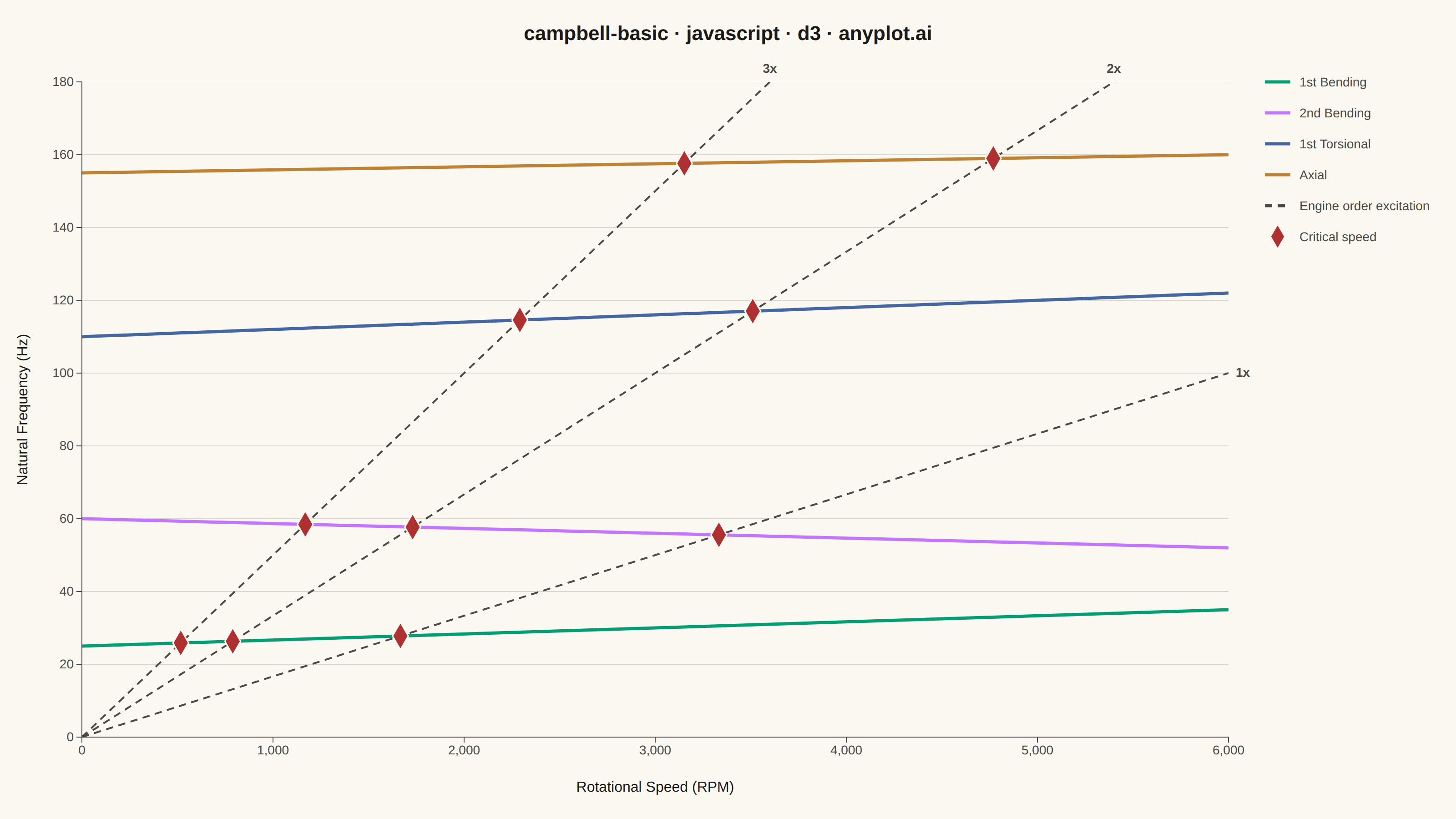

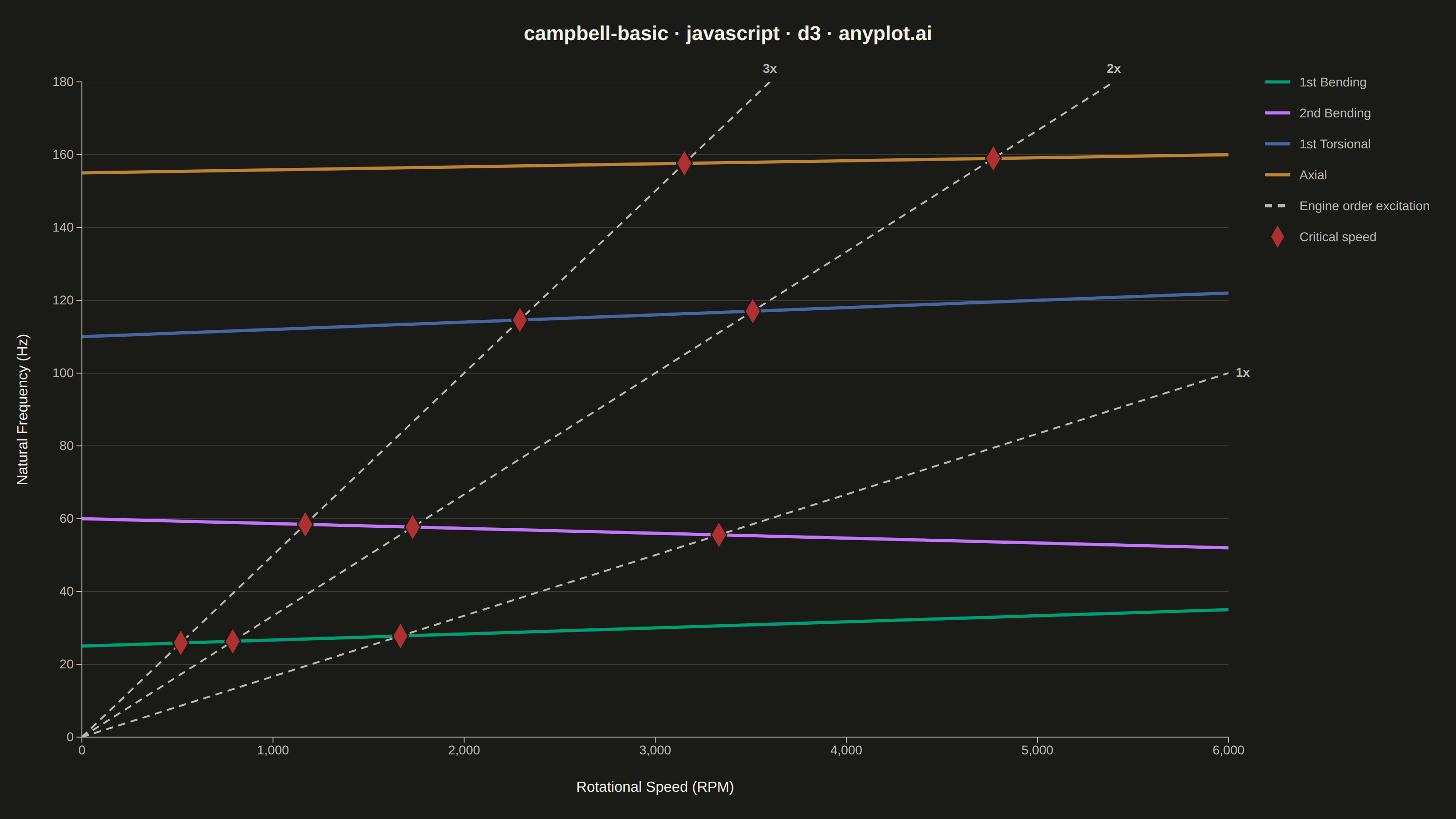

A Campbell Diagram (also called an interference diagram) plots natural frequencies against rotational speed to identify critical speeds and resonance conditions in rotating machinery. It overlays engine order excitation lines (diagonal lines from the origin) on top of natural frequency curves, with intersections marking critical speeds where resonance may occur. This visualization is essential for ensuring safe operating ranges in turbomachinery, automotive powertrains, and other rotating equipment.
// anyplot.ai
// campbell-basic: Campbell Diagram
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-08-24
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 90, right: 250, bottom: 90, left: 90 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Data (in-memory, deterministic) ----------------------------------------
const maxSpeed = 6000; // RPM
const maxFreq = 180; // Hz — visible plot ceiling
const nPoints = 81;
const speeds = d3.range(nPoints).map((i) => (i * maxSpeed) / (nPoints - 1));
// Natural frequency modes: base value at zero speed + linear drift from
// gyroscopic stiffening/softening (some modes rise, some fall with speed).
const modes = [
{ label: "1st Bending", base: 25, delta: 10 },
{ label: "2nd Bending", base: 60, delta: -8 },
{ label: "1st Torsional", base: 110, delta: 12 },
{ label: "Axial", base: 155, delta: 5 },
];
const modeCurves = modes.map((m, i) => ({
label: m.label,
color: t.palette[i],
points: speeds.map((s) => ({ speed: s, freq: m.base + (m.delta * s) / maxSpeed })),
}));
// Engine order excitation lines: frequency = order * (speed / 60 s/min).
const engineOrders = [1, 2, 3].map((order) => ({
order,
label: `${order}x`,
points: speeds.map((s) => ({ speed: s, freq: (order * s) / 60 })),
}));
// Critical speeds: numeric root-finding for mode/order-line intersections.
function findIntersections(modeCurve, orderLine) {
const hits = [];
for (let i = 0; i < speeds.length - 1; i++) {
const d0 = modeCurve.points[i].freq - orderLine.points[i].freq;
const d1 = modeCurve.points[i + 1].freq - orderLine.points[i + 1].freq;
if (d0 === 0 || d0 * d1 < 0) {
const frac = d0 === 0 ? 0 : d0 / (d0 - d1);
const speed = speeds[i] + frac * (speeds[i + 1] - speeds[i]);
const freq = modeCurve.points[i].freq + frac * (modeCurve.points[i + 1].freq - modeCurve.points[i].freq);
if (freq <= maxFreq) hits.push({ speed, freq });
}
}
return hits;
}
const criticalSpeeds = modeCurves.flatMap((mc) =>
engineOrders.flatMap((eo) => findIntersections(mc, eo).map((hit) => ({ ...hit, mode: mc.label, order: eo.label }))),
);
// --- Scales -------------------------------------------------------------------
const x = d3.scaleLinear().domain([0, maxSpeed]).range([0, iw]);
const y = d3.scaleLinear().domain([0, maxFreq]).range([ih, 0]);
const line = d3.line().x((d) => x(d.speed)).y((d) => y(d.freq));
// --- SVG mount ------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
svg.append("clipPath").attr("id", "plot-area").append("rect").attr("width", iw).attr("height", ih);
const plot = g.append("g").attr("clip-path", "url(#plot-area)");
// --- Y grid (subtle, per style guide) --------------------------------------
plot
.append("g")
.selectAll("line")
.data(y.ticks(6))
.join("line")
.attr("x1", 0)
.attr("x2", iw)
.attr("y1", (d) => y(d))
.attr("y2", (d) => y(d))
.attr("stroke", t.grid)
.attr("stroke-width", 1);
// --- Engine order excitation lines (dashed, neutral reference lines) -------
plot
.selectAll(".order-line")
.data(engineOrders)
.join("path")
.attr("class", "order-line")
.attr("d", (d) => line(d.points))
.attr("fill", "none")
.attr("stroke", t.inkSoft)
.attr("stroke-width", 2)
.attr("stroke-dasharray", "8,6");
// End labels for the engine order lines, placed where each line exits the
// visible frame (right edge if it stays under maxFreq, top edge otherwise).
const orderExits = engineOrders.map((eo) => {
const freqAt6000 = (eo.order * maxSpeed) / 60;
return freqAt6000 <= maxFreq
? { ...eo, speed: maxSpeed, freq: freqAt6000, anchor: "start", dx: 8, dy: 4 }
: { ...eo, speed: (maxFreq * 60) / eo.order, freq: maxFreq, anchor: "middle", dx: 0, dy: -10 };
});
g.selectAll(".order-label")
.data(orderExits)
.join("text")
.attr("class", "order-label")
.attr("x", (d) => x(d.speed) + d.dx)
.attr("y", (d) => y(d.freq) + d.dy)
.attr("text-anchor", (d) => d.anchor)
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.style("font-weight", "600")
.text((d) => d.label);
// --- Natural frequency curves ------------------------------------------------
plot
.selectAll(".mode-line")
.data(modeCurves)
.join("path")
.attr("class", "mode-line")
.attr("d", (d) => line(d.points))
.attr("fill", "none")
.attr("stroke", (d) => d.color)
.attr("stroke-width", 3.5);
// --- Critical speed markers (deferred semantic-red anchor, per style guide) --
const diamond = d3.symbol().type(d3.symbolDiamond).size(260);
plot
.selectAll(".critical-marker")
.data(criticalSpeeds)
.join("path")
.attr("class", "critical-marker")
.attr("d", diamond)
.attr("transform", (d) => `translate(${x(d.speed)},${y(d.freq)})`)
.attr("fill", t.palette[4])
.attr("stroke", t.pageBg)
.attr("stroke-width", 1.5);
// --- Axes -----------------------------------------------------------------
const xAxis = g.append("g").attr("transform", `translate(0,${ih})`).call(d3.axisBottom(x).ticks(6));
const yAxis = g.append("g").call(d3.axisLeft(y).ticks(6));
for (const axis of [xAxis, yAxis]) {
axis.selectAll("text").attr("fill", t.inkSoft).style("font-size", "14px");
axis.selectAll("line").attr("stroke", t.inkSoft);
axis.select(".domain").attr("stroke", t.inkSoft);
}
g.append("text")
.attr("x", iw / 2)
.attr("y", ih + 60)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("Rotational Speed (RPM)");
g.append("text")
.attr("transform", "rotate(-90)")
.attr("x", -ih / 2)
.attr("y", -60)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("Natural Frequency (Hz)");
// --- Title ------------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", 44)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("campbell-basic · javascript · d3 · anyplot.ai");
// --- Legend -----------------------------------------------------------------
const legendItems = [
...modeCurves.map((d) => ({ label: d.label, kind: "line", color: d.color, dash: null })),
{ label: "Engine order excitation", kind: "line", color: t.inkSoft, dash: "8,6" },
{ label: "Critical speed", kind: "marker", color: t.palette[4] },
];
const legend = g.append("g").attr("transform", `translate(${iw + 40}, 0)`);
const legendRows = legend
.selectAll(".legend-row")
.data(legendItems)
.join("g")
.attr("class", "legend-row")
.attr("transform", (_, i) => `translate(0, ${i * 34})`);
legendRows
.filter((d) => d.kind === "line")
.append("line")
.attr("x1", 0)
.attr("x2", 28)
.attr("y1", 0)
.attr("y2", 0)
.attr("stroke", (d) => d.color)
.attr("stroke-width", 3.5)
.attr("stroke-dasharray", (d) => d.dash);
legendRows
.filter((d) => d.kind === "marker")
.append("path")
.attr("d", d3.symbol().type(d3.symbolDiamond).size(220))
.attr("transform", "translate(14,0)")
.attr("fill", (d) => d.color)
.attr("stroke", t.pageBg)
.attr("stroke-width", 1.5);
legendRows
.append("text")
.attr("x", 38)
.attr("y", 5)
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.text((d) => d.label);
Part of Campbell Diagram on anyplot.ai.
