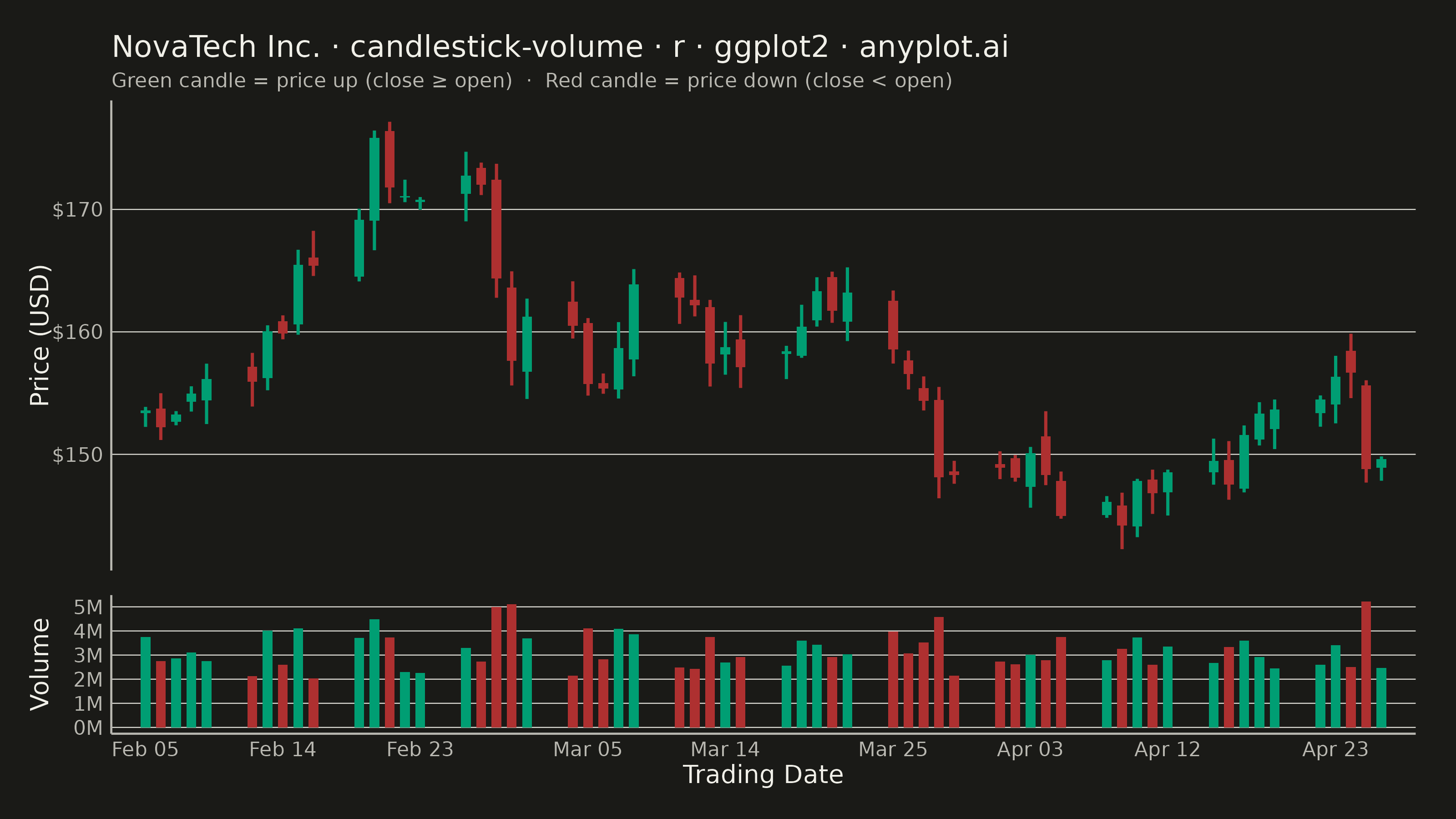

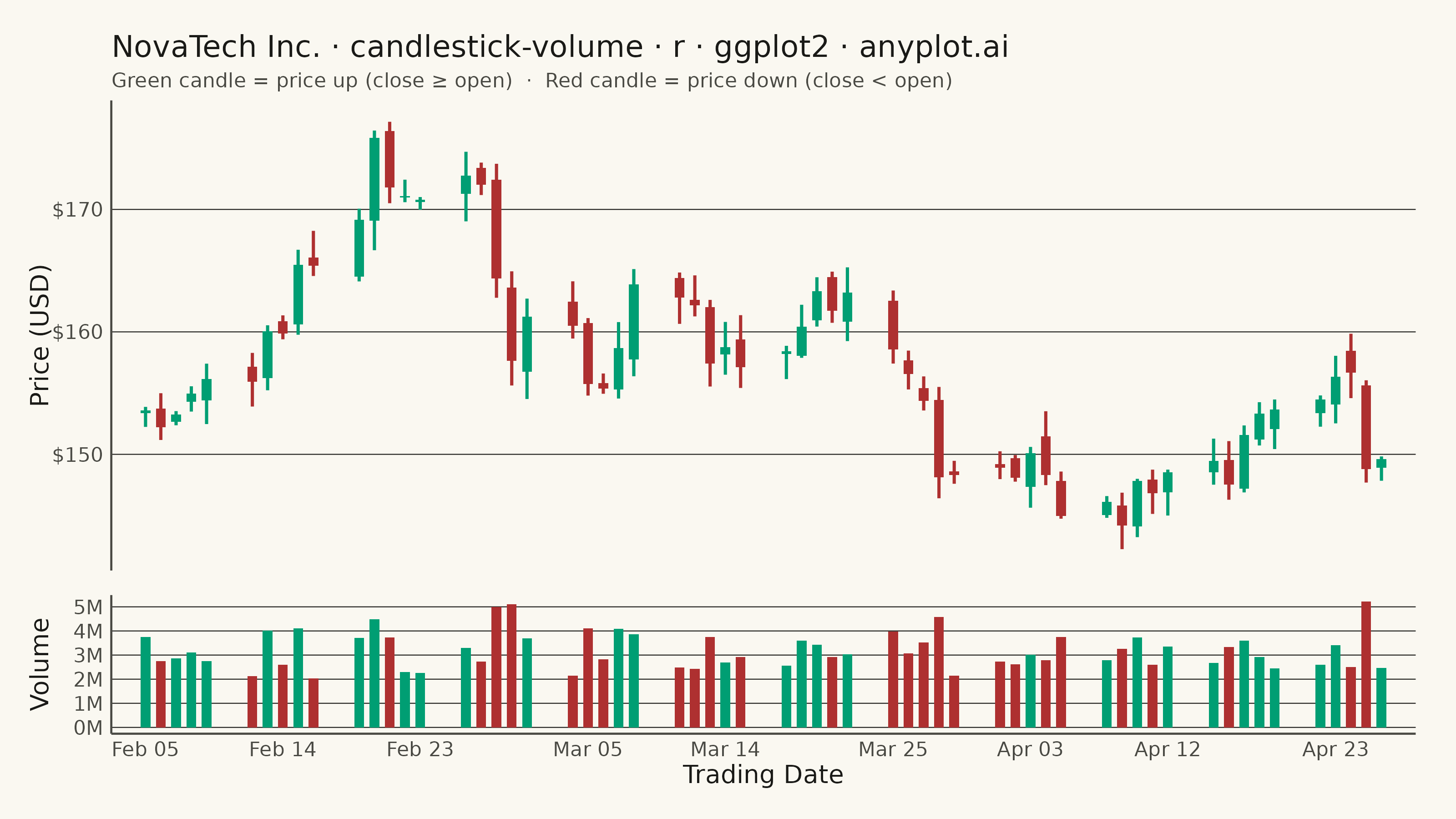

A professional candlestick chart combining OHLC (open, high, low, close) price data with volume bars in a synchronized lower pane. The dual-pane layout presents price action in the main chart with corresponding trading volume below, sharing a common time axis. This format is the standard for technical analysis platforms, enabling traders to correlate price movements with trading activity and identify volume-confirmed trends or reversals.
#' anyplot.ai
#' candlestick-volume: Stock Candlestick Chart with Volume
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 91/100 | Created: 2026-09-02
library(ggplot2)
library(scales)
library(ragg)
library(gridExtra)
set.seed(42)
# --- Theme tokens ------------------------------------------------------
THEME <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
INK <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
UP_COLOR <- "#009E73" # Imprint position 1 — bullish (semantic: profit/up -> green)
DOWN_COLOR <- "#AE3030" # Imprint position 5 — bearish (semantic: loss/down -> red)
# --- Data: 60 trading days of a synthetic tech stock --------------------
n_days <- 60
calendar_days <- seq(as.Date("2024-02-05"), by = "day", length.out = 90)
trading_days <- calendar_days[!format(calendar_days, "%u") %in% c("6", "7")][1:n_days]
daily_returns <- rnorm(n_days, mean = 0.0006, sd = 0.017)
close <- 150 * cumprod(1 + daily_returns)
open <- c(
close[1] * (1 + rnorm(1, 0, 0.004)),
close[-n_days] * (1 + rnorm(n_days - 1, 0, 0.005))
)
body_hi <- pmax(open, close)
body_lo <- pmin(open, close)
high <- body_hi + runif(n_days, 0.1, 1.4) * (close * 0.01)
low <- body_lo - runif(n_days, 0.1, 1.4) * (close * 0.01)
volume <- pmax(5e5, round(2.4e6 + abs(daily_returns) * 5.5e7 + rnorm(n_days, 0, 2.5e5)))
direction <- factor(ifelse(close >= open, "Up", "Down"), levels = c("Up", "Down"))
stock <- tibble::tibble(
date = trading_days, open, high, low, close, volume, direction, body_lo, body_hi
)
candle_width <- 0.32
x_breaks <- stock$date[seq(1, n_days, by = 7)]
x_limits <- range(stock$date) + c(-1, 1)
title_text <- "NovaTech Inc. · candlestick-volume · r · ggplot2 · anyplot.ai"
# --- Shared chrome -------------------------------------------------------
anyplot_theme <- theme_minimal(base_size = 7) +
theme(
plot.background = element_rect(fill = PAGE_BG, color = PAGE_BG),
panel.background = element_rect(fill = PAGE_BG, color = NA),
panel.grid.minor = element_blank(),
panel.grid.major.x = element_blank(),
panel.grid.major.y = element_line(color = INK, linewidth = 0.18),
axis.line = element_line(color = INK_SOFT, linewidth = 0.4),
axis.ticks = element_blank(),
axis.title = element_text(color = INK, size = 10),
axis.text = element_text(color = INK_SOFT, size = 8),
legend.position = "none"
)
# --- Price pane (top, ~71% of vertical space) -----------------------------
p_price <- ggplot(stock, aes(x = date)) +
geom_segment(aes(xend = date, y = low, yend = high, color = direction), linewidth = 0.6) +
geom_rect(
aes(xmin = date - candle_width, xmax = date + candle_width, ymin = body_lo, ymax = body_hi, fill = direction),
color = NA
) +
scale_color_manual(values = c(Up = UP_COLOR, Down = DOWN_COLOR)) +
scale_fill_manual(values = c(Up = UP_COLOR, Down = DOWN_COLOR)) +
scale_x_date(breaks = x_breaks, limits = x_limits, expand = expansion(mult = 0.015)) +
scale_y_continuous(labels = label_dollar()) +
labs(
title = title_text,
subtitle = "Green candle = price up (close ≥ open) · Red candle = price down (close < open)",
y = "Price (USD)", x = NULL
) +
anyplot_theme +
theme(
axis.text.x = element_blank(),
axis.line.x = element_blank(),
plot.title = element_text(color = INK, size = 12, face = "plain"),
plot.subtitle = element_text(color = INK_SOFT, size = 8),
plot.margin = margin(t = 14, r = 16, b = 4, l = 12)
)
# --- Volume pane (bottom, ~29% of vertical space) --------------------------
p_volume <- ggplot(stock, aes(x = date)) +
geom_col(aes(y = volume, fill = direction), width = candle_width * 2) +
scale_fill_manual(values = c(Up = UP_COLOR, Down = DOWN_COLOR)) +
scale_x_date(
breaks = x_breaks, limits = x_limits,
labels = label_date("%b %d"), expand = expansion(mult = 0.015)
) +
scale_y_continuous(labels = label_number(scale = 1e-6, suffix = "M")) +
labs(y = "Volume", x = "Trading Date") +
anyplot_theme +
theme(plot.margin = margin(t = 4, r = 16, b = 12, l = 12))
# --- Combine panes with a shared, width-aligned x-axis ----------------------
g_price <- ggplotGrob(p_price)
g_volume <- ggplotGrob(p_volume)
aligned_widths <- grid::unit.pmax(g_price$widths, g_volume$widths)
g_price$widths <- aligned_widths
g_volume$widths <- aligned_widths
combined <- arrangeGrob(g_price, g_volume, ncol = 1, heights = c(2.5, 1))
# --- Save --------------------------------------------------------------
ggsave(
filename = sprintf("plot-%s.png", THEME),
plot = combined,
device = ragg::agg_png,
width = 8,
height = 4.5,
units = "in",
dpi = 400,
bg = PAGE_BG
)
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/candlestick-volume/ggplot2/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "candlestick-volume",
"language": "r",
"library": "ggplot2",
"page": "https://anyplot.ai/candlestick-volume/r/ggplot2",
"hub": "https://anyplot.ai/candlestick-volume",
"code_json": "https://api.anyplot.ai/specs/candlestick-volume/ggplot2/code",
"spec_json": "https://api.anyplot.ai/specs/candlestick-volume",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/candlestick-volume/r/ggplot2/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/candlestick-volume/r/ggplot2/plot-dark.png",
"quality_score": 91.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Stock Candlestick Chart with Volume on anyplot.ai.
