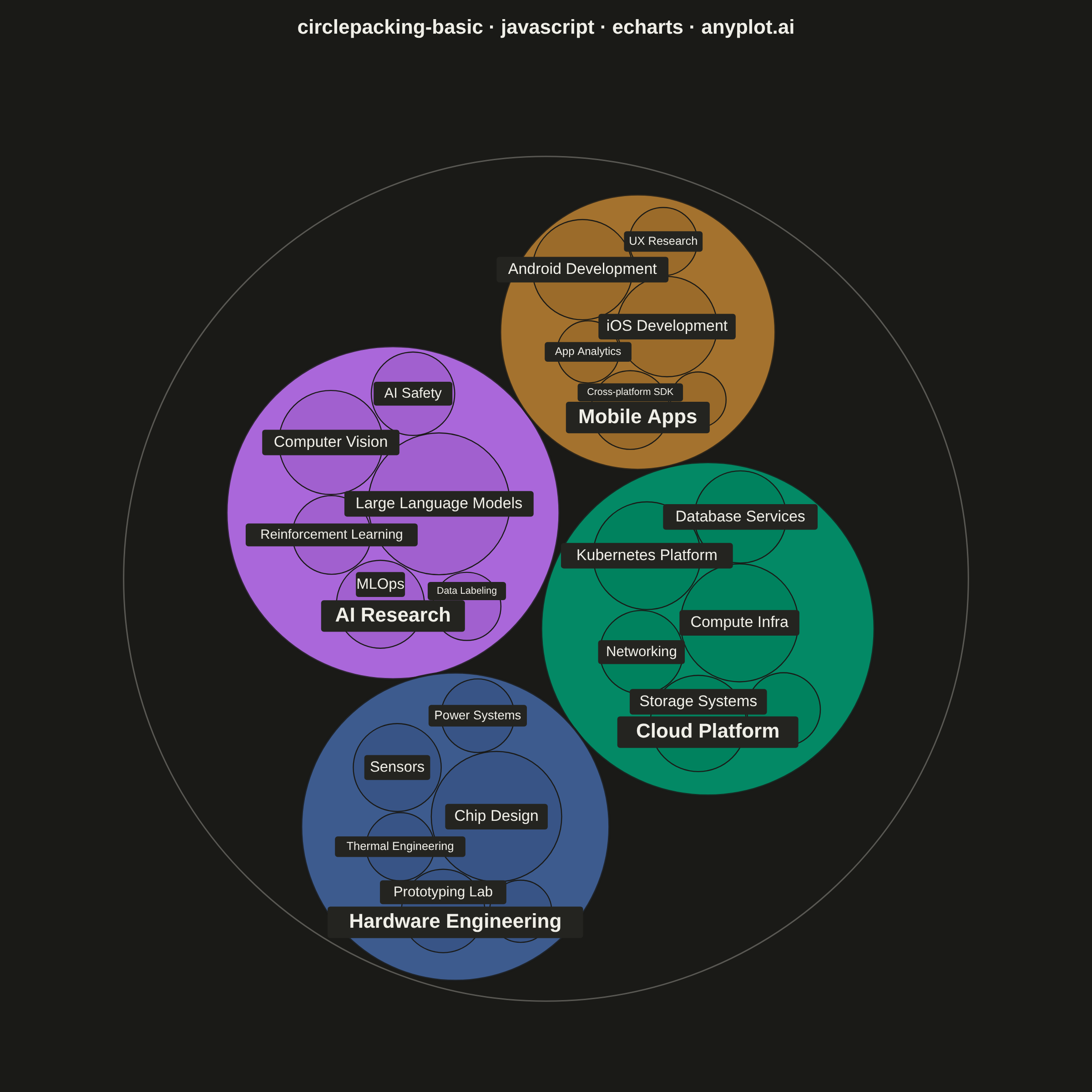

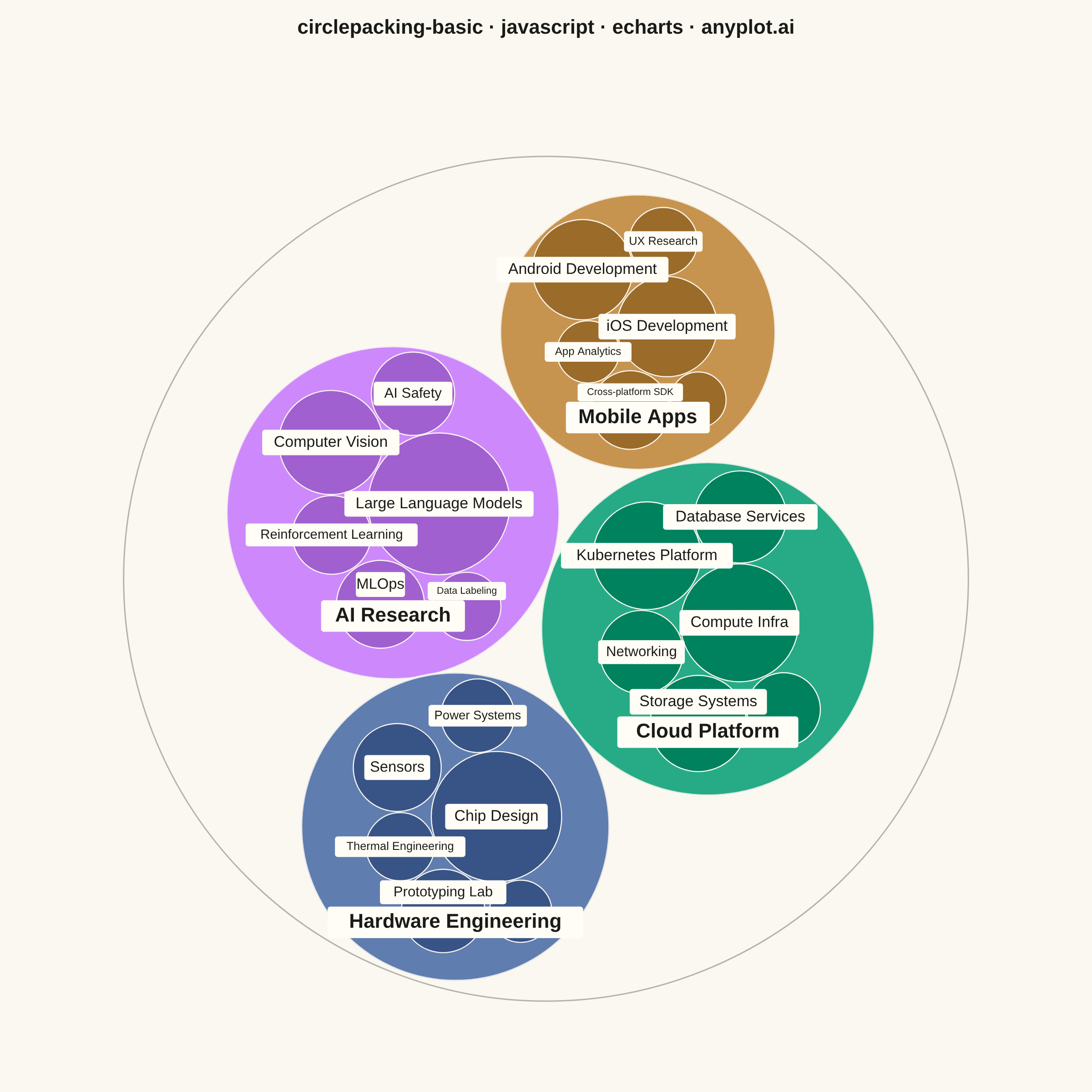

A circle packing chart displays hierarchical data as nested circles, where each circle contains smaller circles representing its children. Circle size is proportional to node value, and circles are packed efficiently without overlap. This visualization excels at revealing hierarchical structures while simultaneously showing quantitative relationships through area encoding.
// anyplot.ai
// circlepacking-basic: Circle Packing Chart
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-02
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
// --- Data: R&D budget hierarchy (root -> division -> team), $ millions -----
const records = [
{ id: "root", parent: null, value: null, label: "R&D Portfolio" },
{ id: "cloud", parent: "root", value: null, label: "Cloud Platform" },
{ id: "ai", parent: "root", value: null, label: "AI Research" },
{ id: "hardware", parent: "root", value: null, label: "Hardware Engineering" },
{ id: "mobile", parent: "root", value: null, label: "Mobile Apps" },
{ id: "cloud-compute", parent: "cloud", value: 18, label: "Compute Infra" },
{ id: "cloud-storage", parent: "cloud", value: 12, label: "Storage Systems" },
{ id: "cloud-network", parent: "cloud", value: 9, label: "Networking" },
{ id: "cloud-k8s", parent: "cloud", value: 15, label: "Kubernetes Platform" },
{ id: "cloud-db", parent: "cloud", value: 11, label: "Database Services" },
{ id: "cloud-devops", parent: "cloud", value: 7, label: "DevOps Tooling" },
{ id: "ai-llm", parent: "ai", value: 26, label: "Large Language Models" },
{ id: "ai-vision", parent: "ai", value: 14, label: "Computer Vision" },
{ id: "ai-rl", parent: "ai", value: 8, label: "Reinforcement Learning" },
{ id: "ai-mlops", parent: "ai", value: 10, label: "MLOps" },
{ id: "ai-labeling", parent: "ai", value: 6, label: "Data Labeling" },
{ id: "ai-safety", parent: "ai", value: 9, label: "AI Safety" },
{ id: "hw-chip", parent: "hardware", value: 22, label: "Chip Design" },
{ id: "hw-sensors", parent: "hardware", value: 10, label: "Sensors" },
{ id: "hw-power", parent: "hardware", value: 7, label: "Power Systems" },
{ id: "hw-thermal", parent: "hardware", value: 6, label: "Thermal Engineering" },
{ id: "hw-proto", parent: "hardware", value: 9, label: "Prototyping Lab" },
{ id: "hw-qa", parent: "hardware", value: 5, label: "Quality Testing" },
{ id: "mob-ios", parent: "mobile", value: 13, label: "iOS Development" },
{ id: "mob-android", parent: "mobile", value: 13, label: "Android Development" },
{ id: "mob-sdk", parent: "mobile", value: 8, label: "Cross-platform SDK" },
{ id: "mob-analytics", parent: "mobile", value: 5, label: "App Analytics" },
{ id: "mob-ux", parent: "mobile", value: 6, label: "UX Research" },
{ id: "mob-push", parent: "mobile", value: 4, label: "Push Notifications" },
];
// --- Build the tree ----------------------------------------------------
const byId = {};
records.forEach((rec) => {
byId[rec.id] = { ...rec, children: [] };
});
records.forEach((rec) => {
if (rec.parent !== null) byId[rec.parent].children.push(byId[rec.id]);
});
const root = byId.root;
// --- Circle packing: deterministic spiral seed + iterative repulsion -------
// (per spec notes: "pack circles efficiently using force simulation";
// no d3/library layout is used — this is a from-scratch physical relaxation)
const GOLDEN_ANGLE = Math.PI * (3 - Math.sqrt(5));
const PADDING = 0.15;
const ITERATIONS = 400;
const packCircles = (nodes) => {
const n = nodes.length;
if (n === 0) return 0;
if (n === 1) {
nodes[0].x = 0;
nodes[0].y = 0;
return nodes[0].r;
}
const sorted = nodes.slice().sort((a, b) => b.r - a.r);
sorted.forEach((node, i) => {
const spiralR = 2.2 * Math.sqrt(i) * (sorted[0].r + 0.4);
node.x = spiralR * Math.cos(i * GOLDEN_ANGLE);
node.y = spiralR * Math.sin(i * GOLDEN_ANGLE);
});
for (let iter = 0; iter < ITERATIONS; iter += 1) {
for (let i = 0; i < n; i += 1) {
const a = sorted[i];
for (let j = i + 1; j < n; j += 1) {
const b = sorted[j];
const dx = b.x - a.x;
const dy = b.y - a.y;
const dist = Math.sqrt(dx * dx + dy * dy) || 0.0001;
const minDist = a.r + b.r + PADDING;
if (dist < minDist) {
const overlap = (minDist - dist) / 2;
const nx = dx / dist;
const ny = dy / dist;
a.x -= nx * overlap;
a.y -= ny * overlap;
b.x += nx * overlap;
b.y += ny * overlap;
}
}
}
for (let i = 0; i < n; i += 1) {
sorted[i].x *= 0.993;
sorted[i].y *= 0.993;
}
}
let enclosing = 0;
for (let i = 0; i < n; i += 1) {
const d = Math.sqrt(sorted[i].x * sorted[i].x + sorted[i].y * sorted[i].y) + sorted[i].r;
if (d > enclosing) enclosing = d;
}
return enclosing + PADDING * 2;
};
// Leaf radius scales with sqrt(value) so area (not radius) encodes value.
// Internal-node radius is the enclosing circle of its packed children.
const layoutNode = (node) => {
if (node.children.length === 0) {
node.r = Math.sqrt(node.value);
return;
}
node.children.forEach(layoutNode);
node.r = packCircles(node.children);
};
layoutNode(root);
const placeAbsolute = (node, ox, oy) => {
node.absX = ox;
node.absY = oy;
node.children.forEach((child) => placeAbsolute(child, ox + child.x, oy + child.y));
};
placeAbsolute(root, 0, 0);
// --- Budget rollups (for tooltips: every node, not just leaves, gets a $ total) --
const computeTotal = (node) => {
node.total = node.children.length === 0 ? node.value : node.children.reduce((sum, c) => sum + computeTotal(c), 0);
return node.total;
};
computeTotal(root);
// --- Solid depth-2 fill: mix the hue with a fixed literal (not the theme
// background) so the composited pixel color is identical in both themes —
// canvas alpha over a theme-dependent backdrop would otherwise drift.
const hexToRgb = (hex) => [parseInt(hex.slice(1, 3), 16), parseInt(hex.slice(3, 5), 16), parseInt(hex.slice(5, 7), 16)];
const mixColor = (hexA, hexB, ratio) => {
const a = hexToRgb(hexA);
const b = hexToRgb(hexB);
return `#${a.map((v, i) => Math.round(v * ratio + b[i] * (1 - ratio)).toString(16).padStart(2, "0")).join("")}`;
};
// --- Flatten with depth-based Imprint coloring ------------------------------
// Divisions (depth 1) take Imprint positions 1-4 in declared order; leaves
// (depth 2) inherit their division's hue, darkened by a fixed literal ratio
// (not theme-dependent alpha) to read as nested.
const flatData = [];
const flatten = (node, depth, color) => {
flatData.push({
x: node.absX,
y: node.absY,
r: node.r,
depth,
label: node.label,
amount: node.total,
color,
parentId: node.parent,
});
node.children.forEach((child, idx) => {
const childColor = depth === 0 ? t.palette[idx % t.palette.length] : color;
flatten(child, depth + 1, childColor);
});
};
flatten(root, 0, t.muted);
// --- Label layout: precompute placement + collision avoidance --------------
// The packing algorithm seeds each group's largest circle at the local
// origin, which coincides with the parent's own center — so a naive
// centered label would collide with its biggest child every time. Instead:
// division labels sit near the rim (the packed children leave that area
// empty by construction, since PADDING pads the enclosing radius), leaf
// labels sit on their own circle, and every candidate is rejected if its
// estimated box collides with an already-accepted one (bigger leaves win).
const domain = root.r * 1.06;
const mountSize = window.ANYPLOT_SIZE;
const GRID_LR = 0.09;
const GRID_TOP = 0.12;
const GRID_BOTTOM = 0.06;
const gridPx = Math.min(mountSize.width * (1 - GRID_LR * 2), mountSize.height * (1 - GRID_TOP - GRID_BOTTOM));
const pxPerUnit = gridPx / (2 * domain);
const DIVISION_FONT = 22;
const LEAF_FONT_MIN = 12;
const LEAF_FONT_MAX = 17;
const labelCandidates = [];
flatData.forEach((d, idx) => {
if (d.depth === 0) return;
const rPx = d.r * pxPerUnit;
if (d.depth === 1) {
if (rPx < 60) return;
labelCandidates.push({
idx,
metric: Infinity, // division rims are reserved space, never evicted by a leaf
text: d.label,
maxFontSize: DIVISION_FONT,
minFontSize: DIVISION_FONT,
bold: true,
charW: 0.62,
positions: [{ dx: 0, dy: -d.r * 0.62 }],
});
} else {
if (rPx < 34) return;
const fontSize = Math.min(LEAF_FONT_MAX, Math.max(LEAF_FONT_MIN, rPx * 0.34));
labelCandidates.push({
idx,
metric: d.r, // real circle size, so bigger-value leaves always get first claim
text: d.label,
maxFontSize: fontSize,
minFontSize: LEAF_FONT_MIN * 0.75,
bold: false,
charW: 0.56,
// Own center first, then a few nudges toward the circle's own rim —
// enough freedom to dodge a bigger neighbor's box without drifting
// onto a sibling circle.
positions: [
{ dx: 0, dy: 0 },
{ dx: 0, dy: -d.r * 0.45 },
{ dx: 0, dy: d.r * 0.45 },
{ dx: -d.r * 0.4, dy: 0 },
{ dx: d.r * 0.4, dy: 0 },
],
});
}
});
// Larger circles claim label space first.
labelCandidates.sort((a, b) => b.metric - a.metric);
const placedRects = [];
const rectsOverlap = (a, b) => !(a.x2 < b.x1 || a.x1 > b.x2 || a.y2 < b.y1 || a.y1 > b.y2);
const boxFor = (cand, cx, cy, fontSize) => {
const wUnits = (cand.text.length * fontSize * cand.charW + 8) / pxPerUnit;
const hUnits = (fontSize * 1.3 + 6) / pxPerUnit;
return { x1: cx - wUnits / 2, x2: cx + wUnits / 2, y1: cy - hUnits / 2, y2: cy + hUnits / 2 };
};
const acceptLabel = (cand, node, fontSize, rect, pos) => {
placedRects.push({ ...rect, metric: cand.metric, idx: cand.idx });
node.showLabel = true;
node.labelFontSize = fontSize;
node.labelBold = cand.bold;
node.labelYOffsetUnits = pos.dy;
node.labelXOffsetUnits = pos.dx;
node.labelCharW = cand.charW;
};
// Every position is tried at full size before any position is tried at a
// smaller size (nudging beats shrinking); only the primary (center) position
// at full size may evict an already-placed label, and only if every
// colliding label belongs to a strictly smaller circle — long names are the
// usual reason a big circle's default box collides where a shorter-named
// smaller sibling's box does not.
const tryPlace = (cand, node, allowEvict) => {
for (let fontSize = cand.maxFontSize; fontSize >= cand.minFontSize; fontSize -= 1) {
for (let p = 0; p < cand.positions.length; p += 1) {
const pos = cand.positions[p];
const cx = node.x + pos.dx;
const cy = node.y + pos.dy;
const rect = boxFor(cand, cx, cy, fontSize);
const collisions = placedRects.filter((r) => rectsOverlap(rect, r));
if (collisions.length === 0) {
acceptLabel(cand, node, fontSize, rect, pos);
return true;
}
if (allowEvict && p === 0 && fontSize === cand.maxFontSize && collisions.every((r) => r.metric < cand.metric)) {
collisions.forEach((r) => placedRects.splice(placedRects.indexOf(r), 1));
acceptLabel(cand, node, fontSize, rect, pos);
return true;
}
}
}
return false;
};
const candByIdx = {};
labelCandidates.forEach((cand) => {
candByIdx[cand.idx] = cand;
tryPlace(cand, flatData[cand.idx], true);
});
// Local-monotonicity repair: a bigger leaf can still lose its label slot to
// an even-bigger sibling's box, while a smaller sibling elsewhere happens to
// sit in open space and keeps its label — within one parent cluster, evict
// that smaller sibling's label and retry the bigger circle in the freed space
// so a reader never sees "smaller labeled, bigger not" inside the same circle.
const leafByParent = {};
flatData.forEach((d, idx) => {
if (d.depth === 2) (leafByParent[d.parentId] ||= []).push(idx);
});
Object.values(leafByParent).forEach((siblingIdxs) => {
const bySizeDesc = siblingIdxs.slice().sort((a, b) => flatData[b].r - flatData[a].r);
bySizeDesc.forEach((idx) => {
const node = flatData[idx];
if (node.showLabel) return;
const cand = candByIdx[idx];
if (!cand) return;
const victimIdx = siblingIdxs.find((j) => flatData[j].showLabel && flatData[j].r < node.r);
if (victimIdx === undefined) return;
const rectPos = placedRects.findIndex((r) => r.idx === victimIdx);
if (rectPos === -1) return;
const savedRect = placedRects[rectPos];
placedRects.splice(rectPos, 1);
if (tryPlace(cand, node, false)) {
flatData[victimIdx].showLabel = false;
} else {
placedRects.push(savedRect);
}
});
});
const seriesData = flatData.map((d) => {
if (d.depth === 0) {
return {
value: [d.x, d.y, d.r],
itemStyle: { color: "transparent", borderColor: t.inkSoft, borderWidth: 1.5, opacity: 0.4 },
label: d.label,
amount: d.amount,
};
}
if (d.depth === 1) {
return {
value: [d.x, d.y, d.r],
itemStyle: { color: d.color, opacity: 0.85, borderColor: t.pageBg, borderWidth: 2.5 },
label: d.label,
amount: d.amount,
};
}
// Solid literal-mixed fill (not canvas alpha over the theme background) so
// the composited leaf color is pixel-identical between light and dark.
return {
value: [d.x, d.y, d.r],
itemStyle: { color: mixColor(d.color, "#000000", 0.82), opacity: 1, borderColor: t.pageBg, borderWidth: 1.2 },
label: d.label,
amount: d.amount,
};
});
// --- Custom-series renderers -----------------------------------------------
// Circles and labels are two separate series (circles drawn first, labels
// second) so every label chip paints on top of ALL circles — a label must
// never be covered by a sibling/child circle drawn later in tree order.
const renderCircle = (params, api) => {
const center = api.coord([api.value(0), api.value(1)]);
const rPixel = api.size([api.value(2), 0])[0];
return { type: "circle", shape: { cx: center[0], cy: center[1], r: rPixel }, style: api.style() };
};
const labeledNodes = flatData.filter((d) => d.showLabel);
const labelSeriesData = labeledNodes.map((d) => ({ value: [d.x, d.y] }));
const renderLabel = (params, api) => {
const raw = labeledNodes[params.dataIndex];
const labelCenter = api.coord([api.value(0) + raw.labelXOffsetUnits, api.value(1) + raw.labelYOffsetUnits]);
const w = raw.label.length * raw.labelFontSize * raw.labelCharW + 8;
const h = raw.labelFontSize * 1.3 + 6;
return {
type: "group",
children: [
{
type: "rect",
shape: { x: labelCenter[0] - w / 2, y: labelCenter[1] - h / 2, width: w, height: h, r: 3 },
style: { fill: t.elevatedBg },
},
{
type: "text",
style: {
text: raw.label,
x: labelCenter[0],
y: labelCenter[1],
fill: t.ink,
fontSize: raw.labelFontSize,
fontWeight: raw.labelBold ? 600 : 500,
textAlign: "center",
textVerticalAlign: "middle",
},
},
],
};
};
// --- Chart -------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: "circlepacking-basic · javascript · echarts · anyplot.ai",
left: "center",
textStyle: { color: t.ink, fontSize: 22 },
},
// Recovers labels dropped by the static collision-avoidance layout: any
// circle (labeled or not) shows its name + budget on hover.
tooltip: {
trigger: "item",
backgroundColor: t.elevatedBg,
borderColor: t.grid,
textStyle: { color: t.ink, fontSize: 14 },
formatter: (params) => (params.data && params.data.amount != null ? `<strong>${params.data.label}</strong><br/>$${params.data.amount}M` : ""),
},
grid: { left: "9%", right: "9%", top: "12%", bottom: "6%" },
xAxis: { type: "value", min: -domain, max: domain, show: false, splitLine: { show: false } },
yAxis: { type: "value", min: -domain, max: domain, show: false, splitLine: { show: false } },
series: [
{
type: "custom",
coordinateSystem: "cartesian2d",
renderItem: renderCircle,
data: seriesData,
clip: false,
},
{
type: "custom",
coordinateSystem: "cartesian2d",
renderItem: renderLabel,
data: labelSeriesData,
tooltip: { show: false },
clip: false,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/circlepacking-basic/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "circlepacking-basic",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/circlepacking-basic/javascript/echarts",
"hub": "https://anyplot.ai/circlepacking-basic",
"code_json": "https://api.anyplot.ai/specs/circlepacking-basic/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/circlepacking-basic",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/circlepacking-basic/javascript/echarts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/circlepacking-basic/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/circlepacking-basic/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/circlepacking-basic/javascript/echarts/plot-dark.html",
"quality_score": 90.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Circle Packing Chart on anyplot.ai.
