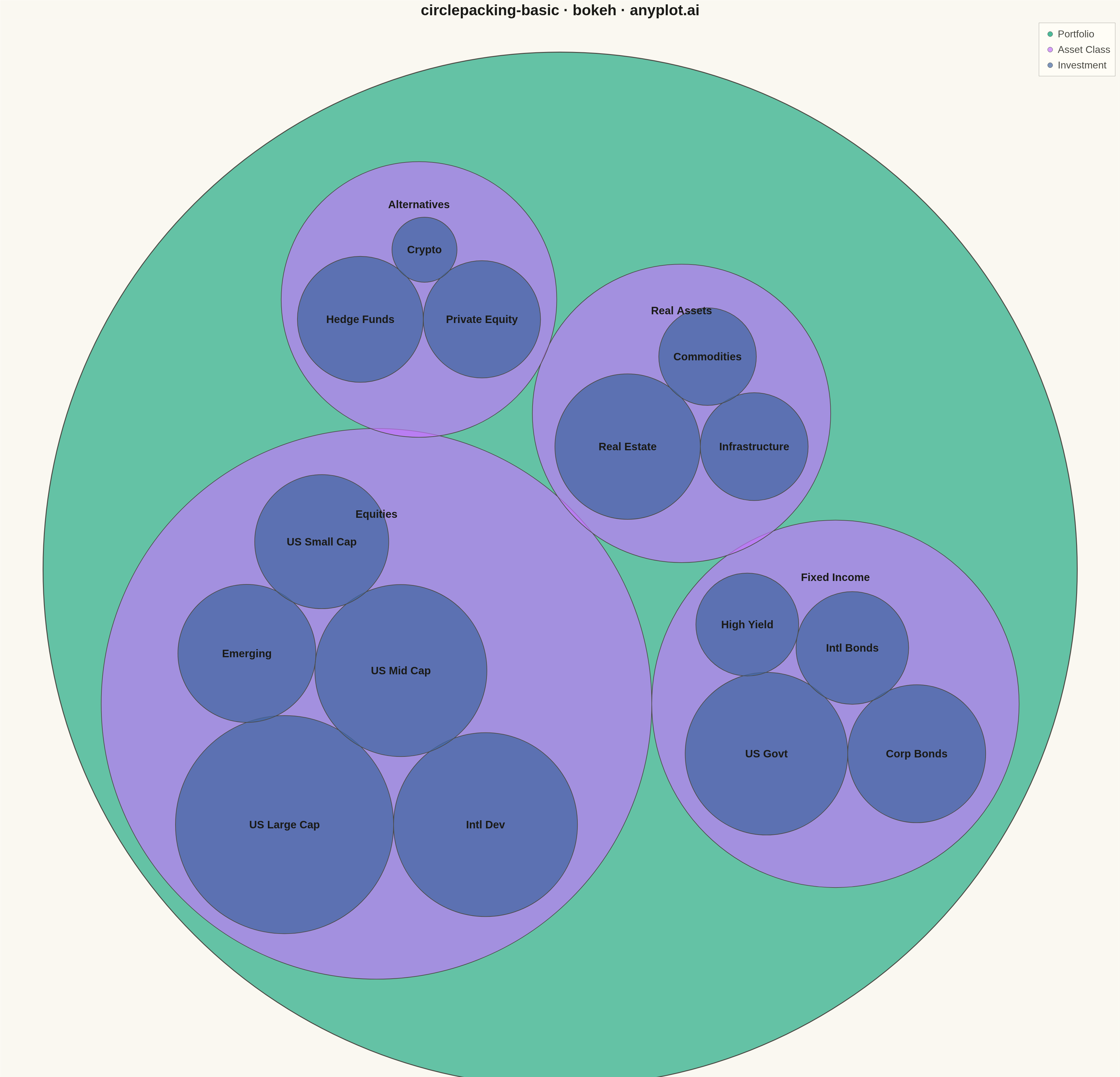

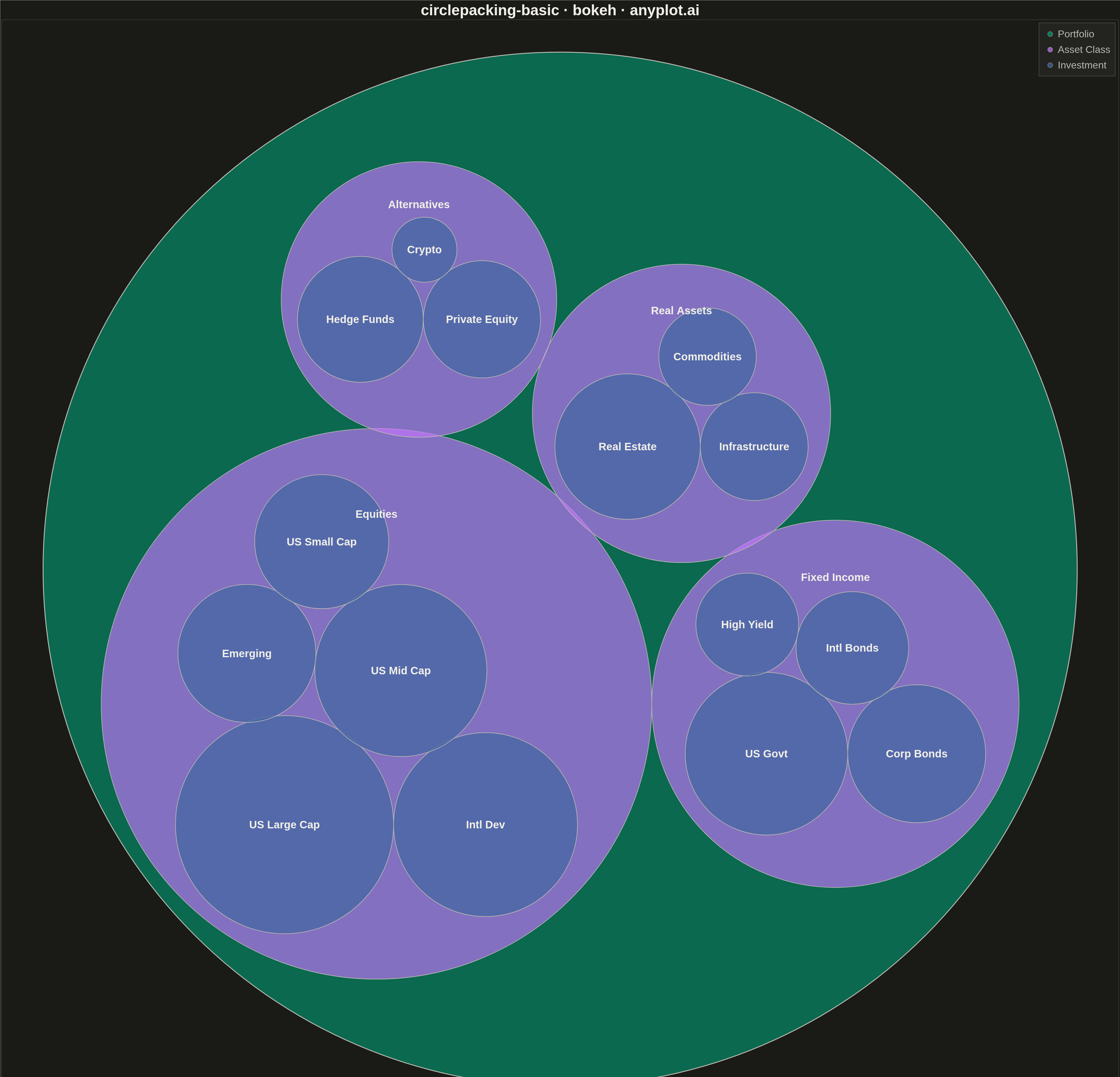

A circle packing chart displays hierarchical data as nested circles, where each circle contains smaller circles representing its children. Circle size is proportional to node value, and circles are packed efficiently without overlap. This visualization excels at revealing hierarchical structures while simultaneously showing quantitative relationships through area encoding.
""" anyplot.ai
circlepacking-basic: Circle Packing Chart
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-11
"""
import os
import time
from pathlib import Path
import numpy as np
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool, LabelSet, Legend, LegendItem
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
np.random.seed(42)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Okabe-Ito palette for hierarchy levels
IMPRINT = ["#009E73", "#C475FD", "#4467A3"]
# Build hierarchical data: Portfolio composition by asset class (in millions)
hierarchy = [
{"id": "Portfolio", "parent": None, "value": 0, "label": "Portfolio"},
# Equities
{"id": "Equities", "parent": "Portfolio", "value": 0, "label": "Equities"},
{"id": "US-Large-Cap", "parent": "Equities", "value": 450, "label": "US Large Cap"},
{"id": "US-Mid-Cap", "parent": "Equities", "value": 280, "label": "US Mid Cap"},
{"id": "US-Small-Cap", "parent": "Equities", "value": 170, "label": "US Small Cap"},
{"id": "Intl-Dev", "parent": "Equities", "value": 320, "label": "Intl Dev"},
{"id": "Emerging", "parent": "Equities", "value": 180, "label": "Emerging"},
# Fixed Income
{"id": "Fixed-Income", "parent": "Portfolio", "value": 0, "label": "Fixed Income"},
{"id": "US-Govt", "parent": "Fixed-Income", "value": 250, "label": "US Govt"},
{"id": "Corp-Bonds", "parent": "Fixed-Income", "value": 180, "label": "Corp Bonds"},
{"id": "Int-Bonds", "parent": "Fixed-Income", "value": 120, "label": "Intl Bonds"},
{"id": "High-Yield", "parent": "Fixed-Income", "value": 100, "label": "High Yield"},
# Real Assets
{"id": "Real-Assets", "parent": "Portfolio", "value": 0, "label": "Real Assets"},
{"id": "Real-Estate", "parent": "Real-Assets", "value": 200, "label": "Real Estate"},
{"id": "Commodities", "parent": "Real-Assets", "value": 90, "label": "Commodities"},
{"id": "Infrastructure", "parent": "Real-Assets", "value": 110, "label": "Infrastructure"},
# Alternatives
{"id": "Alternatives", "parent": "Portfolio", "value": 0, "label": "Alternatives"},
{"id": "Hedge-Funds", "parent": "Alternatives", "value": 150, "label": "Hedge Funds"},
{"id": "Private-Equity", "parent": "Alternatives", "value": 130, "label": "Private Equity"},
{"id": "Crypto", "parent": "Alternatives", "value": 40, "label": "Crypto"},
]
# Build tree structure
nodes = {item["id"]: {**item, "children": [], "x": 0.0, "y": 0.0, "r": 0.0, "depth": 0} for item in hierarchy}
root = None
for _node_id, node in nodes.items():
if node["parent"] is None:
root = node
else:
parent = nodes[node["parent"]]
parent["children"].append(node)
node["depth"] = parent["depth"] + 1
scale_factor = 12
# Compute layout bottom-up
for node in nodes.values():
if not node["children"]:
node["r"] = np.sqrt(node["value"]) * scale_factor
max_depth = max(n["depth"] for n in nodes.values())
for current_depth in range(max_depth, -1, -1):
nodes_at_depth = [n for n in nodes.values() if n["depth"] == current_depth and n["children"]]
for node in nodes_at_depth:
children = node["children"]
children.sort(key=lambda c: -c["r"])
n_children = len(children)
if n_children == 1:
children[0]["x"] = 0.0
children[0]["y"] = 0.0
elif n_children >= 2:
c0, c1 = children[0], children[1]
c0["x"] = 0.0
c0["y"] = 0.0
c1["x"] = c0["r"] + c1["r"]
c1["y"] = 0.0
if n_children >= 3:
c2 = children[2]
d01 = c0["r"] + c1["r"]
d02 = c0["r"] + c2["r"]
d12 = c1["r"] + c2["r"]
x2 = (d02**2 - d12**2 + d01**2) / (2 * d01)
y2_sq = d02**2 - x2**2
c2["x"] = x2
c2["y"] = np.sqrt(max(0, y2_sq))
for i in range(3, n_children):
ci = children[i]
best_score = float("inf")
best_pos = (0.0, 0.0)
for j in range(i):
for k in range(j + 1, i):
cj, ck = children[j], children[k]
dx = ck["x"] - cj["x"]
dy = ck["y"] - cj["y"]
d = np.sqrt(dx**2 + dy**2)
if d < 1e-10:
continue
r1 = cj["r"] + ci["r"]
r2 = ck["r"] + ci["r"]
if d > r1 + r2 + 1e-6 or d < abs(r1 - r2) - 1e-6:
continue
a = (r1**2 - r2**2 + d**2) / (2 * d)
h_sq = r1**2 - a**2
if h_sq < 0:
continue
h = np.sqrt(h_sq)
mx = cj["x"] + a * dx / d
my = cj["y"] + a * dy / d
for px, py in [(mx - h * dy / d, my + h * dx / d), (mx + h * dy / d, my - h * dx / d)]:
valid = True
for m in range(i):
cm = children[m]
dist = np.sqrt((px - cm["x"]) ** 2 + (py - cm["y"]) ** 2)
if dist < ci["r"] + cm["r"] - 1e-6:
valid = False
break
if valid:
cx = sum(children[m]["x"] for m in range(i)) / i
cy = sum(children[m]["y"] for m in range(i)) / i
score = np.sqrt((px - cx) ** 2 + (py - cy) ** 2)
if score < best_score:
best_score = score
best_pos = (px, py)
ci["x"], ci["y"] = best_pos
if children:
min_x = min(c["x"] - c["r"] for c in children)
max_x = max(c["x"] + c["r"] for c in children)
min_y = min(c["y"] - c["r"] for c in children)
max_y = max(c["y"] + c["r"] for c in children)
cx = (min_x + max_x) / 2
cy = (min_y + max_y) / 2
enc_r = max(np.sqrt((c["x"] - cx) ** 2 + (c["y"] - cy) ** 2) + c["r"] for c in children)
for child in children:
child["x"] -= cx
child["y"] -= cy
node["r"] = enc_r + 30
# Position children relative to parent (top-down)
stack = [(root, 0.0, 0.0)]
while stack:
current, px, py = stack.pop()
current["x"] = px
current["y"] = py
for child in current["children"]:
stack.append((child, px + child["x"], py + child["y"]))
# Collect all nodes for plotting
all_circles = []
stack = [root]
while stack:
current = stack.pop()
all_circles.append(current)
stack.extend(current["children"])
# Prepare data for plotting
x_vals = [n["x"] for n in all_circles]
y_vals = [n["y"] for n in all_circles]
radii = [n["r"] for n in all_circles]
depths = [n["depth"] for n in all_circles]
labels = [n["label"] for n in all_circles]
values = [n["value"] for n in all_circles]
# Color by depth using Okabe-Ito palette
colors = [IMPRINT[min(d, 2)] for d in depths]
depth_names = ["Portfolio", "Asset Class", "Investment"]
depth_labels = [depth_names[min(d, 2)] for d in depths]
# Create figure (square aspect)
p = figure(
width=3600,
height=3600,
title="circlepacking-basic · bokeh · anyplot.ai",
match_aspect=True,
toolbar_location=None,
tools="",
)
# Sort by depth and radius for proper layering
sorted_indices = sorted(range(len(all_circles)), key=lambda i: (depths[i], -radii[i]))
# Draw circles with ColumnDataSource for hover
circle_data = {
"x": [x_vals[i] for i in sorted_indices],
"y": [y_vals[i] for i in sorted_indices],
"radius": [radii[i] for i in sorted_indices],
"color": [colors[i] for i in sorted_indices],
"alpha": [0.6 if depths[i] == 0 else (0.65 if depths[i] == 1 else 0.75) for i in sorted_indices],
"line_width": [3 if depths[i] == 0 else 2 for i in sorted_indices],
"label": [labels[i] for i in sorted_indices],
"depth_label": [depth_labels[i] for i in sorted_indices],
"value": [values[i] for i in sorted_indices],
}
circle_source = ColumnDataSource(data=circle_data)
circles_glyph = p.circle(
x="x",
y="y",
radius="radius",
fill_color="color",
fill_alpha="alpha",
line_color=INK_SOFT,
line_width="line_width",
source=circle_source,
)
# Add HoverTool for interactivity
hover = HoverTool(
tooltips=[("Name", "@label"), ("Level", "@depth_label"), ("Value", "@value{0} M$")],
renderers=[circles_glyph],
mode="mouse",
)
p.add_tools(hover)
# Create legend for depth colors
legend_items = []
for color, name in zip(IMPRINT[:3], depth_names, strict=True):
dummy_source = ColumnDataSource(data={"x": [-99999], "y": [-99999], "r": [10]})
dummy_circle = p.circle(
x="x", y="y", radius="r", fill_color=color, fill_alpha=0.7, line_color=INK_SOFT, source=dummy_source
)
legend_items.append(LegendItem(label=name, renderers=[dummy_circle]))
legend = Legend(items=legend_items, location="top_right", label_text_font_size="24pt", glyph_height=40, glyph_width=40)
legend.background_fill_color = ELEVATED_BG
legend.background_fill_alpha = 0.95
legend.border_line_color = INK_SOFT
legend.label_text_color = INK_SOFT
legend.padding = 15
legend.spacing = 10
p.add_layout(legend)
# Prepare labels for larger circles
label_data = {"x": [], "y": [], "label": []}
for node in all_circles:
if not node["children"] and node["r"] >= 50:
label_data["x"].append(node["x"])
label_data["y"].append(node["y"])
label_data["label"].append(node["label"])
elif node["depth"] == 1:
label_data["x"].append(node["x"])
label_data["y"].append(node["y"] + node["r"] * 0.7)
label_data["label"].append(node["label"])
label_source = ColumnDataSource(data=label_data)
label_set = LabelSet(
x="x",
y="y",
text="label",
source=label_source,
text_align="center",
text_baseline="middle",
text_font_size="26pt",
text_color=INK,
text_font_style="bold",
)
p.add_layout(label_set)
# Style with theme-adaptive chrome
p.title.text_font_size = "36pt"
p.title.text_color = INK
p.title.align = "center"
p.xaxis.visible = False
p.yaxis.visible = False
p.xgrid.visible = False
p.ygrid.visible = False
p.outline_line_color = None
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
# Set axis ranges
extent = root["r"] * 1.08
p.x_range.start = -extent
p.x_range.end = extent
p.y_range.start = -extent
p.y_range.end = extent
# Save HTML
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot with Selenium
W, H = 3600, 3600
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
driver.save_screenshot(f"plot-{THEME}.png")
driver.quit()
