Confusion Matrix Heatmap — Apache ECharts

A specialized heatmap visualization for evaluating classification model performance, displaying the counts or proportions of predicted vs actual class labels. The confusion matrix reveals true positives, false positives, true negatives, and false negatives at a glance, making it essential for understanding model behavior, identifying class imbalances, and diagnosing specific misclassification patterns.

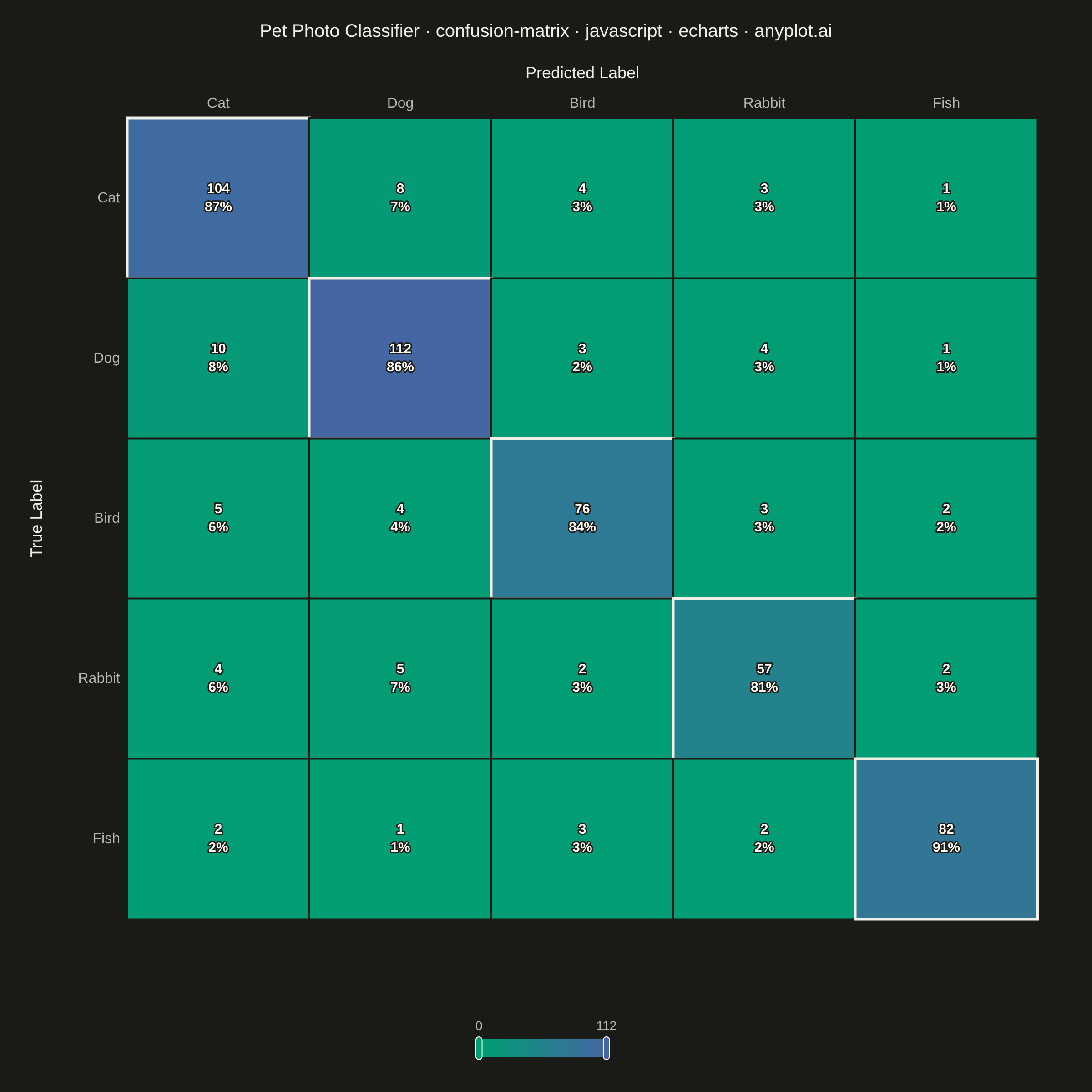

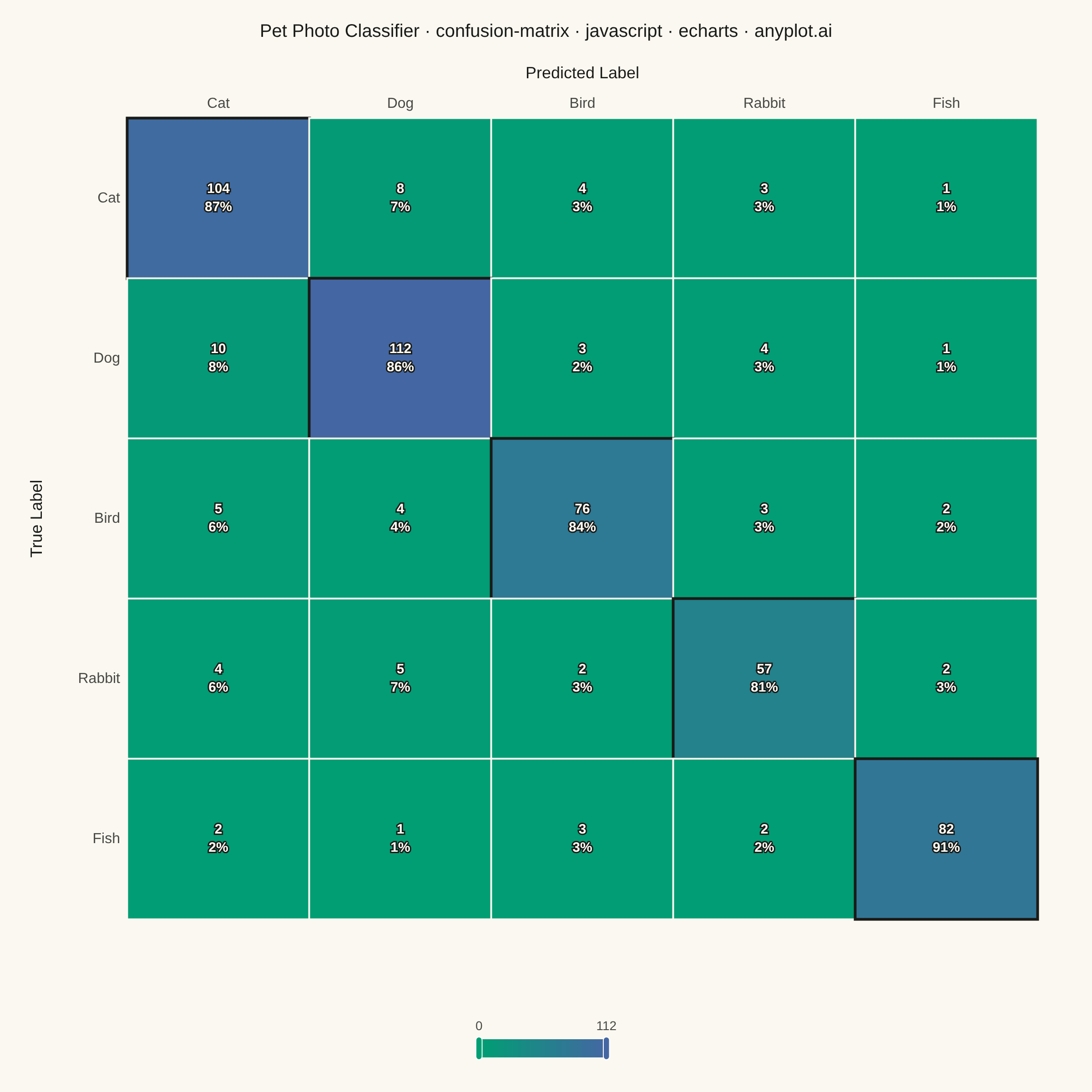

Confusion Matrix Heatmap rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// confusion-matrix: Confusion Matrix Heatmap
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 90/100 | Created: 2026-09-04

//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// A pet-photo classifier's confusion matrix on a 500-image held-out test set.
// Rows = true label, columns = predicted label.
const classNames = ["Cat", "Dog", "Bird", "Rabbit", "Fish"];
const matrix = [
  [104, 8, 4, 3, 1], // Cat
  [10, 112, 3, 4, 1], // Dog
  [5, 4, 76, 3, 2], // Bird
  [4, 5, 2, 57, 2], // Rabbit
  [2, 1, 3, 2, 82], // Fish
];

const heatmapData = [];
matrix.forEach((row, rowIdx) => {
  const rowTotal = row.reduce((sum, v) => sum + v, 0);
  row.forEach((value, colIdx) => {
    const pct = (value / rowTotal) * 100;
    heatmapData.push({
      value: [colIdx, rowIdx, value],
      label: { formatter: `${value}\n${pct.toFixed(0)}%` },
      itemStyle:
        colIdx === rowIdx
          ? { borderColor: t.ink, borderWidth: 3 }
          : { borderColor: t.pageBg, borderWidth: 2 },
    });
  });
});

// --- Title (length-scaled fontsize) -----------------------------------------
const title = "Pet Photo Classifier · confusion-matrix · javascript · echarts · anyplot.ai";
const titleFontSize = Math.max(15, Math.round(22 * Math.min(1, 67 / title.length)));

// --- Init ---------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option -------------------------------------------------------------
chart.setOption({
  animation: false,
  backgroundColor: "transparent",
  title: {
    text: title,
    left: "center",
    top: 20,
    textStyle: { color: t.ink, fontSize: titleFontSize, fontWeight: 500 },
  },
  grid: { left: 140, right: 60, top: 130, bottom: 190 },
  xAxis: {
    type: "category",
    data: classNames,
    name: "Predicted Label",
    nameLocation: "middle",
    nameGap: 40,
    nameTextStyle: { color: t.ink, fontSize: 18 },
    position: "top",
    axisLabel: { color: t.inkSoft, fontSize: 16 },
    axisLine: { show: false },
    axisTick: { show: false },
    splitArea: { show: false },
  },
  yAxis: {
    type: "category",
    data: classNames,
    inverse: true,
    name: "True Label",
    nameLocation: "middle",
    nameGap: 90,
    nameTextStyle: { color: t.ink, fontSize: 18 },
    axisLabel: { color: t.inkSoft, fontSize: 16 },
    axisLine: { show: false },
    axisTick: { show: false },
    splitArea: { show: false },
  },
  visualMap: {
    min: 0,
    max: 112,
    calculable: true,
    orient: "horizontal",
    left: "center",
    bottom: 20,
    inRange: { color: t.seq },
    textStyle: { color: t.inkSoft, fontSize: 14 },
  },
  series: [
    {
      type: "heatmap",
      data: heatmapData,
      label: {
        show: true,
        color: "#FFFDF6",
        textBorderColor: "#1A1A17",
        textBorderWidth: 3,
        fontSize: 15,
        fontWeight: 600,
        lineHeight: 20,
      },
      emphasis: {
        itemStyle: { shadowBlur: 0 },
      },
    },
  ],
});

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/confusion-matrix/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "confusion-matrix",
  "language": "javascript",
  "library": "echarts",
  "page": "https://anyplot.ai/confusion-matrix/javascript/echarts",
  "hub": "https://anyplot.ai/confusion-matrix",
  "code_json": "https://api.anyplot.ai/specs/confusion-matrix/echarts/code",
  "spec_json": "https://api.anyplot.ai/specs/confusion-matrix",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/confusion-matrix/javascript/echarts/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/confusion-matrix/javascript/echarts/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/confusion-matrix/javascript/echarts/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/confusion-matrix/javascript/echarts/plot-dark.html",
  "quality_score": 90.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Confusion Matrix Heatmap on anyplot.ai.
