Confusion Matrix Heatmap — Seaborn

A specialized heatmap visualization for evaluating classification model performance, displaying the counts or proportions of predicted vs actual class labels. The confusion matrix reveals true positives, false positives, true negatives, and false negatives at a glance, making it essential for understanding model behavior, identifying class imbalances, and diagnosing specific misclassification patterns.

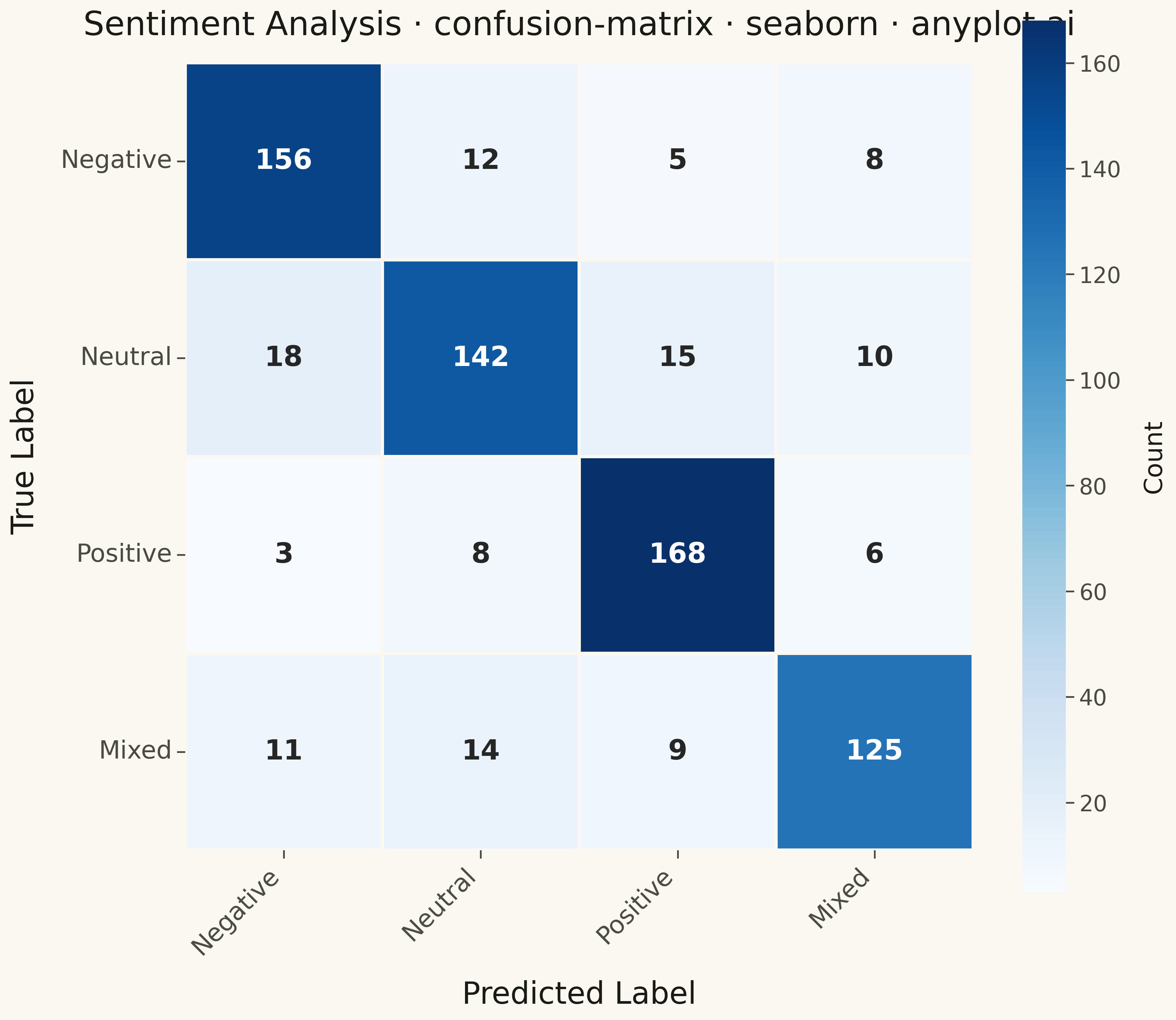

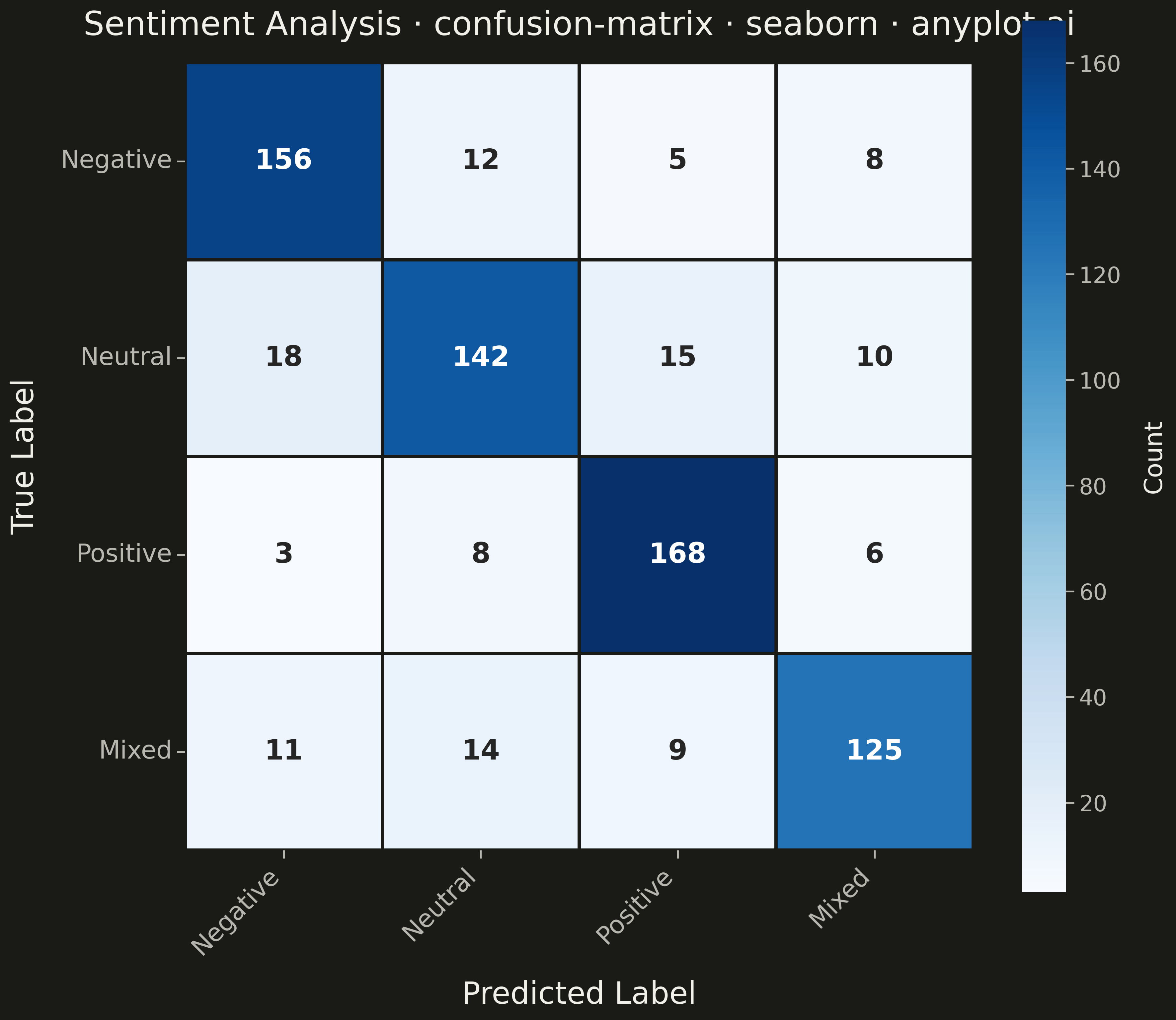

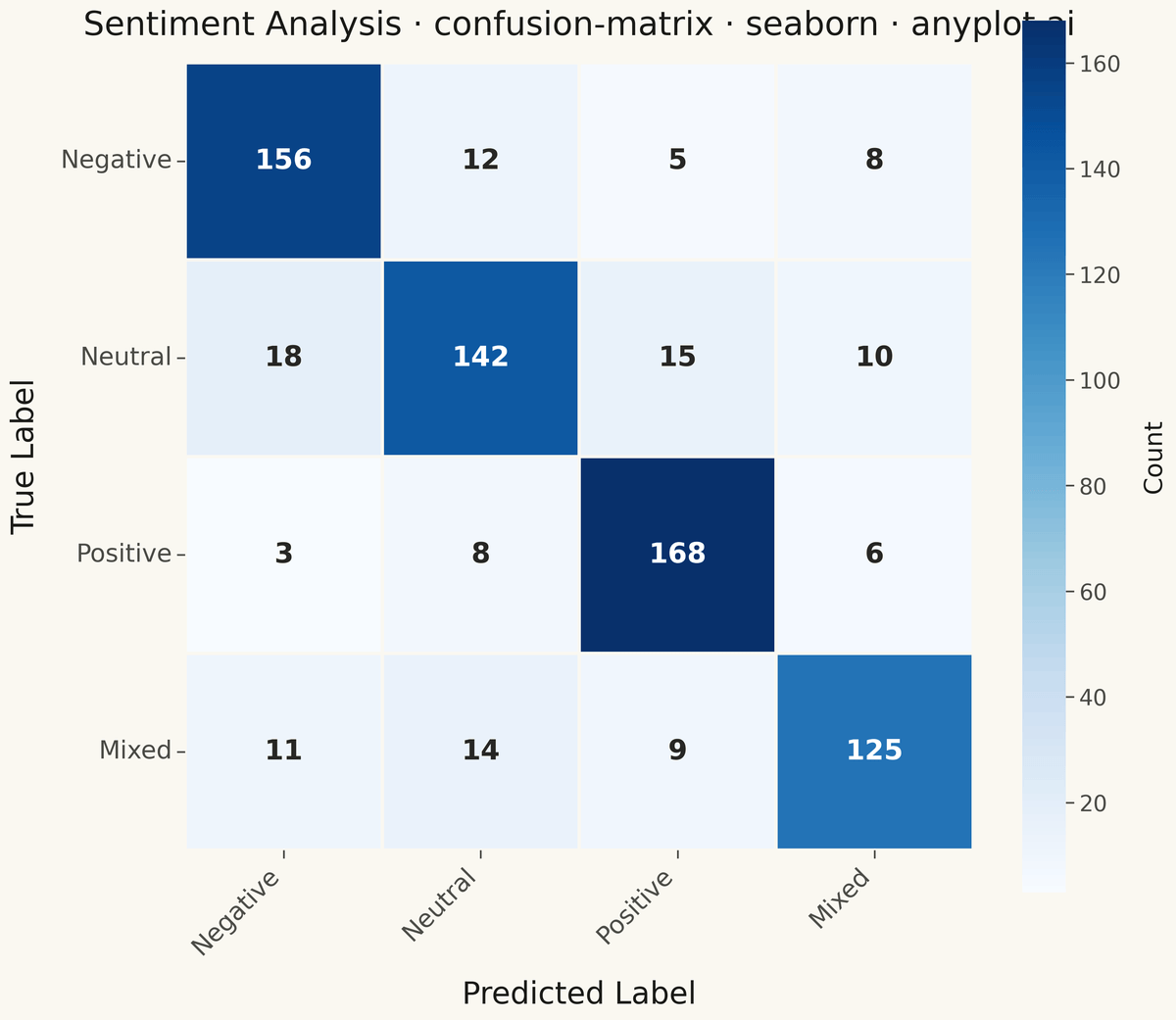

Confusion Matrix Heatmap rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
confusion-matrix: Confusion Matrix Heatmap
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 82/100 | Updated: 2026-05-09
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Data - Multi-class classification results for a sentiment analysis model
np.random.seed(42)
class_names = ["Negative", "Neutral", "Positive", "Mixed"]

# Create realistic confusion matrix with strong diagonal (good model)
# but with some systematic confusion patterns
confusion_matrix = np.array(
    [
        [156, 12, 5, 8],  # Negative: mostly correct, some confused with Neutral
        [18, 142, 15, 10],  # Neutral: hardest to classify, confused with all
        [3, 8, 168, 6],  # Positive: good accuracy
        [11, 14, 9, 125],  # Mixed: often confused with Neutral
    ]
)

# Configure theme-adaptive styling
sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.10,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

# Create figure (square format for symmetric matrix)
fig, ax = plt.subplots(figsize=(12, 12), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Create heatmap with annotations
sns.heatmap(
    confusion_matrix,
    annot=True,
    fmt="d",
    cmap="Blues",
    xticklabels=class_names,
    yticklabels=class_names,
    square=True,
    linewidths=2,
    linecolor=PAGE_BG,
    cbar_kws={"shrink": 0.8},
    annot_kws={"size": 20, "weight": "bold"},
    ax=ax,
)

# Style the colorbar
cbar = ax.collections[0].colorbar
cbar.ax.tick_params(labelsize=16, colors=INK_SOFT)
cbar.ax.set_ylabel("Count", fontsize=18, labelpad=15, color=INK)

# Labels and title
ax.set_xlabel("Predicted Label", fontsize=22, labelpad=15, color=INK)
ax.set_ylabel("True Label", fontsize=22, labelpad=15, color=INK)
ax.set_title("Sentiment Analysis · confusion-matrix · seaborn · anyplot.ai", fontsize=24, pad=20, color=INK)

# Style tick labels
ax.tick_params(axis="both", labelsize=18, colors=INK_SOFT)

# Rotate x-axis labels for better readability
plt.xticks(rotation=45, ha="right")
plt.yticks(rotation=0)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Confusion Matrix Heatmap on anyplot.ai.
