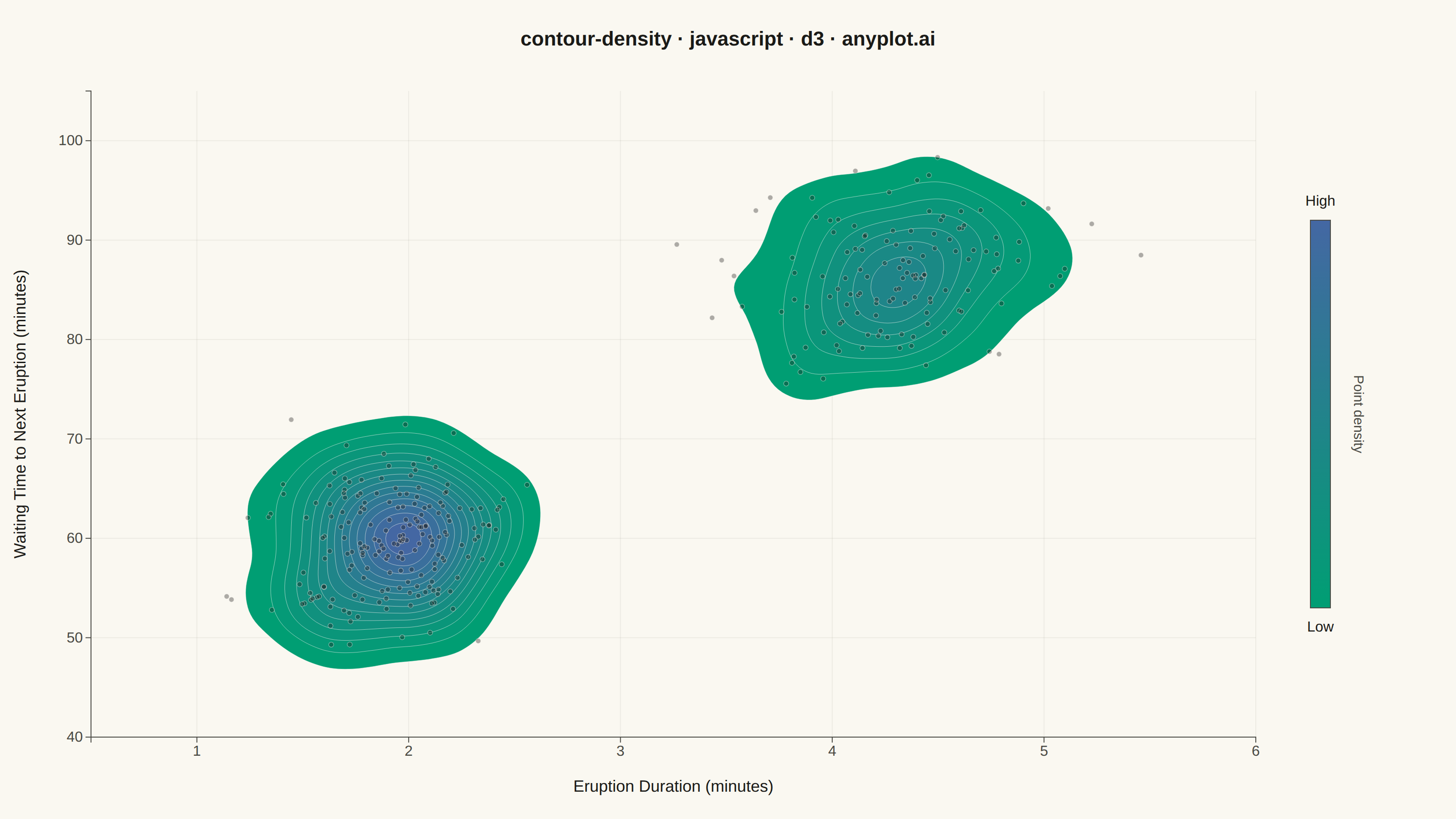

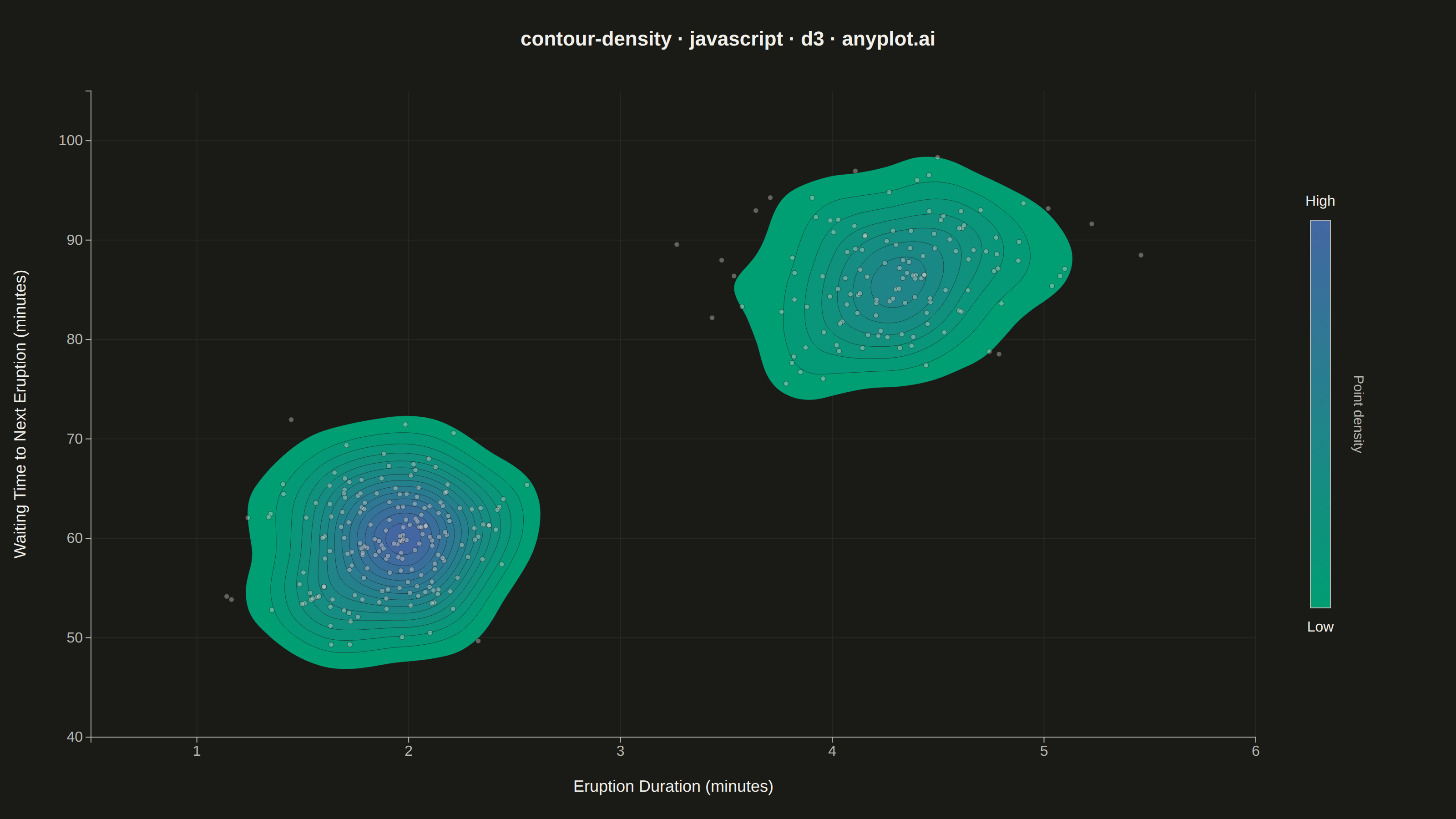

A density contour plot (also known as a 2D KDE contour plot) displays the concentration of points in a 2D scatter plot using contour lines. The contours connect points of equal density, revealing clusters, patterns, and the overall bivariate distribution shape.
// anyplot.ai
// contour-density: Density Contour Plot
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 89/100 | Created: 2026-09-04
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
// --- Data ---------------------------------------------------------------
// Geyser eruption duration vs. waiting time to the next eruption — a classic
// bimodal bivariate pattern (short/quick eruptions vs. long/slow ones) that
// makes multi-level density contours meaningful. Deterministic LCG + Box-Muller
// stand in for a seeded RNG (the browser has none).
let seed = 42;
function lcg() {
seed = (seed * 1664525 + 1013904223) % 4294967296;
return seed / 4294967296;
}
function gaussian() {
const u1 = Math.max(lcg(), 1e-9);
const u2 = lcg();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
const points = [];
const n = 320;
for (let i = 0; i < n; i++) {
const isShortBurst = lcg() < 0.62;
const duration = isShortBurst ? 1.9 + gaussian() * 0.28 : 4.35 + gaussian() * 0.38;
const wait = isShortBurst
? 54 + duration * 3.2 + gaussian() * 4.5
: 76 + duration * 2.4 + gaussian() * 5;
points.push({ duration, wait });
}
// --- SVG mount ------------------------------------------------------------
const margin = { top: 100, right: 220, bottom: 90, left: 100 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
// --- Scales -----------------------------------------------------------------
const durationExtent = d3.extent(points, (d) => d.duration);
const waitExtent = d3.extent(points, (d) => d.wait);
const durationPad = (durationExtent[1] - durationExtent[0]) * 0.12;
const waitPad = (waitExtent[1] - waitExtent[0]) * 0.12;
const x = d3
.scaleLinear()
.domain([durationExtent[0] - durationPad, durationExtent[1] + durationPad])
.range([0, iw])
.nice();
const y = d3
.scaleLinear()
.domain([waitExtent[0] - waitPad, waitExtent[1] + waitPad])
.range([ih, 0])
.nice();
// --- Background grid (subtle, sits behind the contour fill) ---------------
g.append("g")
.attr("class", "grid")
.selectAll("line.x-grid")
.data(x.ticks(7))
.join("line")
.attr("x1", (d) => x(d))
.attr("x2", (d) => x(d))
.attr("y1", 0)
.attr("y2", ih)
.attr("stroke", t.grid)
.attr("stroke-opacity", 0.4);
g.append("g")
.attr("class", "grid")
.selectAll("line.y-grid")
.data(y.ticks(7))
.join("line")
.attr("x1", 0)
.attr("x2", iw)
.attr("y1", (d) => y(d))
.attr("y2", (d) => y(d))
.attr("stroke", t.grid)
.attr("stroke-opacity", 0.4);
// --- Density contours ---------------------------------------------------
const densityData = d3
.contourDensity()
.x((d) => x(d.duration))
.y((d) => y(d.wait))
.size([iw, ih])
.bandwidth(32)
.thresholds(16)(points);
const densityExtent = d3.extent(densityData, (d) => d.value);
const color = d3.scaleSequential(d3.interpolateRgbBasis(t.seq)).domain(densityExtent);
g.append("g")
.selectAll("path")
.data(densityData)
.join("path")
.attr("d", d3.geoPath())
.attr("fill", (d) => color(d.value))
.attr("stroke", t.pageBg)
.attr("stroke-width", 0.5)
.attr("stroke-opacity", 0.6);
// --- Scatter overlay (context for the underlying point cloud) --------------
g.append("g")
.selectAll("circle")
.data(points)
.join("circle")
.attr("cx", (d) => x(d.duration))
.attr("cy", (d) => y(d.wait))
.attr("r", 2.75)
.attr("fill", t.ink)
.attr("fill-opacity", 0.35)
.attr("stroke", t.pageBg)
.attr("stroke-width", 0.6)
.attr("stroke-opacity", 0.5);
// --- Axes ---------------------------------------------------------------
const xAxis = g.append("g").attr("transform", `translate(0,${ih})`).call(d3.axisBottom(x).ticks(7));
const yAxis = g.append("g").call(d3.axisLeft(y).ticks(7));
for (const ax of [xAxis, yAxis]) {
ax.selectAll("text").attr("fill", t.inkSoft).style("font-size", "16px");
ax.selectAll("line").attr("stroke", t.inkSoft);
ax.select(".domain").attr("stroke", t.inkSoft);
}
g.append("text")
.attr("x", iw / 2)
.attr("y", ih + 60)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "18px")
.text("Eruption Duration (minutes)");
g.append("text")
.attr("transform", "rotate(-90)")
.attr("x", -ih / 2)
.attr("y", -72)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "18px")
.text("Waiting Time to Next Eruption (minutes)");
// --- Title ----------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", 50)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("contour-density · javascript · d3 · anyplot.ai");
// --- Density legend (vertical gradient) ------------------------------------
const legendWidth = 22;
const legendHeight = ih * 0.6;
const legendX = margin.left + iw + 60;
const legendY = margin.top + (ih - legendHeight) / 2;
const gradient = svg
.append("defs")
.append("linearGradient")
.attr("id", "density-gradient")
.attr("x1", "0%")
.attr("x2", "0%")
.attr("y1", "100%")
.attr("y2", "0%");
const gradientStops = 10;
for (let i = 0; i <= gradientStops; i++) {
const fraction = i / gradientStops;
gradient
.append("stop")
.attr("offset", `${fraction * 100}%`)
.attr("stop-color", color(densityExtent[0] + (densityExtent[1] - densityExtent[0]) * fraction));
}
svg
.append("rect")
.attr("x", legendX)
.attr("y", legendY)
.attr("width", legendWidth)
.attr("height", legendHeight)
.attr("fill", "url(#density-gradient)")
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1);
svg
.append("text")
.attr("x", legendX + legendWidth / 2)
.attr("y", legendY - 16)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("High");
svg
.append("text")
.attr("x", legendX + legendWidth / 2)
.attr("y", legendY + legendHeight + 26)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("Low");
svg
.append("text")
.attr(
"transform",
`translate(${legendX + legendWidth + 26}, ${legendY + legendHeight / 2}) rotate(90)`
)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "15px")
.text("Point density");
