Density Contour Plot — Altair

A density contour plot (also known as a 2D KDE contour plot) displays the concentration of points in a 2D scatter plot using contour lines. The contours connect points of equal density, revealing clusters, patterns, and the overall bivariate distribution shape.

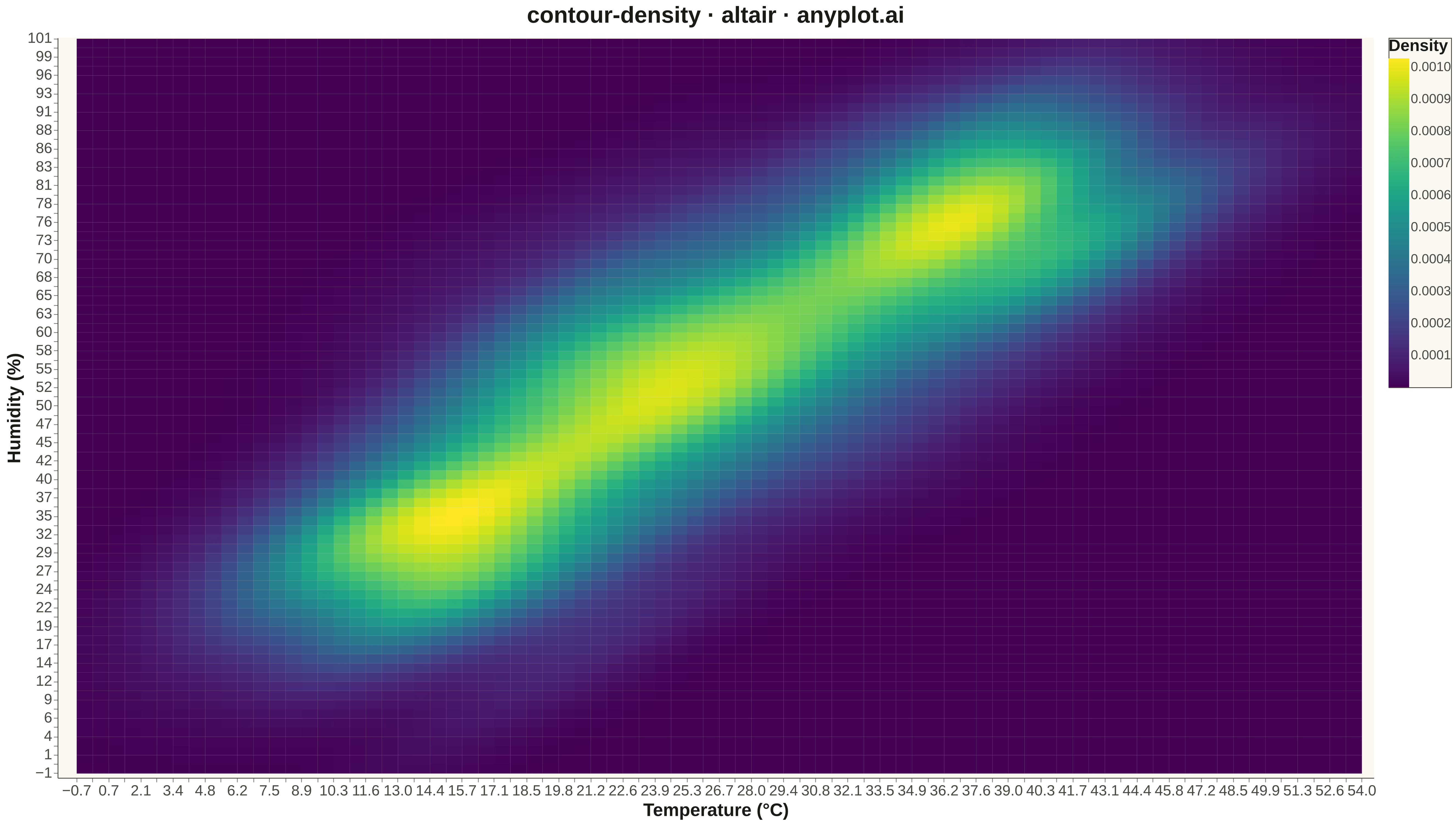

Density Contour Plot rendered with Altair

Python source (Altair)

""" anyplot.ai
contour-density: Density Contour Plot
Library: altair 6.1.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-16
"""

import os
import sys
from pathlib import Path


script_dir = str(Path(__file__).parent)
while script_dir in sys.path:
    sys.path.remove(script_dir)

import altair as alt
import numpy as np
import pandas as pd
from scipy.stats import gaussian_kde


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Data - climate measurements showing natural clusters
np.random.seed(42)

# Create three distinct clusters representing different climate conditions
n1 = 150
temp1 = np.random.normal(15, 4, n1)
humidity1 = np.random.normal(30, 8, n1)

n2 = 200
temp2 = np.random.normal(25, 5, n2)
humidity2 = np.random.normal(55, 10, n2)

n3 = 150
temp3 = np.random.normal(38, 4, n3)
humidity3 = np.random.normal(75, 8, n3)

# Combine data
temperature = np.concatenate([temp1, temp2, temp3])
humidity = np.concatenate([humidity1, humidity2, humidity3])

# Compute 2D KDE for density estimation
xy = np.vstack([temperature, humidity])
kde = gaussian_kde(xy)

# Create grid for density estimation
n_grid = 80
x_grid = np.linspace(temperature.min() - 5, temperature.max() + 5, n_grid)
y_grid = np.linspace(humidity.min() - 5, humidity.max() + 5, n_grid)
xx, yy = np.meshgrid(x_grid, y_grid)
positions = np.vstack([xx.ravel(), yy.ravel()])
z = kde(positions).reshape(xx.shape)

# Prepare grid data for heatmap
grid_data = pd.DataFrame({"x": xx.ravel(), "y": yy.ravel(), "density": z.ravel()})

# Create filled contour visualization using heatmap
x_domain = [float(temperature.min() - 6), float(temperature.max() + 6)]
y_domain = [float(humidity.min() - 6), float(humidity.max() + 6)]

chart = (
    alt.Chart(grid_data)
    .mark_rect()
    .encode(
        x=alt.X(
            "x:Q",
            bin=alt.Bin(step=(x_grid[1] - x_grid[0])),
            scale=alt.Scale(domain=x_domain),
            title="Temperature (°C)",
            axis=alt.Axis(labelFontSize=18, titleFontSize=22, grid=False, labelColor=INK_SOFT, titleColor=INK),
        ),
        y=alt.Y(
            "y:Q",
            bin=alt.Bin(step=(y_grid[1] - y_grid[0])),
            scale=alt.Scale(domain=y_domain),
            title="Humidity (%)",
            axis=alt.Axis(labelFontSize=18, titleFontSize=22, grid=False, labelColor=INK_SOFT, titleColor=INK),
        ),
        color=alt.Color(
            "mean(density):Q",
            scale=alt.Scale(scheme="viridis"),
            title="Density",
            legend=alt.Legend(
                titleFontSize=20,
                labelFontSize=16,
                gradientLength=400,
                gradientThickness=25,
                titleColor=INK,
                labelColor=INK_SOFT,
                fillColor=PAGE_BG,
                strokeColor=INK_SOFT,
            ),
        ),
    )
    .properties(
        width=1600,
        height=900,
        title=alt.Title(text="contour-density · altair · anyplot.ai", fontSize=28, anchor="middle", color=INK),
    )
    .configure_view(fill=PAGE_BG, stroke=None, strokeWidth=0)
    .configure_axis(domainColor=INK_SOFT, gridOpacity=0.0)
)

# Save outputs
chart.save(f"plot-{THEME}.png", scale_factor=3.0)
chart.save(f"plot-{THEME}.html")

Part of Density Contour Plot on anyplot.ai.
