Basic Error Bar Plot — Altair

An error bar plot displays data points with associated uncertainty or variability represented by bars extending above and below (or left and right of) each point. Error bars commonly represent standard deviation, standard error, confidence intervals, or min/max ranges. This visualization is essential for communicating the reliability and precision of measurements or statistical estimates.

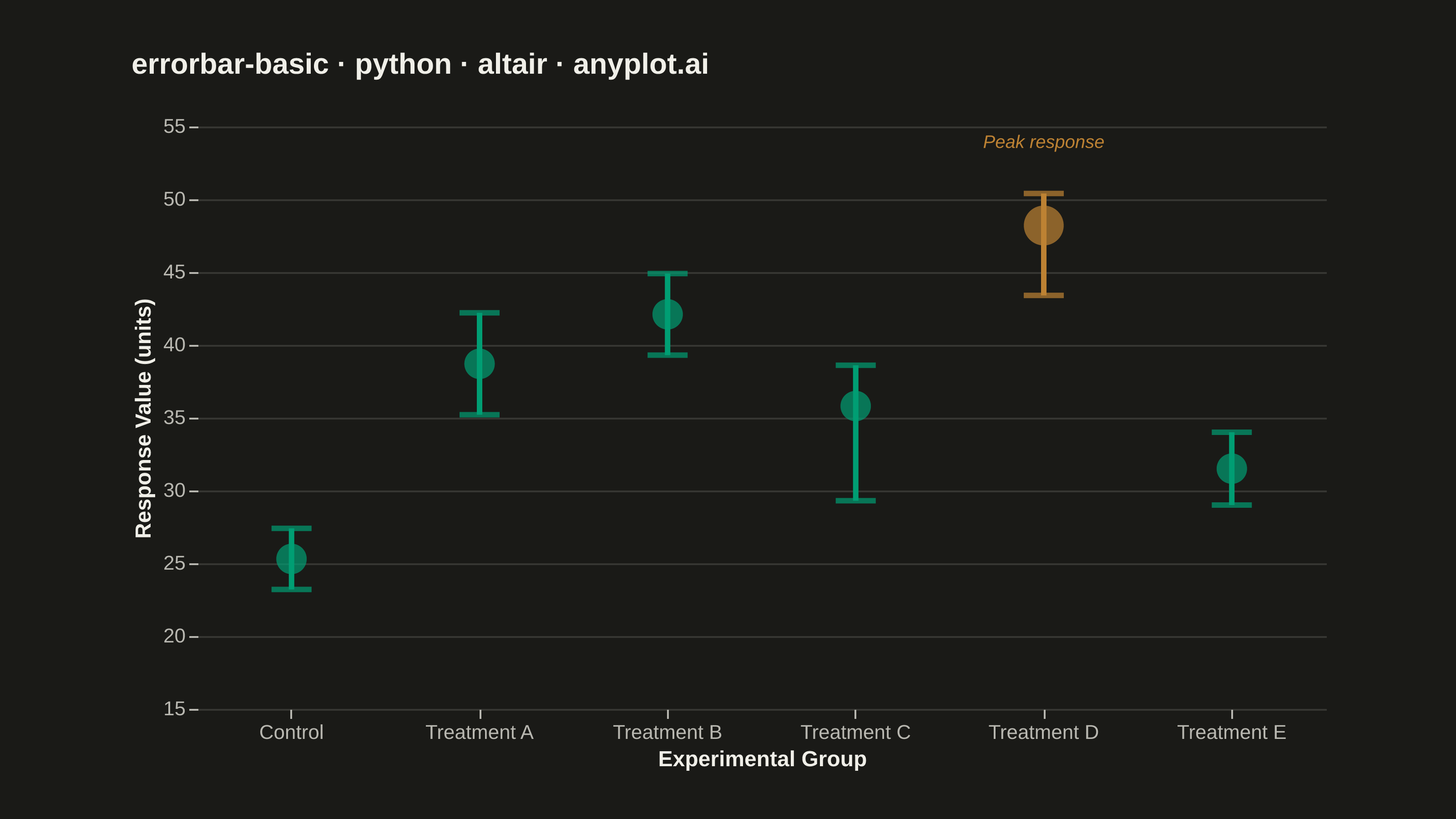

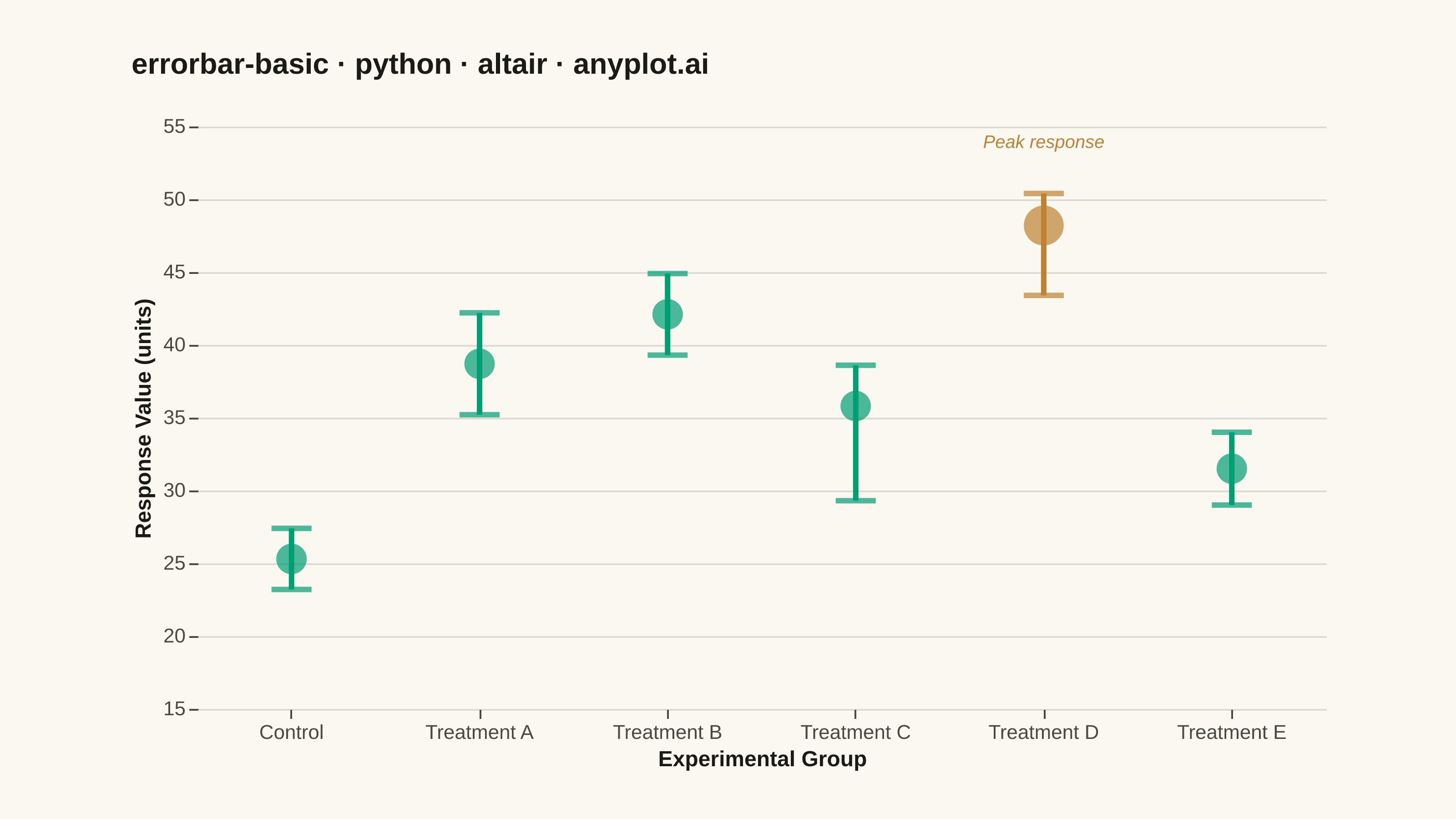

Basic Error Bar Plot rendered with Altair

Python source (Altair)

""" anyplot.ai
errorbar-basic: Basic Error Bar Plot
Library: altair 6.2.2 | Python 3.13.14
Quality: 94/100 | Updated: 2026-06-30
"""

import importlib
import os
import sys


# Drop script directory from sys.path so the `altair` package resolves, not this file
sys.path[:] = [p for p in sys.path if os.path.abspath(p or ".") != os.path.dirname(os.path.abspath(__file__))]
alt = importlib.import_module("altair")
np = importlib.import_module("numpy")
pd = importlib.import_module("pandas")
PILImage = importlib.import_module("PIL.Image")

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73"  # Imprint palette position 1
ACCENT = "#BD8233"  # Imprint ochre — highlights peak-response group

# Data
np.random.seed(42)
categories = ["Control", "Treatment A", "Treatment B", "Treatment C", "Treatment D", "Treatment E"]
y_values = [25.3, 38.7, 42.1, 35.8, 48.2, 31.5]

# Asymmetric errors: Treatment C shows wide lower bound; Treatment D peaks highest
asymmetric_lower = [2.1, 3.5, 2.8, 6.5, 4.8, 2.5]
asymmetric_upper = [2.1, 3.5, 2.8, 2.8, 2.2, 2.5]

df = pd.DataFrame(
    {
        "category": categories,
        "value": y_values,
        "error_lower": [y - el for y, el in zip(y_values, asymmetric_lower, strict=True)],
        "error_upper": [y + eu for y, eu in zip(y_values, asymmetric_upper, strict=True)],
    }
)

# Plot
y_scale = alt.Scale(domain=[15, 55], nice=False)
y_title = "Response Value (units)"

base = alt.Chart(df).encode(x=alt.X("category:N", title="Experimental Group", sort=categories))

# Condition-based encoding: Treatment D (peak response) accented in ochre via alt.condition()
highlight = alt.datum.category == "Treatment D"

error_bars = base.mark_rule(strokeWidth=3).encode(
    y=alt.Y("error_lower:Q", title=y_title, scale=y_scale),
    y2="error_upper:Q",
    color=alt.condition(highlight, alt.value(ACCENT), alt.value(BRAND)),
)

caps_top = base.mark_tick(thickness=3, size=22).encode(
    y=alt.Y("error_upper:Q", title=y_title, scale=y_scale),
    color=alt.condition(highlight, alt.value(ACCENT), alt.value(BRAND)),
)

caps_bottom = base.mark_tick(thickness=3, size=22).encode(
    y=alt.Y("error_lower:Q", title=y_title, scale=y_scale),
    color=alt.condition(highlight, alt.value(ACCENT), alt.value(BRAND)),
)

points = base.mark_circle().encode(
    y=alt.Y("value:Q", title=y_title, scale=y_scale),
    color=alt.condition(highlight, alt.value(ACCENT), alt.value(BRAND)),
    size=alt.condition(highlight, alt.value(480), alt.value(280)),
    tooltip=[
        alt.Tooltip("category:N", title="Group"),
        alt.Tooltip("value:Q", title="Mean", format=".2f"),
        alt.Tooltip("error_lower:Q", title="Lower bound", format=".2f"),
        alt.Tooltip("error_upper:Q", title="Upper bound", format=".2f"),
    ],
)

# Annotation surfacing the "Peak response" label for Treatment D
peak_df = df[df["category"] == "Treatment D"]
annotation = (
    alt.Chart(peak_df)
    .mark_text(dy=-28, color=ACCENT, fontSize=10, fontStyle="italic", text="Peak response")
    .encode(x=alt.X("category:N", sort=categories), y=alt.Y("error_upper:Q", scale=y_scale))
)

chart = (
    alt.layer(error_bars, caps_bottom, caps_top, points, annotation)
    .properties(
        width=620,
        height=320,
        background=PAGE_BG,
        title=alt.Title(
            "errorbar-basic · python · altair · anyplot.ai", fontSize=16, color=INK, anchor="start", offset=20
        ),
    )
    .configure_view(fill=PAGE_BG, stroke=None)
    .configure_axis(
        labelFontSize=11,
        titleFontSize=12,
        labelColor=INK_SOFT,
        titleColor=INK,
        domainColor=INK_SOFT,
        domainOpacity=0,
        tickColor=INK_SOFT,
        gridColor=INK,
        gridOpacity=0.13,
        labelAngle=0,
    )
    .configure_legend(fillColor=ELEVATED_BG, strokeColor=INK_SOFT, labelColor=INK_SOFT, titleColor=INK)
)

chart.save(f"plot-{THEME}.png", scale_factor=4.0)

# Pad to exact 3200×1800 target — only expand, never crop (AR-09 guard)
TW, TH = 3200, 1800
_img = PILImage.open(f"plot-{THEME}.png").convert("RGB")
_w, _h = _img.size
if _w > TW or _h > TH:
    raise SystemExit(
        f"altair vl-convert produced {_w}×{_h}, exceeds target {TW}×{TH}. "
        f"Shrink chart .properties(width=, height=) values and re-render."
    )
if _w < TW or _h < TH:
    _canvas = PILImage.new("RGB", (TW, TH), PAGE_BG)
    _canvas.paste(_img, ((TW - _w) // 2, (TH - _h) // 2))
    _canvas.save(f"plot-{THEME}.png")

chart.save(f"plot-{THEME}.html")

Part of Basic Error Bar Plot on anyplot.ai.
